SPECjbb2015 Report for jbb2015-20250408-01583 : 670220 max-jOPS ; 421650 critical-jOPS

SUT Description

Hardware hw_1
Name	SuperServer SYS-222BT-DNR
Vendor	Supermicro
Vendor URL	https://www.supermicro.com/
Available	Jan-2025
Model	X14DBT-B
Form Factor	2U
CPU Name	Intel Xeon 6787P
CPU Characteristics	86 Core, 2.0 GHz, 336 MB L3 Cache (Turbo Boost Technology up to 3.8 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	172
Cores Per Chip	86
Threads Per System	344
Threads Per Core	2
Version	1.2
CPU Frequency (MHz)	2000
Primary Cache	64 KB I + 48 KB D on chip per core
Secondary Cache	2 MB I+D on chip per core
Tertiary Cache	336 MB I+D on chip per chip
Other Cache	None
Disk	1 x 3TB NVME SSD
File System	Ext4
Memory Amount (GB)	1024
# and size of DIMM(s)	16 x 64GB
Memory Details	64 GB 2Rx4 PC5-6400B-R
# and type of Network Interface Cards (NICs)	1x 1 Gbit NICs
Power Supply Quantity and Rating (W)	2 x 2200
Other Hardware	None
Cabinet/Housing/Enclosure	CSE-217BD2-R2K22P
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP6
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	6.4.0-150600.21-default
Available	Jun-2024
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 23.0.2
Vendor	Oracle
Vendor URL	https://www.oracle.com
Version	Java HotSpot 64-Bit Server VM, version 23.0.2
Available	Jan-2025
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Settings Power Technology = Custom Power Performance Tuning = BIOS Controls EPB ENERGY_PERF_BIAS_CFG mode = Performance
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description	os_1
Tuning	cpupower frequency-set -g performance tuned-adm profile throughput-performance sysctl net.core.wmem_max=12582912 sysctl net.core.rmem_max=12582912 sysctl net.ipv4.tcp_rmem='10240 87380 12582912' sysctl net.ipv4.tcp_wmem='10240 87380 12582912' sysctl net.core.netdev_max_backlog=655560 sysctl net.core.somaxconn=32768 sysctl net.ipv4.tcp_no_metrics_save=1 systemctl stop systemd-update-utmp-runlevel.service echo 10000 > /proc/sys/kernel/sched_cfs_bandwidth_slice_us echo 0 > /proc/sys/kernel/sched_child_runs_first echo 100 > /proc/sys/kernel/sched_rr_timeslice_ms echo 1000000 > /proc/sys/kernel/sched_rt_period_us echo 990000 > /proc/sys/kernel/sched_rt_runtime_us echo 0 > /proc/sys/kernel/sched_schedstats echo 3000 > /proc/sys/vm/dirty_expire_centisecs echo 500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled echo 0 > /proc/sys/kernel/sched_autogroup_enabled ulimit -v 800000000 ulimit -m 800000000 ulimit -l 800000000 ulimit -n 819200 echo 50000000 > /sys/kernel/debug/sched/wakeup_granularity_ns echo 1 > /sys/kernel/debug/sched/tunable_scaling echo 9 > /sys/kernel/debug/sched/nr_migrate echo 16000000 > /sys/kernel/debug/sched/latency_ns echo 28000000 > /sys/kernel/debug/sched/min_granularity_ns echo 1000 > /sys/kernel/debug/sched/migration_cost_ns
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseTransparentHugePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	numactl --interleave=all
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-showversion -XX:+UseParallelGC -XX:+UseTransparentHugePages -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=10k -verbose:gc -XX:-UseCountedLoopSafepoints -XX:LoopUnrollLimit=20 -XX:MaxGCPauseMillis=500 -XX:TargetSurvivorRatio=95 -XX:LargePageSizeInBytes=1G -XX:AdaptiveSizeMajorGCDecayTimeScale=12 -XX:AdaptiveSizeDecrementScaleFactor=2 -server -XX:AllocatePrefetchLines=3 -XX:AllocateInstancePrefetchLines=2 -XX:AllocatePrefetchStepSize=128 -XX:AllocatePrefetchDistance=384 -Xms31744m -Xmx31744m -Xmn29696m -XX:ParallelGCThreads=32 -Xlog:pagesize=trace
Tuning	Use numactl to affinitize 8 Backend JVM to CPU numa node Group1: numactl --cpunodebind=0 --localalloc Group2: numactl --cpunodebind=1 --localalloc Group3: numactl --cpunodebind=2 --localalloc Group4: numactl --cpunodebind=3 --localalloc Group5: numactl --cpunodebind=0 --localalloc Group6: numactl --cpunodebind=1 --localalloc Group7: numactl --cpunodebind=2 --localalloc Group8: numactl --cpunodebind=3 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseTransparentHugePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	Use numactl to affinitize 8 TxInjector JVM to CPU Numa node Group1: numactl --cpunodebind=0 --localalloc Group2: numactl --cpunodebind=1 --localalloc Group3: numactl --cpunodebind=2 --localalloc Group4: numactl --cpunodebind=3 --localalloc Group5: numactl --cpunodebind=0 --localalloc Group6: numactl --cpunodebind=1 --localalloc Group7: numactl --cpunodebind=2 --localalloc Group8: numactl --cpunodebind=3 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	662046	670220	678393	686566	694740

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	290156	347370	461797	519011	551705	421650

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	8173 / 16347	- / 8173	- / 8173	- / 8173	- / 8173	- / 8173
1000us	555792 / 563965	24520 / 32694	8173 / 16347	8173 / 16347	- / 8173	- / 8173
5000us	613006 / 621179	563965 / 572139	425017 / 433191	351457 / 359630	212509 / 220682	16347 / 8173
10000us	621179 / 629353	588486 / 596659	514925 / 523098	474058 / 482231	286069 / 294243	16347 / 8173
25000us	629353 / 637526	604832 / 613006	547618 / 555792	514925 / 523098	343283 / 351457	16347 / 8173
50000us	637526 / 645699	613006 / 621179	572139 / 580312	547618 / 555792	457711 / 465884	114428 / 8173
75000us	645699 / 653873	613006 / 621179	580312 / 588486	563965 / 572139	514925 / 523098	310590 / 98081
100000us	653873 / 662046	621179 / 629353	588486 / 596659	572139 / 580312	547618 / 555792	310590 / 237029
200000us	662046 / 670220	629353 / 637526	604832 / 613006	596659 / 604832	580312 / 588486	498578 / 457711
500000us	670220 / -	662046 / 670220	629353 / 637526	629353 / 637526	621179 / 629353	588486 / 596659
1000000us	670220 / -	670220 / -	670220 / -	662046 / 670220	653873 / 662046	621179 / 629353

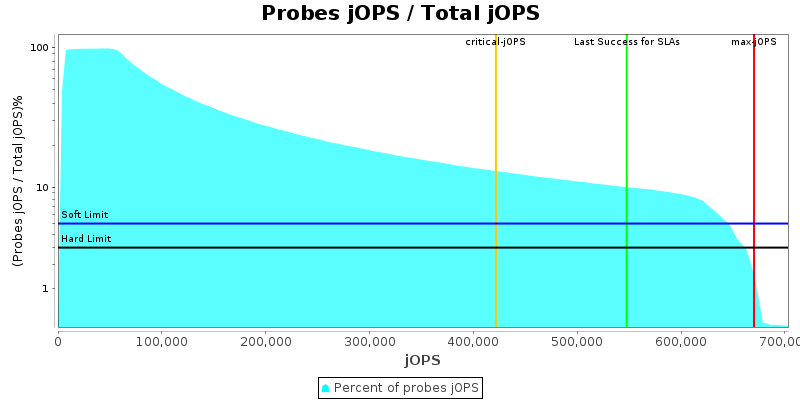

Number of probes

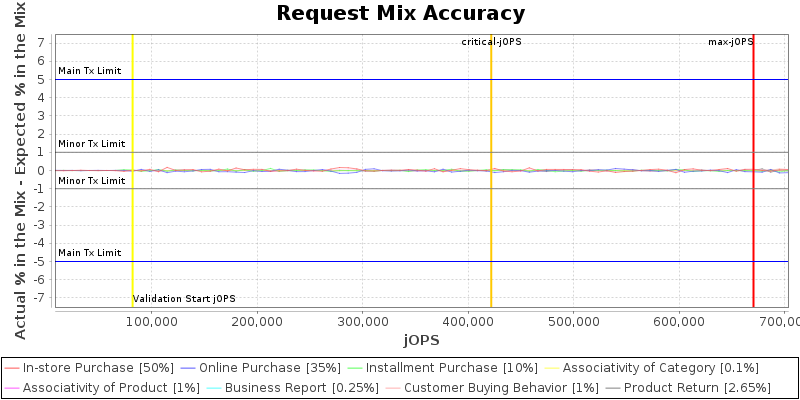

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

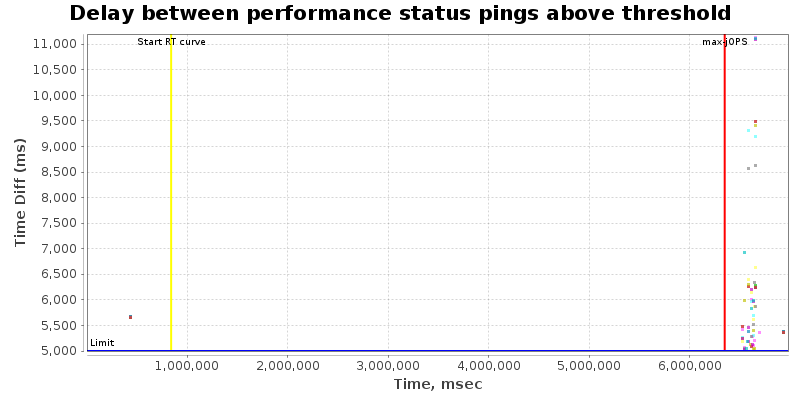

Delay between performance status pings during RT Curve (Response-Throughput Curve)

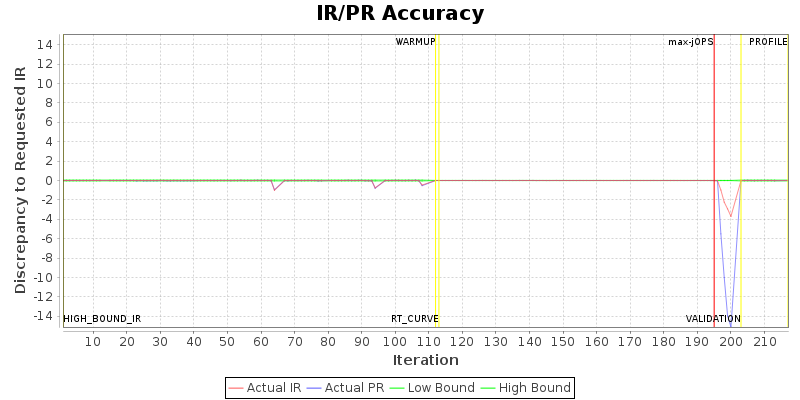

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	232
specjbb.comm.connect.selector.runner.count	0	1
specjbb.comm.connect.timeouts.connect	60000	600000
specjbb.comm.connect.timeouts.read	60000	600000
specjbb.comm.connect.timeouts.write	60000	600000
specjbb.comm.connect.worker.pool.max	256	81
specjbb.comm.connect.worker.pool.min	1	24
specjbb.controller.type	HBIR_RT	HBIR_RT
specjbb.customerDriver.threads	64	{=75, probe=69, saturate=85}
specjbb.forkjoin.workers	344	{Tier1=344, Tier2=16, Tier3=38}
specjbb.group.count	1	8
specjbb.mapreducer.pool.size	344	232
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 817341 IR

High-bound (settled) is 682211 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.04, Feb 16, 2024]

Supermicro SuperServer SYS-222BT-DNR	670220 SPECjbb2015-MultiJVM max-jOPS 421650 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Supermicro	Test Sponsor: Supermicro	Test location: San Jose, CA	Test date: Mar 31, 2025
SPEC license #: 001176	Hardware Availability: Feb-2025	Software Availability: Jan-2025	Publication: Thu May 1 12:37:21 EDT 2025

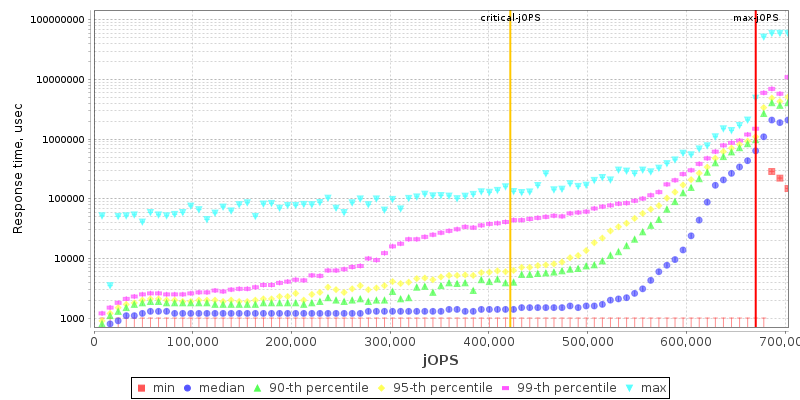

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 8) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
