SPECjbb2015 Report for jbb2015-20250514-01610 : 711087 max-jOPS ; 467836 critical-jOPS

SUT Description

Hardware hw_1
Name	meta brain NF5180G8
Vendor	IEIT Systems Co., Ltd.
Vendor URL	https://www.ieisystem.com/
Available	Mar-2025
Model	meta brain NF5180G8
Form Factor	1U
CPU Name	Intel Xeon 6787P
CPU Characteristics	86 Core, 2.0 GHz, 336 MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	172
Cores Per Chip	86
Threads Per System	344
Threads Per Core	2
Version	02.03.01
CPU Frequency (MHz)	2000
Primary Cache	64 KB(I)+48 KB(D)on chip per core
Secondary Cache	2 MB (I+D) on chip per core
Tertiary Cache	336 MB (I+D) on chip per chip
Other Cache	None
Disk	1x 4TB NVMe SSD
File System	xfs
Memory Amount (GB)	1024
# and size of DIMM(s)	16 x 64 GB
Memory Details	16 x 64 GB 2Rx4 PC5-88/64B-H, running at 8000MHz
# and type of Network Interface Cards (NICs)	1 x 10 Gbit NIC
Power Supply Quantity and Rating (W)	2 x 1600W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP6
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	6.4.0-150600.21-default
Available	Jun-2024
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 24.0.1
Vendor	Oracle
Vendor URL	http://www.oracle.com
Version	Java HotSpot 64-bit Server VM, version 24.0.1
Available	Apr-2025
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Tuning Power Performance Tuning=BIOS Controls EPB ENERGY_PERF_BIAS_CFG mode=Performance
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description	os_1
Tuning	ulimit -n 131072 echo 10000 > /proc/sys/kernel/sched_cfs_bandwidth_slice_us echo 0 > /proc/sys/kernel/sched_child_runs_first echo 100 > /proc/sys/kernel/sched_rr_timeslice_ms echo 1000000 > /proc/sys/kernel/sched_rt_period_us echo 990000 > /proc/sys/kernel/sched_rt_runtime_us echo 0 > /proc/sys/kernel/sched_schedstats echo 3000 > /proc/sys/vm/dirty_expire_centisecs echo 500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled echo 50000000 > /sys/kernel/debug/sched/wakeup_granularity_ns echo 1 > /sys/kernel/debug/sched/tunable_scaling echo 9 > /sys/kernel/debug/sched/nr_migrate echo 16000000 > /sys/kernel/debug/sched/latency_ns echo 28000000 > /sys/kernel/debug/sched/min_granularity_ns echo 1000 > /sys/kernel/debug/sched/migration_cost_ns
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	None
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms29g -Xmx29g -Xmn27g -XX:+UseParallelGC -XX:+UseTransparentHugePages -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=10k -verbose:gc -XX:-UseCountedLoopSafepoints -XX:LoopUnrollLimit=20 -XX:MaxGCPauseMillis=500 -XX:TargetSurvivorRatio=95 -XX:LargePageSizeInBytes=1G -XX:AdaptiveSizeMajorGCDecayTimeScale=12 -XX:AdaptiveSizeDecrementScaleFactor=2 -server -XX:AllocatePrefetchLines=3 -XX:AllocateInstancePrefetchLines=2 -XX:AllocatePrefetchStepSize=128 -XX:AllocatePrefetchDistance=384 -XX:ParallelGCThreads=43
Tuning	numactl used to affinitize two Backend JVMs to one NUMA node Group1:numactl --cpunodebind=0 --localalloc Group2:numactl --cpunodebind=1 --localalloc Group3:numactl --cpunodebind=2 --localalloc Group4:numactl --cpunodebind=3 --localalloc Group5:numactl --cpunodebind=0 --localalloc Group6:numactl --cpunodebind=1 --localalloc Group7:numactl --cpunodebind=2 --localalloc Group8:numactl --cpunodebind=3 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	numactl used to affinitize two TxInjector JVMs to one NUMA node Group1:numactl --cpunodebind=0 --localalloc Group2:numactl --cpunodebind=1 --localalloc Group3:numactl --cpunodebind=2 --localalloc Group4:numactl --cpunodebind=3 --localalloc Group5:numactl --cpunodebind=0 --localalloc Group6:numactl --cpunodebind=1 --localalloc Group7:numactl --cpunodebind=2 --localalloc Group8:numactl --cpunodebind=3 --localalloc
Notes	None

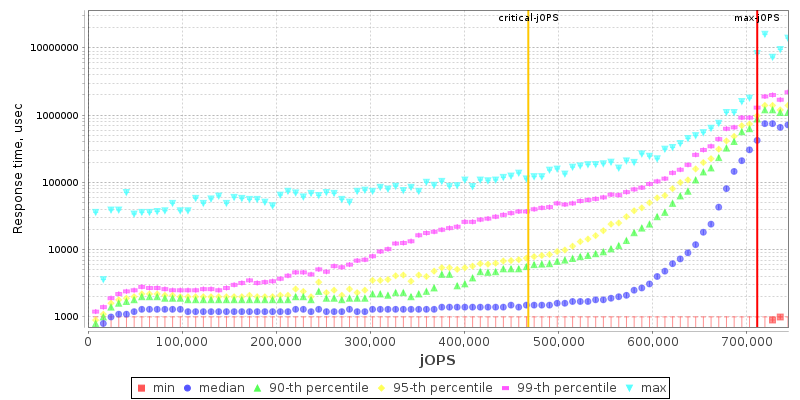

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	702913	711087	719260	727433	735607

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	314676	396410	519011	576225	600745	467836

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	8173 / 16347	- / 8173	- / 8173	- / 8173	- / 8173	- / 8173
1000us	604832 / 613006	24520 / 32694	16347 / 24520	8173 / 16347	- / 8173	- / 8173
5000us	670220 / 678393	613006 / 621179	433191 / 441364	367803 / 375977	253376 / 245202	16347 / 8173
10000us	678393 / 686566	637526 / 645699	547618 / 555792	506751 / 514925	310590 / 318763	16347 / 8173
25000us	686566 / 694740	662046 / 670220	596659 / 604832	563965 / 572139	392324 / 400497	16347 / 8173
50000us	694740 / 702913	670220 / 678393	621179 / 629353	596659 / 604832	514925 / 523098	196162 / 40867
75000us	694740 / 702913	670220 / 678393	637526 / 645699	613006 / 621179	572139 / 580312	351457 / 294243
100000us	702913 / 711087	678393 / 686566	637526 / 645699	629353 / 637526	596659 / 604832	408670 / 359630
200000us	711087 / -	686566 / 694740	662046 / 670220	653873 / 662046	637526 / 645699	580312 / 555792
500000us	711087 / -	711087 / -	686566 / 694740	686566 / 694740	670220 / 678393	645699 / 653873
1000000us	711087 / -	711087 / -	711087 / -	711087 / -	702913 / 711087	670220 / 678393

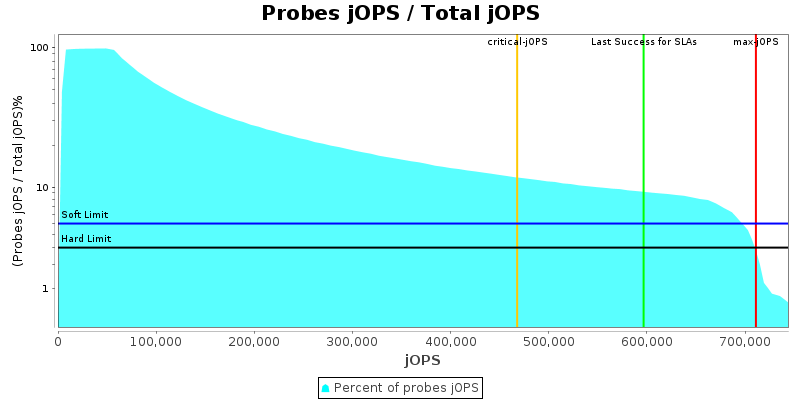

Number of probes

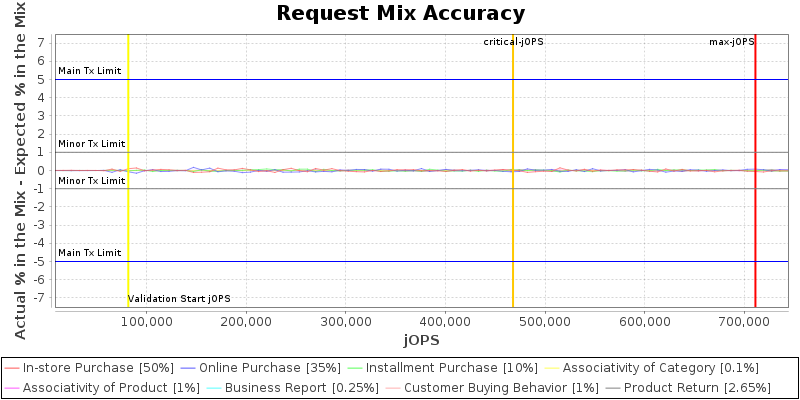

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

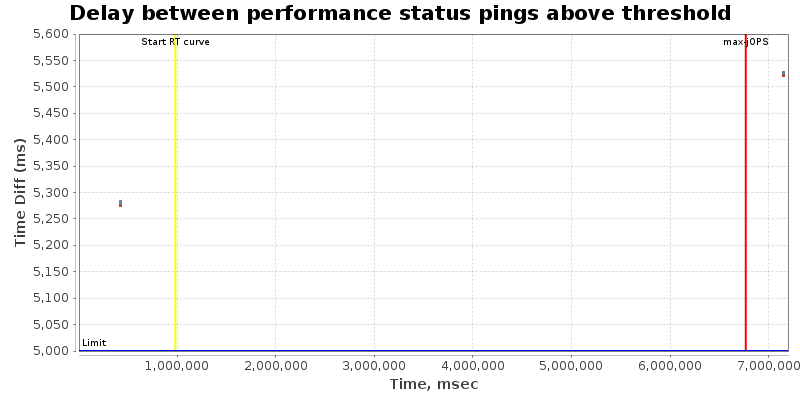

Delay between performance status pings during RT Curve (Response-Throughput Curve)

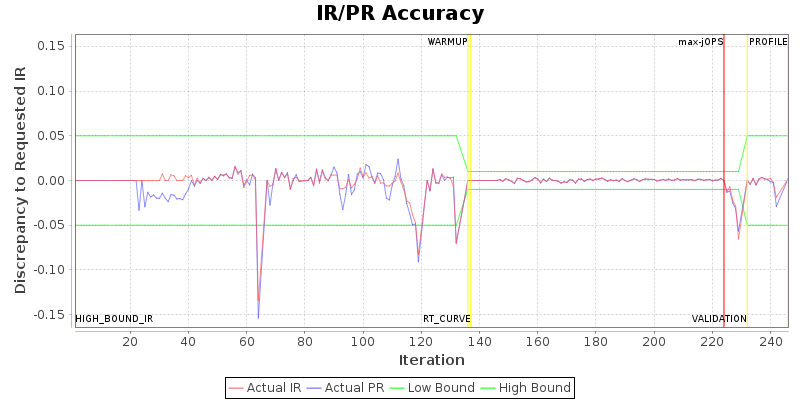

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	232
specjbb.comm.connect.selector.runner.count	0	1
specjbb.comm.connect.timeouts.connect	60000	600000
specjbb.comm.connect.timeouts.read	60000	600000
specjbb.comm.connect.timeouts.write	60000	600000
specjbb.comm.connect.worker.pool.max	256	81
specjbb.comm.connect.worker.pool.min	1	24
specjbb.customerDriver.threads	64	{=75, probe=69, saturate=85}
specjbb.forkjoin.workers	344	{Tier1=257, Tier2=3, Tier3=36}
specjbb.group.count	1	8
specjbb.mapreducer.pool.size	344	223
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 817341 IR

High-bound (settled) is 772831 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.04, Feb 16, 2024]

IEIT Systems Co., Ltd. meta brain NF5180G8	711087 SPECjbb2015-MultiJVM max-jOPS 467836 SPECjbb2015-MultiJVM critical-jOPS
Tested by: IEIT Systems Co., Ltd.	Test Sponsor: IEIT Systems Co., Ltd.	Test location: Jinan, China	Test date: Apr 21, 2025
SPEC license #: 3358	Hardware Availability: Mar-2025	Software Availability: Jan-2025	Publication: Thu May 29 16:43:49 EDT 2025
