SPECjbb2015 Report for jbb2015-20250610-01613 : 271203 max-jOPS ; 163844 critical-jOPS

SUT Description

Hardware hw_1
Name	Dell Inc. PowerEdge R470
Vendor	Dell Inc.
Vendor URL	https://www.dell.com/
Available	Mar-2025
Model	PowerEdge R470
Form Factor	1U Rack
CPU Name	Intel Xeon 6780E
CPU Characteristics	144 core, 2.20 GHz, 108 MB L3 Cache (Turbo boost Technology up to 3.00GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	144
Cores Per Chip	144
Threads Per System	144
Threads Per Core	1
Version	1.3.0
CPU Frequency (MHz)	2200
Primary Cache	64 KB (I) + 32 KB (D) per core
Secondary Cache	4 MB (I+D) per core
Tertiary Cache	108 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x Dell NVMe PCIe 1.46 GB
File System	btrfs
Memory Amount (GB)	512
# and size of DIMM(s)	8 x 64 GB
Memory Details	64 GB 2Rx4 PC5-6400B-R (slots A1-8, populated)
# and type of Network Interface Cards (NICs)	1 x AX88179A 1Gb/s
Power Supply Quantity and Rating (W)	1 x 1500
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP6
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	6.4.0-150600.21-default
Available	Jun-2024
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 24.0.1
Vendor	Oracle
Vendor URL	https://www.oracle.com/
Version	Java HotSpot 64-bit Server VM, version 24.0.1
Available	Apr-2025
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	Non-Virtual
Tuning	DIMM Self Healing(Post Package Repair) on Uncorrectable Memory Error : Disabled Virtual NUMA: Enabled Virtual NUMA Nodes : 4 MADT Core Enumeration : Linear Optimizer Mode : Enabled System Profile : Custom CPU Power Management : Maximum Performance C1E : Disabled C-States : Autonomous Latency Optimized Mode : Enabled Enery Efficient Policy : Performance CPU Interconnect Bus Link Power Management : Disabled CPU Interconnect Bus Link Power Management : Disabled PCI ASPM L1 Link Power Management : Disabled
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description	os_1
Tuning	ulimit -n 131072 cpupower frequency-set -g performance echo 10000 > /proc/sys/kernel/sched_cfs_bandwidth_slice_us echo 0 > /proc/sys/kernel/sched_child_runs_first echo 16000000 > /sys/kernel/debug/sched/latency_ns echo 1000 > /sys/kernel/debug/sched/migration_cost_ns echo 28000000 > /sys/kernel/debug/sched/min_granularity_ns echo 9 > /sys/kernel/debug/sched/nr_migrate echo 100 > /proc/sys/kernel/sched_rr_timeslice_ms echo 1000000 > /proc/sys/kernel/sched_rt_period_us echo 990000 > /proc/sys/kernel/sched_rt_runtime_us echo 0 > /proc/sys/kernel/sched_schedstats echo 1 > /sys/kernel/debug/sched/tunable_scaling echo 50000000 > /sys/kernel/debug/sched/wakeup_granularity_ns echo 3000 > /proc/sys/vm/dirty_expire_centisecs echo 500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	None
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms31744m -Xmx31744m -Xmn29696m -XX:+UseParallelGC -XX:+UseTransparentHugePages -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=27 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=10k -verbose:gc -XX:-UseCountedLoopSafepoints -XX:LoopUnrollLimit=20 -XX:MaxGCPauseMillis=500 -XX:TargetSurvivorRatio=95 -XX:LargePageSizeInBytes=1G -XX:AdaptiveSizeMajorGCDecayTimeScale=12 -XX:AdaptiveSizeDecrementScaleFactor=2 -server -XX:AllocatePrefetchLines=3 -XX:AllocateInstancePrefetchLines=2 -XX:AllocatePrefetchStepSize=128 -XX:AllocatePrefetchDistance=384 -XX:ParallelGCThreads=36
Tuning	numactl used to affinitize each Backend JVM to 36 cores Group1:numactl --physcpubind=0-35 --localalloc Group2:numactl --physcpubind=36-71 --localalloc Group3:numactl --physcpubind=72-107 --localalloc Group4:numactl --physcpubind=108-143 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	numactl used to affinitize each TxInjector JVM to 36 cores Group1:numactl --physcpubind=0-35 --localalloc Group2:numactl --physcpubind=36-71 --localalloc Group3:numactl --physcpubind=72-107 --localalloc Group4:numactl --physcpubind=108-143 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	268287	271203	274119	277035	279951

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	106440	144350	179344	202673	211422	163844

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	- / 2916	- / 2916	- / 2916	- / 2916	- / 2916	- / 2916
1000us	5832 / 8748	- / 2916	- / 2916	- / 2916	- / 2916	- / 2916
5000us	244957 / 247874	224544 / 227460	186634 / 96233	72904 / 69988	46659 / 49575	5832 / 2916
10000us	244957 / 247874	227460 / 230377	192467 / 195383	163305 / 154556	104982 / 107898	5832 / 2916
25000us	250790 / 253706	236209 / 239125	215796 / 218712	201215 / 204131	142892 / 145808	5832 / 2916
50000us	250790 / 253706	239125 / 242041	221628 / 224544	209964 / 212880	177886 / 180802	55407 / 14581
75000us	256622 / 253706	239125 / 242041	224544 / 227460	218712 / 221628	201215 / 204131	107898 / 75820
100000us	256622 / 259538	244957 / 247874	227460 / 230377	221628 / 224544	209964 / 212880	142892 / 134143
200000us	262454 / 265371	250790 / 253706	239125 / 242041	233293 / 236209	224544 / 227460	177886 / 169137
500000us	268287 / 271203	262454 / 265371	250790 / 253706	250790 / 253706	244957 / 247874	218712 / 221628
1000000us	271203 / -	268287 / 271203	262454 / 265371	262454 / 265371	262454 / 259538	239125 / 242041

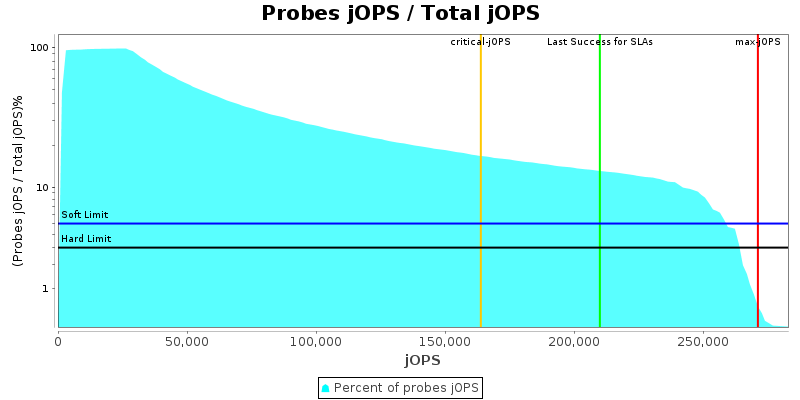

Number of probes

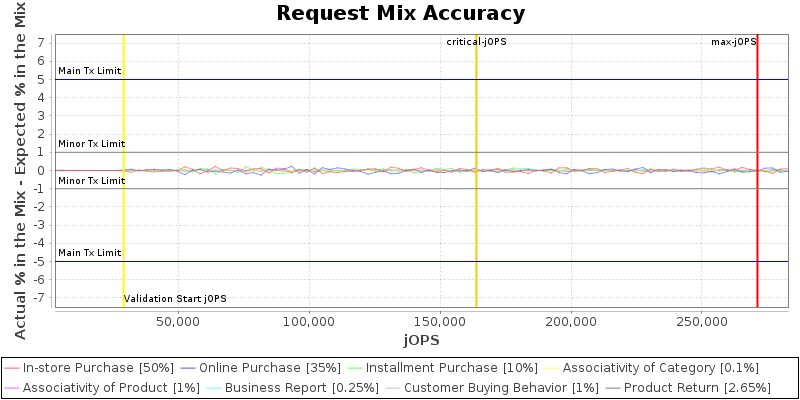

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

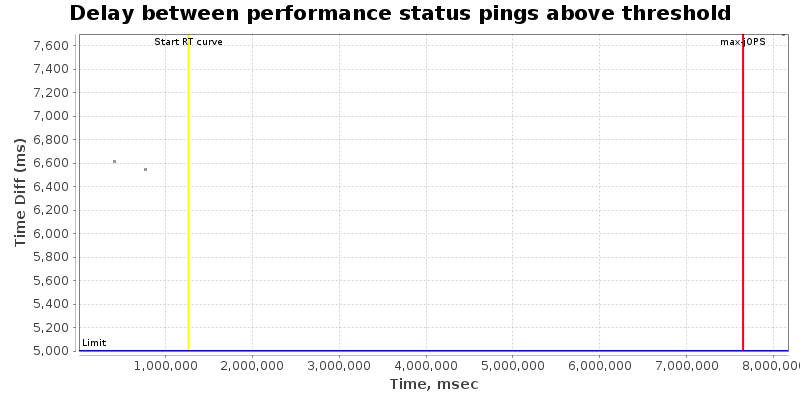

Delay between performance status pings during RT Curve (Response-Throughput Curve)

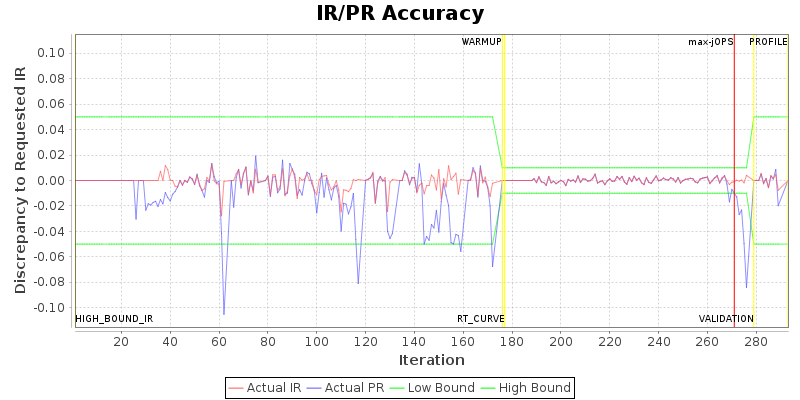

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	232	256	256	256	256	256	256	256	256
specjbb.comm.connect.selector.runner.count	0	1	0	0	0	0	0	0	0	0
specjbb.comm.connect.timeouts.connect	60000	600000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.read	60000	600000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.write	60000	600000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.worker.pool.max	256	81	256	256	256	256	256	256	256	256
specjbb.comm.connect.worker.pool.min	1	24	1	1	1	1	1	1	1	1
specjbb.customerDriver.threads	64	{=75, probe=69, saturate=85}
specjbb.forkjoin.workers	144	{Tier1=259, Tier2=11, Tier3=40}
specjbb.group.count	1	4
specjbb.mapreducer.pool.size	144	223
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 291616 IR

High-bound (settled) is 286738 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.04, Feb 16, 2024]

Dell Inc. PowerEdge R470	271203 SPECjbb2015-MultiJVM max-jOPS 163844 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Dell Inc.	Test Sponsor: Dell Inc.	Test location: Round Rock, TX	Test date: Jun 02,2025
SPEC license #: 6573	Hardware Availability: Mar-2025	Software Availability: Apr-2025	Publication: Fri Jun 27 11:20:42 EDT 2025

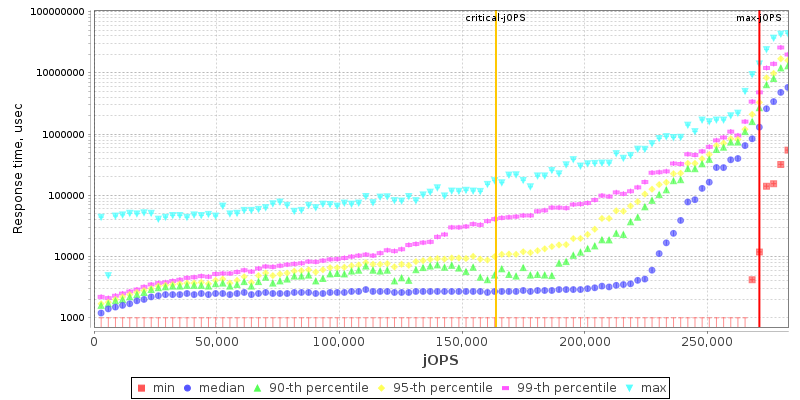

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 4) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
