SPECjbb2015 Report for jbb2015-20250625-01616 : 1385555 max-jOPS ; 651078 critical-jOPS

SUT Description

Hardware hw_1
Name	KR2280V3(KR2280-E3-A0-R0-00)
Vendor	Kaytus Systems Pte. Ltd.
Vendor URL	https://www.kaytus.com/
Available	Jun-2025
Model	KR2280V3(KR2280-E3-A0-R0-00)
Form Factor	2U
CPU Name	AMD EPYC 9965
CPU Characteristics	192 core, 2.25GHz, 384MB L3 Cache (Max. Boost Clock up to 3.7GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	384
Cores Per Chip	192
Threads Per System	768
Threads Per Core	2
Version	01.10.00
CPU Frequency (MHz)	2250
Primary Cache	32 KB(I) + 48 KB(D) on chip per core
Secondary Cache	1 MB (I+D) on chip per core
Tertiary Cache	384 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 1.92TB U.2 NVMe SSD
File System	xfs
Memory Amount (GB)	1536
# and size of DIMM(s)	24 x 64GB
Memory Details	64GB 2Rx4 PC5-6400B-R
# and type of Network Interface Cards (NICs)	1 x 10 GbE 2 ports OCP 3.0 PCIe NIC
Power Supply Quantity and Rating (W)	2 x 1600W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP6
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	6.4.0-150600.21-default
Available	Jun-2024
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 24.0.1
Vendor	Oracle
Vendor URL	http://www.oracle.com
Version	Java HotSpot 64-bit Server VM, version 24.0.1
Available	Apr-2025
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Tuning L1 Stream HW Prefetcher = Disabled L2 Stream HW Prefetcher = Disabled TDP Control = Manual TDP = 500 PPT Control = Manual PPT = 500 Determinism Control = Manual Determinism Slider = Power NUMA nodes per socket = NPS4 ACPI SRAT L3 Cache as NUMA Domain = Enabled
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(24), jvm_TxInjector_1(24)
OS Image Description	os_1
Tuning	ulimit -n 1024000 cpupower frequency-set -g performance echo 960000 > /proc/sys/kernel/sched_rt_runtime_us echo 999000000 > /proc/sys/kernel/sched_latency_ns echo 40000 > /proc/sys/kernel/sched_migration_cost_ns echo 999000000 > /proc/sys/kernel/sched_min_granularity_ns echo 999000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 9000 > /proc/sys/kernel/sched_nr_migrate echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo 0 > /proc/sys/vm/numa_stat echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2
Tuning	None
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms31g -Xmx31g -Xmn28g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=32 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=12 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=11k -XX:MaxGCPauseMillis=100 -XX:LoopUnrollLimit=200 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=2 -XX:ThreadStackSize=140 -XX:CompileThresholdScaling=120 -XX:CICompilerCount=4 -XX:AutoBoxCacheMax=32 -XX:OnStackReplacePercentage=100 -XX:TLABSize=1m -XX:MinTLABSize=1m -XX:-ResizeTLAB -XX:TLABWasteTargetPercent=1 -XX:TLABWasteIncrement=1 -XX:YoungPLABSize=1m -XX:OldPLABSize=1m
Tuning	numactl used to affinitize each Backend JVM to 16 Cores / 32 Threads numactl --physcpubind=0-15,384-399 --localalloc numactl --physcpubind=16-31,400-415 --localalloc numactl --physcpubind=32-47,416-431 --localalloc numactl --physcpubind=48-63,432-447 --localalloc numactl --physcpubind=64-79,448-463 --localalloc numactl --physcpubind=80-95,464-479 --localalloc numactl --physcpubind=96-111,480-495 --localalloc numactl --physcpubind=112-127,496-511 --localalloc numactl --physcpubind=128-143,512-527 --localalloc numactl --physcpubind=144-159,528-543 --localalloc numactl --physcpubind=160-175,544-559 --localalloc numactl --physcpubind=176-191,560-575 --localalloc numactl --physcpubind=192-207,576-591 --localalloc numactl --physcpubind=208-223,592-607 --localalloc numactl --physcpubind=224-239,608-623 --localalloc numactl --physcpubind=240-255,624-639 --localalloc numactl --physcpubind=256-271,640-655 --localalloc numactl --physcpubind=272-287,656-671 --localalloc numactl --physcpubind=288-303,672-687 --localalloc numactl --physcpubind=304-319,688-703 --localalloc numactl --physcpubind=320-335,704-719 --localalloc numactl --physcpubind=336-351,720-735 --localalloc numactl --physcpubind=352-367,736-751 --localalloc numactl --physcpubind=368-383,752-767 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2
Tuning	numactl used to affinitize each TxInjector JVM to 16 Cores / 32 Threads numactl --physcpubind=0-15,384-399 --localalloc numactl --physcpubind=16-31,400-415 --localalloc numactl --physcpubind=32-47,416-431 --localalloc numactl --physcpubind=48-63,432-447 --localalloc numactl --physcpubind=64-79,448-463 --localalloc numactl --physcpubind=80-95,464-479 --localalloc numactl --physcpubind=96-111,480-495 --localalloc numactl --physcpubind=112-127,496-511 --localalloc numactl --physcpubind=128-143,512-527 --localalloc numactl --physcpubind=144-159,528-543 --localalloc numactl --physcpubind=160-175,544-559 --localalloc numactl --physcpubind=176-191,560-575 --localalloc numactl --physcpubind=192-207,576-591 --localalloc numactl --physcpubind=208-223,592-607 --localalloc numactl --physcpubind=224-239,608-623 --localalloc numactl --physcpubind=240-255,624-639 --localalloc numactl --physcpubind=256-271,640-655 --localalloc numactl --physcpubind=272-287,656-671 --localalloc numactl --physcpubind=288-303,672-687 --localalloc numactl --physcpubind=304-319,688-703 --localalloc numactl --physcpubind=320-335,704-719 --localalloc numactl --physcpubind=336-351,720-735 --localalloc numactl --physcpubind=352-367,736-751 --localalloc numactl --physcpubind=368-383,752-767 --localalloc
Notes	None

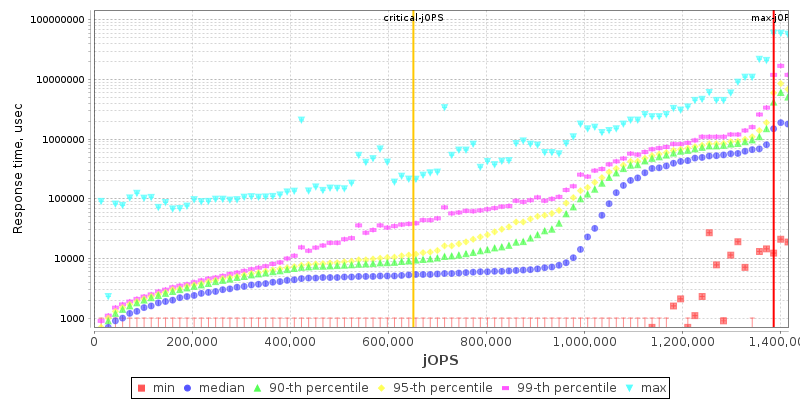

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Pass	Fail	Fail
jOPS	1356385	1370970	1385555	1400140	1414725

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	401081	532344	707362	838625	923703	651078

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	29170 / 43754	14585 / 29170	- / 14585	- / 14585	- / 14585	- / 14585
1000us	233357 / 247941	58339 / 72924	29170 / 43754	29170 / 43754	14585 / 29170	- / 14585
5000us	1020935 / 1035520	568807 / 583392	306281 / 320865	291696 / 306281	247941 / 262526	29170 / 14585
10000us	1050105 / 1064690	962596 / 977181	685485 / 700070	568807 / 583392	393789 / 408374	29170 / 14585
25000us	1050105 / 1064690	1006350 / 1020935	904257 / 918842	802163 / 816748	525052 / 539637	29170 / 14585
50000us	1064690 / 1079274	1020935 / 1035520	948011 / 962596	889672 / 904257	700070 / 714655	29170 / 14585
75000us	1079274 / 1093859	1035520 / 1050105	977181 / 991766	948011 / 962596	831333 / 845918	175017 / 14585
100000us	1093859 / 1108444	1050105 / 1064690	991766 / 1006350	962596 / 977181	933427 / 904257	291696 / 72924
200000us	1166783 / 1181368	1079274 / 1093859	1035520 / 1050105	1020935 / 1035520	977181 / 991766	612561 / 422959
500000us	1370970 / 1385555	1239707 / 1254292	1137614 / 1152198	1123029 / 1137614	1079274 / 1093859	845918 / 422959
1000000us	1385555 / -	1370970 / 1385555	1341801 / 1356385	1327216 / 1341801	1225122 / 1239707	962596 / 422959

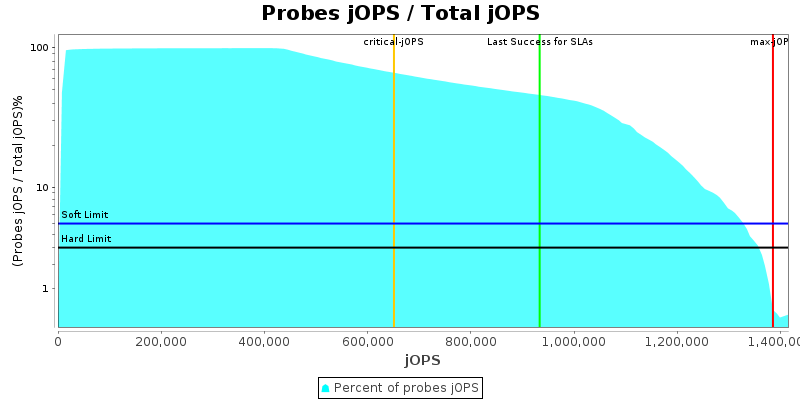

Number of probes

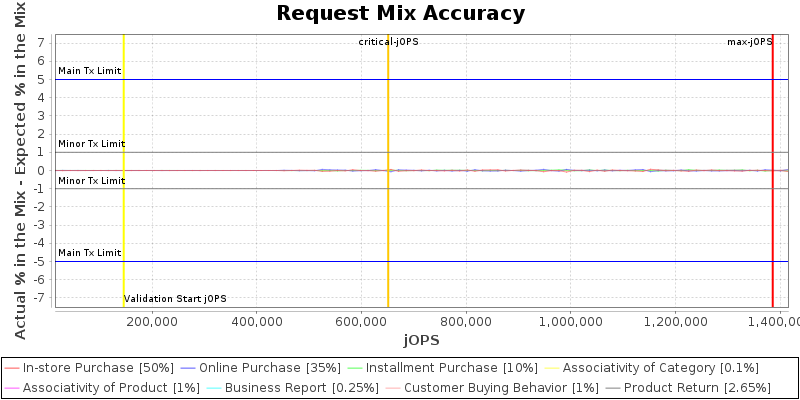

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

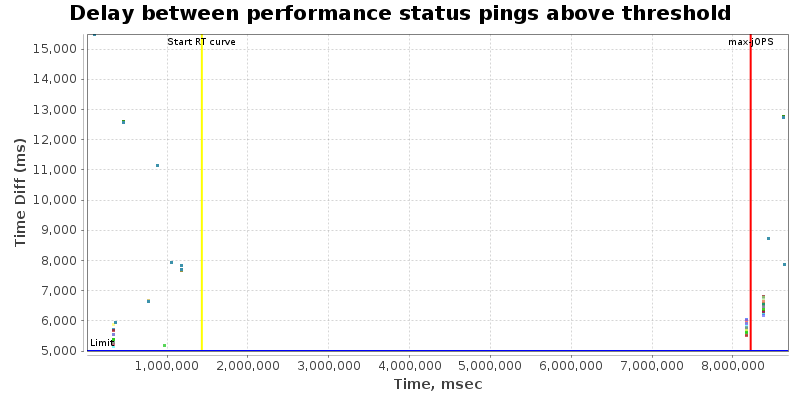

Delay between performance status pings during RT Curve (Response-Throughput Curve)

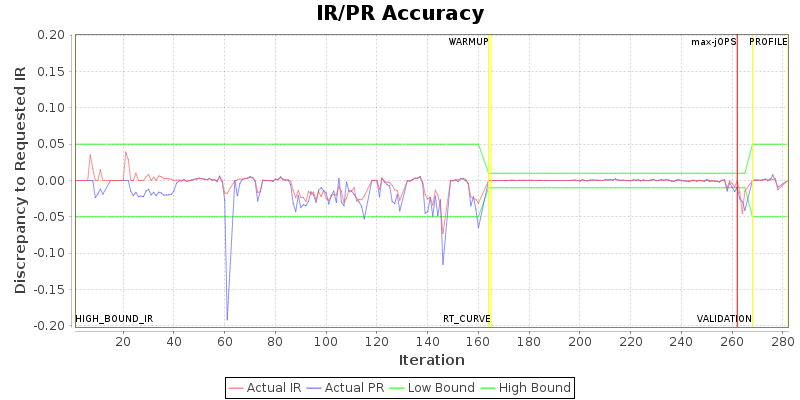

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group10.Backend.beJVM	Group10.TxInjector.txiJVM1	Group11.Backend.beJVM	Group11.TxInjector.txiJVM1	Group12.Backend.beJVM	Group12.TxInjector.txiJVM1	Group13.Backend.beJVM	Group13.TxInjector.txiJVM1	Group14.Backend.beJVM	Group14.TxInjector.txiJVM1	Group15.Backend.beJVM	Group15.TxInjector.txiJVM1	Group16.Backend.beJVM	Group16.TxInjector.txiJVM1	Group17.Backend.beJVM	Group17.TxInjector.txiJVM1	Group18.Backend.beJVM	Group18.TxInjector.txiJVM1	Group19.Backend.beJVM	Group19.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group20.Backend.beJVM	Group20.TxInjector.txiJVM1	Group21.Backend.beJVM	Group21.TxInjector.txiJVM1	Group22.Backend.beJVM	Group22.TxInjector.txiJVM1	Group23.Backend.beJVM	Group23.TxInjector.txiJVM1	Group24.Backend.beJVM	Group24.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1	Group9.Backend.beJVM	Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	150	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320
specjbb.comm.connect.selector.runner.count	0	8	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5
specjbb.comm.connect.timeouts.connect	60000	900000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.read	60000	800000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.write	60000	800000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.worker.pool.max	256	150	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320	320
specjbb.comm.connect.worker.pool.min	1	16	32		32		32		32		32		32		32		32		32		32		32		32		32		32		32		32		32		32		32		32		32		32		32		32
specjbb.controller.maxir.maxFailedPoints	3	1
specjbb.customerDriver.threads	64	{probe=180, saturate=370, service=90}
specjbb.forkjoin.workers	768	{Tier1=768, Tier2=20, Tier3=180}
specjbb.group.count	1	24
specjbb.mapreducer.pool.size	768	8
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 1458479 IR

High-bound (settled) is 1416145 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.04, Feb 16, 2024]

Kaytus Systems Pte. Ltd. KR2280V3(KR2280-E3-A0-R0-00)	1385555 SPECjbb2015-MultiJVM max-jOPS 651078 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Kaytus Systems Pte. Ltd.	Test Sponsor: Kaytus Systems Pte. Ltd.	Test location: Singapore	Test date: May 23, 2025
SPEC license #: 6865	Hardware Availability: Jun-2025	Software Availability: Apr-2025	Publication: Thu Jul 10 16:29:40 EDT 2025


SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 24) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
