SPECjbb2015 Report for jbb2015-20250806-01634 : 1324092 max-jOPS ; 856756 critical-jOPS

SUT Description

Hardware hw_1
Name	SuperServer SYS-242H-NR
Vendor	Supermicro
Vendor URL	https://www.supermicro.com
Available	Aug-2025
Model	X14QBH+
Form Factor	2U
CPU Name	Intel Xeon 6788P
CPU Characteristics	86 Core, 2.0GHz, 336 MB L3 Cache (Turbo Boost Technology up to 3.8GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	4
Cores Per System	344
Cores Per Chip	86
Threads Per System	688
Threads Per Core	2
Version	1.3 (05/27/2025)
CPU Frequency (MHz)	2000
Primary Cache	64 KB(I)+48 KB(D) per core
Secondary Cache	2 MB (I+D) per core
Tertiary Cache	336 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 1.6TB NVMe SSD
File System	btrfs
Memory Amount (GB)	2048
# and size of DIMM(s)	32 x 64 GB
Memory Details	64GB 2Rx4 PC5-6400B-R
# and type of Network Interface Cards (NICs)	2 x 10 Gbit NICs
Power Supply Quantity and Rating (W)	2 x 2000W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP6
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	6.4.0-150600.21-default
Available	Jun-2024
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 24.0.2
Vendor	Oracle
Vendor URL	http://www.oracle.com/
Version	Java HotSpot 64-bit Server VM, version 24.0.2
Available	Mar-2025
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Settings: Power Technology=Custom Power Performance Tuning=BIOS Controls EPB ENERGY_PERF_BIAS_CFG mode=Extreme Performance
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(16), jvm_TxInjector_1(16)
OS Image Description	os_1
Tuning	tuned-adm profile throughput-performance systemctl stop systemd-update-utmp-runlevel.service echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled echo 40000 > /sys/kernel/mm/hugepages/hugepages-2048kB/nr_hugepages echo 600 > /sys/kernel/mm/hugepages/hugepages-1048576kB/nr_hugepages echo 10000 > /proc/sys/kernel/sched_cfs_bandwidth_slice_us echo 0 > /proc/sys/kernel/sched_child_runs_first echo 16000000 > /sys/kernel/debug/sched/latency_ns echo 1000 > /sys/kernel/debug/sched/migration_cost_ns echo 28000000 > /sys/kernel/debug/sched/min_granularity_ns echo 100 > /proc/sys/kernel/sched_rr_timeslice_ms echo 1000000 > /proc/sys/kernel/sched_rt_period_us echo 990000 > /proc/sys/kernel/sched_rt_runtime_us echo 0 > /proc/sys/kernel/sched_schedstats echo 1 > /sys/kernel/debug/sched/tunable_scaling echo 50000000 > /sys/kernel/debug/sched/wakeup_granularity_ns echo 3000 > /proc/sys/vm/dirty_expire_centisecs echo 500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo 0 > /proc/sys/kernel/sched_autogroup_enabled ulimit -v 800000000 ulimit -m 800000000 ulimit -l 800000000 ulimit -n 1024000 echo 274877906944 > /proc/sys/kernel/shmmax echo 274877906944 > /proc/sys/kernel/shmall
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	None
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-XX:+UseParallelGC -XX:+UseLargePages -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=10k -verbose:gc -XX:-UseCountedLoopSafepoints -XX:LoopUnrollLimit=20 -server -XX:TargetSurvivorRatio=95 -XX:SurvivorRatio=28 -XX:LargePageSizeInBytes=1G -XX:MaxGCPauseMillis=500 -XX:AdaptiveSizeMajorGCDecayTimeScale=12 -XX:AdaptiveSizeDecrementScaleFactor=2 -XX:AllocatePrefetchLines=3 -XX:AllocateInstancePrefetchLines=2 -XX:AllocatePrefetchStepSize=128 -XX:AllocatePrefetchDistance=384 -Xms31744m -Xmx31744m -Xmn29696m -XX:ParallelGCThreads=43 -Xlog:pagesize=trace
Tuning	Used numactl to affinitize two Backend JVM to each NUMA node Group1: numactl --cpunodebind=0 --localalloc Group2:numactl --cpunodebind=1 --localalloc Group3: numactl --cpunodebind=2 --localalloc Group4:numactl --cpunodebind=3 --localalloc Group5: numactl --cpunodebind=4 --localalloc Group6:numactl --cpunodebind=5 --localalloc Group7: numactl --cpunodebind=6 --localalloc Group8:numactl --cpunodebind=7 --localalloc Group9: numactl --cpunodebind=0 --localalloc Group10:numactl --cpunodebind=1 --localalloc Group11: numactl --cpunodebind=2 --localalloc Group12:numactl --cpunodebind=3 --localalloc Group13: numactl --cpunodebind=4 --localalloc Group14:numactl --cpunodebind=5 --localalloc Group15: numactl --cpunodebind=6 --localalloc Group16:numactl --cpunodebind=7 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	Used numactl to affinitize two Injector JVM to each NUMA node Group1: numactl --cpunodebind=0 --localalloc Group2:numactl --cpunodebind=1 --localalloc Group3: numactl --cpunodebind=2 --localalloc Group4:numactl --cpunodebind=3 --localalloc Group5: numactl --cpunodebind=4 --localalloc Group6:numactl --cpunodebind=5 --localalloc Group7: numactl --cpunodebind=6 --localalloc Group8:numactl --cpunodebind=7 --localalloc Group9: numactl --cpunodebind=0 --localalloc Group10:numactl --cpunodebind=1 --localalloc Group11: numactl --cpunodebind=2 --localalloc Group12:numactl --cpunodebind=3 --localalloc Group13: numactl --cpunodebind=4 --localalloc Group14:numactl --cpunodebind=5 --localalloc Group15: numactl --cpunodebind=6 --localalloc Group16:numactl --cpunodebind=7 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	1307746	1324092	1340439	1356786	1373133

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	580312	727433	939942	1054369	1103410	856756

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	32694 / 49040	16347 / 32694	- / 16347	- / 16347	- / 16347	- / 16347
1000us	1095237 / 1111584	81734 / 98081	49040 / 65387	32694 / 49040	16347 / 32694	- / 16347
5000us	1226011 / 1242358	1111584 / 1127931	817341 / 800994	702913 / 719260	474058 / 490405	- / 16347
10000us	1242358 / 1258705	1160624 / 1176971	1013503 / 1029850	915422 / 931769	572139 / 588486	- / 16347
25000us	1258705 / 1275052	1209665 / 1226011	1078890 / 1095237	1029850 / 1046196	719260 / 735607	- / 16347
50000us	1258705 / 1275052	1226011 / 1242358	1127931 / 1144277	1078890 / 1095237	931769 / 948116	277896 / 65387
75000us	1291399 / 1307746	1242358 / 1258705	1160624 / 1176971	1127931 / 1144277	1046196 / 1062543	474058 / 490405
100000us	1291399 / 1307746	1242358 / 1258705	1176971 / 1193318	1144277 / 1160624	1095237 / 1111584	637526 / 653873
200000us	1307746 / 1324092	1258705 / 1275052	1226011 / 1242358	1209665 / 1226011	1176971 / 1193318	980809 / 997156
500000us	1324092 / -	1307746 / 1324092	1275052 / 1291399	1258705 / 1275052	1242358 / 1258705	1176971 / 1193318
1000000us	1324092 / -	1324092 / -	1324092 / -	1307746 / 1324092	1291399 / 1307746	1258705 / 1275052

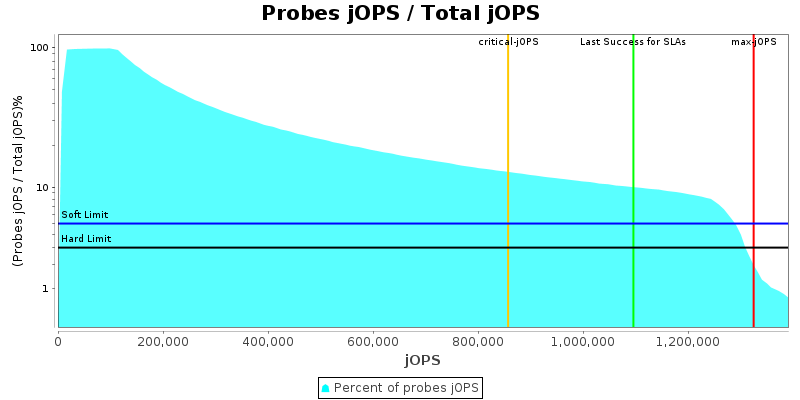

Number of probes

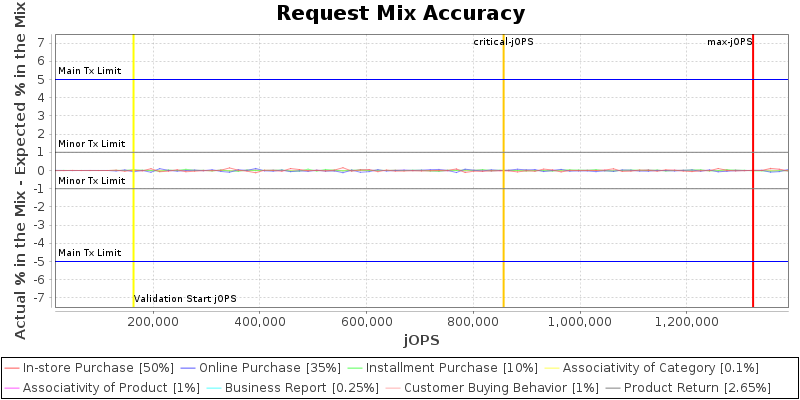

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

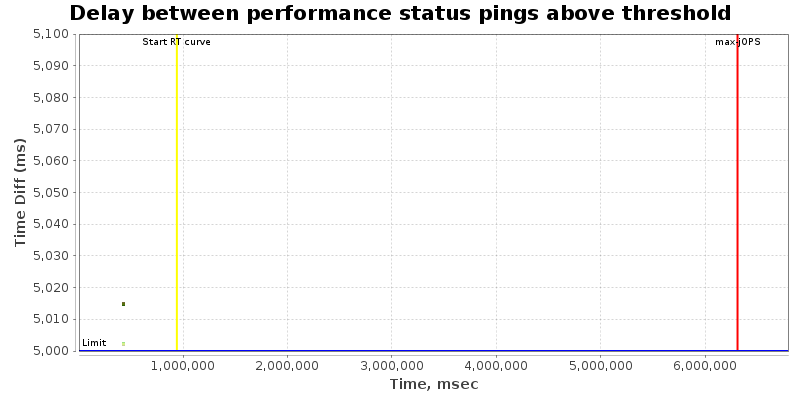

Delay between performance status pings during RT Curve (Response-Throughput Curve)

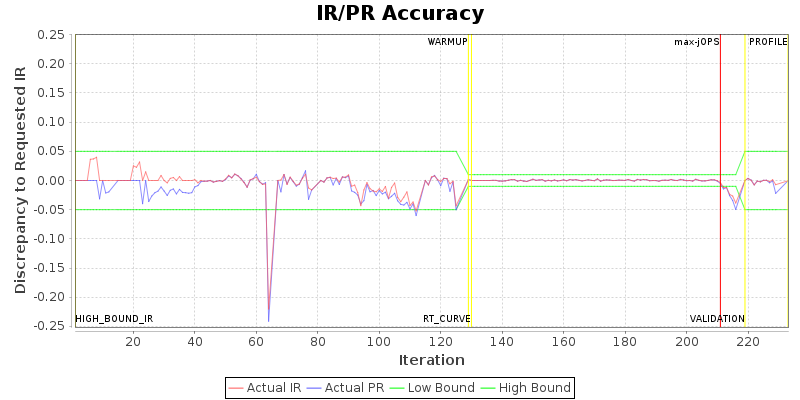

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	232
specjbb.comm.connect.selector.runner.count	0	1
specjbb.comm.connect.timeouts.connect	60000	600000
specjbb.comm.connect.timeouts.read	60000	600000
specjbb.comm.connect.timeouts.write	60000	600000
specjbb.comm.connect.worker.pool.max	256	81
specjbb.comm.connect.worker.pool.min	1	24
specjbb.controller.host	localhost	localhost
specjbb.controller.port	24000	24000
specjbb.controller.type	HBIR_RT	HBIR_RT
specjbb.customerDriver.threads	64	{=75, probe=69, saturate=85}
specjbb.forkjoin.workers	688	{Tier1=344, Tier2=16, Tier3=38}
specjbb.group.count	1	16
specjbb.mapreducer.pool.size	688	223
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 1634682 IR

High-bound (settled) is 1413619 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.04, Feb 16, 2024]

Supermicro SuperServer SYS-242H-NR	1324092 SPECjbb2015-MultiJVM max-jOPS 856756 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Supermicro	Test Sponsor: Supermicro	Test location: San Jose, California	Test date: Aug 5, 2025
SPEC license #: 001176	Hardware Availability: Aug-2025	Software Availability: Aug-2025	Publication: Fri Aug 22 10:34:03 EDT 2025

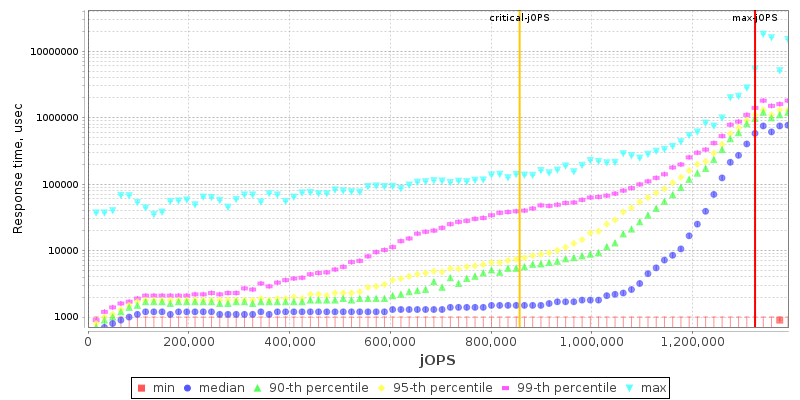

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 16) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
