SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| NEC Corporation Express5800/i120Ra-e1(Intel Xeon L5410) | SPECpower_ssj2008 = Invalid overall ssj_ops/watt | ||||
| Test Sponsor: | NEC Corporation | SPEC License #: | 9006 | Test Method: | Single Node |
| Tested By: | NEC Corporation | Test Location: | Fuchu, Tokyo, Japan | Test Date: | Jul 24, 2008 |
| Hardware Availability: | May-2008 | Software Availability: | May-2008 | Publication: | Aug 13, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

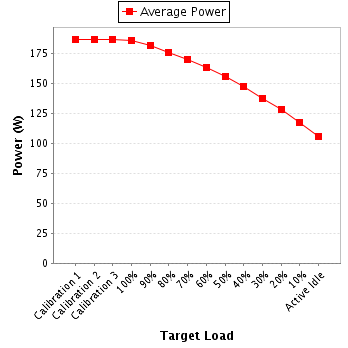

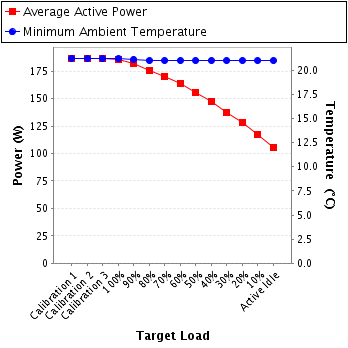

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 187 | 21.2 |
| Calibration 2 | 187 | 21.2 |
| Calibration 3 | 187 | 21.2 |
| 100% | 186 | 21.2 |
| 90% | 182 | 21.1 |
| 80% | 176 | 21.0 |
| 70% | 170 | 21.0 |
| 60% | 164 | 21.0 |
| 50% | 156 | 21.0 |
| 40% | 147 | 21.0 |
| 30% | 138 | 21.0 |
| 20% | 128 | 21.0 |
| 10% | 117 | 21.0 |
| Active Idle | 106 | 21.0 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H734409 |
| Connectivity: | RS-232 |
| Input Connection: | -- |
| Metrology Institute: | AIST |
| Accredited by: | Yokogawa Electric International Pte. Ltd. |
| Calibration Label: | B082937 |
| Date of Calibration: | 4-Jul-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.1-45c8e665 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 202 | -- | 1.05 | -- | 0.877 | 187 | -- |
| Calibration 2 | 202 | -- | 1.05 | -- | 0.877 | 187 | -- |
| Calibration 3 | 202 | -- | 1.05 | -- | 0.879 | 187 | -- |
| 100% | 202 | -- | 1.05 | -- | 0.879 | 186 | -- |
| 90% | 203 | -- | 1.02 | -- | 0.876 | 182 | -- |
| 80% | 203 | -- | 0.989 | -- | 0.875 | 176 | -- |
| 70% | 204 | -- | 0.955 | -- | 0.874 | 170 | -- |
| 60% | 204 | -- | 0.918 | -- | 0.871 | 164 | -- |
| 50% | 201 | -- | 0.884 | -- | 0.876 | 156 | -- |
| 40% | 201 | -- | 0.836 | -- | 0.875 | 147 | -- |
| 30% | 202 | -- | 0.782 | -- | 0.873 | 138 | -- |
| 20% | 202 | -- | 0.727 | -- | 0.871 | 128 | -- |
| 10% | 202 | -- | 0.664 | -- | 0.873 | 117 | -- |
| Active Idle | 201 | -- | 0.598 | -- | 0.879 | 106 | -- |
