SPECpower_ssj2008
Host '0001' Performance Report
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| NEC Corporation Express5800/i120Ra-e1(Intel Xeon L5410) | ssj_ops@100% = 265,325 ssj_ops@100% per JVM = 66,331 |
||||
| Test Sponsor: | NEC Corporation | SPEC License #: | 9006 | Test Method: | Single Node |
| Tested By: | NEC Corporation | Test Location: | Fuchu, Tokyo, Japan | Test Date: | 2008/07/24 |
| Hardware Availability: | May-2008 | Software Availability: | May-2008 | Publication: | Aug 13, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 264,698 | ||
| Calibration 2 | 266,388 | ||
| Calibration 3 | 266,434 | ||
| ssj_ops@calibrated=266,411 | |||
| 100% | 99.6% | 266,411 | 265,325 |
| 90% | 90.2% | 239,770 | 240,336 |
| 80% | 79.5% | 213,129 | 211,840 |
| 70% | 69.5% | 186,488 | 185,082 |
| 60% | 60.0% | 159,847 | 159,849 |
| 50% | 50.2% | 133,205 | 133,791 |
| 40% | 39.8% | 106,564 | 106,017 |
| 30% | 29.9% | 79,923 | 79,561 |
| 20% | 20.1% | 53,282 | 53,528 |
| 10% | 10.0% | 26,641 | 26,621 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | Express5800/i120Ra-e1(Intel Xeon L5410) |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | NEC Corporation |
| Model: | Express5800/i120Ra-e1(Intel Xeon L5410) |
| Form Factor: | -- |
| CPU Name: | Intel Xeon L5410 |
| CPU Characteristics: | 2.33 GHz, 2x6 MB L2 shared, 1333 MHz bus |
| CPU Frequency (MHz): | 2333 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 8 (1 / core) |
| CPU(s) Orderable: | 1,2 |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 2 x 4096 MB |
| Memory Details: | PC2-5300P, 2 rank, CL5-5-5, ECC |
| Power Supply Quantity and Rating (W): | 1 x 350 |
| Power Supply Details: | Delta DPS-350QB-2 H |
| Disk Drive: | 1 x 80GB 7.2K RPM SATAII |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Onboard Gigabit |
| NICs Enabled in Firmware / OS / Connected: | 2/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | None |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled (see SUT Notes) |
| Operating System (OS): | Microsoft(R) Windows(R) Server 2003 R2 Enterprise x64 Edition |
| OS Version: | Service Pack 2 |
| Filesystem: | NTFS |
| JVM Vendor: | BEA System, Inc. |
| JVM Version: | BEA JRockit(R) (build R27.5.0-110_o-99226-1.6.0_03-20080528-1505-windows-x86_64, compiled mode) |
| JVM Command-line Options: | -Xms1600m -Xmx1600m -XXaggressive -Xgc:genpar -Xns1300m -XXgcthreads:2 -XXoptThreads:2 -XlargePages -XXlazyUnlocking -XXcallprofiling -XXtlasize:min=12k,preferred=256k -XXthroughputcompaction |
| JVM Affinity: | start /affinity [03,0C,30,C0] |
| JVM Instances: | 8 |
| JVM Initial Heap (MB): | 1600 |
| JVM Maximum Heap (MB): | 1600 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 1.1 |
| Director Location: | Controller |
| Other Software: | None |

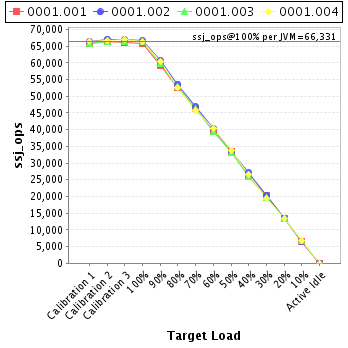

| JVM Instance | ssj_ops@100% |
|---|---|
| 0001.001 | 65,845 |
| 0001.002 | 66,706 |
| 0001.003 | 66,334 |
| 0001.004 | 66,440 |
| ssj_ops@100% | 265,325 |
| ssj_ops@100% per JVM | 66,331 |

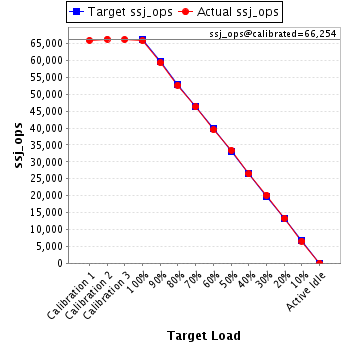

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 65,947 | ||
| Calibration 2 | 66,294 | ||
| Calibration 3 | 66,214 | ||
| ssj_ops@calibrated=66,254 | |||
| 100% | 99.4% | 66,254 | 65,845 |
| 90% | 89.6% | 59,629 | 59,333 |
| 80% | 79.5% | 53,003 | 52,668 |
| 70% | 69.8% | 46,378 | 46,268 |
| 60% | 59.6% | 39,752 | 39,495 |
| 50% | 50.5% | 33,127 | 33,437 |
| 40% | 39.9% | 26,502 | 26,418 |
| 30% | 30.4% | 19,876 | 20,151 |
| 20% | 20.1% | 13,251 | 13,331 |
| 10% | 9.9% | 6,625 | 6,553 |
| Active Idle | 0 | 0 | |

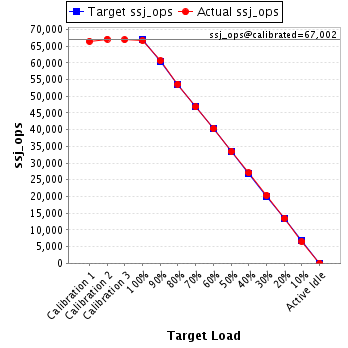

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 66,454 | ||
| Calibration 2 | 67,096 | ||
| Calibration 3 | 66,909 | ||
| ssj_ops@calibrated=67,002 | |||
| 100% | 99.6% | 67,002 | 66,706 |
| 90% | 90.5% | 60,302 | 60,623 |
| 80% | 80.1% | 53,602 | 53,644 |
| 70% | 69.9% | 46,902 | 46,829 |
| 60% | 60.2% | 40,201 | 40,322 |
| 50% | 49.9% | 33,501 | 33,446 |
| 40% | 40.4% | 26,801 | 27,042 |
| 30% | 30.4% | 20,101 | 20,351 |
| 20% | 20.1% | 13,400 | 13,463 |
| 10% | 9.7% | 6,700 | 6,474 |
| Active Idle | 0 | 0 | |

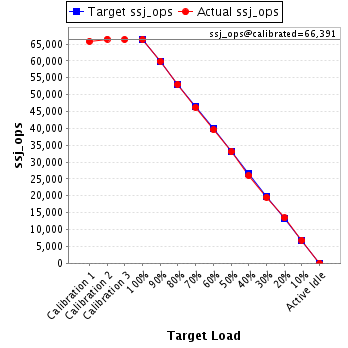

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 65,790 | ||
| Calibration 2 | 66,445 | ||
| Calibration 3 | 66,338 | ||
| ssj_ops@calibrated=66,391 | |||
| 100% | 99.9% | 66,391 | 66,334 |
| 90% | 90.2% | 59,752 | 59,913 |
| 80% | 79.8% | 53,113 | 52,988 |
| 70% | 69.6% | 46,474 | 46,230 |
| 60% | 59.6% | 39,835 | 39,572 |
| 50% | 49.8% | 33,196 | 33,080 |
| 40% | 39.1% | 26,557 | 25,991 |
| 30% | 29.5% | 19,917 | 19,573 |
| 20% | 20.3% | 13,278 | 13,473 |
| 10% | 10.3% | 6,639 | 6,824 |
| Active Idle | 0 | 0 | |

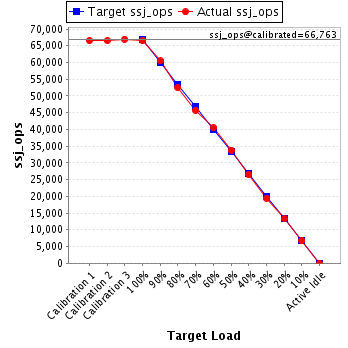

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 66,507 | ||
| Calibration 2 | 66,552 | ||
| Calibration 3 | 66,974 | ||
| ssj_ops@calibrated=66,763 | |||
| 100% | 99.5% | 66,763 | 66,440 |
| 90% | 90.6% | 60,087 | 60,467 |
| 80% | 78.7% | 53,411 | 52,540 |
| 70% | 68.5% | 46,734 | 45,754 |
| 60% | 60.6% | 40,058 | 40,461 |
| 50% | 50.7% | 33,382 | 33,829 |
| 40% | 39.8% | 26,705 | 26,565 |
| 30% | 29.2% | 20,029 | 19,485 |
| 20% | 19.9% | 13,353 | 13,261 |
| 10% | 10.1% | 6,676 | 6,770 |
| Active Idle | 0 | 0 | |
