SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| IBM Corporation IBM System x3350 | SPECpower_ssj2008 = 974 overall ssj_ops/watt | ||||
| Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
| Tested By: | IBM Corporation | Test Location: | Taipei, Taiwan | Test Date: | Jul 23, 2008 |
| Hardware Availability: | Sep-2008 | Software Availability: | Jun-2008 | Publication: | Aug 27, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

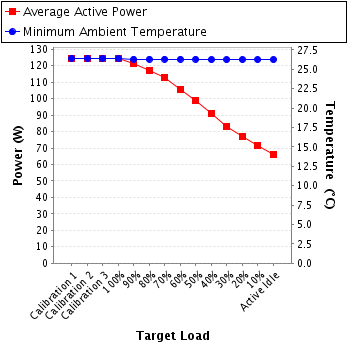

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 124 | 26.4 |
| Calibration 2 | 125 | 26.4 |
| Calibration 3 | 125 | 26.4 |
| 100% | 125 | 26.4 |
| 90% | 122 | 26.3 |
| 80% | 117 | 26.3 |
| 70% | 113 | 26.3 |
| 60% | 106 | 26.3 |
| 50% | 99.0 | 26.3 |
| 40% | 90.8 | 26.2 |
| 30% | 83.1 | 26.2 |
| 20% | 76.8 | 26.2 |
| 10% | 71.7 | 26.2 |
| Active Idle | 65.9 | 26.2 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA, Inc. |
| Model: | WT210 |
| Serial Number: | 91H245649 |
| Connectivity: | RS-232 |
| Input Connection: | -- |
| Calibration Institute: | NML/ROC |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 08-04-BAC-068-02 |
| Date of Calibration: | 8-Apr-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.1-45c8e665 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International |
| Model: | Watchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 208 | -- | 0.674 | -- | 0.888 | 124 | -- |
| Calibration 2 | 208 | -- | 0.675 | -- | 0.888 | 125 | -- |
| Calibration 3 | 208 | -- | 0.675 | -- | 0.889 | 125 | -- |
| 100% | 208 | -- | 0.674 | -- | 0.888 | 125 | -- |
| 90% | 208 | -- | 0.660 | -- | 0.885 | 122 | -- |
| 80% | 208 | -- | 0.639 | -- | 0.879 | 117 | -- |
| 70% | 208 | -- | 0.620 | -- | 0.874 | 113 | -- |
| 60% | 208 | -- | 0.589 | -- | 0.863 | 106 | -- |
| 50% | 208 | -- | 0.558 | -- | 0.853 | 99.0 | -- |
| 40% | 208 | -- | 0.520 | -- | 0.840 | 90.8 | -- |
| 30% | 208 | -- | 0.483 | -- | 0.826 | 83.1 | -- |
| 20% | 208 | -- | 0.453 | -- | 0.813 | 76.8 | -- |
| 10% | 207 | -- | 0.431 | -- | 0.803 | 71.7 | -- |
| Active Idle | 207 | -- | 0.403 | -- | 0.789 | 65.9 | -- |
