SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| Acer Incorporated Altos R520 | SPECpower_ssj2008 = 863 overall ssj_ops/watt | ||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
| Tested By: | Acer Incorporated | Test Location: | Taipei, Taiwan, R.O.C. | Test Date: | Nov 24, 2008 |
| Hardware Availability: | Sep-2008 | Software Availability: | Sep-2008 | Publication: | Dec 17, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

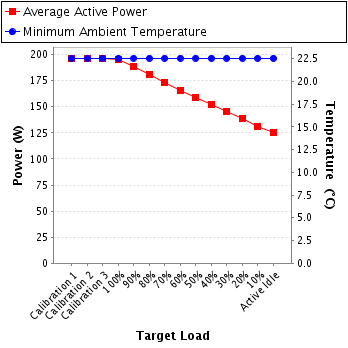

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 197 | 22.6 |
| Calibration 2 | 196 | 22.6 |
| Calibration 3 | 196 | 22.6 |
| 100% | 195 | 22.6 |
| 90% | 189 | 22.6 |
| 80% | 181 | 22.6 |
| 70% | 174 | 22.6 |
| 60% | 166 | 22.6 |
| 50% | 159 | 22.6 |
| 40% | 152 | 22.6 |
| 30% | 145 | 22.6 |
| 20% | 138 | 22.6 |
| 10% | 131 | 22.6 |
| Active Idle | 125 | 22.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H534921 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NML (National Measurement Laboratory, R.O.C.) |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 08-06-BCC-159-01 |
| Date of Calibration: | 16-Jun-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.2-e0c92e60 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.50.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |

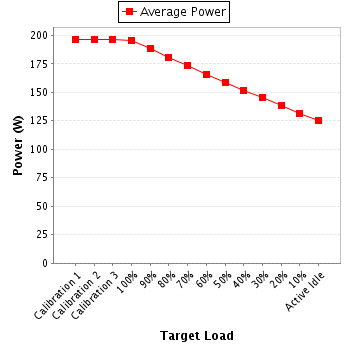

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 213 | 300V | 1.00 | 2A | 0.922 | 197 | -- |
| Calibration 2 | 213 | 300V | 1.00 | 2A | 0.922 | 196 | -- |
| Calibration 3 | 213 | 300V | 1.000 | 2A | 0.923 | 196 | -- |
| 100% | 213 | 300V | 0.995 | 2A | 0.922 | 195 | -- |
| 90% | 213 | 300V | 0.964 | 2A | 0.919 | 189 | -- |
| 80% | 213 | 300V | 0.928 | 2A | 0.915 | 181 | -- |
| 70% | 213 | 300V | 0.897 | 2A | 0.909 | 174 | -- |
| 60% | 213 | 300V | 0.862 | 2A | 0.904 | 166 | -- |
| 50% | 213 | 300V | 0.828 | 2A | 0.898 | 159 | -- |
| 40% | 213 | 300V | 0.797 | 2A | 0.893 | 152 | -- |
| 30% | 213 | 300V | 0.767 | 2A | 0.888 | 145 | -- |
| 20% | 213 | 300V | 0.736 | 2A | 0.882 | 138 | -- |
| 10% | 213 | 300V | 0.704 | 2A | 0.876 | 131 | -- |
| Active Idle | 213 | 300V | 0.676 | 2A | 0.870 | 125 | -- |
