Sun Microsystems, Inc. Sun Netra X4250 ssj_ops@100% = 251,555
ssj_ops@100% per JVM = 31,444
Test Sponsor: Sun Microsystems, Inc. SPEC License #: 6 Test Method: Single Node
Tested By: Sun Microsystems, Inc. Test Location: Burlington, MA, USA Test Date: Apr 17, 2009
Hardware Availability: Jul-2008 Software Availability: May-2009 Publication: May 6, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     254,935
Calibration 2     253,229
Calibration 3     252,495
ssj_ops@calibrated=252,862
100% 99.5% 252,862 251,555
90% 89.9% 227,576 227,379
80% 80.0% 202,289 202,405
70% 70.0% 177,003 177,124
60% 60.2% 151,717 152,296
50% 50.0% 126,431 126,345
40% 40.3% 101,145 101,941
30% 29.7% 75,859 75,224
20% 19.9% 50,572 50,394
10% 9.9% 25,286 25,021
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: Sun Netra X4250
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Sun Microsystems, Inc.
Model: Sun Netra X4250
Form Factor: 2U
CPU Name: Intel Xeon L5408
CPU Characteristics: Quad-Core, 2.13 GHz, 2x6MB shared L2 cache, 1066 MHz system bus
CPU Frequency (MHz): 2133
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 8 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 8 x 4096 MB
Memory Details: 4GB 2Rx4 PC2-5300F ECC CL5 (Sun P/N X6382A); slots A0-1,B0-1,C0-1,D0-1 populated
Power Supply Quantity and Rating (W): 2 x 658
Power Supply Details: Sun P/N 300-2015
Disk Drive: 4 x Sun 146GB 10K RPM SAS (Sun P/N 540-7152)
Disk Controller: Integrated SAS controller
# and type of Network Interface Cards (NICs) Installed: 4 x on-board Intel Gigabit Ethernet, Sun x8 PCIe Quad Gigabit Ethernet option card (Sun P/N X4447A-Z)
NICs Enabled in Firmware / OS / Connected: 8/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (Server Balanced Processor Power and Performance)
Operating System (OS): Microsoft Windows Server 2003 R2, Enterprise x64 Edition with Service Pack 2
OS Version: Version 5.2 R2 (Build 3790.srv03_sp2_rtm.070216-1710: Service Pack 2) (64 bit)
Filesystem: NTFS
JVM Vendor: Sun Microsystems, Inc.
JVM Version: Java HotSpot(TM) 32-Bit Server VM on Windows version 1.6.0_14
JVM Command-line Options: -server -Xmx1400m -Xms1400m -Xmn1150m -XX:+AggressiveOpts -XX:+UseParallelOldGC -XX:ParallelGCThreads=2 -XX:+UseStringCache -XX:PermSize=12m -XX:MaxPermSize=12m -XX:+UseLargePages -XX:AllocatePrefetchStyle=2 -XX:BiasedLockingStartupDelay=500
JVM Affinity: start /affinity [0x01, 0x10, 0x02, 0x20, 0x04, 0x40, 0x08, 0x80]
JVM Instances: 8
JVM Initial Heap (MB): 1400
JVM Maximum Heap (MB): 1400
JVM Address Bits: 32
Boot Firmware Version: AMIBIOS version 08.00.14
Management Firmware Version: Sun Integrated Lights Out Manager version 2.0.2.6
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: Platform-specific drivers installed from Sun Netra X4250 Tools and Drivers DVD Version 2.1N
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
none
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
your-598dff2ba1.001 31,704
your-598dff2ba1.002 31,488
your-598dff2ba1.003 31,675
your-598dff2ba1.004 31,497
your-598dff2ba1.005 31,630
your-598dff2ba1.006 32,027
your-598dff2ba1.007 30,343
your-598dff2ba1.008 31,191
ssj_ops@100% 251,555
ssj_ops@100% per JVM 31,444
Graph of per-instance results
JVM 'your-598dff2ba1.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     32,058
Calibration 2     31,899
Calibration 3     31,854
ssj_ops@calibrated=31,877
100% 99.5% 31,877 31,704
90% 91.0% 28,689 28,999
80% 79.5% 25,501 25,357
70% 70.9% 22,314 22,604
60% 59.9% 19,126 19,093
50% 50.6% 15,938 16,114
40% 40.9% 12,751 13,050
30% 29.4% 9,563 9,375
20% 19.3% 6,375 6,146
10% 9.9% 3,188 3,171
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

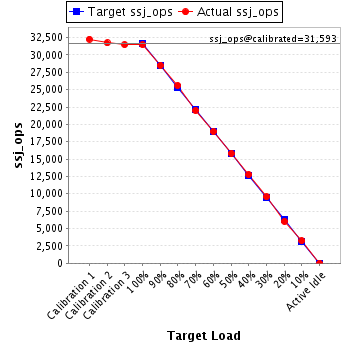

JVM 'your-598dff2ba1.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     32,268
Calibration 2     31,719
Calibration 3     31,468
ssj_ops@calibrated=31,593
100% 99.7% 31,593 31,488
90% 90.2% 28,434 28,485
80% 81.0% 25,275 25,604
70% 69.6% 22,115 21,991
60% 60.1% 18,956 18,975
50% 50.0% 15,797 15,807
40% 40.5% 12,637 12,783
30% 30.2% 9,478 9,552
20% 19.1% 6,319 6,033
10% 10.2% 3,159 3,237
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'your-598dff2ba1.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     32,393
Calibration 2     31,979
Calibration 3     31,734
ssj_ops@calibrated=31,856
100% 99.4% 31,856 31,675
90% 89.7% 28,671 28,570
80% 79.5% 25,485 25,337
70% 69.9% 22,299 22,258
60% 60.2% 19,114 19,166
50% 48.9% 15,928 15,593
40% 40.2% 12,743 12,792
30% 29.6% 9,557 9,431
20% 19.5% 6,371 6,202
10% 10.3% 3,186 3,296
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

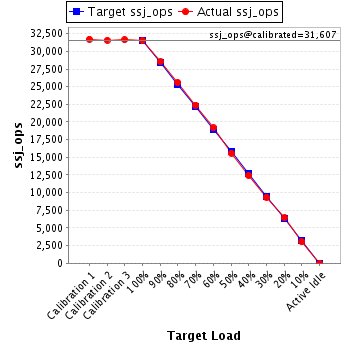

JVM 'your-598dff2ba1.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     31,725
Calibration 2     31,572
Calibration 3     31,641
ssj_ops@calibrated=31,607
100% 99.7% 31,607 31,497
90% 90.3% 28,446 28,532
80% 80.9% 25,285 25,583
70% 70.9% 22,125 22,404
60% 60.7% 18,964 19,171
50% 49.4% 15,803 15,602
40% 39.3% 12,643 12,425
30% 29.6% 9,482 9,371
20% 20.3% 6,321 6,412
10% 9.6% 3,161 3,042
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

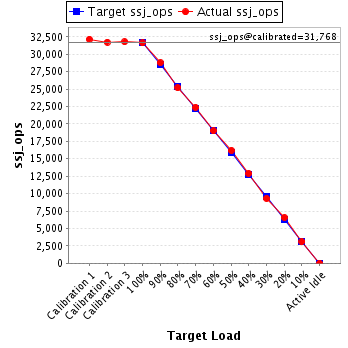

JVM 'your-598dff2ba1.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     32,176
Calibration 2     31,758
Calibration 3     31,779
ssj_ops@calibrated=31,768
100% 99.6% 31,768 31,630
90% 90.6% 28,592 28,798
80% 79.3% 25,415 25,199
70% 70.5% 22,238 22,391
60% 59.8% 19,061 19,004
50% 51.0% 15,884 16,201
40% 40.6% 12,707 12,904
30% 29.3% 9,531 9,308
20% 20.6% 6,354 6,552
10% 9.7% 3,177 3,092
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

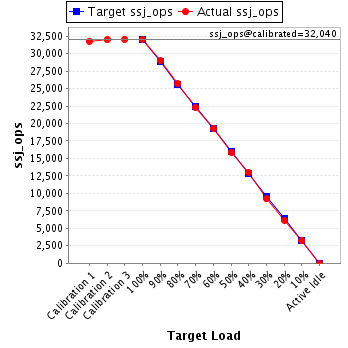

JVM 'your-598dff2ba1.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     31,788
Calibration 2     32,011
Calibration 3     32,069
ssj_ops@calibrated=32,040
100% 100.0% 32,040 32,027
90% 90.4% 28,836 28,980
80% 80.2% 25,632 25,703
70% 69.8% 22,428 22,349
60% 60.2% 19,224 19,281
50% 49.6% 16,020 15,893
40% 40.4% 12,816 12,954
30% 28.7% 9,612 9,204
20% 19.2% 6,408 6,158
10% 10.0% 3,204 3,217
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

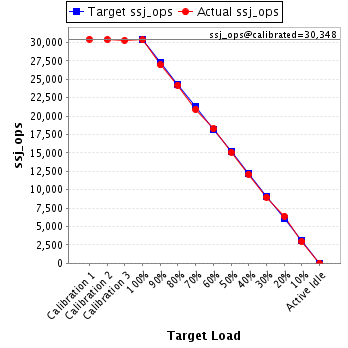

JVM 'your-598dff2ba1.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     30,450
Calibration 2     30,397
Calibration 3     30,298
ssj_ops@calibrated=30,348
100% 100.0% 30,348 30,343
90% 88.8% 27,313 26,956
80% 79.8% 24,278 24,209
70% 69.0% 21,243 20,931
60% 60.1% 18,209 18,252
50% 49.8% 15,174 15,104
40% 39.9% 12,139 12,102
30% 29.6% 9,104 8,983
20% 21.1% 6,070 6,412
10% 9.8% 3,035 2,967
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

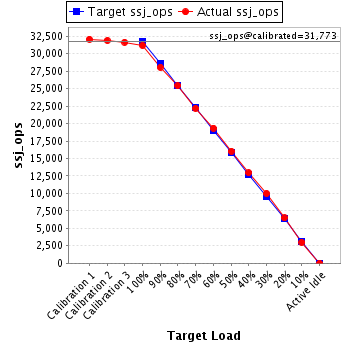

JVM 'your-598dff2ba1.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     32,076
Calibration 2     31,894
Calibration 3     31,652
ssj_ops@calibrated=31,773
100% 98.2% 31,773 31,191
90% 88.3% 28,596 28,059
80% 80.0% 25,418 25,413
70% 69.9% 22,241 22,196
60% 60.9% 19,064 19,354
50% 50.5% 15,886 16,030
40% 40.7% 12,709 12,931
30% 31.5% 9,532 10,000
20% 20.4% 6,355 6,479
10% 9.4% 3,177 3,000
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
