NEC Corporation Express5800/B120b ssj_ops@100% = 638,487
ssj_ops@100% per JVM = 106,415
Test Sponsor: NEC Corporation SPEC License #: 9006 Test Method: Multi Node
Tested By: NEC Corporation Test Location: Fuchu, Tokyo, Japan Test Date: Jul 8, 2010
Hardware Availability: Apr-2010 Software Availability: May-2009 Publication: Aug 11, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     652,432
Calibration 2     625,562
Calibration 3     653,271
ssj_ops@calibrated=639,417
100% 99.9% 639,417 638,487
90% 90.3% 575,475 577,501
80% 79.7% 511,533 509,899
70% 70.4% 447,592 450,121
60% 60.0% 383,650 383,332
50% 49.9% 319,708 319,130
40% 40.0% 255,767 255,907
30% 30.0% 191,825 192,013
20% 20.1% 127,883 128,815
10% 10.0% 63,942 64,138
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: Express5800/B120b (Intel Xeon L5640, 2.26 GHz)
# of Identical Nodes: 3
Comment: None
Hardware
Hardware Vendor: NEC Corporation
Model: Express5800/B120b
Form Factor: Blade
CPU Name: Intel Xeon L5640
CPU Characteristics: Hexa-Core, 2.26 GHz (Intel Turbo Boost Technology up to 2.80 GHz), 12 MB L3 Cache
CPU Frequency (MHz): 2266
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4096 MB
Memory Details: 4GB 2Rx4 PC3-10600R ECC CL9; slots CPU1_DIMM1, CPU1_DIMM2, CPU2_DIMM1 and CPU2_DIMM2 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 160GB 7200rpm HDD 2.5inch SATA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Integrated Intel 82576 Gigabit Dual Port Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: SP2
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64)
JVM Command-line Options: -Xms2400m -Xmx2400m -Xns2200m -XXaggressive -Xlargepages -Xgc:genpar -XXcallprofiling -XXgcthreads=2 -XXtlasize:min=4k,preferred=1024k
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000]
JVM Instances: 6
JVM Initial Heap (MB): 2400
JVM Maximum Heap (MB): 2400
JVM Address Bits: 64
Boot Firmware Version: 1.0.3040
Management Firmware Version: 01.16
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
HARIMA2-3.001 106,240
HARIMA2-3.002 104,654
HARIMA2-3.003 105,921
HARIMA2-3.004 107,136
HARIMA2-3.005 106,651
HARIMA2-3.006 107,885
ssj_ops@100% 638,487
ssj_ops@100% per JVM 106,415

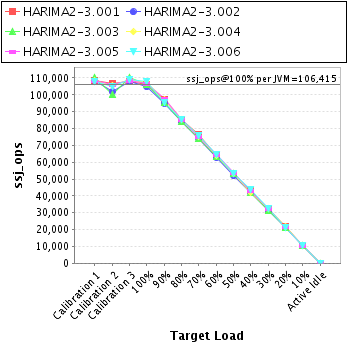

Graph of per-instance results

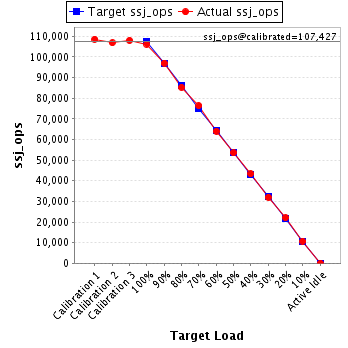

JVM 'HARIMA2-3.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,623
Calibration 2     106,836
Calibration 3     108,019
ssj_ops@calibrated=107,427
100% 98.9% 107,427 106,240
90% 90.3% 96,684 97,022
80% 79.4% 85,942 85,312
70% 71.0% 75,199 76,324
60% 59.6% 64,456 64,005
50% 49.8% 53,714 53,489
40% 40.3% 42,971 43,314
30% 29.8% 32,228 31,970
20% 20.5% 21,485 22,001
10% 10.0% 10,743 10,701
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

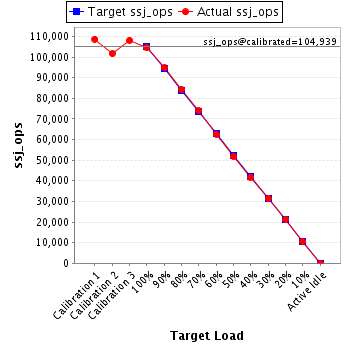

JVM 'HARIMA2-3.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,707
Calibration 2     101,701
Calibration 3     108,177
ssj_ops@calibrated=104,939
100% 99.7% 104,939 104,654
90% 90.3% 94,445 94,784
80% 80.2% 83,951 84,208
70% 70.5% 73,457 73,999
60% 59.7% 62,963 62,650
50% 49.4% 52,469 51,829
40% 39.9% 41,976 41,833
30% 29.9% 31,482 31,401
20% 20.2% 20,988 21,168
10% 10.1% 10,494 10,587
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'HARIMA2-3.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,209
Calibration 2     100,434
Calibration 3     110,471
ssj_ops@calibrated=105,453
100% 100.4% 105,453 105,921
90% 90.6% 94,908 95,532
80% 79.6% 84,362 83,993
70% 70.3% 73,817 74,134
60% 60.1% 63,272 63,412
50% 50.6% 52,726 53,378
40% 39.7% 42,181 41,869
30% 29.6% 31,636 31,257
20% 19.9% 21,091 21,032
10% 10.3% 10,545 10,812
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

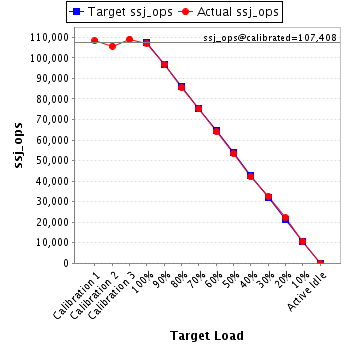

JVM 'HARIMA2-3.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,332
Calibration 2     105,707
Calibration 3     109,110
ssj_ops@calibrated=107,408
100% 99.7% 107,408 107,136
90% 90.3% 96,668 96,991
80% 79.7% 85,927 85,583
70% 70.0% 75,186 75,151
60% 59.7% 64,445 64,079
50% 49.7% 53,704 53,366
40% 39.3% 42,963 42,175
30% 30.3% 32,223 32,549
20% 20.6% 21,482 22,110
10% 10.0% 10,741 10,746
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

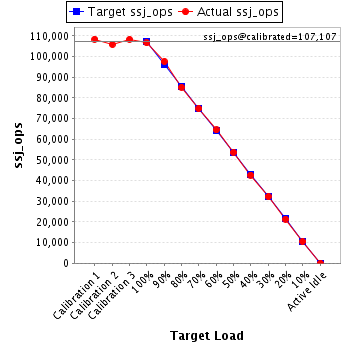

JVM 'HARIMA2-3.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,437
Calibration 2     105,907
Calibration 3     108,308
ssj_ops@calibrated=107,107
100% 99.6% 107,107 106,651
90% 91.2% 96,396 97,640
80% 79.6% 85,686 85,252
70% 69.9% 74,975 74,870
60% 60.2% 64,264 64,520
50% 50.2% 53,554 53,750
40% 39.9% 42,843 42,688
30% 30.1% 32,132 32,220
20% 20.0% 21,421 21,398
10% 9.8% 10,711 10,516
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'HARIMA2-3.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,123
Calibration 2     104,978
Calibration 3     109,187
ssj_ops@calibrated=107,082
100% 100.7% 107,082 107,885
90% 89.2% 96,374 95,532
80% 79.9% 85,666 85,551
70% 70.6% 74,958 75,643
60% 60.4% 64,249 64,666
50% 49.8% 53,541 53,317
40% 41.1% 42,833 44,029
30% 30.5% 32,125 32,616
20% 19.7% 21,416 21,107
10% 10.1% 10,708 10,775
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
