SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| Huawei Technologies Co., Ltd XH310 | SPECpower_ssj2008 = 2,234 overall ssj_ops/watt | ||||
| Test Sponsor: | Huawei Technologies Co., Ltd | SPEC License #: | 3175 | Test Method: | Multi Node |
| Tested By: | Huawei Technologies Co., Ltd | Test Location: | Shenzhen, Guangdong, China | Test Date: | Oct 12, 2009 |
| Hardware Availability: | Jul-2010 | Software Availability: | Jun-2010 | Publication: | Nov 10, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

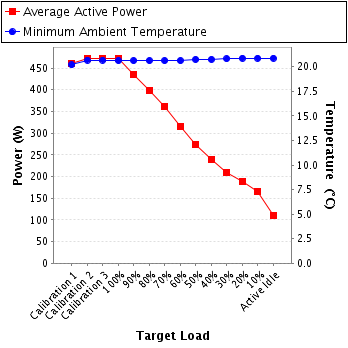

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 460 | 20.2 |
| Calibration 2 | 473 | 20.7 |
| Calibration 3 | 473 | 20.7 |
| 100% | 472 | 20.6 |
| 90% | 435 | 20.6 |
| 80% | 399 | 20.6 |
| 70% | 362 | 20.6 |
| 60% | 314 | 20.6 |
| 50% | 275 | 20.8 |
| 40% | 239 | 20.8 |
| 30% | 210 | 20.8 |
| 20% | 188 | 20.9 |
| 10% | 166 | 20.9 |
| Active Idle | 109 | 20.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91F522082 |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Calibration Institute: | CNAS (China National Accreditation Service for Conformity Assessment) |
| Accredited by: | Calibration and Testing Center of CEPREI |
| Calibration Label: | 16-0466 |
| Date of Calibration: | 28-Apr-2010 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.0-7071d9e7 |
| Setup Description: | none |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Temperature@lert |
| Model: | TM-STD30 |
| Driver Version: | 3.1.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | none |

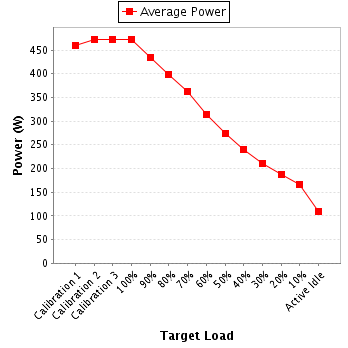

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 227 | 300.0 | 2.05 | 2.0 | 0.984 | 460 | 0.3% |
| Calibration 2 | 227 | 300.0 | 2.11 | 2.0 | 0.985 | 473 | 0.3% |
| Calibration 3 | 227 | 300.0 | 2.12 | 2.0 | 0.986 | 473 | 0.3% |
| 100% | 227 | 300.0 | 2.11 | 2.0 | 0.985 | 472 | 0.3% |
| 90% | 227 | 300.0 | 1.95 | 2.0 | 0.983 | 435 | 0.3% |
| 80% | 227 | 300.0 | 1.79 | 2.0 | 0.979 | 399 | 0.3% |
| 70% | 228 | 300.0 | 1.63 | 2.0 | 0.975 | 362 | 0.3% |
| 60% | 227 | 300.0 | 1.43 | 2.0 | 0.969 | 314 | 0.3% |
| 50% | 226 | 300.0 | 1.26 | 2.0 | 0.963 | 275 | 0.4% |
| 40% | 227 | 300.0 | 1.09 | 2.0 | 0.967 | 239 | 0.4% |
| 30% | 227 | 300.0 | 0.961 | 2.0 | 0.964 | 210 | 0.4% |
| 20% | 227 | 300.0 | 0.861 | 2.0 | 0.959 | 188 | 0.5% |
| 10% | 228 | 300.0 | 0.760 | 2.0 | 0.953 | 166 | 0.5% |
| Active Idle | 229 | 300.0 | 0.503 | 2.0 | 0.948 | 109 | 0.7% |
