SPECpower_ssj2008
Host 'WIN-07EAG2NCMG5' Performance Report
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| Acer Incorporated Gateway GT115 F1 (AMD Opteron 4164EE, 1.80 GHz) | ssj_ops@100% = 215,041 ssj_ops@100% per JVM = 107,521 |
||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
| Tested By: | Acer Incorporated | Test Location: | Taipei, Taiwan, ROC | Test Date: | Sep 29, 2010 |
| Hardware Availability: | Oct-2010 | Software Availability: | Sep-2009 | Publication: | Nov 3, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 216,212 | ||
| Calibration 2 | 216,438 | ||
| Calibration 3 | 217,098 | ||
| ssj_ops@calibrated=216,768 | |||
| 100% | 99.2% | 216,768 | 215,041 |
| 90% | 90.4% | 195,091 | 195,859 |
| 80% | 79.6% | 173,414 | 172,562 |
| 70% | 70.1% | 151,737 | 151,853 |
| 60% | 59.9% | 130,061 | 129,904 |
| 50% | 50.1% | 108,384 | 108,695 |
| 40% | 39.8% | 86,707 | 86,253 |
| 30% | 29.8% | 65,030 | 64,642 |
| 20% | 19.8% | 43,354 | 42,904 |
| 10% | 10.0% | 21,677 | 21,771 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Acer Incorporated |
| Model: | Gateway GT115 F1 (AMD Opteron 4164EE, 1.80 GHz) |
| Form Factor: | Tower |
| CPU Name: | AMD Opteron 4164EE |
| CPU Characteristics: | Six-Core, 1.8GHz, 6MB L3 Cache |
| CPU Frequency (MHz): | 1800 |
| CPU(s) Enabled: | 6 cores, 1 chip, 6 cores/chip |
| Hardware Threads: | 6 (1 / core) |
| CPU(s) Orderable: | 1 chip |
| Primary Cache: | 64 KB I + 64 KB D on chip per core |
| Secondary Cache: | 512 KB I+D on chip per core |
| Tertiary Cache: | 6 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 2 x 4096 MB |
| Memory Details: | 4GB, PC3-1066R- ECC, slots 1A, 1B populated |
| Power Supply Quantity and Rating (W): | 1 x 450 |
| Power Supply Details: | FSP450-60EP |
| Disk Drive: | 1 x 64 GB SSD 2.5" SATA (Intel SSDSA2SH064G1GC #899386) |
| Disk Controller: | Onboard SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Intel 82574L-Single GbE Controller (onboard) |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Power save enabled in OS |
| Operating System (OS): | Windows Server 2008, Enterprise Edition |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM <build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_049398 <JIT enabled, AOT enabled> |
| JVM Command-line Options: | -Xms1625m -Xmn1200m -Xmx1875m -Xcompressedrefs -Xaggressive -Xgcpolicy:gencon -Xlp -XlockReservation -Xnoloa -XtlhPrefetch |
| JVM Affinity: | start /affinity [3F,FC0] |
| JVM Instances: | 2 |
| JVM Initial Heap (MB): | 1625 |
| JVM Maximum Heap (MB): | 1625 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | D13 |
| Management Firmware Version: | none |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | SUT |
| Other Software: | IBM Websphere Application Server V7.0 for Windows on x86-64bit |
| JVM Instance | ssj_ops@100% |
|---|---|
| WIN-07EAG2NCMG5.001 | 108,542 |
| WIN-07EAG2NCMG5.002 | 106,499 |
| ssj_ops@100% | 215,041 |
| ssj_ops@100% per JVM | 107,521 |

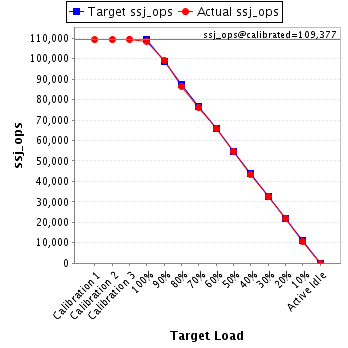

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 109,183 | ||
| Calibration 2 | 109,226 | ||
| Calibration 3 | 109,529 | ||
| ssj_ops@calibrated=109,377 | |||
| 100% | 99.2% | 109,377 | 108,542 |
| 90% | 90.6% | 98,440 | 99,127 |
| 80% | 79.2% | 87,502 | 86,630 |
| 70% | 69.6% | 76,564 | 76,176 |
| 60% | 60.1% | 65,626 | 65,769 |
| 50% | 50.1% | 54,689 | 54,768 |
| 40% | 39.7% | 43,751 | 43,421 |
| 30% | 29.7% | 32,813 | 32,515 |
| 20% | 19.9% | 21,875 | 21,750 |
| 10% | 9.9% | 10,938 | 10,844 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 107,029 | ||
| Calibration 2 | 107,212 | ||
| Calibration 3 | 107,569 | ||
| ssj_ops@calibrated=107,390 | |||
| 100% | 99.2% | 107,390 | 106,499 |
| 90% | 90.1% | 96,651 | 96,732 |
| 80% | 80.0% | 85,912 | 85,932 |
| 70% | 70.5% | 75,173 | 75,676 |
| 60% | 59.7% | 64,434 | 64,135 |
| 50% | 50.2% | 53,695 | 53,927 |
| 40% | 39.9% | 42,956 | 42,832 |
| 30% | 29.9% | 32,217 | 32,127 |
| 20% | 19.7% | 21,478 | 21,154 |
| 10% | 10.2% | 10,739 | 10,927 |
| Active Idle | 0 | 0 | |
