SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| Acer Incorporated Gateway GT310 F1 (Intel Xeon X3470, 2.93 GHz) | SPECpower_ssj2008 = 1,987 overall ssj_ops/watt | ||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
| Tested By: | Acer Incorporated | Test Location: | Taipei, Taiwan, ROC | Test Date: | Oct 22, 2010 |
| Hardware Availability: | Mar-2010 | Software Availability: | Dec-2009 | Publication: | Dec 1, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

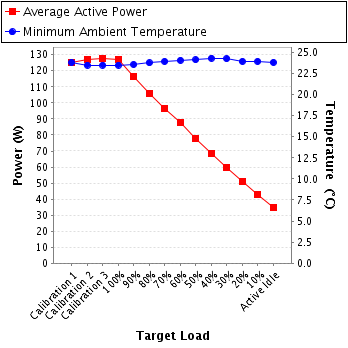

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 125 | 23.8 |
| Calibration 2 | 127 | 23.5 |
| Calibration 3 | 128 | 23.5 |
| 100% | 127 | 23.5 |
| 90% | 116 | 23.6 |
| 80% | 106 | 23.8 |
| 70% | 96.7 | 23.9 |
| 60% | 87.5 | 24.1 |
| 50% | 78.0 | 24.1 |
| 40% | 68.6 | 24.3 |
| 30% | 59.7 | 24.2 |
| 20% | 51.1 | 23.9 |
| 10% | 43.0 | 23.9 |
| Active Idle | 34.6 | 23.8 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91GC17356 |
| Connectivity: | RS-232-C |
| Input Connection: | Default |
| Calibration Institute: | NML (National Measurement Laboratory, R.O.C.) |
| Accredited by: | Tai Yi Electronics & Surveillance Co., Ltd. |
| Calibration Label: | T9903260701 |
| Date of Calibration: | 30-Mar-2010 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.0-7071d9e7 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Temperature@lert |
| Model: | Temperature@lert |
| Driver Version: | 2.6.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 50 mm in front of SUT main intake |

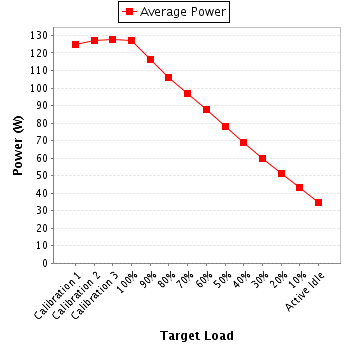

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 115 | 150.0 | 1.11 | 1.0 | 0.981 | 125 | 0.3% |
| Calibration 2 | 115 | 150.0 | 1.12 | 1.0 | 0.982 | 127 | 0.3% |
| Calibration 3 | 115 | 150.0 | 1.13 | 1.0 | 0.982 | 128 | 0.3% |
| 100% | 115 | 150.0 | 1.12 | 1.0 | 0.982 | 127 | 0.3% |
| 90% | 115 | 150.0 | 1.03 | 1.0 | 0.979 | 116 | 0.3% |
| 80% | 115 | 150.0 | 0.944 | 1.0 | 0.974 | 106 | 0.3% |
| 70% | 115 | 150.0 | 0.866 | 1.0 | 0.969 | 96.7 | 0.3% |
| 60% | 115 | 150.0 | 0.787 | 1.0 | 0.964 | 87.5 | 0.3% |
| 50% | 115 | 150.0 | 0.706 | 1.0 | 0.958 | 78.0 | 0.4% |
| 40% | 115 | 150.0 | 0.624 | 1.0 | 0.954 | 68.6 | 0.4% |
| 30% | 115 | 150.0 | 0.545 | 1.0 | 0.950 | 59.7 | 0.4% |
| 20% | 116 | 150.0 | 0.467 | 1.0 | 0.949 | 51.1 | 0.5% |
| 10% | 116 | 150.0 | 0.392 | 1.0 | 0.950 | 43.0 | 0.5% |
| Active Idle | 116 | 150.0 | 0.314 | 1.0 | 0.954 | 34.6 | 0.6% |
