SGI Rackable C2112-4TY14 ssj_ops@100% = 726,290
ssj_ops@100% per JVM = 121,048
Test Sponsor: SGI SPEC License #: 4 Test Method: Multi Node
Tested By: SGI Test Location: Fremont, CA, USA Test Date: Jan 6, 2011
Hardware Availability: Feb-2011 Software Availability: Dec-2010 Publication: Jan 26, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     727,638
Calibration 2     732,819
Calibration 3     731,411
ssj_ops@calibrated=732,115
100% 99.2% 732,115 726,290
90% 90.2% 658,904 660,729
80% 80.3% 585,692 588,216
70% 70.0% 512,481 512,827
60% 59.8% 439,269 437,845
50% 49.7% 366,058 363,585
40% 39.9% 292,846 292,156
30% 30.0% 219,635 219,641
20% 19.8% 146,423 145,278
10% 10.1% 73,212 73,608
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: Rackable C2112-4TY14
# of Identical Nodes: 4
Comment: None
Hardware
Hardware Vendor: SGI
Model: Rackable C2112-4TY14
Form Factor: Blade
CPU Name: Intel Xeon L5640
CPU Characteristics: Six-Core, 2.27 GHz, 12 MB L3 Cache
CPU Frequency (MHz): 2267
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600R; slots 1A and 2A populated for each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 60 GB SATA SSD, SGI Part #SGICSTE025M31-0060
Disk Controller: Intel ESB2 based Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Integrated Intel 82574L Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: power saver enabled in OS
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise Edition
OS Version: 64bit
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1600m -Xms2000m -Xmx2000m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /AFFINITY [F F0 F00 F000 F0000 F00000]
JVM Instances: 6
JVM Initial Heap (MB): 2000
JVM Maximum Heap (MB): 2000
JVM Address Bits: 64
Boot Firmware Version: 2.0c.b01
Management Firmware Version: None
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM Websphere Application Server Community Edition V2.1.1.4 for windows on X86-64bit
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
Peralta-3.001 122,226
Peralta-3.002 118,817
Peralta-3.003 122,148
Peralta-3.004 121,646
Peralta-3.005 120,311
Peralta-3.006 121,142
ssj_ops@100% 726,290
ssj_ops@100% per JVM 121,048
Graph of per-instance results

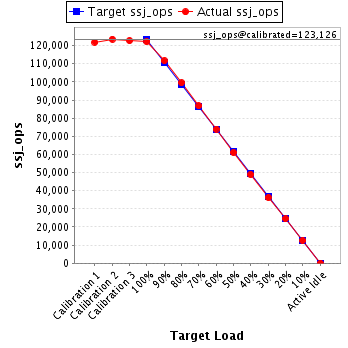

JVM 'Peralta-3.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     121,906
Calibration 2     123,566
Calibration 3     122,685
ssj_ops@calibrated=123,126
100% 99.3% 123,126 122,226
90% 90.7% 110,813 111,632
80% 80.8% 98,501 99,487
70% 70.5% 86,188 86,764
60% 60.1% 73,875 74,025
50% 49.6% 61,563 61,071
40% 39.7% 49,250 48,847
30% 29.4% 36,938 36,161
20% 19.9% 24,625 24,467
10% 10.3% 12,313 12,637
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Peralta-3.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     119,794
Calibration 2     119,467
Calibration 3     120,025
ssj_ops@calibrated=119,746
100% 99.2% 119,746 118,817
90% 89.5% 107,771 107,152
80% 81.7% 95,797 97,789
70% 69.3% 83,822 82,960
60% 59.7% 71,847 71,500
50% 49.1% 59,873 58,819
40% 40.5% 47,898 48,516
30% 30.0% 35,924 35,929
20% 19.6% 23,949 23,503
10% 9.9% 11,975 11,823
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Peralta-3.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     121,233
Calibration 2     122,996
Calibration 3     122,747
ssj_ops@calibrated=122,872
100% 99.4% 122,872 122,148
90% 90.0% 110,584 110,606
80% 80.0% 98,297 98,268
70% 70.2% 86,010 86,277
60% 59.2% 73,723 72,764
50% 49.7% 61,436 61,101
40% 39.8% 49,149 48,870
30% 30.2% 36,861 37,052
20% 19.8% 24,574 24,278
10% 9.9% 12,287 12,164
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Peralta-3.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     122,835
Calibration 2     123,173
Calibration 3     123,142
ssj_ops@calibrated=123,157
100% 98.8% 123,157 121,646
90% 90.8% 110,842 111,777
80% 79.9% 98,526 98,424
70% 69.6% 86,210 85,726
60% 60.3% 73,894 74,306
50% 49.9% 61,579 61,409
40% 39.8% 49,263 49,004
30% 30.5% 36,947 37,586
20% 20.2% 24,631 24,847
10% 10.1% 12,316 12,416
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Peralta-3.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,670
Calibration 2     121,065
Calibration 3     120,886
ssj_ops@calibrated=120,975
100% 99.5% 120,975 120,311
90% 90.2% 108,878 109,146
80% 79.9% 96,780 96,604
70% 70.2% 84,683 84,956
60% 59.2% 72,585 71,659
50% 50.0% 60,488 60,465
40% 40.1% 48,390 48,468
30% 29.8% 36,293 35,999
20% 20.0% 24,195 24,176
10% 10.1% 12,098 12,178
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Peralta-3.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     121,200
Calibration 2     122,553
Calibration 3     121,925
ssj_ops@calibrated=122,239
100% 99.1% 122,239 121,142
90% 90.3% 110,015 110,416
80% 79.9% 97,792 97,646
70% 70.5% 85,568 86,143
60% 60.2% 73,344 73,591
50% 49.7% 61,120 60,720
40% 39.6% 48,896 48,451
30% 30.2% 36,672 36,914
20% 19.6% 24,448 24,008
10% 10.1% 12,224 12,391
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
