SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2011 Standard Performance Evaluation Corporation
| Acer Incorporated Acer AC100 | SPECpower_ssj2008 = 3,741 overall ssj_ops/watt | ||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
| Tested By: | Acer Incorporated | Test Location: | Taipei, R.O.C. | Test Date: | Aug 17, 2011 |
| Hardware Availability: | Sep-2011 | Software Availability: | Sep-2009 | Publication: | Sep 13, 2011 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

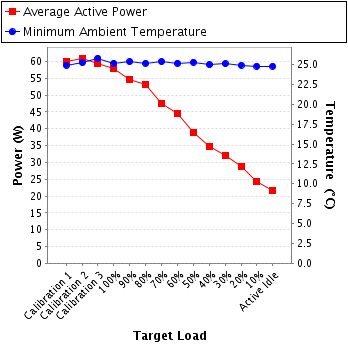

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 60.1 | 24.9 |
| Calibration 2 | 61.0 | 25.2 |
| Calibration 3 | 59.5 | 25.8 |
| 100% | 58.0 | 25.2 |
| 90% | 54.6 | 25.4 |
| 80% | 53.0 | 25.2 |
| 70% | 47.5 | 25.4 |
| 60% | 44.6 | 25.2 |
| 50% | 38.9 | 25.3 |
| 40% | 34.9 | 25.0 |
| 30% | 31.9 | 25.1 |
| 20% | 28.9 | 24.9 |
| 10% | 24.3 | 24.8 |
| Active Idle | 21.5 | 24.8 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H534921 |
| Connectivity: | RS232 |
| Input Connection: | Default |
| Metrology Institute: | NML (National Measurement Laboratory, R.O.C.) |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 11-05-BAC-205-01 |
| Date of Calibration: | 16-May-2011 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.0-7071d9e7 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.0.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | None |

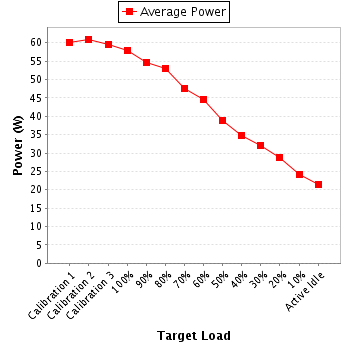

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 222 | 300.0 | 0.313 | 1.0 | 0.864 | 60.1 | 0.7% |
| Calibration 2 | 222 | 300.0 | 0.317 | 1.0 | 0.867 | 61.0 | 0.7% |
| Calibration 3 | 222 | 300.0 | 0.310 | 1.0 | 0.863 | 59.5 | 0.7% |
| 100% | 222 | 300.0 | 0.304 | 0.5 | 0.860 | 58.0 | 0.5% |
| 90% | 222 | 300.0 | 0.290 | 0.5 | 0.849 | 54.6 | 0.5% |
| 80% | 222 | 300.0 | 0.284 | 0.5 | 0.843 | 53.0 | 0.5% |
| 70% | 222 | 300.0 | 0.260 | 0.5 | 0.823 | 47.5 | 0.6% |
| 60% | 222 | 300.0 | 0.248 | 0.5 | 0.811 | 44.6 | 0.6% |
| 50% | 222 | 300.0 | 0.223 | 0.5 | 0.786 | 38.9 | 0.6% |
| 40% | 222 | 300.0 | 0.205 | 0.2 | 0.765 | 34.9 | 0.4% |
| 30% | 222 | 300.0 | 0.193 | 0.2 | 0.746 | 31.9 | 0.5% |
| 20% | 222 | 300.0 | 0.180 | 0.2 | 0.723 | 28.9 | 0.5% |
| 10% | 222 | 300.0 | 0.160 | 0.2 | 0.681 | 24.3 | 0.6% |
| Active Idle | 222 | 300.0 | 0.148 | 0.2 | 0.653 | 21.5 | 0.6% |
