Fujitsu PRIMERGY RX100 S7p (Intel Xeon E3-1265LV2) SPECpower_ssj2008 = 5,576 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: May 2, 2012
Hardware Availability: May-2012 Software Availability: Feb-2012 Publication: May 30, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 57.9 20.6
Calibration 2 59.4 20.6
Calibration 3 59.4 20.6
100% 59.5 20.6
90% 56.9 20.6
80% 50.6 20.6
70% 42.8 20.6
60% 37.9 20.7
50% 34.5 20.8
40% 31.5 20.8
30% 28.8 20.9
20% 26.0 21.0
10% 22.9 21.1
Active Idle 19.1 21.1

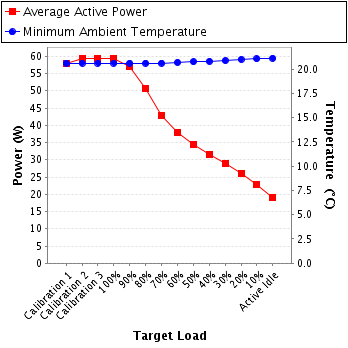

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11780806
Connectivity: RS-232
Input Connection: Default (20A)
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Kalibrierdienst Stenger
Calibration Label: 11080967
Date of Calibration: 03-Aug-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: Connected to PSU
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 8 due to a known inconsistency in processor reporting with this Java version.
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 232 250.0 0.311 0.6 0.801 57.9 0.1%
Calibration 2 233 250.0 0.316 0.6 0.807 59.4 0.1%
Calibration 3 233 250.0 0.316 0.6 0.808 59.4 0.1%
100% 232 250.0 0.317 0.6 0.808 59.5 0.1%
90% 233 250.0 0.309 0.6 0.792 56.9 0.1%
80% 233 250.0 0.289 0.6 0.752 50.6 0.2%
70% 233 250.0 0.263 0.6 0.699 42.8 0.2%
60% 233 250.0 0.249 0.6 0.652 37.9 0.2%
50% 233 250.0 0.239 0.6 0.621 34.5 0.2%
40% 233 250.0 0.226 0.6 0.599 31.5 0.3%
30% 230 250.0 0.214 0.6 0.586 28.8 0.3%
20% 229 250.0 0.205 0.6 0.554 26.0 0.3%
10% 229 250.0 0.194 0.6 0.516 22.9 0.3%
Active Idle 228 250.0 0.182 0.6 0.460 19.1 0.4%

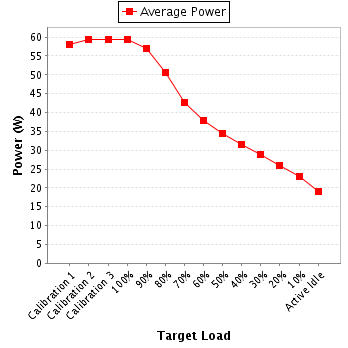

Power details for pwr1
