Dell Inc. PowerEdge R420 (Intel Xeon E5-2470, 2.30 GHz) SPECpower_ssj2008 = 4,866 overall ssj_ops/watt
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: May 25, 2012
Hardware Availability: May-2012 Software Availability: Dec-2011 Publication: Jun 14, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 202 23.4
Calibration 2 206 23.4
Calibration 3 206 23.4
100% 205 23.4
90% 192 23.6
80% 167 23.5
70% 144 23.4
60% 127 23.4
50% 113 23.5
40% 103 23.5
30% 90.2 23.6
20% 80.7 23.6
10% 71.2 23.4
Active Idle 51.2 23.4

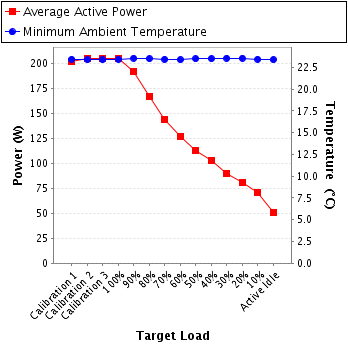

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd
Model: WT210
Serial Number: 91KA25149
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NIST
Accredited by: SIMCO
Calibration Label: 5477872
Date of Calibration: 16-Dec-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: Unknown
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.30.2.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 25mm in front of SUT main airflow intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 209 300.0 0.989 2.0 0.978 202 0.4%
Calibration 2 210 300.0 0.998 2.0 0.981 206 0.4%
Calibration 3 210 300.0 1.000 2.0 0.981 206 0.4%
100% 209 300.0 1.000 2.0 0.981 205 0.4%
90% 210 300.0 0.939 2.0 0.975 192 0.5%
80% 209 300.0 0.826 1.0 0.968 167 0.3%
70% 209 300.0 0.717 1.0 0.963 144 0.4%
60% 210 300.0 0.629 1.0 0.968 127 0.4%
50% 210 300.0 0.559 1.0 0.963 113 0.4%
40% 209 300.0 0.511 1.0 0.961 103 0.5%
30% 210 300.0 0.448 1.0 0.960 90.2 0.5%
20% 210 300.0 0.401 1.0 0.959 80.7 0.5%
10% 209 300.0 0.356 0.5 0.956 71.2 0.4%
Active Idle 209 300.0 0.263 0.5 0.932 51.2 0.5%

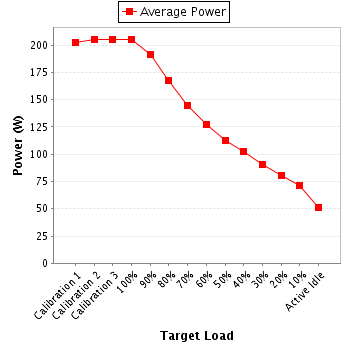

Power details for pwr1
