Huawei Technologies Co., Ltd RH2288 V2 ssj_ops@100% = 968,689
ssj_ops@100% per JVM = 161,448
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Jun 2, 2012
Hardware Availability: Jun-2012 Software Availability: Dec-2011 Publication: Jun 28, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     966,762
Calibration 2     969,759
Calibration 3     967,164
ssj_ops@calibrated=968,461
100% 100.0% 968,461 968,689
90% 89.6% 871,615 867,444
80% 80.2% 774,769 776,988
70% 69.9% 677,923 677,122
60% 60.1% 581,077 581,668
50% 50.0% 484,231 483,967
40% 40.0% 387,385 386,987
30% 30.2% 290,538 292,488
20% 19.8% 193,692 192,118
10% 10.0% 96,846 97,109
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: RH2288 V2
Form Factor: 2U
CPU Name: Intel Xeon E5-2630
CPU Characteristics: 6-Core, 2.30 GHz, 15 MB L3 Cache (Turbo Boost Technology up to 2.8 GHz)
CPU Frequency (MHz): 2300
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 15 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 8 x 4 GB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC
Power Supply Quantity and Rating (W): 1 x 460
Power Supply Details: Huawei S/N:1138000239
Disk Drive: 1 x 160GB SSD 2.5" SATA, Huawei P/N 02310KSX
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel 82580 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver enabled in OS
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -Xmx1600m -Xms1600m -Xmn1200m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /affinity [0xF,0xF0,0xF00,0xF000,0xF0000,0xF00000,]
JVM Instances: 6
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: V016
Management Firmware Version: 3.02
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 24 due to a known inconsistency in processor reporting with this Java version.
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-2QNA1OPHAK0.001 161,427
WIN-2QNA1OPHAK0.002 161,466
WIN-2QNA1OPHAK0.003 159,712
WIN-2QNA1OPHAK0.004 162,113
WIN-2QNA1OPHAK0.005 161,116
WIN-2QNA1OPHAK0.006 162,855
ssj_ops@100% 968,689
ssj_ops@100% per JVM 161,448
Graph of per-instance results
JVM 'WIN-2QNA1OPHAK0.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     160,997
Calibration 2     161,138
Calibration 3     160,825
ssj_ops@calibrated=160,982
100% 100.3% 160,982 161,427
90% 89.9% 144,883 144,704
80% 80.5% 128,785 129,533
70% 70.6% 112,687 113,645
60% 59.7% 96,589 96,061
50% 50.0% 80,491 80,437
40% 40.3% 64,393 64,853
30% 30.8% 48,294 49,661
20% 19.6% 32,196 31,564
10% 9.9% 16,098 15,867
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-2QNA1OPHAK0.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     161,103
Calibration 2     161,570
Calibration 3     161,447
ssj_ops@calibrated=161,508
100% 100.0% 161,508 161,466
90% 89.7% 145,357 144,825
80% 80.7% 129,207 130,271
70% 69.6% 113,056 112,329
60% 60.5% 96,905 97,679
50% 50.0% 80,754 80,825
40% 39.7% 64,603 64,061
30% 30.0% 48,452 48,419
20% 20.0% 32,302 32,253
10% 9.9% 16,151 15,977
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-2QNA1OPHAK0.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     160,235
Calibration 2     160,430
Calibration 3     159,102
ssj_ops@calibrated=159,766
100% 100.0% 159,766 159,712
90% 89.6% 143,789 143,073
80% 79.9% 127,813 127,682
70% 69.9% 111,836 111,729
60% 60.5% 95,859 96,580
50% 49.7% 79,883 79,380
40% 39.9% 63,906 63,721
30% 30.3% 47,930 48,450
20% 19.7% 31,953 31,509
10% 10.1% 15,977 16,118
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

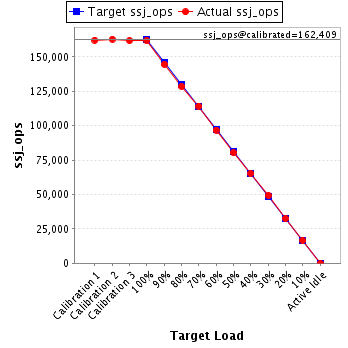

JVM 'WIN-2QNA1OPHAK0.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     162,319
Calibration 2     162,929
Calibration 3     161,888
ssj_ops@calibrated=162,409
100% 99.8% 162,409 162,113
90% 89.1% 146,168 144,770
80% 79.2% 129,927 128,704
70% 70.4% 113,686 114,309
60% 59.7% 97,445 96,888
50% 49.4% 81,204 80,283
40% 40.3% 64,963 65,384
30% 30.4% 48,723 49,341
20% 20.1% 32,482 32,575
10% 10.3% 16,241 16,773
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-2QNA1OPHAK0.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     160,110
Calibration 2     160,764
Calibration 3     161,181
ssj_ops@calibrated=160,972
100% 100.1% 160,972 161,116
90% 89.3% 144,875 143,813
80% 80.6% 128,778 129,736
70% 69.8% 112,681 112,383
60% 59.8% 96,583 96,249
50% 50.2% 80,486 80,846
40% 40.1% 64,389 64,562
30% 29.8% 48,292 47,977
20% 19.7% 32,194 31,729
10% 9.7% 16,097 15,675
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

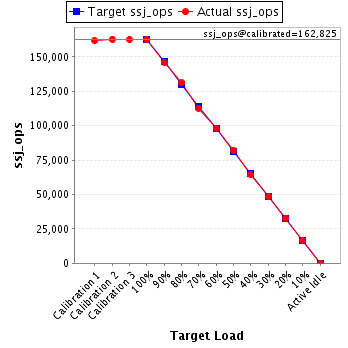

JVM 'WIN-2QNA1OPHAK0.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     161,998
Calibration 2     162,928
Calibration 3     162,722
ssj_ops@calibrated=162,825
100% 100.0% 162,825 162,855
90% 89.8% 146,542 146,260
80% 80.5% 130,260 131,062
70% 69.2% 113,977 112,725
60% 60.3% 97,695 98,212
50% 50.5% 81,412 82,195
40% 39.6% 65,130 64,406
30% 29.9% 48,847 48,640
20% 20.0% 32,565 32,488
10% 10.3% 16,282 16,700
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
