Fujitsu PRIMERGY TX140 S1p (Intel Xeon E3-1265LV2) SPECpower_ssj2008 = 5,887 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Jun 14, 2012
Hardware Availability: May-2012 Software Availability: Feb-2012 Publication: Jul 11, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 55.3 20.1
Calibration 2 55.4 20.1
Calibration 3 55.4 20.1
100% 55.3 20.1
90% 52.8 20.1
80% 46.9 20.1
70% 40.2 20.2
60% 36.0 20.1
50% 33.4 20.1
40% 30.5 20.1
30% 28.1 20.1
20% 25.5 20.1
10% 22.9 20.1
Active Idle 18.9 20.1
Graph of power and temperature
Measurement Devices
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91HA48097
Connectivity: RS-232
Input Connection: Default (20A)
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Kalibrierdienst Stenger
Calibration Label: 11111753
Date of Calibration: 14-Nov-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 8 due to a known inconsistency in processor reporting with this Java version.
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 229 300.0 0.305 0.5 0.789 55.3 0.5%
Calibration 2 230 300.0 0.306 0.5 0.789 55.4 0.5%
Calibration 3 230 300.0 0.305 0.5 0.789 55.4 0.5%
100% 230 300.0 0.305 0.5 0.789 55.3 0.5%
90% 230 300.0 0.295 0.5 0.778 52.8 0.5%
80% 230 300.0 0.273 0.5 0.747 46.9 0.6%
70% 229 300.0 0.247 0.5 0.710 40.2 0.7%
60% 229 300.0 0.230 0.2 0.683 36.0 0.5%
50% 229 300.0 0.220 0.2 0.661 33.4 0.5%
40% 229 300.0 0.210 0.2 0.634 30.5 0.5%
30% 229 300.0 0.201 0.2 0.608 28.1 0.6%
20% 229 300.0 0.193 0.2 0.577 25.5 0.6%
10% 229 300.0 0.184 0.2 0.544 22.9 0.7%
Active Idle 230 300.0 0.170 0.2 0.484 18.9 0.8%

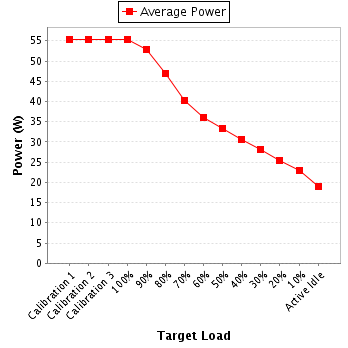

Power details for pwr2
