Acer Incorporated Acer AW2000h-AW170h F2 ssj_ops@100% = 1,320,816
ssj_ops@100% per JVM = 165,102
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Multi Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Sep 12, 2012
Hardware Availability: Sep-2012 Software Availability: Aug-2012 Publication: Oct 3, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,318,044
Calibration 2     1,327,307
Calibration 3     1,324,730
ssj_ops@calibrated=1,326,018
100% 99.6% 1,326,018 1,320,816
90% 90.2% 1,193,417 1,195,462
80% 80.0% 1,060,815 1,060,476
70% 69.8% 928,213 925,445
60% 59.9% 795,611 793,809
50% 50.0% 663,009 662,914
40% 40.2% 530,407 533,055
30% 30.1% 397,806 398,595
20% 20.0% 265,204 264,689
10% 10.0% 132,602 132,259
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Acer AW2000h-AW170h F2
Form Factor: 2U
CPU Name: Intel Xeon E5-2660 2.2 GHz (Intel Turbo Boost Technology up to 3.00 GHz)
CPU Characteristics: 8 core, 2.2GHz, 20MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 MB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 8 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600R; slots A1, B1, C1, D1, E1, F1, G1 and H1 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 64GB SATA SSD, Acer P/N KN.06404.002
Disk Controller: onboard SAS/SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_35
JVM Command-line Options: -server -showversion -Xmx2048m -Xms2048m -Xmn1706m -XX:ParallelGCThreads=4 -XX:BiasedLockingStartupDelay=200 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy
JVM Affinity: start /affinity [0000000F, 000000F0, 00000F00, 0000F000, 000F0000, 00F00000, 0F000000, F0000000]
JVM Instances: 8
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: 01.03.0002
Management Firmware Version: 01.10.3656
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-NIR2LIQ2NEF.001 165,506
WIN-NIR2LIQ2NEF.002 163,555
WIN-NIR2LIQ2NEF.003 164,715
WIN-NIR2LIQ2NEF.004 165,300
WIN-NIR2LIQ2NEF.005 165,850
WIN-NIR2LIQ2NEF.006 165,819
WIN-NIR2LIQ2NEF.007 163,974
WIN-NIR2LIQ2NEF.008 166,098
ssj_ops@100% 1,320,816
ssj_ops@100% per JVM 165,102

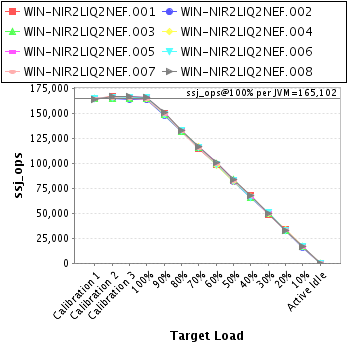

Graph of per-instance results
JVM 'WIN-NIR2LIQ2NEF.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,723
Calibration 2     166,345
Calibration 3     165,248
ssj_ops@calibrated=165,797
100% 99.8% 165,797 165,506
90% 90.3% 149,217 149,774
80% 79.9% 132,637 132,541
70% 69.2% 116,058 114,668
60% 59.5% 99,478 98,637
50% 50.1% 82,898 82,982
40% 40.7% 66,319 67,421
30% 29.7% 49,739 49,202
20% 20.2% 33,159 33,468
10% 10.0% 16,580 16,614
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-NIR2LIQ2NEF.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,255
Calibration 2     165,067
Calibration 3     164,253
ssj_ops@calibrated=164,660
100% 99.3% 164,660 163,555
90% 90.0% 148,194 148,162
80% 80.3% 131,728 132,159
70% 70.3% 115,262 115,751
60% 60.0% 98,796 98,788
50% 49.5% 82,330 81,569
40% 40.1% 65,864 65,981
30% 30.5% 49,398 50,162
20% 19.8% 32,932 32,541
10% 9.8% 16,466 16,079
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

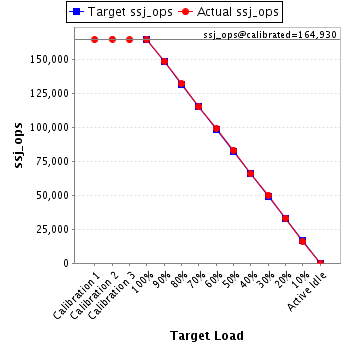

JVM 'WIN-NIR2LIQ2NEF.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,861
Calibration 2     165,222
Calibration 3     164,637
ssj_ops@calibrated=164,930
100% 99.9% 164,930 164,715
90% 90.3% 148,437 148,919
80% 80.2% 131,944 132,273
70% 69.9% 115,451 115,328
60% 60.3% 98,958 99,404
50% 50.6% 82,465 83,405
40% 39.9% 65,972 65,847
30% 30.4% 49,479 50,089
20% 20.2% 32,986 33,240
10% 9.9% 16,493 16,283
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

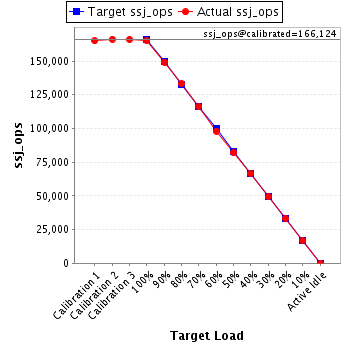

JVM 'WIN-NIR2LIQ2NEF.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,989
Calibration 2     166,235
Calibration 3     166,013
ssj_ops@calibrated=166,124
100% 99.5% 166,124 165,300
90% 89.8% 149,512 149,257
80% 80.2% 132,899 133,225
70% 70.0% 116,287 116,300
60% 59.0% 99,675 97,977
50% 49.4% 83,062 82,110
40% 40.2% 66,450 66,801
30% 29.7% 49,837 49,359
20% 20.0% 33,225 33,278
10% 10.1% 16,612 16,739
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-NIR2LIQ2NEF.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,111
Calibration 2     166,285
Calibration 3     166,771
ssj_ops@calibrated=166,528
100% 99.6% 166,528 165,850
90% 89.9% 149,875 149,668
80% 79.4% 133,223 132,158
70% 70.0% 116,570 116,564
60% 60.4% 99,917 100,579
50% 50.3% 83,264 83,689
40% 39.8% 66,611 66,247
30% 29.9% 49,958 49,837
20% 19.9% 33,306 33,200
10% 10.0% 16,653 16,666
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-NIR2LIQ2NEF.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,483
Calibration 2     165,495
Calibration 3     165,681
ssj_ops@calibrated=165,588
100% 100.1% 165,588 165,819
90% 90.0% 149,029 148,971
80% 80.2% 132,470 132,832
70% 69.8% 115,912 115,522
60% 59.6% 99,353 98,691
50% 50.3% 82,794 83,208
40% 39.7% 66,235 65,704
30% 30.6% 49,676 50,609
20% 19.8% 33,118 32,804
10% 10.1% 16,559 16,729
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

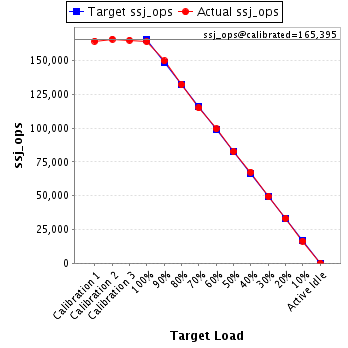

JVM 'WIN-NIR2LIQ2NEF.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,406
Calibration 2     165,773
Calibration 3     165,018
ssj_ops@calibrated=165,395
100% 99.1% 165,395 163,974
90% 90.5% 148,856 149,628
80% 79.9% 132,316 132,204
70% 69.5% 115,777 114,962
60% 60.1% 99,237 99,429
50% 50.0% 82,698 82,651
40% 40.8% 66,158 67,425
30% 29.9% 49,619 49,373
20% 20.1% 33,079 33,177
10% 9.9% 16,540 16,446
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

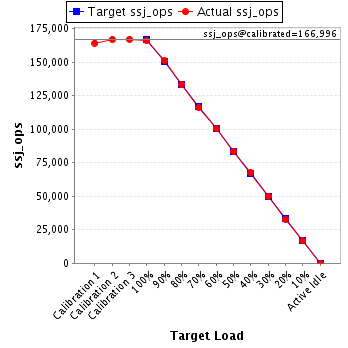

JVM 'WIN-NIR2LIQ2NEF.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,215
Calibration 2     166,885
Calibration 3     167,108
ssj_ops@calibrated=166,996
100% 99.5% 166,996 166,098
90% 90.5% 150,297 151,084
80% 79.7% 133,597 133,084
70% 69.7% 116,897 116,351
60% 60.1% 100,198 100,304
50% 49.9% 83,498 83,299
40% 40.5% 66,799 67,629
30% 29.9% 50,099 49,965
20% 19.7% 33,399 32,981
10% 10.0% 16,700 16,703
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
