Dell Inc. PowerEdge M620 (Intel Xeon E5-2670, 2.60 GHz) ssj_ops@100% = 1,418,496
ssj_ops@100% per JVM = 88,656
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Jan 11, 2013
Hardware Availability: Dec-2012 Software Availability: Jun-2012 Publication: Feb 20, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,340,451
Calibration 2     1,419,714
Calibration 3     1,419,970
ssj_ops@calibrated=1,419,842
100% 99.9% 1,419,842 1,418,496
90% 89.8% 1,277,858 1,274,382
80% 80.0% 1,135,874 1,136,456
70% 70.0% 993,889 993,759
60% 60.0% 851,905 852,356
50% 49.9% 709,921 708,700
40% 40.0% 567,937 568,429
30% 30.0% 425,953 425,830
20% 20.0% 283,968 283,344
10% 10.0% 141,984 141,409
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M620
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M620 (Intel Xeon E5-2670, 2.60 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2670 2.60 GHz
CPU Characteristics: 8 Core, 2.60 GHz, 20MB L3 Cache
CPU Frequency (MHz): 2600
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E-9 ECC, Slots A1-3, B1-3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N: DYW42
Disk Controller: Integrated PERC S110
# and type of Network Interface Cards (NICs) Installed: 1 x Onboard Dual-Port Intel X520-k Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn800m -Xms1024m -Xmx1024m -XlockReservation -Xnoloa -Xlp -Xconcurrentlevel0 -XtlhPrefetch -Xthr:minimizeusercpu -Xgcthreads4
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 1.4.9
Management Firmware Version: iDRAC7 1.30.30 (Build 39)
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
M620-07.001 89,636
M620-07.002 88,295
M620-07.003 88,877
M620-07.004 89,690
M620-07.005 88,204
M620-07.006 88,713
M620-07.007 87,357
M620-07.008 88,572
M620-07.009 88,644
M620-07.010 89,909
M620-07.011 87,525
M620-07.012 88,530
M620-07.013 87,514
M620-07.014 88,794
M620-07.015 89,699
M620-07.016 88,536
ssj_ops@100% 1,418,496
ssj_ops@100% per JVM 88,656

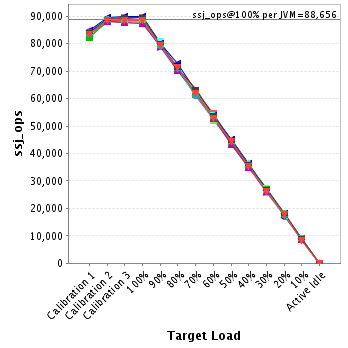

Graph of per-instance results

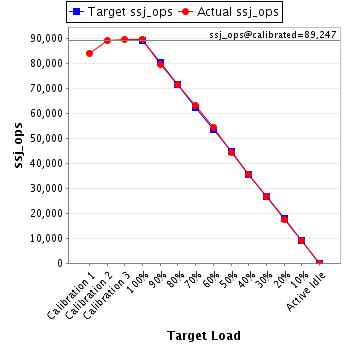

JVM 'M620-07.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,035
Calibration 2     88,983
Calibration 3     89,510
ssj_ops@calibrated=89,247
100% 100.4% 89,247 89,636
90% 89.2% 80,322 79,620
80% 79.9% 71,397 71,342
70% 70.5% 62,473 62,933
60% 61.0% 53,548 54,448
50% 49.6% 44,623 44,294
40% 39.9% 35,699 35,594
30% 29.8% 26,774 26,617
20% 19.6% 17,849 17,473
10% 10.1% 8,925 8,999
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-07.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,417
Calibration 2     88,226
Calibration 3     87,971
ssj_ops@calibrated=88,099
100% 100.2% 88,099 88,295
90% 90.2% 79,289 79,466
80% 80.6% 70,479 71,006
70% 69.3% 61,669 61,023
60% 59.6% 52,859 52,544
50% 50.4% 44,049 44,359
40% 39.9% 35,239 35,141
30% 30.1% 26,430 26,525
20% 19.5% 17,620 17,143
10% 10.0% 8,810 8,808
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-07.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,863
Calibration 2     88,973
Calibration 3     88,715
ssj_ops@calibrated=88,844
100% 100.0% 88,844 88,877
90% 90.0% 79,959 79,920
80% 79.7% 71,075 70,768
70% 69.9% 62,191 62,094
60% 58.6% 53,306 52,084
50% 49.9% 44,422 44,321
40% 40.7% 35,538 36,178
30% 30.4% 26,653 27,046
20% 19.6% 17,769 17,385
10% 9.8% 8,884 8,670
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-07.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,779
Calibration 2     88,999
Calibration 3     89,445
ssj_ops@calibrated=89,222
100% 100.5% 89,222 89,690
90% 90.2% 80,300 80,468
80% 79.2% 71,378 70,697
70% 70.0% 62,455 62,479
60% 60.5% 53,533 53,981
50% 50.0% 44,611 44,641
40% 40.3% 35,689 36,000
30% 29.8% 26,767 26,609
20% 20.1% 17,844 17,957
10% 9.9% 8,922 8,854
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-07.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,346
Calibration 2     88,716
Calibration 3     88,590
ssj_ops@calibrated=88,653
100% 99.5% 88,653 88,204
90% 90.1% 79,787 79,916
80% 80.1% 70,922 70,979
70% 69.5% 62,057 61,628
60% 59.6% 53,192 52,881
50% 49.8% 44,326 44,147
40% 39.7% 35,461 35,177
30% 30.7% 26,596 27,178
20% 19.9% 17,731 17,664
10% 9.9% 8,865 8,812
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-07.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,784
Calibration 2     88,987
Calibration 3     89,043
ssj_ops@calibrated=89,015
100% 99.7% 89,015 88,713
90% 90.7% 80,114 80,752
80% 79.0% 71,212 70,359
70% 69.2% 62,311 61,569
60% 60.5% 53,409 53,818
50% 49.8% 44,508 44,338
40% 40.2% 35,606 35,753
30% 30.6% 26,705 27,199
20% 20.0% 17,803 17,765
10% 9.6% 8,902 8,587
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-07.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,859
Calibration 2     88,631
Calibration 3     88,678
ssj_ops@calibrated=88,654
100% 98.5% 88,654 87,357
90% 90.2% 79,789 79,927
80% 80.3% 70,924 71,150
70% 71.1% 62,058 63,008
60% 60.4% 53,193 53,581
50% 50.2% 44,327 44,501
40% 39.8% 35,462 35,249
30% 30.0% 26,596 26,602
20% 20.2% 17,731 17,899
10% 9.7% 8,865 8,604
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-07.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,639
Calibration 2     88,191
Calibration 3     88,519
ssj_ops@calibrated=88,355
100% 100.2% 88,355 88,572
90% 89.1% 79,519 78,706
80% 79.6% 70,684 70,364
70% 70.0% 61,848 61,868
60% 59.6% 53,013 52,664
50% 50.0% 44,177 44,212
40% 39.9% 35,342 35,246
30% 29.3% 26,506 25,850
20% 19.7% 17,671 17,438
10% 10.0% 8,835 8,807
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-07.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,119
Calibration 2     88,995
Calibration 3     89,042
ssj_ops@calibrated=89,019
100% 99.6% 89,019 88,644
90% 89.0% 80,117 79,226
80% 80.7% 71,215 71,865
70% 69.3% 62,313 61,671
60% 59.8% 53,411 53,265
50% 49.4% 44,509 43,963
40% 39.6% 35,607 35,294
30% 30.2% 26,706 26,876
20% 19.7% 17,804 17,496
10% 10.1% 8,902 8,949
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-07.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,674
Calibration 2     89,590
Calibration 3     89,974
ssj_ops@calibrated=89,782
100% 100.1% 89,782 89,909
90% 89.3% 80,804 80,169
80% 81.0% 71,826 72,707
70% 70.1% 62,848 62,966
60% 60.1% 53,869 53,952
50% 50.4% 44,891 45,234
40% 40.3% 35,913 36,226
30% 29.6% 26,935 26,609
20% 20.4% 17,956 18,286
10% 10.2% 8,978 9,162
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-07.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,263
Calibration 2     88,189
Calibration 3     87,627
ssj_ops@calibrated=87,908
100% 99.6% 87,908 87,525
90% 90.4% 79,117 79,443
80% 80.3% 70,326 70,553
70% 70.1% 61,535 61,633
60% 60.2% 52,745 52,920
50% 49.2% 43,954 43,284
40% 39.7% 35,163 34,899
30% 30.6% 26,372 26,898
20% 20.3% 17,582 17,805
10% 10.1% 8,791 8,899
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-07.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,054
Calibration 2     88,706
Calibration 3     88,129
ssj_ops@calibrated=88,417
100% 100.1% 88,417 88,530
90% 89.4% 79,576 79,050
80% 80.7% 70,734 71,311
70% 70.6% 61,892 62,452
60% 60.4% 53,050 53,408
50% 50.1% 44,209 44,333
40% 40.6% 35,367 35,886
30% 29.4% 26,525 25,966
20% 20.4% 17,683 18,074
10% 10.0% 8,842 8,858
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

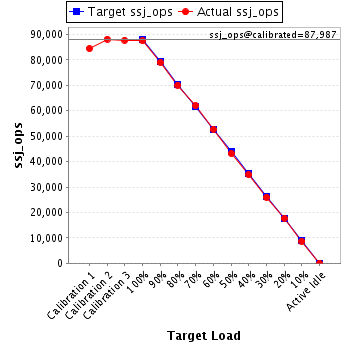

JVM 'M620-07.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,439
Calibration 2     88,171
Calibration 3     87,803
ssj_ops@calibrated=87,987
100% 99.5% 87,987 87,514
90% 89.9% 79,188 79,061
80% 79.6% 70,390 70,070
70% 70.5% 61,591 62,056
60% 60.0% 52,792 52,785
50% 49.1% 43,993 43,172
40% 39.6% 35,195 34,817
30% 29.6% 26,396 26,012
20% 20.2% 17,597 17,783
10% 9.9% 8,799 8,714
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-07.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,498
Calibration 2     88,830
Calibration 3     88,816
ssj_ops@calibrated=88,823
100% 100.0% 88,823 88,794
90% 89.0% 79,941 79,045
80% 79.8% 71,058 70,891
70% 68.6% 62,176 60,958
60% 60.2% 53,294 53,451
50% 50.4% 44,411 44,727
40% 40.1% 35,529 35,637
30% 29.8% 26,647 26,453
20% 19.6% 17,765 17,407
10% 10.4% 8,882 9,200
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-07.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,176
Calibration 2     89,072
Calibration 3     89,648
ssj_ops@calibrated=89,360
100% 100.4% 89,360 89,699
90% 89.7% 80,424 80,130
80% 79.4% 71,488 70,979
70% 71.2% 62,552 63,582
60% 60.3% 53,616 53,856
50% 50.0% 44,680 44,690
40% 40.3% 35,744 36,002
30% 30.4% 26,808 27,128
20% 20.2% 17,872 18,016
10% 10.2% 8,936 9,099
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-07.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,504
Calibration 2     88,455
Calibration 3     88,461
ssj_ops@calibrated=88,458
100% 100.1% 88,458 88,536
90% 89.9% 79,612 79,483
80% 80.7% 70,766 71,416
70% 69.9% 61,920 61,836
60% 59.6% 53,075 52,718
50% 50.3% 44,229 44,484
40% 39.9% 35,383 35,327
30% 29.7% 26,537 26,259
20% 20.1% 17,692 17,753
10% 9.5% 8,846 8,387
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
