Supermicro Inc. SYS-1028R-WC1RT SPECpower_ssj2008 = 8,004 overall ssj_ops/watt
Test Sponsor: Supermicro Inc. SPEC License #: 1176 Test Method: Single Node
Tested By: Supermicro Inc. Test Location: Chung-Ho Dist,TW, R.O.C Test Date: Sep 25, 2014
Hardware Availability: Jan-2015 Software Availability: Sep-2012 Publication: Feb 11, 2015
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 303 30.7
Calibration 2 301 30.1
Calibration 3 302 29.6
100% 302 29.1
90% 272 28.8
80% 246 28.5
70% 221 28.2
60% 198 28.0
50% 178 27.7
40% 159 27.5
30% 140 27.3
20% 124 27.1
10% 108 27.1
Active Idle 75.9 27.0

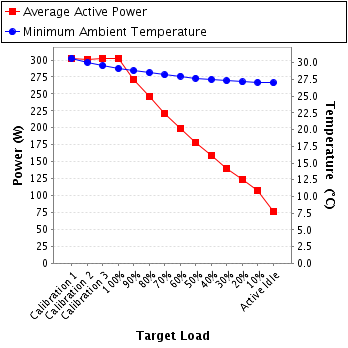

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91M620744
Connectivity: Serial
Input Connection: Default
Metrology Institute: NML (National Measurement Laboratory)
Accredited by: Omnio Calibration Lab. Co., Ltd.
Calibration Label: OCL-2351403T19C1
Date of Calibration: 20-Mar-2014
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.7.0-538b1562-20140802
Setup Description: Connected to PSU
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 10 mm in front of SUT main air intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 216 300.0 1.52 2.0 0.925 303 0.4%
Calibration 2 215 300.0 1.51 2.0 0.924 301 0.4%
Calibration 3 215 300.0 1.52 2.0 0.924 302 0.4%
100% 215 300.0 1.52 2.0 0.925 302 0.4%
90% 216 300.0 1.37 2.0 0.918 272 0.5%
80% 216 300.0 1.25 2.0 0.913 246 0.5%
70% 217 300.0 1.13 2.0 0.908 221 0.5%
60% 216 300.0 1.02 2.0 0.901 198 0.5%
50% 216 300.0 0.921 2.0 0.893 178 0.6%
40% 216 300.0 0.833 1.0 0.885 159 0.4%
30% 216 300.0 0.741 1.0 0.875 140 0.5%
20% 217 300.0 0.661 1.0 0.866 124 0.5%
10% 217 300.0 0.583 1.0 0.852 108 0.6%
Active Idle 216 300.0 0.430 1.0 0.816 75.9 0.7%

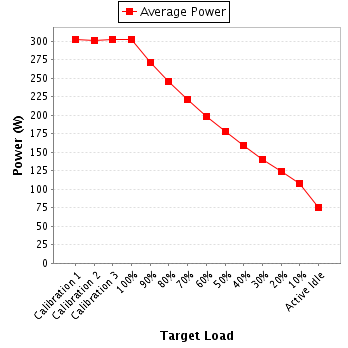

Power details for pwr1
