Dell Inc. PowerEdge FC630 (Intel Xeon E5-2699 v3 2.30 GHz) ssj_ops@100% = 12,981,292
ssj_ops@100% per Host = 3,245,323
ssj_ops@100% per JVM = 90,148
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Jul 10, 2015
Hardware Availability: Jun-2015 Software Availability: Jun-2013 Publication: Aug 6, 2015
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     12,086,912
Calibration 2     12,958,604
Calibration 3     12,965,402
ssj_ops@calibrated=12,962,003
100% 100.1% 12,962,003 12,981,292
90% 91.3% 11,665,803 11,836,344
80% 80.0% 10,369,602 10,363,347
70% 70.0% 9,073,402 9,070,421
60% 60.0% 7,777,202 7,771,376
50% 50.0% 6,481,001 6,481,754
40% 40.0% 5,184,801 5,187,204
30% 30.0% 3,888,601 3,887,762
20% 20.0% 2,592,401 2,588,364
10% 10.0% 1,296,200 1,293,713
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
4 8 144 288 256 4 144
System Under Test
Shared Hardware
Shared Hardware
Enclosure: Dell PowerEdge FX2
Form Factor: 2U
Power Supply Quantity and Rating (W): 1 x 1600
Power Supply Details: Dell P/N 95HR5
Network Switch: Dell 6248
Network Switch Details: 1Gb 48-Port Dell PowerConnect 6248
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: 1 x 8-Port 1Gb Ethernet Pass-Through Module P/N HF48K
Comment: Network switch not measured for power
Set: 'sut'
Set Identifier: sut
Set Description: FC630
# of Identical Nodes: 4
Comment: SUT
Hardware per Node
Hardware Vendor: Dell Inc.
Model: PowerEdge FC630 (Intel Xeon E5-2699 v3 2.30 GHz)
Form Factor: 2U
CPU Name: Intel Xeon E5-2699 v3 2.30 GHz
CPU Characteristics: 18 core, 2.30 GHz, 45 MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 36 cores, 2 chips, 18 cores/chip
Hardware Threads: 72 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 45 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 8 x 8 GB
Memory Details: 8GB 2Rx8 PC4-2133P ECC; slots A1-4, B1-4 populated Dell P/N H8PGM
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x 120GB SATA SSD Dell P/N XRD5Y
Disk Controller: Embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 520-k Dual Port 10 Gb Ethernet, Dell P/N JVFVR
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Power Saver power plan in OS (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: Version 6.1.7601 Service Pack 1 Build 7601
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled,AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn825m -Xms975m -Xmx975 -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu -Xgcthreads2 -Xgcpolicy:gencon
JVM Affinity: /NODE [0,1,2,3] /AFFINITY[0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000]
JVM Instances: 36
JVM Initial Heap (MB): 975
JVM Maximum Heap (MB): 975
JVM Address Bits: 64
Boot Firmware Version: 1.2.5
Management Firmware Version: iDRAC 2.15.10.10
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM WebSphere Application Server V8.5.0.0, Microsoft Hotfix for Windows (KB2510206)
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
FC630-01 3,242,798
FC630-02 3,242,613
FC630-03 3,250,168
FC630-04 3,245,711
ssj_ops@100% 12,981,292
ssj_ops@100% per Host 3,245,323
ssj_ops@100% per JVM 90,148

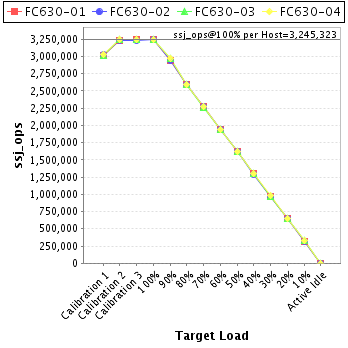

Graph of per-host results
Host 'FC630-01' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,020,099
Calibration 2     3,238,033
Calibration 3     3,239,459
ssj_ops@calibrated=3,238,746
100% 100.1% 3,238,746 3,242,798
90% 90.9% 2,914,871 2,944,523
80% 80.0% 2,590,997 2,590,559
70% 70.1% 2,267,122 2,270,213
60% 60.0% 1,943,248 1,944,136
50% 50.0% 1,619,373 1,619,564
40% 40.1% 1,295,498 1,298,701
30% 29.9% 971,624 969,152
20% 20.0% 647,749 648,671
10% 9.9% 323,875 322,225
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.

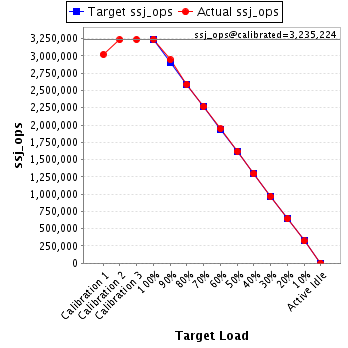

Host 'FC630-02' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,020,657
Calibration 2     3,233,895
Calibration 3     3,236,553
ssj_ops@calibrated=3,235,224
100% 100.2% 3,235,224 3,242,613
90% 91.0% 2,911,702 2,944,484
80% 80.0% 2,588,179 2,588,381
70% 70.1% 2,264,657 2,268,166
60% 60.1% 1,941,134 1,943,984
50% 50.0% 1,617,612 1,619,071
40% 40.0% 1,294,090 1,293,967
30% 29.9% 970,567 967,411
20% 19.9% 647,045 642,851
10% 10.0% 323,522 322,839
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'FC630-03' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,016,230
Calibration 2     3,242,506
Calibration 3     3,247,392
ssj_ops@calibrated=3,244,949
100% 100.2% 3,244,949 3,250,168
90% 91.6% 2,920,454 2,970,972
80% 79.9% 2,595,959 2,593,281
70% 69.8% 2,271,464 2,265,546
60% 59.8% 1,946,969 1,941,014
50% 50.0% 1,622,475 1,623,259
40% 40.0% 1,297,980 1,297,236
30% 30.0% 973,485 974,694
20% 20.0% 648,990 647,573
10% 10.0% 324,495 324,775
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.

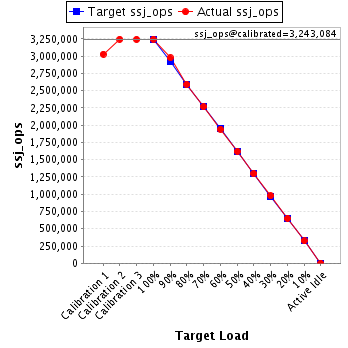

Host 'FC630-04' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,029,928
Calibration 2     3,244,170
Calibration 3     3,241,998
ssj_ops@calibrated=3,243,084
100% 100.1% 3,243,084 3,245,711
90% 91.8% 2,918,775 2,976,365
80% 79.9% 2,594,467 2,591,126
70% 69.9% 2,270,159 2,266,496
60% 59.9% 1,945,850 1,942,243
50% 49.9% 1,621,542 1,619,860
40% 40.0% 1,297,233 1,297,300
30% 30.1% 972,925 976,505
20% 20.0% 648,617 649,269
10% 10.0% 324,308 323,873
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
