SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2016 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant DL560 Gen9 | SPECpower_ssj2008 = 8,151 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Jun 1, 2016 |
| Hardware Availability: | Jun-2016 | Software Availability: | Jan-2015 | Publication: | Jun 22, 2016 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

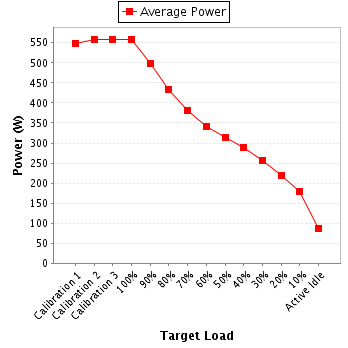

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 549 | 20.9 |
| Calibration 2 | 559 | 20.6 |
| Calibration 3 | 559 | 20.6 |
| 100% | 557 | 20.9 |
| 90% | 498 | 21.2 |
| 80% | 433 | 21.1 |
| 70% | 382 | 21.0 |
| 60% | 340 | 21.1 |
| 50% | 315 | 20.9 |
| 40% | 289 | 20.9 |
| 30% | 257 | 20.8 |
| 20% | 218 | 20.4 |
| 10% | 178 | 20.4 |
| Active Idle | 86.3 | 20.8 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91GB53023 |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | HPE Metrology |
| Calibration Label: | 705437 |
| Date of Calibration: | 05-Apr-2016 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.8.0-efc0c004-20160120 |
| Setup Description: | SUT Power Supplies 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 211 | 300.0 | 2.65 | 5.0 | 0.984 | 549 | 0.5% |
| Calibration 2 | 211 | 300.0 | 2.70 | 5.0 | 0.984 | 559 | 0.5% |
| Calibration 3 | 210 | 300.0 | 2.70 | 5.0 | 0.984 | 559 | 0.5% |
| 100% | 210 | 300.0 | 2.69 | 5.0 | 0.984 | 557 | 0.5% |
| 90% | 210 | 300.0 | 2.42 | 5.0 | 0.980 | 498 | 0.5% |
| 80% | 210 | 300.0 | 2.11 | 5.0 | 0.979 | 433 | 0.5% |
| 70% | 211 | 300.0 | 1.86 | 5.0 | 0.975 | 382 | 0.6% |
| 60% | 213 | 300.0 | 1.65 | 5.0 | 0.970 | 340 | 0.6% |
| 50% | 212 | 300.0 | 1.54 | 2.0 | 0.965 | 315 | 0.4% |
| 40% | 212 | 300.0 | 1.42 | 2.0 | 0.961 | 289 | 0.4% |
| 30% | 212 | 300.0 | 1.27 | 2.0 | 0.955 | 257 | 0.4% |
| 20% | 212 | 300.0 | 1.09 | 2.0 | 0.943 | 218 | 0.5% |
| 10% | 212 | 300.0 | 0.908 | 1.0 | 0.927 | 178 | 0.4% |
| Active Idle | 212 | 300.0 | 0.495 | 0.5 | 0.822 | 86.3 | 0.5% |
