Quanta Computer Inc. QuantaGrid D52BQ-2U SPECpower_ssj2008 = 12,438 overall ssj_ops/watt
Test Sponsor: Quanta Computer Inc. SPEC License #: 9050 Test Method: Single Node
Tested By: Quanta Computer Inc. Test Location: Taoyuan, TW, R.O.C Test Date: Jul 1, 2017
Hardware Availability: Jun-2017 Software Availability: Jun-2017 Publication: Oct 25, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 428 22.4
Calibration 2 427 22.4
Calibration 3 427 22.6
100% 426 23.1
90% 383 23.2
80% 334 23.0
70% 278 22.9
60% 240 22.8
50% 208 22.6
40% 182 22.6
30% 160 22.5
20% 138 22.4
10% 116 22.4
Active Idle 39.5 22.3

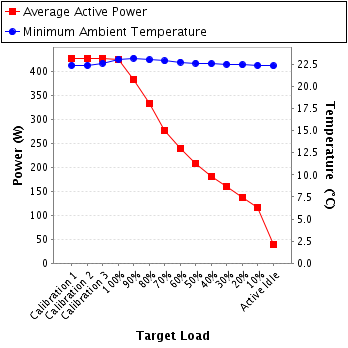

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT310
Serial Number: C2QD24017V
Connectivity: USB
Input Connection: Default
Metrology Institute: NML (National Measurement Laboratory)
Accredited by: Electronics Testing Center,Taiwan
Calibration Label: Q10680081
Date of Calibration: 24-Mar-2017
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to power supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/T
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 25 mm in front of SUT main airflow intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 218 300.0 1.98 5.0 0.995 428 0.5%
Calibration 2 218 300.0 1.97 2.0 0.994 427 0.3%
Calibration 3 218 300.0 1.97 2.0 0.994 427 0.3%
100% 218 300.0 1.96 2.0 0.994 426 0.3%
90% 218 300.0 1.80 2.0 0.991 383 0.3%
80% 218 300.0 1.55 2.0 0.990 334 0.3%
70% 218 300.0 1.29 2.0 0.987 278 0.4%
60% 219 300.0 1.12 2.0 0.984 240 0.4%
50% 219 300.0 0.970 2.0 0.979 208 0.4%
40% 219 300.0 0.854 2.0 0.973 182 0.5%
30% 219 300.0 0.756 2.0 0.966 160 0.5%
20% 219 300.0 0.661 1.0 0.955 138 0.4%
10% 220 300.0 0.563 1.0 0.937 116 0.4%
Active Idle 220 300.0 0.327 0.5 0.549 39.5 0.6%

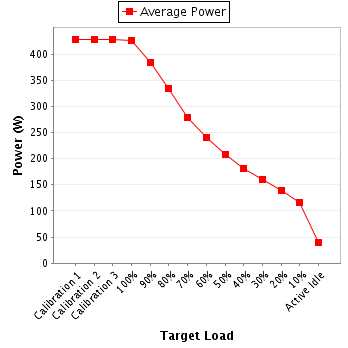

Power details for pwr1
