Lenovo Global Technology ThinkSystem SN550 ssj_ops@100% = 4,981,072
ssj_ops@100% per JVM = 88,948
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, Beijing, China Test Date: Oct 11, 2017
Hardware Availability: Aug-2017 Software Availability: Jan-2015 Publication: Oct 25, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,164,935
Calibration 2     5,080,897
Calibration 3     5,001,350
ssj_ops@calibrated=5,041,123
100% 98.8% 5,041,123 4,981,072
90% 90.5% 4,537,011 4,560,330
80% 80.1% 4,032,899 4,038,353
70% 70.1% 3,528,786 3,531,345
60% 60.1% 3,024,674 3,031,246
50% 50.0% 2,520,562 2,519,316
40% 40.0% 2,016,449 2,017,357
30% 30.0% 1,512,337 1,512,210
20% 20.0% 1,008,225 1,008,857
10% 10.0% 504,112 503,576
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 14
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SN550
Form Factor: 10U
CPU Name: Intel Xeon Platinum 8176
CPU Characteristics: 28 Core, 2.10GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2666V-RE1-12-MA0; slots 1,3,5,8,10,12,13,15,17,20,22 and 24 for each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 32GB M.2 SSD (Lenovo P/N SSD7A20774)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet Connection X722 for 10GBASE-T
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 DataCenter
OS Version: Version 6.3.9600 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xss256k -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE[0,2] /AFFINITY[3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE[1,3] /AFFINITY[3,C,30,3000,C000,30000,C0000,300000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000]
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: IVE111C
Management Firmware Version: TEI307N
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.
JVM Instance Summary
JVM Instance ssj_ops@100%
L6-189.001 89,000
L6-189.002 89,207
L6-189.003 90,676
L6-189.004 89,036
L6-189.005 88,395
L6-189.006 90,005
L6-189.007 89,133
L6-189.008 89,703
L6-189.009 89,217
L6-189.010 88,123
L6-189.011 88,543
L6-189.012 89,769
L6-189.013 89,473
L6-189.014 89,025
L6-189.015 91,451
L6-189.016 89,163
L6-189.017 91,252
L6-189.018 88,410
L6-189.019 87,750
L6-189.020 90,824
L6-189.021 89,596
L6-189.022 89,038
L6-189.023 91,290
L6-189.024 92,395
L6-189.025 89,319
L6-189.026 88,935
L6-189.027 88,579
L6-189.028 88,443
L6-189.029 88,728
L6-189.030 88,121
L6-189.031 88,093
L6-189.032 89,105
L6-189.033 88,070
L6-189.034 89,074
L6-189.035 89,602
L6-189.036 89,118
L6-189.037 92,209
L6-189.038 90,974
L6-189.039 88,478
L6-189.040 88,039
L6-189.041 89,366
L6-189.042 88,740
L6-189.043 87,806
L6-189.044 88,018
L6-189.045 88,549
L6-189.046 86,255
L6-189.047 86,297
L6-189.048 89,900
L6-189.049 87,749
L6-189.050 86,720
L6-189.051 87,362
L6-189.052 88,556
L6-189.053 87,174
L6-189.054 88,299
L6-189.055 87,218
L6-189.056 87,706
ssj_ops@100% 4,981,072
ssj_ops@100% per JVM 88,948

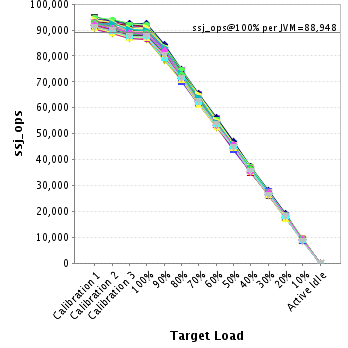

Graph of per-instance results
JVM 'L6-189.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,602
Calibration 2     90,067
Calibration 3     89,652
ssj_ops@calibrated=89,859
100% 99.0% 89,859 89,000
90% 90.4% 80,874 81,268
80% 78.9% 71,888 70,880
70% 70.0% 62,902 62,884
60% 60.6% 53,916 54,442
50% 49.7% 44,930 44,686
40% 40.4% 35,944 36,326
30% 30.5% 26,958 27,362
20% 19.6% 17,972 17,652
10% 9.9% 8,986 8,931
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

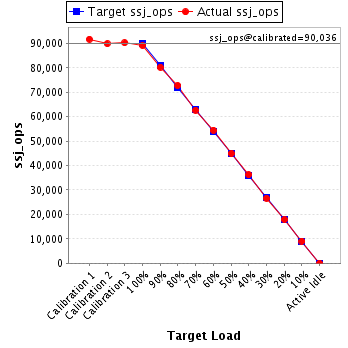

JVM 'L6-189.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,735
Calibration 2     89,876
Calibration 3     90,196
ssj_ops@calibrated=90,036
100% 99.1% 90,036 89,207
90% 89.1% 81,033 80,265
80% 80.8% 72,029 72,743
70% 69.6% 63,025 62,677
60% 60.5% 54,022 54,494
50% 49.9% 45,018 44,918
40% 40.3% 36,014 36,296
30% 29.6% 27,011 26,662
20% 19.9% 18,007 17,887
10% 10.0% 9,004 9,042
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,607
Calibration 2     92,218
Calibration 3     91,264
ssj_ops@calibrated=91,741
100% 98.8% 91,741 90,676
90% 91.0% 82,567 83,490
80% 81.4% 73,393 74,703
70% 69.3% 64,219 63,554
60% 60.7% 55,045 55,723
50% 50.3% 45,870 46,161
40% 40.3% 36,696 36,999
30% 30.8% 27,522 28,223
20% 20.5% 18,348 18,833
10% 10.0% 9,174 9,131
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

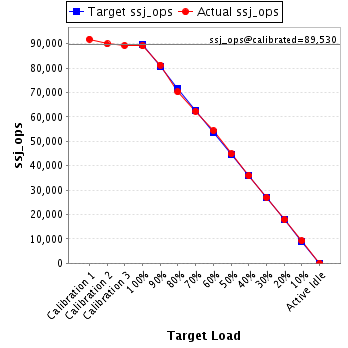

JVM 'L6-189.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,818
Calibration 2     89,844
Calibration 3     89,216
ssj_ops@calibrated=89,530
100% 99.4% 89,530 89,036
90% 90.7% 80,577 81,221
80% 78.5% 71,624 70,242
70% 69.5% 62,671 62,260
60% 60.6% 53,718 54,283
50% 50.0% 44,765 44,806
40% 40.1% 35,812 35,904
30% 30.0% 26,859 26,871
20% 20.0% 17,906 17,864
10% 10.3% 8,953 9,241
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,262
Calibration 2     89,563
Calibration 3     89,028
ssj_ops@calibrated=89,295
100% 99.0% 89,295 88,395
90% 89.6% 80,366 79,982
80% 80.4% 71,436 71,779
70% 70.4% 62,507 62,894
60% 61.1% 53,577 54,524
50% 49.3% 44,648 44,048
40% 40.3% 35,718 35,945
30% 30.6% 26,789 27,354
20% 19.8% 17,859 17,677
10% 10.0% 8,930 8,958
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,501
Calibration 2     90,970
Calibration 3     90,387
ssj_ops@calibrated=90,679
100% 99.3% 90,679 90,005
90% 90.0% 81,611 81,627
80% 81.0% 72,543 73,412
70% 70.5% 63,475 63,971
60% 60.2% 54,407 54,583
50% 50.0% 45,339 45,300
40% 39.8% 36,271 36,097
30% 29.5% 27,204 26,711
20% 19.8% 18,136 17,912
10% 10.1% 9,068 9,124
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,581
Calibration 2     91,447
Calibration 3     89,213
ssj_ops@calibrated=90,330
100% 98.7% 90,330 89,133
90% 88.8% 81,297 80,201
80% 79.7% 72,264 72,036
70% 70.2% 63,231 63,373
60% 60.3% 54,198 54,506
50% 50.0% 45,165 45,152
40% 40.3% 36,132 36,360
30% 29.1% 27,099 26,293
20% 20.2% 18,066 18,281
10% 9.9% 9,033 8,942
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,212
Calibration 2     91,545
Calibration 3     90,090
ssj_ops@calibrated=90,817
100% 98.8% 90,817 89,703
90% 91.6% 81,736 83,203
80% 79.0% 72,654 71,775
70% 69.3% 63,572 62,975
60% 60.8% 54,490 55,242
50% 49.7% 45,409 45,121
40% 39.7% 36,327 36,018
30% 29.6% 27,245 26,872
20% 19.9% 18,163 18,056
10% 10.1% 9,082 9,200
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,738
Calibration 2     90,908
Calibration 3     89,972
ssj_ops@calibrated=90,440
100% 98.6% 90,440 89,217
90% 90.3% 81,396 81,664
80% 79.6% 72,352 71,962
70% 71.1% 63,308 64,299
60% 60.2% 54,264 54,432
50% 49.7% 45,220 44,983
40% 39.7% 36,176 35,936
30% 30.2% 27,132 27,339
20% 20.4% 18,088 18,495
10% 10.3% 9,044 9,306
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,817
Calibration 2     89,745
Calibration 3     88,513
ssj_ops@calibrated=89,129
100% 98.9% 89,129 88,123
90% 90.6% 80,216 80,766
80% 80.0% 71,303 71,292
70% 69.9% 62,390 62,266
60% 59.8% 53,477 53,291
50% 49.9% 44,565 44,441
40% 39.3% 35,652 35,056
30% 29.9% 26,739 26,665
20% 20.0% 17,826 17,845
10% 10.0% 8,913 8,875
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,467
Calibration 2     89,704
Calibration 3     89,091
ssj_ops@calibrated=89,398
100% 99.0% 89,398 88,543
90% 90.3% 80,458 80,708
80% 80.6% 71,518 72,038
70% 70.4% 62,578 62,975
60% 60.9% 53,639 54,444
50% 49.2% 44,699 43,981
40% 39.9% 35,759 35,633
30% 30.0% 26,819 26,844
20% 19.9% 17,880 17,791
10% 9.7% 8,940 8,633
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,146
Calibration 2     90,863
Calibration 3     89,798
ssj_ops@calibrated=90,330
100% 99.4% 90,330 89,769
90% 89.7% 81,297 81,067
80% 79.6% 72,264 71,876
70% 69.0% 63,231 62,344
60% 59.9% 54,198 54,068
50% 50.3% 45,165 45,401
40% 41.2% 36,132 37,237
30% 29.8% 27,099 26,899
20% 19.8% 18,066 17,869
10% 10.2% 9,033 9,187
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,983
Calibration 2     90,292
Calibration 3     89,165
ssj_ops@calibrated=89,728
100% 99.7% 89,728 89,473
90% 90.1% 80,755 80,857
80% 79.5% 71,783 71,301
70% 70.7% 62,810 63,406
60% 59.8% 53,837 53,657
50% 49.9% 44,864 44,730
40% 39.9% 35,891 35,775
30% 29.5% 26,918 26,466
20% 20.3% 17,946 18,230
10% 9.6% 8,973 8,596
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,426
Calibration 2     90,085
Calibration 3     89,247
ssj_ops@calibrated=89,666
100% 99.3% 89,666 89,025
90% 89.9% 80,699 80,578
80% 80.2% 71,733 71,917
70% 70.7% 62,766 63,363
60% 59.0% 53,800 52,887
50% 49.8% 44,833 44,666
40% 40.5% 35,866 36,298
30% 29.9% 26,900 26,826
20% 20.4% 17,933 18,288
10% 9.7% 8,967 8,683
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

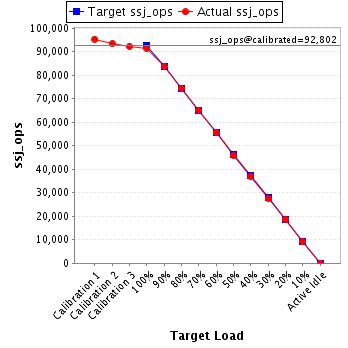

JVM 'L6-189.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,303
Calibration 2     93,306
Calibration 3     92,298
ssj_ops@calibrated=92,802
100% 98.5% 92,802 91,451
90% 90.3% 83,522 83,783
80% 80.2% 74,242 74,426
70% 70.1% 64,961 65,062
60% 59.9% 55,681 55,575
50% 49.4% 46,401 45,843
40% 40.0% 37,121 37,082
30% 29.8% 27,841 27,613
20% 19.9% 18,560 18,495
10% 9.8% 9,280 9,100
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

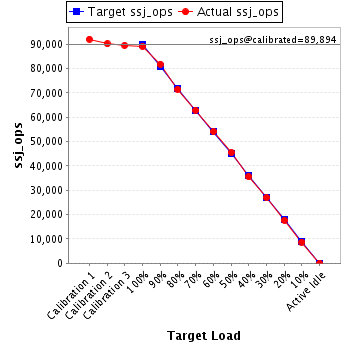

JVM 'L6-189.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,082
Calibration 2     90,201
Calibration 3     89,587
ssj_ops@calibrated=89,894
100% 99.2% 89,894 89,163
90% 90.9% 80,905 81,752
80% 79.6% 71,915 71,527
70% 70.0% 62,926 62,927
60% 60.3% 53,936 54,162
50% 50.6% 44,947 45,508
40% 39.5% 35,958 35,552
30% 29.9% 26,968 26,896
20% 19.7% 17,979 17,718
10% 9.7% 8,989 8,733
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,313
Calibration 2     92,622
Calibration 3     91,119
ssj_ops@calibrated=91,870
100% 99.3% 91,870 91,252
90% 89.8% 82,683 82,463
80% 80.7% 73,496 74,095
70% 69.8% 64,309 64,147
60% 60.5% 55,122 55,591
50% 50.2% 45,935 46,120
40% 39.9% 36,748 36,617
30% 29.9% 27,561 27,440
20% 20.2% 18,374 18,576
10% 9.7% 9,187 8,895
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

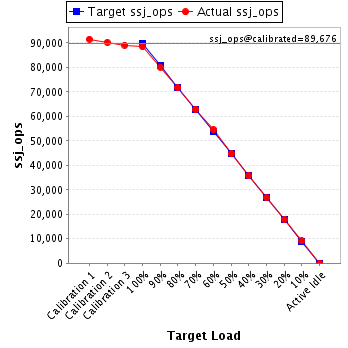

JVM 'L6-189.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,551
Calibration 2     90,217
Calibration 3     89,135
ssj_ops@calibrated=89,676
100% 98.6% 89,676 88,410
90% 89.4% 80,708 80,156
80% 80.0% 71,741 71,773
70% 70.3% 62,773 63,004
60% 60.8% 53,805 54,566
50% 50.0% 44,838 44,806
40% 39.9% 35,870 35,756
30% 29.8% 26,903 26,768
20% 20.0% 17,935 17,946
10% 10.2% 8,968 9,154
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,039
Calibration 2     89,399
Calibration 3     88,835
ssj_ops@calibrated=89,117
100% 98.5% 89,117 87,750
90% 90.9% 80,206 80,964
80% 80.2% 71,294 71,479
70% 70.4% 62,382 62,754
60% 59.8% 53,470 53,289
50% 49.1% 44,559 43,747
40% 40.6% 35,647 36,189
30% 30.2% 26,735 26,879
20% 19.8% 17,823 17,660
10% 10.0% 8,912 8,881
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,604
Calibration 2     92,961
Calibration 3     91,914
ssj_ops@calibrated=92,437
100% 98.3% 92,437 90,824
90% 90.0% 83,194 83,182
80% 80.5% 73,950 74,421
70% 70.6% 64,706 65,237
60% 60.5% 55,462 55,924
50% 50.2% 46,219 46,369
40% 39.6% 36,975 36,605
30% 29.5% 27,731 27,229
20% 19.6% 18,487 18,144
10% 9.8% 9,244 9,053
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,322
Calibration 2     91,016
Calibration 3     90,533
ssj_ops@calibrated=90,774
100% 98.7% 90,774 89,596
90% 90.7% 81,697 82,358
80% 80.9% 72,619 73,438
70% 70.3% 63,542 63,808
60% 60.3% 54,465 54,728
50% 50.8% 45,387 46,137
40% 39.6% 36,310 35,924
30% 29.9% 27,232 27,173
20% 20.5% 18,155 18,583
10% 9.9% 9,077 8,944
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,296
Calibration 2     90,634
Calibration 3     89,588
ssj_ops@calibrated=90,111
100% 98.8% 90,111 89,038
90% 90.7% 81,100 81,771
80% 78.5% 72,089 70,758
70% 69.6% 63,078 62,738
60% 59.3% 54,066 53,445
50% 50.5% 45,055 45,547
40% 39.4% 36,044 35,502
30% 30.4% 27,033 27,395
20% 20.2% 18,022 18,235
10% 10.3% 9,011 9,284
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

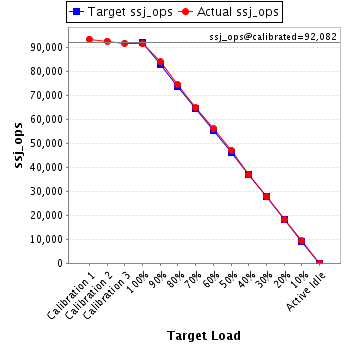

JVM 'L6-189.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,275
Calibration 2     92,511
Calibration 3     91,653
ssj_ops@calibrated=92,082
100% 99.1% 92,082 91,290
90% 91.0% 82,874 83,817
80% 80.8% 73,665 74,376
70% 70.3% 64,457 64,752
60% 60.7% 55,249 55,914
50% 51.1% 46,041 47,079
40% 40.0% 36,833 36,792
30% 30.1% 27,625 27,672
20% 19.8% 18,416 18,233
10% 10.1% 9,208 9,269
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,086
Calibration 2     93,669
Calibration 3     92,724
ssj_ops@calibrated=93,196
100% 99.1% 93,196 92,395
90% 90.5% 83,877 84,309
80% 80.2% 74,557 74,707
70% 70.5% 65,237 65,672
60% 60.3% 55,918 56,206
50% 50.4% 46,598 46,958
40% 40.0% 37,279 37,264
30% 30.3% 27,959 28,271
20% 20.4% 18,639 19,033
10% 10.0% 9,320 9,340
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,821
Calibration 2     89,919
Calibration 3     89,910
ssj_ops@calibrated=89,915
100% 99.3% 89,915 89,319
90% 90.5% 80,923 81,393
80% 80.1% 71,932 71,998
70% 70.2% 62,940 63,086
60% 60.3% 53,949 54,262
50% 50.3% 44,957 45,236
40% 40.2% 35,966 36,113
30% 30.1% 26,974 27,109
20% 19.9% 17,983 17,858
10% 9.9% 8,991 8,899
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,651
Calibration 2     89,838
Calibration 3     89,525
ssj_ops@calibrated=89,681
100% 99.2% 89,681 88,935
90% 90.9% 80,713 81,560
80% 79.9% 71,745 71,617
70% 69.9% 62,777 62,662
60% 61.2% 53,809 54,915
50% 49.6% 44,841 44,444
40% 40.2% 35,873 36,089
30% 30.3% 26,904 27,182
20% 20.0% 17,936 17,965
10% 9.7% 8,968 8,715
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,728
Calibration 2     90,222
Calibration 3     89,131
ssj_ops@calibrated=89,677
100% 98.8% 89,677 88,579
90% 90.8% 80,709 81,456
80% 80.7% 71,741 72,362
70% 69.1% 62,774 61,928
60% 61.0% 53,806 54,695
50% 49.9% 44,838 44,754
40% 40.1% 35,871 35,971
30% 29.9% 26,903 26,780
20% 19.6% 17,935 17,613
10% 10.1% 8,968 9,088
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

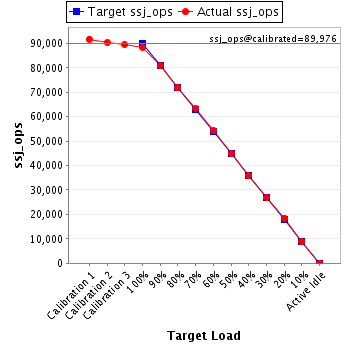

JVM 'L6-189.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,751
Calibration 2     90,368
Calibration 3     89,584
ssj_ops@calibrated=89,976
100% 98.3% 89,976 88,443
90% 90.0% 80,979 80,982
80% 79.8% 71,981 71,841
70% 70.5% 62,984 63,442
60% 60.4% 53,986 54,320
50% 50.0% 44,988 44,987
40% 39.9% 35,991 35,865
30% 29.7% 26,993 26,747
20% 20.5% 17,995 18,477
10% 9.8% 8,998 8,829
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,448
Calibration 2     90,793
Calibration 3     88,808
ssj_ops@calibrated=89,801
100% 98.8% 89,801 88,728
90% 90.3% 80,821 81,094
80% 81.0% 71,841 72,696
70% 70.0% 62,860 62,840
60% 59.8% 53,880 53,670
50% 49.2% 44,900 44,137
40% 39.6% 35,920 35,569
30% 29.8% 26,940 26,796
20% 19.8% 17,960 17,825
10% 10.5% 8,980 9,437
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

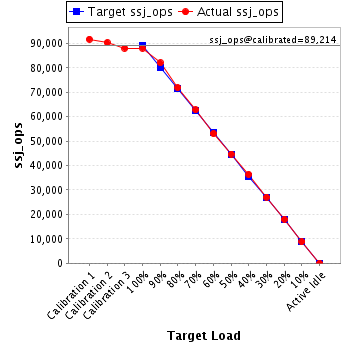

JVM 'L6-189.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,743
Calibration 2     90,302
Calibration 3     88,125
ssj_ops@calibrated=89,214
100% 98.8% 89,214 88,121
90% 91.9% 80,292 82,031
80% 80.6% 71,371 71,890
70% 70.4% 62,449 62,786
60% 59.5% 53,528 53,096
50% 50.1% 44,607 44,712
40% 40.8% 35,685 36,384
30% 30.4% 26,764 27,125
20% 20.2% 17,843 18,024
10% 9.8% 8,921 8,787
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,927
Calibration 2     90,258
Calibration 3     87,968
ssj_ops@calibrated=89,113
100% 98.9% 89,113 88,093
90% 91.2% 80,202 81,249
80% 80.4% 71,290 71,679
70% 69.6% 62,379 62,042
60% 59.9% 53,468 53,389
50% 49.5% 44,556 44,142
40% 40.1% 35,645 35,714
30% 29.6% 26,734 26,335
20% 19.6% 17,823 17,484
10% 9.9% 8,911 8,794
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,399
Calibration 2     91,770
Calibration 3     89,438
ssj_ops@calibrated=90,604
100% 98.3% 90,604 89,105
90% 90.8% 81,543 82,277
80% 80.1% 72,483 72,547
70% 70.1% 63,423 63,496
60% 60.4% 54,362 54,684
50% 50.0% 45,302 45,262
40% 39.0% 36,242 35,294
30% 30.1% 27,181 27,315
20% 19.9% 18,121 18,054
10% 9.9% 9,060 8,999
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,990
Calibration 2     90,157
Calibration 3     88,402
ssj_ops@calibrated=89,280
100% 98.6% 89,280 88,070
90% 91.1% 80,352 81,338
80% 80.3% 71,424 71,702
70% 69.3% 62,496 61,885
60% 60.0% 53,568 53,597
50% 50.4% 44,640 44,971
40% 39.9% 35,712 35,581
30% 29.8% 26,784 26,641
20% 19.8% 17,856 17,658
10% 10.1% 8,928 8,994
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,818
Calibration 2     90,720
Calibration 3     89,112
ssj_ops@calibrated=89,916
100% 99.1% 89,916 89,074
90% 90.2% 80,924 81,076
80% 79.1% 71,933 71,093
70% 70.8% 62,941 63,637
60% 60.6% 53,950 54,479
50% 49.5% 44,958 44,505
40% 39.9% 35,966 35,852
30% 30.6% 26,975 27,500
20% 20.7% 17,983 18,569
10% 9.9% 8,992 8,933
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,769
Calibration 2     91,712
Calibration 3     89,581
ssj_ops@calibrated=90,647
100% 98.8% 90,647 89,602
90% 91.6% 81,582 83,039
80% 80.5% 72,518 72,981
70% 69.9% 63,453 63,393
60% 60.2% 54,388 54,555
50% 49.0% 45,323 44,453
40% 40.3% 36,259 36,505
30% 30.6% 27,194 27,744
20% 20.0% 18,129 18,168
10% 10.0% 9,065 9,079
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,742
Calibration 2     91,850
Calibration 3     89,072
ssj_ops@calibrated=90,461
100% 98.5% 90,461 89,118
90% 91.4% 81,415 82,698
80% 79.8% 72,369 72,188
70% 69.7% 63,323 63,011
60% 59.2% 54,277 53,508
50% 49.7% 45,231 44,958
40% 39.1% 36,184 35,404
30% 30.6% 27,138 27,707
20% 20.4% 18,092 18,498
10% 10.2% 9,046 9,220
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

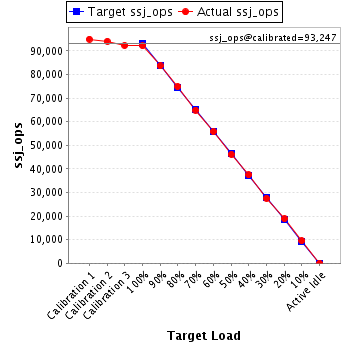

JVM 'L6-189.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,000
Calibration 2     94,112
Calibration 3     92,383
ssj_ops@calibrated=93,247
100% 98.9% 93,247 92,209
90% 89.7% 83,923 83,633
80% 80.4% 74,598 74,951
70% 69.7% 65,273 64,960
60% 59.9% 55,948 55,843
50% 49.5% 46,624 46,135
40% 40.2% 37,299 37,455
30% 29.5% 27,974 27,552
20% 20.2% 18,649 18,858
10% 10.2% 9,325 9,525
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,921
Calibration 2     92,950
Calibration 3     90,802
ssj_ops@calibrated=91,876
100% 99.0% 91,876 90,974
90% 91.0% 82,688 83,609
80% 79.4% 73,501 72,963
70% 71.1% 64,313 65,318
60% 59.9% 55,126 55,056
50% 50.1% 45,938 46,039
40% 40.3% 36,750 37,023
30% 29.7% 27,563 27,277
20% 20.1% 18,375 18,507
10% 10.0% 9,188 9,175
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

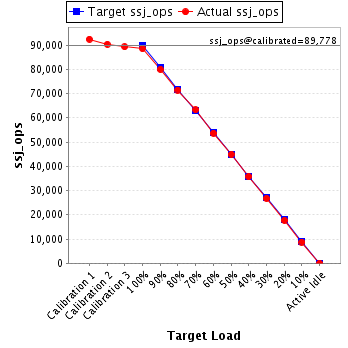

JVM 'L6-189.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,419
Calibration 2     90,319
Calibration 3     89,238
ssj_ops@calibrated=89,778
100% 98.6% 89,778 88,478
90% 89.1% 80,800 79,961
80% 79.6% 71,823 71,452
70% 70.5% 62,845 63,249
60% 59.8% 53,867 53,650
50% 50.0% 44,889 44,913
40% 39.8% 35,911 35,716
30% 29.8% 26,933 26,739
20% 19.7% 17,956 17,669
10% 9.8% 8,978 8,766
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,256
Calibration 2     90,340
Calibration 3     87,970
ssj_ops@calibrated=89,155
100% 98.7% 89,155 88,039
90% 91.1% 80,239 81,236
80% 79.9% 71,324 71,194
70% 70.6% 62,408 62,965
60% 59.7% 53,493 53,245
50% 49.9% 44,577 44,482
40% 40.5% 35,662 36,085
30% 30.2% 26,746 26,966
20% 19.8% 17,831 17,674
10% 9.8% 8,915 8,702
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,735
Calibration 2     91,486
Calibration 3     89,575
ssj_ops@calibrated=90,530
100% 98.7% 90,530 89,366
90% 88.8% 81,477 80,413
80% 79.5% 72,424 71,931
70% 70.1% 63,371 63,498
60% 59.2% 54,318 53,595
50% 50.3% 45,265 45,545
40% 40.6% 36,212 36,751
30% 30.1% 27,159 27,266
20% 19.5% 18,106 17,656
10% 10.0% 9,053 9,037
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,969
Calibration 2     91,255
Calibration 3     88,859
ssj_ops@calibrated=90,057
100% 98.5% 90,057 88,740
90% 90.3% 81,051 81,322
80% 80.4% 72,046 72,417
70% 70.6% 63,040 63,612
60% 60.0% 54,034 54,006
50% 49.4% 45,029 44,445
40% 40.5% 36,023 36,435
30% 30.2% 27,017 27,194
20% 20.1% 18,011 18,095
10% 10.1% 9,006 9,100
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,639
Calibration 2     89,684
Calibration 3     87,787
ssj_ops@calibrated=88,735
100% 99.0% 88,735 87,806
90% 91.0% 79,862 80,735
80% 80.1% 70,988 71,076
70% 70.2% 62,115 62,325
60% 60.4% 53,241 53,593
50% 50.5% 44,368 44,799
40% 39.6% 35,494 35,100
30% 29.9% 26,621 26,557
20% 19.8% 17,747 17,584
10% 9.9% 8,874 8,812
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,030
Calibration 2     90,156
Calibration 3     88,258
ssj_ops@calibrated=89,207
100% 98.7% 89,207 88,018
90% 90.0% 80,286 80,286
80% 80.2% 71,366 71,552
70% 69.1% 62,445 61,662
60% 60.2% 53,524 53,704
50% 50.0% 44,604 44,597
40% 39.9% 35,683 35,559
30% 29.9% 26,762 26,661
20% 19.5% 17,841 17,407
10% 10.1% 8,921 9,037
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,730
Calibration 2     90,477
Calibration 3     88,650
ssj_ops@calibrated=89,564
100% 98.9% 89,564 88,549
90% 89.8% 80,607 80,460
80% 80.6% 71,651 72,168
70% 70.3% 62,695 62,999
60% 59.8% 53,738 53,595
50% 49.4% 44,782 44,244
40% 39.8% 35,825 35,671
30% 30.2% 26,869 27,085
20% 20.1% 17,913 17,999
10% 10.6% 8,956 9,536
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

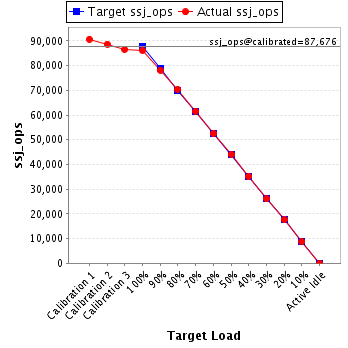

JVM 'L6-189.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,741
Calibration 2     88,742
Calibration 3     86,610
ssj_ops@calibrated=87,676
100% 98.4% 87,676 86,255
90% 89.2% 78,909 78,222
80% 80.4% 70,141 70,449
70% 70.3% 61,373 61,646
60% 59.9% 52,606 52,482
50% 50.3% 43,838 44,127
40% 40.3% 35,071 35,290
30% 29.7% 26,303 26,074
20% 20.1% 17,535 17,590
10% 10.0% 8,768 8,762
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,373
Calibration 2     88,688
Calibration 3     86,609
ssj_ops@calibrated=87,649
100% 98.5% 87,649 86,297
90% 91.2% 78,884 79,892
80% 80.6% 70,119 70,623
70% 69.8% 61,354 61,201
60% 60.3% 52,589 52,866
50% 49.6% 43,824 43,469
40% 40.2% 35,059 35,266
30% 30.7% 26,295 26,898
20% 20.1% 17,530 17,615
10% 9.9% 8,765 8,666
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,333
Calibration 2     92,606
Calibration 3     90,406
ssj_ops@calibrated=91,506
100% 98.2% 91,506 89,900
90% 90.8% 82,356 83,129
80% 80.1% 73,205 73,273
70% 69.9% 64,054 63,938
60% 59.2% 54,904 54,151
50% 49.9% 45,753 45,684
40% 39.9% 36,602 36,474
30% 30.0% 27,452 27,419
20% 19.9% 18,301 18,164
10% 9.9% 9,151 9,083
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,495
Calibration 2     89,801
Calibration 3     88,070
ssj_ops@calibrated=88,935
100% 98.7% 88,935 87,749
90% 91.4% 80,042 81,314
80% 80.1% 71,148 71,201
70% 70.0% 62,255 62,231
60% 59.9% 53,361 53,311
50% 49.6% 44,468 44,104
40% 40.7% 35,574 36,165
30% 29.5% 26,681 26,203
20% 20.1% 17,787 17,891
10% 9.9% 8,894 8,788
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,656
Calibration 2     89,834
Calibration 3     87,682
ssj_ops@calibrated=88,758
100% 97.7% 88,758 86,720
90% 90.6% 79,882 80,429
80% 80.3% 71,006 71,265
70% 69.7% 62,130 61,892
60% 60.2% 53,255 53,411
50% 49.8% 44,379 44,219
40% 39.9% 35,503 35,443
30% 29.5% 26,627 26,144
20% 19.9% 17,752 17,687
10% 10.3% 8,876 9,129
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,183
Calibration 2     89,284
Calibration 3     87,699
ssj_ops@calibrated=88,491
100% 98.7% 88,491 87,362
90% 91.9% 79,642 81,306
80% 79.2% 70,793 70,114
70% 69.4% 61,944 61,426
60% 60.6% 53,095 53,642
50% 49.8% 44,246 44,047
40% 40.0% 35,397 35,432
30% 30.2% 26,547 26,718
20% 20.2% 17,698 17,910
10% 9.8% 8,849 8,686
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,517
Calibration 2     90,639
Calibration 3     88,453
ssj_ops@calibrated=89,546
100% 98.9% 89,546 88,556
90% 90.9% 80,591 81,356
80% 80.9% 71,637 72,427
70% 69.8% 62,682 62,530
60% 59.5% 53,728 53,296
50% 50.6% 44,773 45,347
40% 40.3% 35,818 36,045
30% 30.1% 26,864 26,970
20% 19.9% 17,909 17,812
10% 10.2% 8,955 9,166
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,898
Calibration 2     89,179
Calibration 3     87,328
ssj_ops@calibrated=88,254
100% 98.8% 88,254 87,174
90% 90.8% 79,428 80,175
80% 80.4% 70,603 71,000
70% 69.3% 61,778 61,186
60% 59.6% 52,952 52,639
50% 50.7% 44,127 44,747
40% 40.3% 35,301 35,542
30% 30.0% 26,476 26,468
20% 19.4% 17,651 17,128
10% 10.2% 8,825 9,033
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

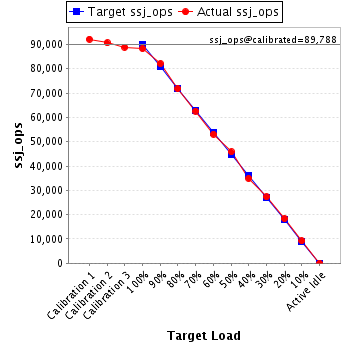

JVM 'L6-189.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,182
Calibration 2     90,672
Calibration 3     88,904
ssj_ops@calibrated=89,788
100% 98.3% 89,788 88,299
90% 91.5% 80,809 82,145
80% 79.9% 71,831 71,777
70% 69.7% 62,852 62,627
60% 59.1% 53,873 53,096
50% 51.0% 44,894 45,809
40% 38.9% 35,915 34,919
30% 30.4% 26,936 27,273
20% 20.4% 17,958 18,342
10% 10.3% 8,979 9,225
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,441
Calibration 2     89,303
Calibration 3     87,475
ssj_ops@calibrated=88,389
100% 98.7% 88,389 87,218
90% 89.1% 79,550 78,796
80% 81.1% 70,711 71,677
70% 70.1% 61,872 61,985
60% 60.3% 53,033 53,322
50% 50.6% 44,194 44,754
40% 40.6% 35,356 35,897
30% 30.4% 26,517 26,852
20% 20.1% 17,678 17,775
10% 9.6% 8,839 8,499
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L6-189.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,866
Calibration 2     89,800
Calibration 3     87,716
ssj_ops@calibrated=88,758
100% 98.8% 88,758 87,706
90% 90.4% 79,882 80,269
80% 80.3% 71,006 71,294
70% 70.5% 62,131 62,547
60% 60.4% 53,255 53,600
50% 50.4% 44,379 44,738
40% 40.1% 35,503 35,581
30% 29.5% 26,627 26,193
20% 20.3% 17,752 17,999
10% 9.7% 8,876 8,574
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
