Lenovo Global Technology ThinkSystem SN550 ssj_ops@100% = 4,949,554
ssj_ops@100% per JVM = 88,385
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, Beijing, China Test Date: Oct 11, 2017
Hardware Availability: Aug-2017 Software Availability: Jan-2015 Publication: Oct 25, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,147,612
Calibration 2     5,058,922
Calibration 3     4,966,837
ssj_ops@calibrated=5,012,879
100% 98.7% 5,012,879 4,949,554
90% 90.4% 4,511,591 4,531,569
80% 80.0% 4,010,303 4,010,627
70% 70.0% 3,509,016 3,511,078
60% 60.1% 3,007,728 3,013,191
50% 50.1% 2,506,440 2,509,825
40% 40.0% 2,005,152 2,006,669
30% 30.0% 1,503,864 1,503,143
20% 20.0% 1,002,576 1,001,931
10% 10.0% 501,288 499,715
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 14
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SN550
Form Factor: 10U
CPU Name: Intel Xeon Platinum 8176
CPU Characteristics: 28 Core, 2.10GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2666V-RE1-12-MA0; slots 1,3,5,8,10,12,13,15,17,20,22 and 24 for each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 32GB M.2 SSD (Lenovo P/N SSD7A20774)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet Connection X722 for 10GBASE-T
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 DataCenter
OS Version: Version 6.3.9600 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xss256k -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE[0,2] /AFFINITY[3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE[1,3] /AFFINITY[3,C,30,3000,C000,30000,C0000,300000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000]
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: IVE111C
Management Firmware Version: TEI307N
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.
JVM Instance Summary
JVM Instance ssj_ops@100%
L7-185.001 89,045
L7-185.002 88,684
L7-185.003 87,804
L7-185.004 87,711
L7-185.005 89,544
L7-185.006 89,158
L7-185.007 90,308
L7-185.008 89,189
L7-185.009 89,042
L7-185.010 87,358
L7-185.011 88,031
L7-185.012 88,912
L7-185.013 89,317
L7-185.014 87,809
L7-185.015 88,251
L7-185.016 90,188
L7-185.017 89,423
L7-185.018 90,072
L7-185.019 87,522
L7-185.020 91,302
L7-185.021 89,517
L7-185.022 88,885
L7-185.023 88,409
L7-185.024 89,229
L7-185.025 89,332
L7-185.026 89,178
L7-185.027 89,490
L7-185.028 87,585
L7-185.029 87,016
L7-185.030 86,943
L7-185.031 87,573
L7-185.032 86,738
L7-185.033 88,295
L7-185.034 88,432
L7-185.035 86,135
L7-185.036 89,796
L7-185.037 90,461
L7-185.038 86,961
L7-185.039 88,613
L7-185.040 88,567
L7-185.041 88,655
L7-185.042 87,652
L7-185.043 87,279
L7-185.044 88,989
L7-185.045 87,168
L7-185.046 86,560
L7-185.047 88,068
L7-185.048 87,470
L7-185.049 87,380
L7-185.050 87,023
L7-185.051 88,273
L7-185.052 87,364
L7-185.053 86,782
L7-185.054 88,662
L7-185.055 86,826
L7-185.056 89,576
ssj_ops@100% 4,949,554
ssj_ops@100% per JVM 88,385

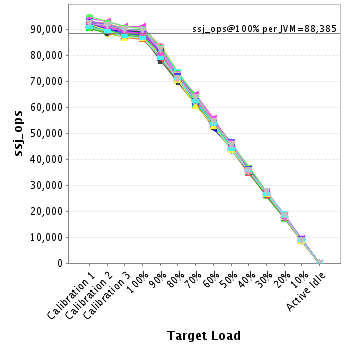

Graph of per-instance results
JVM 'L7-185.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,627
Calibration 2     90,955
Calibration 3     89,413
ssj_ops@calibrated=90,184
100% 98.7% 90,184 89,045
90% 89.9% 81,165 81,116
80% 79.7% 72,147 71,871
70% 70.6% 63,129 63,657
60% 59.5% 54,110 53,676
50% 50.3% 45,092 45,324
40% 40.2% 36,073 36,209
30% 29.8% 27,055 26,861
20% 19.7% 18,037 17,795
10% 10.0% 9,018 9,014
Active Idle   0 0

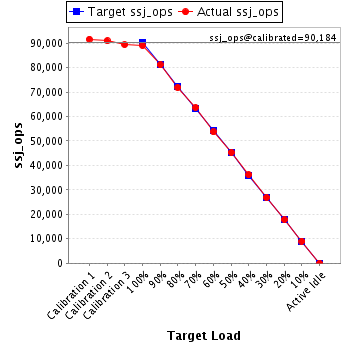

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,420
Calibration 2     89,971
Calibration 3     89,019
ssj_ops@calibrated=89,495
100% 99.1% 89,495 88,684
90% 91.2% 80,545 81,638
80% 79.9% 71,596 71,463
70% 70.5% 62,646 63,074
60% 59.2% 53,697 53,014
50% 49.6% 44,747 44,389
40% 40.3% 35,798 36,031
30% 29.9% 26,848 26,728
20% 19.8% 17,899 17,716
10% 10.2% 8,949 9,104
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,517
Calibration 2     89,206
Calibration 3     87,459
ssj_ops@calibrated=88,332
100% 99.4% 88,332 87,804
90% 89.8% 79,499 79,361
80% 79.7% 70,666 70,396
70% 70.3% 61,833 62,102
60% 60.2% 52,999 53,149
50% 50.1% 44,166 44,292
40% 39.9% 35,333 35,213
30% 29.9% 26,500 26,419
20% 19.7% 17,666 17,386
10% 10.1% 8,833 8,948
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,237
Calibration 2     89,471
Calibration 3     87,814
ssj_ops@calibrated=88,643
100% 98.9% 88,643 87,711
90% 89.8% 79,778 79,609
80% 79.6% 70,914 70,524
70% 69.9% 62,050 61,957
60% 59.8% 53,186 52,987
50% 50.4% 44,321 44,688
40% 40.3% 35,457 35,747
30% 30.2% 26,593 26,786
20% 19.7% 17,729 17,485
10% 9.5% 8,864 8,446
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,991
Calibration 2     90,795
Calibration 3     89,303
ssj_ops@calibrated=90,049
100% 99.4% 90,049 89,544
90% 90.0% 81,044 81,051
80% 80.2% 72,039 72,260
70% 70.0% 63,034 63,059
60% 61.3% 54,029 55,158
50% 50.0% 45,024 44,987
40% 40.0% 36,020 36,052
30% 29.7% 27,015 26,701
20% 20.2% 18,010 18,174
10% 9.7% 9,005 8,721
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,941
Calibration 2     91,049
Calibration 3     89,052
ssj_ops@calibrated=90,051
100% 99.0% 90,051 89,158
90% 89.6% 81,046 80,669
80% 80.3% 72,041 72,289
70% 70.2% 63,035 63,213
60% 60.3% 54,030 54,310
50% 49.7% 45,025 44,739
40% 40.3% 36,020 36,250
30% 30.3% 27,015 27,309
20% 20.0% 18,010 17,966
10% 10.2% 9,005 9,183
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,521
Calibration 2     91,767
Calibration 3     90,816
ssj_ops@calibrated=91,292
100% 98.9% 91,292 90,308
90% 92.2% 82,162 84,191
80% 80.7% 73,033 73,670
70% 69.5% 63,904 63,414
60% 59.9% 54,775 54,695
50% 50.1% 45,646 45,739
40% 39.5% 36,517 36,017
30% 30.3% 27,387 27,683
20% 20.0% 18,258 18,264
10% 9.9% 9,129 9,071
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,984
Calibration 2     90,664
Calibration 3     89,296
ssj_ops@calibrated=89,980
100% 99.1% 89,980 89,189
90% 90.0% 80,982 80,995
80% 80.5% 71,984 72,464
70% 69.3% 62,986 62,343
60% 60.1% 53,988 54,120
50% 49.7% 44,990 44,740
40% 39.7% 35,992 35,720
30% 29.8% 26,994 26,851
20% 20.2% 17,996 18,194
10% 10.1% 8,998 9,117
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,737
Calibration 2     90,339
Calibration 3     89,033
ssj_ops@calibrated=89,686
100% 99.3% 89,686 89,042
90% 89.7% 80,718 80,405
80% 80.9% 71,749 72,542
70% 70.8% 62,780 63,471
60% 60.7% 53,812 54,444
50% 50.0% 44,843 44,807
40% 39.4% 35,874 35,354
30% 30.1% 26,906 27,028
20% 19.9% 17,937 17,883
10% 10.2% 8,969 9,166
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,752
Calibration 2     89,315
Calibration 3     87,921
ssj_ops@calibrated=88,618
100% 98.6% 88,618 87,358
90% 90.2% 79,757 79,963
80% 80.6% 70,895 71,467
70% 70.6% 62,033 62,534
60% 58.5% 53,171 51,860
50% 50.0% 44,309 44,266
40% 39.8% 35,447 35,285
30% 29.7% 26,586 26,330
20% 19.8% 17,724 17,549
10% 10.0% 8,862 8,829
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,931
Calibration 2     89,608
Calibration 3     88,442
ssj_ops@calibrated=89,025
100% 98.9% 89,025 88,031
90% 91.7% 80,122 81,609
80% 80.1% 71,220 71,312
70% 70.5% 62,317 62,755
60% 60.2% 53,415 53,607
50% 49.3% 44,512 43,872
40% 39.9% 35,610 35,506
30% 29.3% 26,707 26,099
20% 20.1% 17,805 17,883
10% 9.9% 8,902 8,800
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,921
Calibration 2     90,894
Calibration 3     88,953
ssj_ops@calibrated=89,923
100% 98.9% 89,923 88,912
90% 90.5% 80,931 81,390
80% 78.6% 71,938 70,645
70% 70.5% 62,946 63,425
60% 59.4% 53,954 53,428
50% 50.0% 44,962 45,004
40% 40.6% 35,969 36,495
30% 29.5% 26,977 26,555
20% 19.9% 17,985 17,920
10% 9.7% 8,992 8,762
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,470
Calibration 2     91,056
Calibration 3     89,847
ssj_ops@calibrated=90,452
100% 98.7% 90,452 89,317
90% 91.7% 81,407 82,929
80% 80.8% 72,361 73,050
70% 68.1% 63,316 61,591
60% 61.1% 54,271 55,280
50% 50.0% 45,226 45,232
40% 39.6% 36,181 35,835
30% 30.1% 27,136 27,243
20% 19.8% 18,090 17,935
10% 10.2% 9,045 9,262
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,426
Calibration 2     90,131
Calibration 3     87,773
ssj_ops@calibrated=88,952
100% 98.7% 88,952 87,809
90% 90.5% 80,057 80,505
80% 80.5% 71,161 71,601
70% 69.6% 62,266 61,944
60% 60.0% 53,371 53,342
50% 49.0% 44,476 43,597
40% 39.6% 35,581 35,215
30% 30.0% 26,686 26,648
20% 19.8% 17,790 17,629
10% 10.1% 8,895 9,003
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,061
Calibration 2     89,857
Calibration 3     88,510
ssj_ops@calibrated=89,183
100% 99.0% 89,183 88,251
90% 90.9% 80,265 81,064
80% 80.2% 71,347 71,534
70% 69.9% 62,428 62,333
60% 60.7% 53,510 54,120
50% 50.1% 44,592 44,671
40% 40.5% 35,673 36,081
30% 30.4% 26,755 27,102
20% 19.9% 17,837 17,758
10% 10.2% 8,918 9,078
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,185
Calibration 2     92,160
Calibration 3     90,024
ssj_ops@calibrated=91,092
100% 99.0% 91,092 90,188
90% 90.0% 81,983 81,962
80% 80.2% 72,874 73,062
70% 70.3% 63,765 64,053
60% 60.3% 54,655 54,937
50% 49.7% 45,546 45,299
40% 40.0% 36,437 36,429
30% 30.2% 27,328 27,504
20% 20.2% 18,218 18,432
10% 10.0% 9,109 9,137
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,500
Calibration 2     91,459
Calibration 3     89,981
ssj_ops@calibrated=90,720
100% 98.6% 90,720 89,423
90% 90.7% 81,648 82,311
80% 79.4% 72,576 72,030
70% 71.0% 63,504 64,455
60% 59.7% 54,432 54,194
50% 50.2% 45,360 45,558
40% 40.9% 36,288 37,132
30% 30.0% 27,216 27,259
20% 20.2% 18,144 18,287
10% 9.7% 9,072 8,837
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

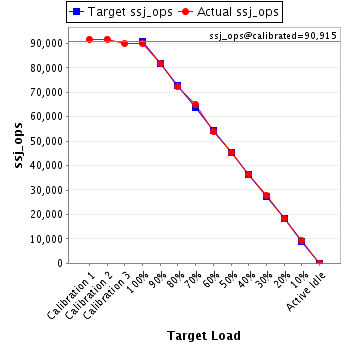

JVM 'L7-185.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,693
Calibration 2     91,764
Calibration 3     90,065
ssj_ops@calibrated=90,915
100% 99.1% 90,915 90,072
90% 89.9% 81,823 81,723
80% 79.6% 72,732 72,374
70% 71.4% 63,640 64,937
60% 59.4% 54,549 54,008
50% 49.8% 45,457 45,259
40% 40.0% 36,366 36,388
30% 30.5% 27,274 27,698
20% 20.0% 18,183 18,220
10% 10.1% 9,091 9,204
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,173
Calibration 2     89,342
Calibration 3     87,883
ssj_ops@calibrated=88,612
100% 98.8% 88,612 87,522
90% 90.6% 79,751 80,295
80% 80.3% 70,890 71,177
70% 70.0% 62,029 62,022
60% 60.5% 53,167 53,644
50% 50.4% 44,306 44,687
40% 40.0% 35,445 35,456
30% 29.9% 26,584 26,500
20% 20.2% 17,722 17,876
10% 10.2% 8,861 9,081
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

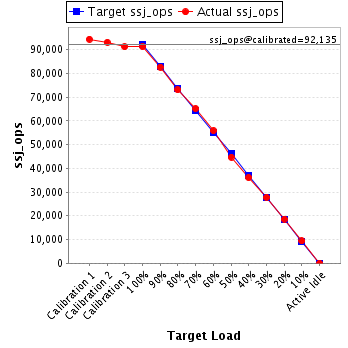

JVM 'L7-185.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,410
Calibration 2     93,099
Calibration 3     91,170
ssj_ops@calibrated=92,135
100% 99.1% 92,135 91,302
90% 89.7% 82,921 82,673
80% 79.3% 73,708 73,024
70% 70.7% 64,494 65,160
60% 60.6% 55,281 55,843
50% 48.5% 46,067 44,719
40% 39.2% 36,854 36,089
30% 30.1% 27,640 27,758
20% 20.2% 18,427 18,636
10% 10.2% 9,213 9,387
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,230
Calibration 2     91,785
Calibration 3     90,027
ssj_ops@calibrated=90,906
100% 98.5% 90,906 89,517
90% 90.7% 81,815 82,415
80% 80.8% 72,724 73,494
70% 69.9% 63,634 63,570
60% 59.5% 54,543 54,071
50% 50.7% 45,453 46,109
40% 39.9% 36,362 36,266
30% 30.4% 27,272 27,612
20% 20.5% 18,181 18,610
10% 9.9% 9,091 9,008
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,798
Calibration 2     90,877
Calibration 3     89,163
ssj_ops@calibrated=90,020
100% 98.7% 90,020 88,885
90% 91.0% 81,018 81,923
80% 79.7% 72,016 71,768
70% 69.7% 63,014 62,745
60% 60.3% 54,012 54,309
50% 50.0% 45,010 44,972
40% 40.4% 36,008 36,336
30% 29.9% 27,006 26,927
20% 20.4% 18,004 18,374
10% 10.0% 9,002 8,962
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,026
Calibration 2     90,502
Calibration 3     88,240
ssj_ops@calibrated=89,371
100% 98.9% 89,371 88,409
90% 90.6% 80,434 80,949
80% 80.1% 71,497 71,574
70% 70.2% 62,560 62,751
60% 59.8% 53,623 53,465
50% 49.9% 44,685 44,633
40% 40.4% 35,748 36,133
30% 29.5% 26,811 26,396
20% 20.1% 17,874 17,982
10% 9.8% 8,937 8,729
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,643
Calibration 2     90,982
Calibration 3     89,744
ssj_ops@calibrated=90,363
100% 98.7% 90,363 89,229
90% 89.9% 81,327 81,243
80% 80.1% 72,290 72,377
70% 70.4% 63,254 63,631
60% 61.0% 54,218 55,127
50% 50.8% 45,182 45,935
40% 39.7% 36,145 35,860
30% 29.9% 27,109 27,033
20% 19.3% 18,073 17,453
10% 10.3% 9,036 9,321
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,152
Calibration 2     90,839
Calibration 3     89,372
ssj_ops@calibrated=90,106
100% 99.1% 90,106 89,332
90% 90.1% 81,095 81,224
80% 80.5% 72,085 72,507
70% 70.8% 63,074 63,750
60% 59.8% 54,063 53,899
50% 51.5% 45,053 46,430
40% 39.9% 36,042 35,910
30% 29.8% 27,032 26,886
20% 19.9% 18,021 17,888
10% 9.9% 9,011 8,908
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,548
Calibration 2     90,688
Calibration 3     88,642
ssj_ops@calibrated=89,665
100% 99.5% 89,665 89,178
90% 90.2% 80,698 80,849
80% 80.1% 71,732 71,798
70% 70.8% 62,765 63,457
60% 59.6% 53,799 53,440
50% 50.5% 44,832 45,249
40% 39.8% 35,866 35,663
30% 29.6% 26,899 26,536
20% 20.0% 17,933 17,912
10% 10.1% 8,966 9,024
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,155
Calibration 2     91,006
Calibration 3     89,627
ssj_ops@calibrated=90,317
100% 99.1% 90,317 89,490
90% 90.2% 81,285 81,510
80% 79.9% 72,253 72,150
70% 70.2% 63,222 63,373
60% 60.0% 54,190 54,231
50% 49.3% 45,158 44,550
40% 40.0% 36,127 36,144
30% 29.7% 27,095 26,846
20% 20.3% 18,063 18,310
10% 10.2% 9,032 9,191
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,654
Calibration 2     89,770
Calibration 3     87,233
ssj_ops@calibrated=88,501
100% 99.0% 88,501 87,585
90% 89.7% 79,651 79,389
80% 80.0% 70,801 70,842
70% 69.7% 61,951 61,641
60% 60.0% 53,101 53,083
50% 50.7% 44,251 44,859
40% 40.7% 35,401 36,019
30% 29.7% 26,550 26,298
20% 19.8% 17,700 17,516
10% 10.4% 8,850 9,187
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,574
Calibration 2     90,113
Calibration 3     87,552
ssj_ops@calibrated=88,832
100% 98.0% 88,832 87,016
90% 89.6% 79,949 79,590
80% 79.5% 71,066 70,609
70% 70.4% 62,183 62,504
60% 60.1% 53,299 53,350
50% 50.6% 44,416 44,929
40% 40.0% 35,533 35,523
30% 29.5% 26,650 26,206
20% 20.1% 17,766 17,837
10% 9.8% 8,883 8,748
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,804
Calibration 2     88,926
Calibration 3     87,374
ssj_ops@calibrated=88,150
100% 98.6% 88,150 86,943
90% 91.3% 79,335 80,516
80% 80.5% 70,520 70,916
70% 69.8% 61,705 61,502
60% 60.7% 52,890 53,496
50% 49.8% 44,075 43,889
40% 40.1% 35,260 35,309
30% 30.1% 26,445 26,560
20% 20.1% 17,630 17,716
10% 9.5% 8,815 8,358
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,664
Calibration 2     90,082
Calibration 3     88,079
ssj_ops@calibrated=89,081
100% 98.3% 89,081 87,573
90% 89.9% 80,173 80,123
80% 81.2% 71,265 72,331
70% 70.3% 62,356 62,634
60% 60.5% 53,448 53,882
50% 50.5% 44,540 44,980
40% 39.7% 35,632 35,406
30% 30.1% 26,724 26,840
20% 20.0% 17,816 17,815
10% 9.9% 8,908 8,791
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,498
Calibration 2     88,627
Calibration 3     86,857
ssj_ops@calibrated=87,742
100% 98.9% 87,742 86,738
90% 90.1% 78,968 79,098
80% 79.7% 70,194 69,963
70% 70.9% 61,420 62,244
60% 60.1% 52,645 52,735
50% 49.7% 43,871 43,636
40% 40.1% 35,097 35,218
30% 30.2% 26,323 26,495
20% 20.2% 17,548 17,745
10% 9.6% 8,774 8,428
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,258
Calibration 2     90,238
Calibration 3     88,602
ssj_ops@calibrated=89,420
100% 98.7% 89,420 88,295
90% 91.0% 80,478 81,336
80% 79.6% 71,536 71,180
70% 70.5% 62,594 63,004
60% 60.8% 53,652 54,395
50% 50.1% 44,710 44,811
40% 40.2% 35,768 35,989
30% 30.4% 26,826 27,195
20% 20.0% 17,884 17,904
10% 9.9% 8,942 8,885
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

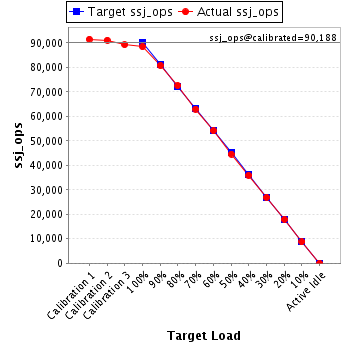

JVM 'L7-185.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,538
Calibration 2     91,144
Calibration 3     89,232
ssj_ops@calibrated=90,188
100% 98.1% 90,188 88,432
90% 89.5% 81,169 80,707
80% 80.5% 72,150 72,613
70% 69.9% 63,131 63,007
60% 60.0% 54,113 54,108
50% 49.5% 45,094 44,608
40% 39.9% 36,075 35,961
30% 29.8% 27,056 26,902
20% 19.9% 18,038 17,937
10% 9.7% 9,019 8,737
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,094
Calibration 2     88,966
Calibration 3     87,029
ssj_ops@calibrated=87,998
100% 97.9% 87,998 86,135
90% 90.3% 79,198 79,455
80% 79.7% 70,398 70,128
70% 69.7% 61,598 61,324
60% 60.5% 52,799 53,200
50% 49.6% 43,999 43,618
40% 39.2% 35,199 34,535
30% 29.9% 26,399 26,348
20% 20.0% 17,600 17,556
10% 10.2% 8,800 8,936
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,093
Calibration 2     91,921
Calibration 3     90,164
ssj_ops@calibrated=91,043
100% 98.6% 91,043 89,796
90% 90.4% 81,938 82,277
80% 79.4% 72,834 72,259
70% 70.1% 63,730 63,818
60% 59.0% 54,626 53,706
50% 51.2% 45,521 46,635
40% 39.8% 36,417 36,214
30% 30.0% 27,313 27,331
20% 20.3% 18,209 18,501
10% 9.7% 9,104 8,848
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

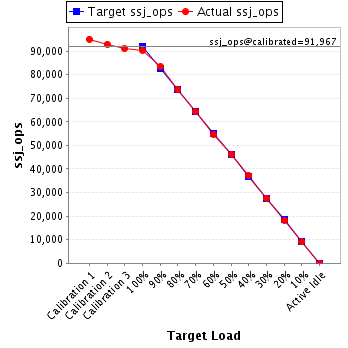

JVM 'L7-185.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,083
Calibration 2     92,919
Calibration 3     91,016
ssj_ops@calibrated=91,967
100% 98.4% 91,967 90,461
90% 90.6% 82,770 83,365
80% 80.2% 73,574 73,718
70% 69.9% 64,377 64,296
60% 59.6% 55,180 54,782
50% 50.0% 45,984 46,019
40% 40.3% 36,787 37,107
30% 30.1% 27,590 27,670
20% 19.8% 18,393 18,164
10% 9.9% 9,197 9,084
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

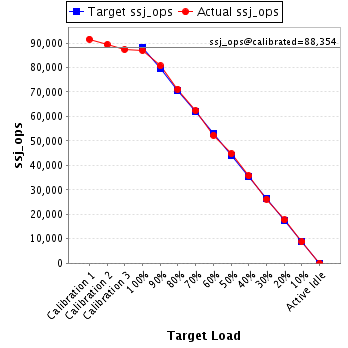

JVM 'L7-185.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,567
Calibration 2     89,375
Calibration 3     87,333
ssj_ops@calibrated=88,354
100% 98.4% 88,354 86,961
90% 91.3% 79,518 80,682
80% 80.5% 70,683 71,164
70% 70.6% 61,848 62,389
60% 59.2% 53,012 52,311
50% 50.7% 44,177 44,779
40% 40.4% 35,341 35,682
30% 29.7% 26,506 26,256
20% 20.0% 17,671 17,683
10% 9.9% 8,835 8,779
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,376
Calibration 2     91,350
Calibration 3     89,266
ssj_ops@calibrated=90,308
100% 98.1% 90,308 88,613
90% 91.2% 81,277 82,374
80% 80.7% 72,246 72,845
70% 70.0% 63,216 63,195
60% 59.1% 54,185 53,407
50% 51.1% 45,154 46,121
40% 40.0% 36,123 36,099
30% 29.6% 27,092 26,692
20% 20.3% 18,062 18,374
10% 10.1% 9,031 9,077
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,682
Calibration 2     90,217
Calibration 3     88,863
ssj_ops@calibrated=89,540
100% 98.9% 89,540 88,567
90% 90.3% 80,586 80,861
80% 79.2% 71,632 70,897
70% 69.9% 62,678 62,602
60% 60.1% 53,724 53,848
50% 50.6% 44,770 45,303
40% 40.5% 35,816 36,258
30% 29.8% 26,862 26,685
20% 20.1% 17,908 17,957
10% 9.7% 8,954 8,650
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,612
Calibration 2     90,879
Calibration 3     88,989
ssj_ops@calibrated=89,934
100% 98.6% 89,934 88,655
90% 90.8% 80,941 81,688
80% 80.3% 71,947 72,249
70% 69.1% 62,954 62,173
60% 61.1% 53,960 54,914
50% 50.7% 44,967 45,568
40% 40.0% 35,974 36,008
30% 30.0% 26,980 27,009
20% 19.9% 17,987 17,862
10% 10.1% 8,993 9,085
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,403
Calibration 2     89,990
Calibration 3     87,612
ssj_ops@calibrated=88,801
100% 98.7% 88,801 87,652
90% 90.4% 79,921 80,308
80% 79.2% 71,041 70,365
70% 69.9% 62,161 62,042
60% 60.0% 53,281 53,255
50% 50.1% 44,400 44,473
40% 40.0% 35,520 35,485
30% 29.9% 26,640 26,571
20% 20.2% 17,760 17,980
10% 9.8% 8,880 8,725
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,854
Calibration 2     89,519
Calibration 3     87,718
ssj_ops@calibrated=88,619
100% 98.5% 88,619 87,279
90% 90.5% 79,757 80,224
80% 80.9% 70,895 71,724
70% 69.2% 62,033 61,294
60% 59.8% 53,171 53,020
50% 50.1% 44,309 44,362
40% 39.9% 35,447 35,320
30% 30.4% 26,586 26,957
20% 19.9% 17,724 17,611
10% 9.9% 8,862 8,777
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,539
Calibration 2     89,901
Calibration 3     89,151
ssj_ops@calibrated=89,526
100% 99.4% 89,526 88,989
90% 90.3% 80,573 80,808
80% 79.6% 71,621 71,273
70% 69.6% 62,668 62,282
60% 60.4% 53,716 54,045
50% 50.5% 44,763 45,178
40% 39.6% 35,810 35,416
30% 30.2% 26,858 27,069
20% 19.5% 17,905 17,498
10% 10.1% 8,953 9,067
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,295
Calibration 2     88,574
Calibration 3     87,468
ssj_ops@calibrated=88,021
100% 99.0% 88,021 87,168
90% 91.3% 79,219 80,357
80% 79.8% 70,416 70,227
70% 70.1% 61,614 61,660
60% 61.1% 52,812 53,784
50% 50.5% 44,010 44,475
40% 40.2% 35,208 35,373
30% 29.4% 26,406 25,861
20% 19.6% 17,604 17,219
10% 9.9% 8,802 8,744
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,450
Calibration 2     88,656
Calibration 3     87,476
ssj_ops@calibrated=88,066
100% 98.3% 88,066 86,560
90% 90.5% 79,259 79,677
80% 79.8% 70,453 70,245
70% 69.4% 61,646 61,105
60% 60.1% 52,840 52,970
50% 49.9% 44,033 43,923
40% 40.0% 35,226 35,265
30% 30.0% 26,420 26,404
20% 19.9% 17,613 17,519
10% 10.0% 8,807 8,804
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,068
Calibration 2     90,120
Calibration 3     88,664
ssj_ops@calibrated=89,392
100% 98.5% 89,392 88,068
90% 89.9% 80,453 80,375
80% 79.6% 71,514 71,155
70% 69.8% 62,574 62,356
60% 59.2% 53,635 52,890
50% 49.4% 44,696 44,137
40% 40.8% 35,757 36,466
30% 30.0% 26,818 26,820
20% 20.0% 17,878 17,887
10% 10.1% 8,939 9,073
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,283
Calibration 2     89,546
Calibration 3     88,336
ssj_ops@calibrated=88,941
100% 98.3% 88,941 87,470
90% 91.0% 80,047 80,961
80% 79.9% 71,153 71,080
70% 69.0% 62,259 61,338
60% 60.4% 53,365 53,747
50% 49.5% 44,471 43,996
40% 39.8% 35,576 35,411
30% 29.6% 26,682 26,366
20% 19.6% 17,788 17,462
10% 10.2% 8,894 9,033
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

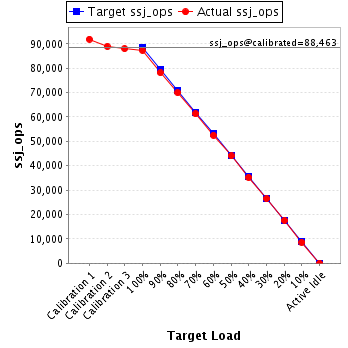

JVM 'L7-185.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,915
Calibration 2     88,923
Calibration 3     88,004
ssj_ops@calibrated=88,463
100% 98.8% 88,463 87,380
90% 88.3% 79,617 78,116
80% 79.1% 70,771 69,982
70% 69.3% 61,924 61,293
60% 59.4% 53,078 52,505
50% 49.8% 44,232 44,041
40% 39.8% 35,385 35,224
30% 29.9% 26,539 26,443
20% 19.9% 17,693 17,601
10% 9.7% 8,846 8,625
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,105
Calibration 2     89,071
Calibration 3     87,872
ssj_ops@calibrated=88,472
100% 98.4% 88,472 87,023
90% 89.3% 79,625 79,009
80% 80.4% 70,777 71,121
70% 70.4% 61,930 62,266
60% 60.3% 53,083 53,390
50% 49.9% 44,236 44,152
40% 40.6% 35,389 35,956
30% 29.5% 26,542 26,136
20% 19.8% 17,694 17,533
10% 9.8% 8,847 8,641
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,334
Calibration 2     89,918
Calibration 3     88,626
ssj_ops@calibrated=89,272
100% 98.9% 89,272 88,273
90% 91.1% 80,345 81,358
80% 80.6% 71,418 71,996
70% 70.0% 62,491 62,459
60% 60.1% 53,563 53,649
50% 49.7% 44,636 44,394
40% 40.6% 35,709 36,277
30% 30.4% 26,782 27,180
20% 20.3% 17,854 18,099
10% 10.1% 8,927 9,012
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

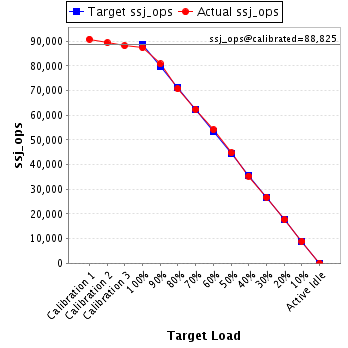

JVM 'L7-185.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,855
Calibration 2     89,449
Calibration 3     88,201
ssj_ops@calibrated=88,825
100% 98.4% 88,825 87,364
90% 91.0% 79,942 80,797
80% 79.7% 71,060 70,819
70% 70.2% 62,177 62,386
60% 60.9% 53,295 54,118
50% 50.4% 44,412 44,751
40% 39.8% 35,530 35,370
30% 30.1% 26,647 26,732
20% 19.9% 17,765 17,677
10% 10.0% 8,882 8,895
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,018
Calibration 2     89,635
Calibration 3     87,109
ssj_ops@calibrated=88,372
100% 98.2% 88,372 86,782
90% 90.7% 79,535 80,197
80% 80.2% 70,698 70,879
70% 68.7% 61,860 60,668
60% 60.1% 53,023 53,086
50% 49.7% 44,186 43,937
40% 40.4% 35,349 35,667
30% 30.3% 26,512 26,798
20% 20.2% 17,674 17,845
10% 9.8% 8,837 8,644
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,515
Calibration 2     90,778
Calibration 3     89,086
ssj_ops@calibrated=89,932
100% 98.6% 89,932 88,662
90% 89.7% 80,939 80,695
80% 79.3% 71,945 71,319
70% 69.6% 62,952 62,578
60% 61.4% 53,959 55,197
50% 50.1% 44,966 45,077
40% 39.5% 35,973 35,522
30% 30.7% 26,980 27,595
20% 19.4% 17,986 17,483
10% 10.1% 8,993 9,045
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,062
Calibration 2     89,311
Calibration 3     87,383
ssj_ops@calibrated=88,347
100% 98.3% 88,347 86,826
90% 89.6% 79,512 79,173
80% 80.6% 70,677 71,219
70% 70.5% 61,843 62,325
60% 60.5% 53,008 53,436
50% 49.9% 44,173 44,044
40% 40.6% 35,339 35,869
30% 30.4% 26,504 26,836
20% 20.5% 17,669 18,119
10% 10.2% 8,835 8,970
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L7-185.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,371
Calibration 2     91,423
Calibration 3     89,957
ssj_ops@calibrated=90,690
100% 98.8% 90,690 89,576
90% 90.9% 81,621 82,482
80% 78.4% 72,552 71,084
70% 70.5% 63,483 63,914
60% 60.1% 54,414 54,524
50% 50.0% 45,345 45,383
40% 39.6% 36,276 35,905
30% 30.4% 27,207 27,590
20% 20.2% 18,138 18,316
10% 9.7% 9,069 8,772
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
