Sugon I620-G30 (Intel Xeon Platinum 8180) SPECpower_ssj2008 = 12,306 overall ssj_ops/watt
Test Sponsor: Sugon SPEC License #: 9046 Test Method: Single Node
Tested By: Sugon Test Location: Beijing, CHN Test Date: May 25, 2018
Hardware Availability: Feb-2018 Software Availability: Jan-2018 Publication: Aug 15, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 468 28.4
Calibration 2 471 28.6
Calibration 3 472 28.6
100% 450 28.6
90% 378 28.6
80% 320 28.6
70% 284 28.6
60% 254 28.6
50% 221 28.6
40% 194 28.6
30% 171 28.6
20% 149 28.6
10% 125 28.5
Active Idle 54.6 28.5

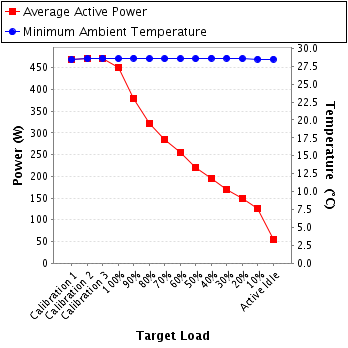

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA Meters and Instruments Corporation
Model: WT310E
Serial Number: C3UB14026E
Connectivity: GPIB
Input Connection: Default
Metrology Institute: CNAS(China National Accreditation Service for Conformity Assessment)
Accredited by: National Institute of Metrology
Calibration Label: CSG06300180301-1145
Date of Calibration: 01-Mar-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connect to PSU1
Temperature Sensor temp1
Hardware Vendor: iButton Link Technology
Model: iButton Link T-Sense/T-Probe
Driver Version: 2.12.24.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 10mm in front of SUT main airflow intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 223 300.0 2.11 5.0 0.992 468 0.3%
Calibration 2 223 300.0 2.13 5.0 0.993 471 0.3%
Calibration 3 222 300.0 2.14 5.0 0.993 472 0.3%
100% 223 300.0 2.04 5.0 0.992 450 0.3%
90% 223 300.0 1.71 2.0 0.991 378 0.2%
80% 223 300.0 1.45 2.0 0.988 320 0.2%
70% 223 300.0 1.29 2.0 0.986 284 0.2%
60% 224 300.0 1.16 2.0 0.981 254 0.3%
50% 223 300.0 1.02 2.0 0.976 221 0.3%
40% 221 300.0 0.903 1.0 0.970 194 0.2%
30% 224 300.0 0.793 1.0 0.961 171 0.2%
20% 224 300.0 0.699 1.0 0.950 149 0.3%
10% 224 300.0 0.597 1.0 0.935 125 0.3%
Active Idle 224 300.0 0.345 0.5 0.710 54.6 0.4%

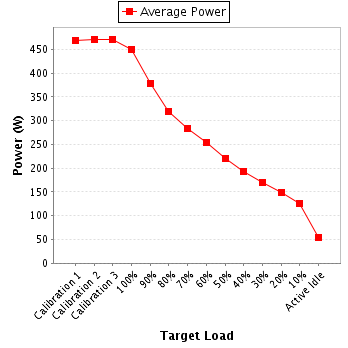

Power details for pwr1
