Sugon A620-G30(AMD EPYC 7501) SPECpower_ssj2008 = 9,248 overall ssj_ops/watt
Test Sponsor: Sugon SPEC License #: 9046 Test Method: Single Node
Tested By: Sugon Test Location: Beijing, CHN Test Date: May 21, 2018
Hardware Availability: Feb-2008 Software Availability: Oct-2017 Publication: Aug 8, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 304 24.1
Calibration 2 307 24.2
Calibration 3 307 24.2
100% 307 24.2
90% 295 24.2
80% 282 24.2
70% 268 24.2
60% 249 24.2
50% 232 24.1
40% 217 24.1
30% 203 24.0
20% 188 23.9
10% 171 23.9
Active Idle 103 23.9

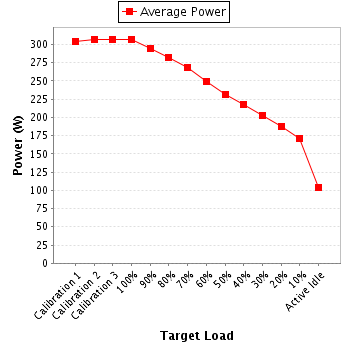

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Chroma Inc.
Model: Chroma66202
Serial Number: 662022006060
Connectivity: GPIB
Input Connection: Default
Metrology Institute: National Institute of Metrology
Accredited by: Internal Calibration Laboratory
Calibration Label: C1804051425
Date of Calibration: 5-Apr-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 1
Temperature Sensor temp1
Hardware Vendor: iButton Link Technology
Model: iButton Link T-Sense/T-Probe
Driver Version: 2.12.24.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 10mm in front of SUT main airflow intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 227 300.0 1.35 2.0 0.988 304 0.3%
Calibration 2 228 300.0 1.37 2.0 0.988 307 0.3%
Calibration 3 227 300.0 1.37 2.0 0.988 307 0.3%
100% 226 300.0 1.38 2.0 0.988 307 0.3%
90% 225 300.0 1.32 2.0 0.986 295 0.3%
80% 225 300.0 1.27 2.0 0.984 282 0.3%
70% 225 300.0 1.21 2.0 0.981 268 0.3%
60% 226 300.0 1.13 2.0 0.979 249 0.3%
50% 226 300.0 1.05 2.0 0.976 232 0.4%
40% 225 300.0 0.991 2.0 0.974 217 0.4%
30% 226 300.0 0.922 2.0 0.971 203 0.4%
20% 227 300.0 0.858 2.0 0.967 188 0.4%
10% 227 300.0 0.785 2.0 0.961 171 0.5%
Active Idle 228 300.0 0.493 2.0 0.919 103 0.7%
Power details for pwr1
