SPECpower_ssj2008 Host 'Node05' Performance Report

SPECpower_ssj2008

Host 'Node05' Performance Report

Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module			ssj_ops@100% = 11,495,241 ssj_ops@100% per JVM = 1,436,905
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Aug 27, 2018
Hardware Availability:	Jun-2018	Software Availability:	Mar-2018	Publication:	Sep 12, 2018
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,543,242
Calibration 2			11,525,312
Calibration 3			11,536,769
ssj_ops@calibrated=11,531,040
100%	99.7%	11,531,040	11,495,241
90%	90.0%	10,377,936	10,383,626
80%	80.1%	9,224,832	9,234,012
70%	69.9%	8,071,728	8,065,289
60%	60.0%	6,918,624	6,914,314
50%	50.1%	5,765,520	5,772,477
40%	40.0%	4,612,416	4,611,967
30%	30.1%	3,459,312	3,465,744
20%	20.0%	2,306,208	2,307,985
10%	10.0%	1,153,104	1,151,972
Active Idle		0	0

System Under Test

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	3
Comment:	SUT

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 660 Gen10 Compute Module
Form Factor:	Other
CPU Name:	Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics:	28-Core, 2.50 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2500
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	Shared
Disk Drive:	1 x HPE 480GB SATA 6G Read Intensive M.2 (875319-B21)
Disk Controller:	1 x HPE Smart Array S100i SR Gen10 (784308-B21)
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb 2-port Converged Network Adapter (777430-B21)
NICs Enabled in Firmware / OS / Connected:	2/1/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=30 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,2,4,6] /AFFINITY [0x0000000FC0FF, 0xFC0FF0000000]; start /NODE [1,3,5,7] /AFFINITY [0x0000000FF03F,0xFF03F0000000]
JVM Instances:	8
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	I43 v1.32 (02/01/2018)
Management Firmware Version:	1.15 August 17 2017
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Composer Version 3.10.07 (HPE OneView) with HPE Synergy Custom SPP Bundle 2017.10.20180323; Microsoft Windows KB4054519, KB4056898

Boot Firmware Settings

USB Control: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled
SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled
x2APIC: Disabled
Memory Refresh Rate: 1x Refresh
Memory Patrol Scrubbing: Disabled
Memory Bus Frequency: 2400 MHz
Power Regulator: OS Control
Energy Performance Bias: Balanced Power
Turbo Boost Technology: Disabled
Collaborative Power Control: Disabled
DMI Link Frequency: Gen 1
Sub-NUMA Clustering: Enabled
Intel NIC DMA Channels (IOAT): Disabled
HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
DCU IP Prefetcher: Disabled
LLC Prefetcher: Disabled
XPT Prefetcher: Enabled
UPI Link Frequency: Min UPI Speed
Maximum PCI Express Speed: PCIe Generation 1.0
Embedded SATA Configuration: Smart Array SW RAID Support
Embedded SATA Controller #1: Disabled
AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Run initiated via Windows Remote Desktop Connection
SPECpower_ssj.props input.load_level.number_warehouses set to 224 due to a known inconsistency in processor reporting with this Java version.
Windows Power Plan = Balanced
Turn off display = 1 minute
Turn off hard disk = 1 minute
Processor power management: Minimum Processor State = 0%, Maximum Processor State = 100%
System cooling policy = Active
Synergy Frame Power Supply mode set to Redundant Power Supply via HPE OneView.

Applied protection against speculative execution as explained in https://support.microsoft.com/en-us/help/4072698/windows-server-guidance-to-protect-against-the-speculative-execution (Last Updated: Aug 14, 2018)
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Notes

None

JVM Instance Summary

JVM Instance	ssj_ops@100%
Node05.001	1,443,342
Node05.002	1,435,254
Node05.003	1,439,323
Node05.004	1,436,144
Node05.005	1,437,299
Node05.006	1,449,646
Node05.007	1,434,969
Node05.008	1,419,265
ssj_ops@100%	11,495,241
ssj_ops@100% per JVM	1,436,905

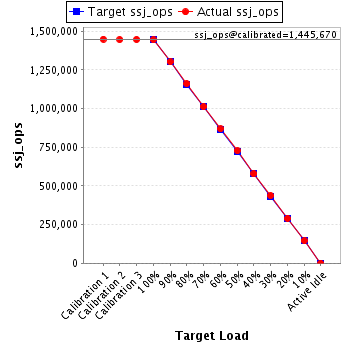

JVM 'Node05.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,448,113
Calibration 2			1,445,069
Calibration 3			1,446,271
ssj_ops@calibrated=1,445,670
100%	99.8%	1,445,670	1,443,342
90%	90.0%	1,301,103	1,301,578
80%	80.3%	1,156,536	1,161,071
70%	70.0%	1,011,969	1,012,028
60%	60.0%	867,402	867,914
50%	50.3%	722,835	726,792
40%	40.0%	578,268	577,664
30%	30.2%	433,701	436,701
20%	20.0%	289,134	289,738
10%	10.1%	144,567	145,742
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'Node05.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,442,025
Calibration 2			1,442,650
Calibration 3			1,440,843
ssj_ops@calibrated=1,441,747
100%	99.5%	1,441,747	1,435,254
90%	90.3%	1,297,572	1,301,674
80%	80.1%	1,153,397	1,154,462
70%	70.1%	1,009,223	1,011,132
60%	59.8%	865,048	862,075
50%	50.1%	720,873	722,105
40%	39.8%	576,699	574,425
30%	30.0%	432,524	432,205
20%	20.1%	288,349	290,455
10%	10.0%	144,175	144,792
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'Node05.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,449,806
Calibration 2			1,446,843
Calibration 3			1,449,428
ssj_ops@calibrated=1,448,135
100%	99.4%	1,448,135	1,439,323
90%	90.1%	1,303,322	1,304,074
80%	80.1%	1,158,508	1,159,698
70%	69.9%	1,013,695	1,012,544
60%	60.0%	868,881	868,461
50%	50.2%	724,068	726,272
40%	40.0%	579,254	579,016
30%	30.1%	434,441	435,550
20%	20.2%	289,627	291,968
10%	10.0%	144,814	144,771
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'Node05.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,438,380
Calibration 2			1,436,741
Calibration 3			1,437,877
ssj_ops@calibrated=1,437,309
100%	99.9%	1,437,309	1,436,144
90%	90.0%	1,293,578	1,294,101
80%	80.0%	1,149,847	1,149,459
70%	70.1%	1,006,116	1,006,973
60%	60.0%	862,385	862,382
50%	50.0%	718,654	718,364
40%	40.0%	574,923	574,882
30%	29.9%	431,193	430,160
20%	20.0%	287,462	286,798
10%	9.9%	143,731	142,269
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'Node05.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,440,074
Calibration 2			1,436,106
Calibration 3			1,438,909
ssj_ops@calibrated=1,437,507
100%	100.0%	1,437,507	1,437,299
90%	90.0%	1,293,757	1,293,827
80%	80.1%	1,150,006	1,151,546
70%	69.9%	1,006,255	1,004,361
60%	59.8%	862,504	859,879
50%	49.9%	718,754	717,466
40%	40.0%	575,003	574,441
30%	30.1%	431,252	432,970
20%	19.9%	287,501	286,489
10%	10.0%	143,751	143,601
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'Node05.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,456,399
Calibration 2			1,454,735
Calibration 3			1,457,859
ssj_ops@calibrated=1,456,297
100%	99.5%	1,456,297	1,449,646
90%	89.8%	1,310,667	1,308,196
80%	79.9%	1,165,038	1,163,023
70%	69.8%	1,019,408	1,015,843
60%	60.1%	873,778	875,802
50%	50.0%	728,148	728,800
40%	40.0%	582,519	582,509
30%	30.0%	436,889	437,316
20%	19.9%	291,259	289,881
10%	9.9%	145,630	144,630
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'Node05.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,439,655
Calibration 2			1,438,190
Calibration 3			1,438,175
ssj_ops@calibrated=1,438,183
100%	99.8%	1,438,183	1,434,969
90%	89.9%	1,294,364	1,292,703
80%	80.1%	1,150,546	1,151,292
70%	69.9%	1,006,728	1,005,823
60%	59.9%	862,910	861,859
50%	50.0%	719,091	719,524
40%	40.0%	575,273	575,464
30%	30.0%	431,455	431,473
20%	20.1%	287,637	288,891
10%	9.9%	143,818	142,254
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'Node05.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,428,790
Calibration 2			1,424,978
Calibration 3			1,427,408
ssj_ops@calibrated=1,426,193
100%	99.5%	1,426,193	1,419,265
90%	90.3%	1,283,574	1,287,473
80%	80.2%	1,140,954	1,143,459
70%	69.9%	998,335	996,584
60%	60.0%	855,716	855,942
50%	50.0%	713,096	713,152
40%	40.2%	570,477	573,566
30%	30.1%	427,858	429,369
20%	19.9%	285,239	283,764
10%	10.1%	142,619	143,912
Active Idle		0	0

See the JVM Instance Performance Report for additional details.
