SPECpower_ssj2008 Host 'SY660-04' Performance Report

SPECpower_ssj2008

Host 'SY660-04' Performance Report

Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module			ssj_ops@100% = 11,754,703 ssj_ops@100% per JVM = 1,469,338
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Mar 10, 2019
Hardware Availability:	Apr-2019	Software Availability:	Mar-2019	Publication:	Apr 2, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,806,131
Calibration 2			11,783,279
Calibration 3			11,796,936
ssj_ops@calibrated=11,790,107
100%	99.7%	11,790,107	11,754,703
90%	89.9%	10,611,097	10,604,514
80%	80.0%	9,432,086	9,432,021
70%	69.9%	8,253,075	8,243,904
60%	60.0%	7,074,064	7,077,007
50%	50.0%	5,895,054	5,890,870
40%	40.0%	4,716,043	4,714,052
30%	30.0%	3,537,032	3,537,654
20%	20.0%	2,358,021	2,357,178
10%	10.0%	1,179,011	1,179,045
Active Idle		0	0

System Under Test

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	6
Comment:	SUT

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 660 Gen10 Compute Module
Form Factor:	blade
CPU Name:	Intel Xeon Platinum 8280 @ 2.70GHz
CPU Characteristics:	28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	N/A
Disk Drive:	1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller:	HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 12 SP4
OS Version:	4.12.14-94.41-default
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances:	8
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	I43 v2.10 (01/18/2019)
Management Firmware Version:	1.40 Feb 05 2019
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019)

Boot Firmware Settings

Embedded Serial Port: Disabled
Virtual Serial Port: Disabled
BIOS Serial Console Port: Disabled

USB Support: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled

x2APIC: Disabled

Memory Bus Frequency: 2400 MHz
Memory Patrol Scrubbing: Disabled

SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled

Smart Array SW RAID Support

Power Regulator: Dynamic Power Savings Mode (default)
Intel Turbo Boost Technology: Disabled
Energy Efficient Turbo: Disabled (default: Enabled if Turbo Enabled)
Energy Performance Bias: Power Savings Mode (default: Balanced Performance)
Collaborative Power Control: Disabled (default: Enabled)
Intel DMI Link Frequency: Gen 1 Speed
NUMA Group Size Optimization: Clustered
Sub-NUMA Clustering: Enabled

HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
XPT Prefetcher: Enabled

Intel NIC DMA Channels (IOAT): Disabled

Intel UPI Link Frequency: Min UPI Speed

HPE Synergy 3820C 10/20Gb CNA: PCIe Generation 1

AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

systemctl stop irqbalance.service
echo 970000 > /proc/sys/kernel/sched_rt_runtime_us
echo 40000000 > /proc/sys/kernel/sched_latency_ns
echo 15000 > /proc/sys/vm/dirty_expire_centisecs
echo 64 > /proc/sys/kernel/sched_nr_migrate

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2018-3640 (Variant 3a) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2018-3639 (Variant 4) is mitigated in the system as tested and documented.

Notes

None

JVM Instance Summary

JVM Instance	ssj_ops@100%
SY660-04.001	1,461,484
SY660-04.002	1,477,594
SY660-04.003	1,472,326
SY660-04.004	1,455,338
SY660-04.005	1,481,242
SY660-04.006	1,459,231
SY660-04.007	1,491,402
SY660-04.008	1,456,084
ssj_ops@100%	11,754,703
ssj_ops@100% per JVM	1,469,338

JVM 'SY660-04.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,466,814
Calibration 2			1,464,979
Calibration 3			1,465,021
ssj_ops@calibrated=1,465,000
100%	99.8%	1,465,000	1,461,484
90%	89.9%	1,318,500	1,317,479
80%	80.3%	1,172,000	1,175,970
70%	69.8%	1,025,500	1,023,053
60%	60.3%	879,000	882,769
50%	50.0%	732,500	732,335
40%	39.8%	586,000	583,167
30%	30.1%	439,500	440,278
20%	20.0%	293,000	293,354
10%	10.0%	146,500	145,937
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-04.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,487,445
Calibration 2			1,484,215
Calibration 3			1,483,715
ssj_ops@calibrated=1,483,965
100%	99.6%	1,483,965	1,477,594
90%	89.6%	1,335,568	1,330,054
80%	80.0%	1,187,172	1,187,261
70%	70.0%	1,038,775	1,039,471
60%	59.9%	890,379	888,727
50%	49.7%	741,982	737,291
40%	39.9%	593,586	592,425
30%	30.1%	445,189	446,621
20%	20.0%	296,793	296,565
10%	10.0%	148,396	148,075
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-04.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,480,261
Calibration 2			1,478,313
Calibration 3			1,477,731
ssj_ops@calibrated=1,478,022
100%	99.6%	1,478,022	1,472,326
90%	90.1%	1,330,219	1,331,311
80%	80.2%	1,182,417	1,185,269
70%	70.2%	1,034,615	1,037,706
60%	60.0%	886,813	887,119
50%	49.9%	739,011	737,740
40%	40.0%	591,209	591,681
30%	30.0%	443,406	444,066
20%	20.0%	295,604	296,251
10%	9.9%	147,802	146,610
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-04.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,464,133
Calibration 2			1,461,128
Calibration 3			1,463,373
ssj_ops@calibrated=1,462,250
100%	99.5%	1,462,250	1,455,338
90%	89.9%	1,316,025	1,315,252
80%	79.7%	1,169,800	1,166,088
70%	69.8%	1,023,575	1,020,621
60%	60.0%	877,350	877,177
50%	50.1%	731,125	733,220
40%	40.1%	584,900	585,687
30%	30.0%	438,675	438,085
20%	20.0%	292,450	292,403
10%	9.9%	146,225	145,318
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-04.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,486,922
Calibration 2			1,485,390
Calibration 3			1,487,308
ssj_ops@calibrated=1,486,349
100%	99.7%	1,486,349	1,481,242
90%	89.7%	1,337,714	1,332,828
80%	79.9%	1,189,080	1,187,329
70%	69.7%	1,040,445	1,035,688
60%	60.1%	891,810	893,593
50%	50.1%	743,175	745,057
40%	39.9%	594,540	593,331
30%	29.9%	445,905	444,539
20%	19.9%	297,270	296,525
10%	10.1%	148,635	149,736
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

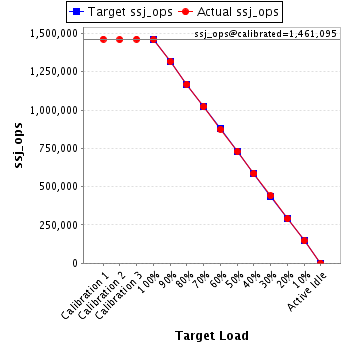

JVM 'SY660-04.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,462,555
Calibration 2			1,459,660
Calibration 3			1,462,530
ssj_ops@calibrated=1,461,095
100%	99.9%	1,461,095	1,459,231
90%	90.1%	1,314,986	1,316,963
80%	79.9%	1,168,876	1,167,365
70%	69.9%	1,022,767	1,021,679
60%	59.8%	876,657	874,262
50%	49.9%	730,548	729,492
40%	40.1%	584,438	585,390
30%	30.1%	438,329	439,430
20%	19.9%	292,219	290,704
10%	10.1%	146,110	147,033
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-04.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,497,872
Calibration 2			1,494,472
Calibration 3			1,497,172
ssj_ops@calibrated=1,495,822
100%	99.7%	1,495,822	1,491,402
90%	90.0%	1,346,240	1,346,979
80%	79.9%	1,196,658	1,194,813
70%	69.8%	1,047,076	1,044,543
60%	60.0%	897,493	897,239
50%	50.1%	747,911	748,858
40%	40.1%	598,329	599,241
30%	30.0%	448,747	449,438
20%	20.0%	299,164	298,514
10%	10.0%	149,582	149,459
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-04.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,460,130
Calibration 2			1,455,121
Calibration 3			1,460,086
ssj_ops@calibrated=1,457,604
100%	99.9%	1,457,604	1,456,084
90%	90.1%	1,311,843	1,313,647
80%	80.1%	1,166,083	1,167,926
70%	70.1%	1,020,322	1,021,141
60%	60.1%	874,562	876,121
50%	49.9%	728,802	726,877
40%	40.0%	583,041	583,132
30%	29.9%	437,281	435,197
20%	20.1%	291,521	292,862
10%	10.1%	145,760	146,876
Active Idle		0	0

See the JVM Instance Performance Report for additional details.
