SPECpower_ssj2008 Host 'SY660-01' Performance Report

SPECpower_ssj2008

Host 'SY660-01' Performance Report

Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module			ssj_ops@100% = 11,793,550 ssj_ops@100% per JVM = 1,474,194
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Mar 10, 2019
Hardware Availability:	Apr-2019	Software Availability:	Mar-2019	Publication:	Apr 2, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,842,759
Calibration 2			11,821,358
Calibration 3			11,834,238
ssj_ops@calibrated=11,827,798
100%	99.7%	11,827,798	11,793,550
90%	90.0%	10,645,018	10,650,844
80%	80.1%	9,462,238	9,471,304
70%	70.0%	8,279,459	8,285,121
60%	60.0%	7,096,679	7,098,398
50%	50.0%	5,913,899	5,916,253
40%	40.0%	4,731,119	4,729,379
30%	30.0%	3,548,339	3,542,459
20%	20.0%	2,365,560	2,370,679
10%	10.0%	1,182,780	1,182,647
Active Idle		0	0

System Under Test

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	5
Comment:	SUT

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 660 Gen10 Compute Module
Form Factor:	blade
CPU Name:	Intel Xeon Platinum 8280 @ 2.70GHz
CPU Characteristics:	28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	N/A
Disk Drive:	1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller:	HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 12 SP4
OS Version:	4.12.14-94.41-default
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances:	8
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	I43 v2.10 (01/18/2019)
Management Firmware Version:	1.40 Feb 05 2019
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019)

Boot Firmware Settings

Embedded Serial Port: Disabled
Virtual Serial Port: Disabled
BIOS Serial Console Port: Disabled

USB Support: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled

x2APIC: Disabled

Memory Bus Frequency: 2400 MHz
Memory Patrol Scrubbing: Disabled

SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled

Smart Array SW RAID Support

Power Regulator: Dynamic Power Savings Mode (default)
Intel Turbo Boost Technology: Disabled
Energy Efficient Turbo: Disabled (default: Enabled if Turbo Enabled)
Energy Performance Bias: Power Savings Mode (default: Balanced Performance)
Collaborative Power Control: Disabled (default: Enabled)
Intel DMI Link Frequency: Gen 1 Speed
NUMA Group Size Optimization: Clustered
Sub-NUMA Clustering: Enabled

HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
XPT Prefetcher: Enabled

Intel NIC DMA Channels (IOAT): Disabled

Intel UPI Link Frequency: Min UPI Speed

HPE Synergy 3820C 10/20Gb CNA: PCIe Generation 1

AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

systemctl stop irqbalance.service
echo 970000 > /proc/sys/kernel/sched_rt_runtime_us
echo 40000000 > /proc/sys/kernel/sched_latency_ns
echo 15000 > /proc/sys/vm/dirty_expire_centisecs
echo 64 > /proc/sys/kernel/sched_nr_migrate

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2018-3640 (Variant 3a) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2018-3639 (Variant 4) is mitigated in the system as tested and documented.

Notes

None

JVM Instance Summary

JVM Instance	ssj_ops@100%
SY660-01.001	1,450,333
SY660-01.002	1,473,284
SY660-01.003	1,485,057
SY660-01.004	1,468,159
SY660-01.005	1,468,016
SY660-01.006	1,473,165
SY660-01.007	1,498,304
SY660-01.008	1,477,231
ssj_ops@100%	11,793,550
ssj_ops@100% per JVM	1,474,194

JVM 'SY660-01.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,458,189
Calibration 2			1,453,262
Calibration 3			1,455,730
ssj_ops@calibrated=1,454,496
100%	99.7%	1,454,496	1,450,333
90%	90.1%	1,309,046	1,311,131
80%	80.1%	1,163,597	1,164,511
70%	69.9%	1,018,147	1,016,604
60%	59.9%	872,698	871,299
50%	50.0%	727,248	726,725
40%	40.0%	581,798	581,129
30%	30.0%	436,349	436,385
20%	20.0%	290,899	290,933
10%	10.0%	145,450	146,057
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

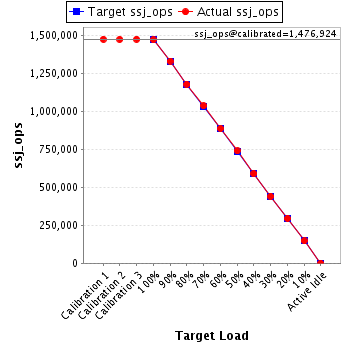

JVM 'SY660-01.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,477,341
Calibration 2			1,476,183
Calibration 3			1,477,664
ssj_ops@calibrated=1,476,924
100%	99.8%	1,476,924	1,473,284
90%	90.3%	1,329,231	1,333,418
80%	79.9%	1,181,539	1,180,518
70%	70.2%	1,033,846	1,037,487
60%	60.1%	886,154	888,308
50%	50.1%	738,462	740,649
40%	39.9%	590,769	589,992
30%	29.9%	443,077	441,765
20%	20.0%	295,385	296,088
10%	10.0%	147,692	147,692
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-01.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,494,854
Calibration 2			1,491,949
Calibration 3			1,491,334
ssj_ops@calibrated=1,491,641
100%	99.6%	1,491,641	1,485,057
90%	89.9%	1,342,477	1,341,693
80%	80.2%	1,193,313	1,196,136
70%	69.7%	1,044,149	1,040,410
60%	60.1%	894,985	897,210
50%	49.9%	745,821	743,596
40%	40.1%	596,657	597,736
30%	29.8%	447,492	444,335
20%	20.0%	298,328	298,799
10%	10.0%	149,164	149,734
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-01.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,476,811
Calibration 2			1,473,276
Calibration 3			1,474,921
ssj_ops@calibrated=1,474,099
100%	99.6%	1,474,099	1,468,159
90%	90.0%	1,326,689	1,327,379
80%	80.2%	1,179,279	1,182,389
70%	70.1%	1,031,869	1,033,651
60%	59.8%	884,459	882,001
50%	50.1%	737,049	738,017
40%	39.8%	589,639	587,295
30%	30.1%	442,230	443,166
20%	20.0%	294,820	294,819
10%	9.9%	147,410	145,618
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-01.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,475,787
Calibration 2			1,470,292
Calibration 3			1,475,248
ssj_ops@calibrated=1,472,770
100%	99.7%	1,472,770	1,468,016
90%	89.8%	1,325,493	1,322,353
80%	80.2%	1,178,216	1,181,565
70%	70.3%	1,030,939	1,035,266
60%	60.2%	883,662	886,056
50%	50.1%	736,385	737,993
40%	40.1%	589,108	590,204
30%	30.0%	441,831	442,048
20%	20.2%	294,554	297,052
10%	9.9%	147,277	145,931
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-01.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,475,330
Calibration 2			1,475,780
Calibration 3			1,478,452
ssj_ops@calibrated=1,477,116
100%	99.7%	1,477,116	1,473,165
90%	90.1%	1,329,405	1,330,737
80%	80.0%	1,181,693	1,181,312
70%	69.8%	1,033,981	1,031,020
60%	59.9%	886,270	885,351
50%	50.0%	738,558	738,687
40%	40.0%	590,847	590,914
30%	30.0%	443,135	442,648
20%	20.0%	295,423	295,605
10%	10.0%	147,712	148,033
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-01.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,501,107
Calibration 2			1,499,632
Calibration 3			1,500,315
ssj_ops@calibrated=1,499,973
100%	99.9%	1,499,973	1,498,304
90%	90.3%	1,349,976	1,354,418
80%	80.0%	1,199,979	1,200,635
70%	70.1%	1,049,981	1,051,663
60%	59.9%	899,984	898,304
50%	50.0%	749,987	749,653
40%	40.0%	599,989	599,729
30%	30.0%	449,992	450,262
20%	20.0%	299,995	300,054
10%	10.0%	149,997	149,746
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-01.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,483,341
Calibration 2			1,480,984
Calibration 3			1,480,575
ssj_ops@calibrated=1,480,779
100%	99.8%	1,480,779	1,477,231
90%	89.8%	1,332,701	1,329,715
80%	80.0%	1,184,624	1,184,238
70%	70.2%	1,036,546	1,039,021
60%	60.1%	888,468	889,869
50%	50.0%	740,390	740,933
40%	40.0%	592,312	592,381
30%	29.8%	444,234	441,851
20%	20.1%	296,156	297,330
10%	10.1%	148,078	149,836
Active Idle		0	0

See the JVM Instance Performance Report for additional details.
