SPECpower_ssj2008 Host 'SY660-01' Performance Report

SPECpower_ssj2008

Host 'SY660-01' Performance Report

Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module			ssj_ops@100% = 11,843,466 ssj_ops@100% per JVM = 1,480,433
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Mar 11, 2019
Hardware Availability:	Apr-2019	Software Availability:	Mar-2019	Publication:	Apr 2, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,901,297
Calibration 2			11,871,142
Calibration 3			11,889,077
ssj_ops@calibrated=11,880,109
100%	99.7%	11,880,109	11,843,466
90%	89.9%	10,692,098	10,685,535
80%	80.0%	9,504,088	9,506,942
70%	70.0%	8,316,077	8,315,507
60%	60.0%	7,128,066	7,129,598
50%	50.0%	5,940,055	5,940,714
40%	40.0%	4,752,044	4,754,347
30%	30.1%	3,564,033	3,573,217
20%	20.0%	2,376,022	2,374,254
10%	10.0%	1,188,011	1,187,810
Active Idle		0	0

System Under Test

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	2
Comment:	SUT

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 660 Gen10 Compute Module
Form Factor:	blade
CPU Name:	Intel Xeon Platinum 8280 @ 2.70GHz
CPU Characteristics:	28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	N/A
Disk Drive:	1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller:	HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 12 SP4
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances:	8
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	I43 v2.10 (01/18/2019)
Management Firmware Version:	1.40 Feb 05 2019
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019)

Boot Firmware Settings

Embedded Serial Port: Disabled
Virtual Serial Port: Disabled
BIOS Serial Console Port: Disabled

USB Support: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled

x2APIC: Disabled

Memory Bus Frequency: 2400 MHz
Memory Patrol Scrubbing: Disabled

SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled

Smart Array SW RAID Support

Power Regulator: Dynamic Power Savings Mode (default)
Intel Turbo Boost Technology: Disabled
Energy Efficient Turbo: Disabled (default: Enabled if Turbo Enabled)
Energy Performance Bias: Power Savings Mode (default: Balanced Performance)
Collaborative Power Control: Disabled (default: Enabled)
Intel DMI Link Frequency: Gen 1 Speed
NUMA Group Size Optimization: Clustered
Sub-NUMA Clustering: Enabled

HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
XPT Prefetcher: Enabled

Intel NIC DMA Channels (IOAT): Disabled

Intel UPI Link Frequency: Min UPI Speed

HPE Synergy 3820C 10/20Gb CNA: PCIe Generation 1

AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

systemctl stop irqbalance.service
echo 970000 > /proc/sys/kernel/sched_rt_runtime_us
echo 40000000 > /proc/sys/kernel/sched_latency_ns
echo 15000 > /proc/sys/vm/dirty_expire_centisecs
echo 64 > /proc/sys/kernel/sched_nr_migrate

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2018-3640 (Variant 3a) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2018-3639 (Variant 4) is mitigated in the system as tested and documented.

Notes

None

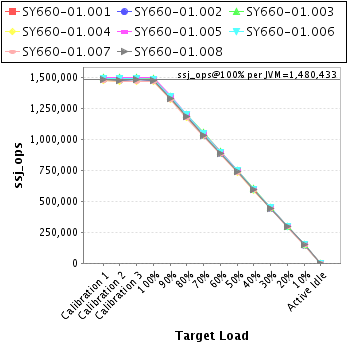

JVM Instance Summary

JVM Instance	ssj_ops@100%
SY660-01.001	1,486,002
SY660-01.002	1,474,660
SY660-01.003	1,494,457
SY660-01.004	1,464,811
SY660-01.005	1,497,038
SY660-01.006	1,486,831
SY660-01.007	1,464,463
SY660-01.008	1,475,203
ssj_ops@100%	11,843,466
ssj_ops@100% per JVM	1,480,433

JVM 'SY660-01.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,491,611
Calibration 2			1,489,506
Calibration 3			1,490,411
ssj_ops@calibrated=1,489,958
100%	99.7%	1,489,958	1,486,002
90%	90.1%	1,340,962	1,342,877
80%	80.0%	1,191,967	1,192,584
70%	69.8%	1,042,971	1,040,468
60%	59.8%	893,975	891,136
50%	50.2%	744,979	747,755
40%	40.0%	595,983	595,670
30%	30.2%	446,987	449,490
20%	20.0%	297,992	297,780
10%	10.0%	148,996	149,647
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-01.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,481,536
Calibration 2			1,474,995
Calibration 3			1,483,723
ssj_ops@calibrated=1,479,359
100%	99.7%	1,479,359	1,474,660
90%	89.8%	1,331,423	1,328,570
80%	79.9%	1,183,487	1,181,309
70%	69.9%	1,035,551	1,033,561
60%	60.0%	887,615	887,381
50%	50.3%	739,680	743,631
40%	40.1%	591,744	592,618
30%	30.1%	443,808	445,413
20%	19.9%	295,872	294,815
10%	10.0%	147,936	147,483
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

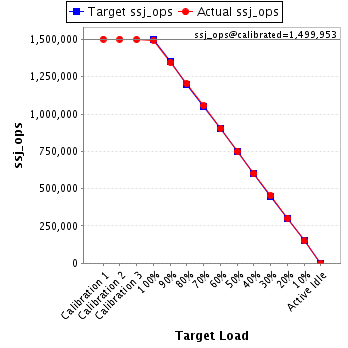

JVM 'SY660-01.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,501,722
Calibration 2			1,500,836
Calibration 3			1,499,070
ssj_ops@calibrated=1,499,953
100%	99.6%	1,499,953	1,494,457
90%	89.8%	1,349,958	1,346,858
80%	80.2%	1,199,963	1,202,963
70%	70.4%	1,049,967	1,055,599
60%	60.1%	899,972	901,594
50%	50.0%	749,977	750,073
40%	40.1%	599,981	600,996
30%	30.1%	449,986	452,122
20%	20.1%	299,991	300,944
10%	10.0%	149,995	149,949
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-01.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,472,439
Calibration 2			1,468,277
Calibration 3			1,470,267
ssj_ops@calibrated=1,469,272
100%	99.7%	1,469,272	1,464,811
90%	89.9%	1,322,345	1,320,999
80%	79.9%	1,175,417	1,174,635
70%	70.0%	1,028,490	1,028,392
60%	60.2%	881,563	884,327
50%	50.1%	734,636	735,861
40%	40.0%	587,709	588,147
30%	30.1%	440,782	441,999
20%	20.0%	293,854	294,503
10%	10.0%	146,927	147,275
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-01.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,502,512
Calibration 2			1,498,468
Calibration 3			1,502,813
ssj_ops@calibrated=1,500,640
100%	99.8%	1,500,640	1,497,038
90%	90.1%	1,350,576	1,351,945
80%	80.0%	1,200,512	1,199,962
70%	70.0%	1,050,448	1,049,975
60%	60.0%	900,384	900,306
50%	49.8%	750,320	747,411
40%	39.9%	600,256	598,481
30%	30.1%	450,192	451,306
20%	19.9%	300,128	298,894
10%	10.1%	150,064	150,876
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-01.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,494,959
Calibration 2			1,490,550
Calibration 3			1,492,903
ssj_ops@calibrated=1,491,726
100%	99.7%	1,491,726	1,486,831
90%	90.0%	1,342,554	1,343,191
80%	80.4%	1,193,381	1,199,062
70%	70.1%	1,044,208	1,045,505
60%	59.9%	895,036	893,518
50%	50.0%	745,863	746,255
40%	40.1%	596,691	597,616
30%	30.0%	447,518	447,936
20%	19.9%	298,345	297,541
10%	9.9%	149,173	148,013
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

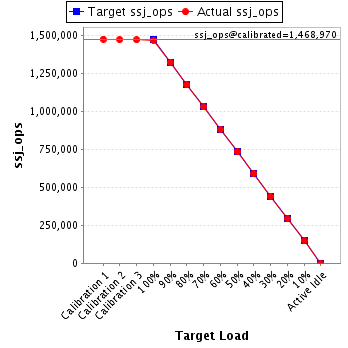

JVM 'SY660-01.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,473,005
Calibration 2			1,470,114
Calibration 3			1,467,827
ssj_ops@calibrated=1,468,970
100%	99.7%	1,468,970	1,464,463
90%	89.9%	1,322,073	1,321,041
80%	79.9%	1,175,176	1,173,150
70%	69.9%	1,028,279	1,027,342
60%	60.0%	881,382	881,151
50%	49.8%	734,485	731,736
40%	40.0%	587,588	588,060
30%	30.0%	440,691	440,560
20%	19.9%	293,794	292,452
10%	10.0%	146,897	146,526
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-01.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,483,512
Calibration 2			1,478,397
Calibration 3			1,482,063
ssj_ops@calibrated=1,480,230
100%	99.7%	1,480,230	1,475,203
90%	89.9%	1,332,207	1,330,055
80%	79.9%	1,184,184	1,183,277
70%	69.9%	1,036,161	1,034,666
60%	60.1%	888,138	890,186
50%	49.9%	740,115	737,992
40%	40.0%	592,092	592,758
30%	30.0%	444,069	444,392
20%	20.1%	296,046	297,325
10%	10.0%	148,023	148,041
Active Idle		0	0

See the JVM Instance Performance Report for additional details.
