Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,732,357
ssj_ops@100% per JVM = 1,433,089
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Apr 8, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: May 8, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,759,360
Calibration 2     5,754,199
Calibration 3     5,754,356
ssj_ops@calibrated=5,754,278
100% 99.6% 5,754,278 5,732,357
90% 90.1% 5,178,850 5,182,489
80% 79.9% 4,603,422 4,598,575
70% 70.0% 4,027,994 4,028,739
60% 60.0% 3,452,567 3,451,249
50% 49.9% 2,877,139 2,871,367
40% 40.1% 2,301,711 2,304,824
30% 30.0% 1,726,283 1,727,661
20% 20.0% 1,150,856 1,150,206
10% 10.0% 575,428 575,267
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 12
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: 7U
CPU Name: Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz)
CPU Characteristics: 28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated in each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x HPE 240GB 6G SATA M.2 SSD (875488-B21)
Disk Controller: HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: H/S: Standard
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I42 v2.00 (02/02/2019)
Management Firmware Version: 1.40 Feb 05 2019
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) Version: 2019.03.0, Microsoft Windows KB4056898, KB4338815
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE09.001 1,443,150
NODE09.002 1,422,097
NODE09.003 1,434,412
NODE09.004 1,432,698
ssj_ops@100% 5,732,357
ssj_ops@100% per JVM 1,433,089
Graph of per-instance results
JVM 'NODE09.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,449,386
Calibration 2     1,447,550
Calibration 3     1,448,358
ssj_ops@calibrated=1,447,954
100% 99.7% 1,447,954 1,443,150
90% 89.8% 1,303,158 1,300,786
80% 79.9% 1,158,363 1,156,924
70% 70.0% 1,013,568 1,013,447
60% 60.0% 868,772 868,590
50% 49.8% 723,977 721,080
40% 39.8% 579,181 576,377
30% 29.9% 434,386 433,260
20% 20.1% 289,591 290,445
10% 9.9% 144,795 143,678
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE09.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,430,711
Calibration 2     1,426,923
Calibration 3     1,428,061
ssj_ops@calibrated=1,427,492
100% 99.6% 1,427,492 1,422,097
90% 90.3% 1,284,743 1,288,653
80% 79.8% 1,141,994 1,139,719
70% 69.9% 999,245 997,730
60% 60.0% 856,495 856,429
50% 49.9% 713,746 712,346
40% 40.2% 570,997 574,402
30% 30.0% 428,248 427,548
20% 19.9% 285,498 283,554
10% 10.0% 142,749 142,226
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE09.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,441,599
Calibration 2     1,442,309
Calibration 3     1,439,634
ssj_ops@calibrated=1,440,972
100% 99.5% 1,440,972 1,434,412
90% 89.8% 1,296,874 1,294,017
80% 80.0% 1,152,777 1,152,279
70% 70.0% 1,008,680 1,009,234
60% 60.0% 864,583 864,255
50% 49.9% 720,486 719,068
40% 40.1% 576,389 578,481
30% 30.1% 432,291 433,121
20% 20.0% 288,194 288,087
10% 10.1% 144,097 146,178
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE09.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,437,664
Calibration 2     1,437,417
Calibration 3     1,438,303
ssj_ops@calibrated=1,437,860
100% 99.6% 1,437,860 1,432,698
90% 90.3% 1,294,074 1,299,033
80% 80.0% 1,150,288 1,149,653
70% 70.1% 1,006,502 1,008,328
60% 59.9% 862,716 861,974
50% 50.0% 718,930 718,873
40% 40.0% 575,144 575,564
30% 30.2% 431,358 433,731
20% 20.0% 287,572 288,121
10% 10.0% 143,786 143,186
Active Idle   0 0

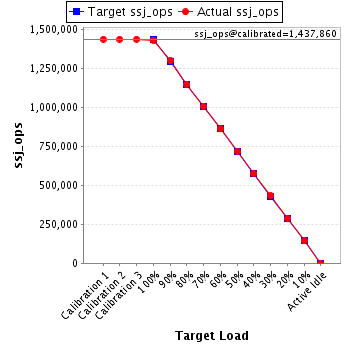

Graph of results
See the JVM Instance Performance Report for additional details.
