New H3C Technologies Co., Ltd. H3C UniServer B5700 G3 ssj_ops@100% = 5,672,761
ssj_ops@100% per JVM = 1,418,190
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Multi Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: Apr 27, 2019
Hardware Availability: Jan-2019 Software Availability: Jan-2019 Publication: Jun 5, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,686,535
Calibration 2     5,678,109
Calibration 3     5,689,569
ssj_ops@calibrated=5,683,839
100% 99.8% 5,683,839 5,672,761
90% 90.0% 5,115,455 5,117,095
80% 80.1% 4,547,071 4,552,624
70% 70.0% 3,978,687 3,979,649
60% 60.0% 3,410,303 3,410,825
50% 50.1% 2,841,919 2,849,063
40% 40.0% 2,273,536 2,274,675
30% 30.0% 1,705,152 1,706,577
20% 20.0% 1,136,768 1,135,569
10% 10.0% 568,384 566,374
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 8
Comment: SUT
Hardware
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer B5700 G3
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192.0
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC;slots A1, A2, A3, A4, A5, A6, B1, B2, B3, B4, B5, B6 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: SATA DOM 128GB P/N DESSH-A28D09BCADCA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode enabled in OS (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,2] /AFFINITY [0xFC0FF00FC0FF];start /NODE [1,3] /AFFINITY [0xFF03F00FF03F]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: 2.00.25
Management Firmware Version: UIS-OM 1.00.10
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB3021910, clearcompressionflag.exe, KB2919355, KB2932046, KB2959977, KB2937592, KB2938439, KB2934018, KB4056898, patched to this test system in April 26, 2019
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-SUT106.001 1,428,717
WIN-SUT106.002 1,413,060
WIN-SUT106.003 1,418,800
WIN-SUT106.004 1,412,184
ssj_ops@100% 5,672,761
ssj_ops@100% per JVM 1,418,190
Graph of per-instance results

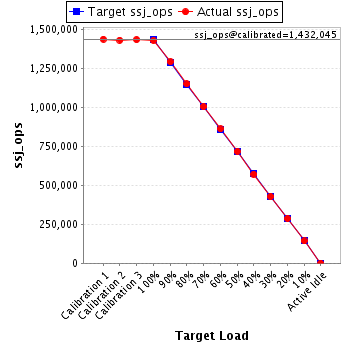

JVM 'WIN-SUT106.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,436,662
Calibration 2     1,430,905
Calibration 3     1,433,185
ssj_ops@calibrated=1,432,045
100% 99.8% 1,432,045 1,428,717
90% 90.2% 1,288,840 1,291,513
80% 80.3% 1,145,636 1,149,803
70% 70.1% 1,002,431 1,004,514
60% 60.1% 859,227 860,793
50% 50.1% 716,022 717,055
40% 39.9% 572,818 571,245
30% 29.9% 429,613 427,589
20% 20.0% 286,409 286,475
10% 10.0% 143,204 143,024
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

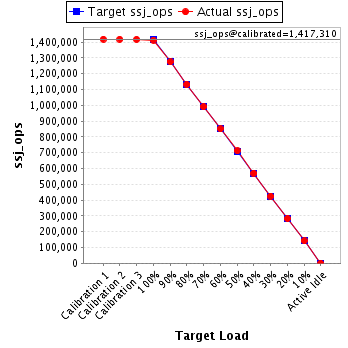

JVM 'WIN-SUT106.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,418,525
Calibration 2     1,417,675
Calibration 3     1,416,944
ssj_ops@calibrated=1,417,310
100% 99.7% 1,417,310 1,413,060
90% 89.9% 1,275,579 1,274,862
80% 79.9% 1,133,848 1,132,225
70% 69.9% 992,117 991,091
60% 60.0% 850,386 850,221
50% 50.2% 708,655 711,553
40% 40.2% 566,924 569,961
30% 30.0% 425,193 425,715
20% 19.9% 283,462 282,542
10% 10.0% 141,731 141,623
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT106.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,417,106
Calibration 2     1,418,749
Calibration 3     1,424,287
ssj_ops@calibrated=1,421,518
100% 99.8% 1,421,518 1,418,800
90% 89.9% 1,279,366 1,277,781
80% 80.0% 1,137,215 1,137,225
70% 69.9% 995,063 993,368
60% 60.0% 852,911 852,310
50% 50.1% 710,759 711,930
40% 40.0% 568,607 568,434
30% 30.1% 426,455 427,446
20% 20.0% 284,304 284,403
10% 10.0% 142,152 141,442
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT106.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,414,243
Calibration 2     1,410,779
Calibration 3     1,415,153
ssj_ops@calibrated=1,412,966
100% 99.9% 1,412,966 1,412,184
90% 90.1% 1,271,669 1,272,939
80% 80.2% 1,130,373 1,133,371
70% 70.1% 989,076 990,676
60% 60.0% 847,780 847,501
50% 50.1% 706,483 708,525
40% 40.0% 565,186 565,034
30% 30.1% 423,890 425,827
20% 20.0% 282,593 282,149
10% 9.9% 141,297 140,286
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
