New H3C Technologies Co., Ltd. H3C UniServer B5700 G3 ssj_ops@100% = 5,689,844
ssj_ops@100% per JVM = 1,422,461
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Multi Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: Apr 27, 2019
Hardware Availability: Jan-2019 Software Availability: Jan-2019 Publication: Jun 5, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,698,140
Calibration 2     5,700,576
Calibration 3     5,713,376
ssj_ops@calibrated=5,706,976
100% 99.7% 5,706,976 5,689,844
90% 90.0% 5,136,278 5,136,226
80% 79.9% 4,565,581 4,559,247
70% 70.0% 3,994,883 3,994,302
60% 60.1% 3,424,186 3,428,184
50% 50.1% 2,853,488 2,856,615
40% 40.0% 2,282,790 2,283,225
30% 30.1% 1,712,093 1,716,444
20% 20.0% 1,141,395 1,143,876
10% 10.0% 570,698 573,418
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 8
Comment: SUT
Hardware
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer B5700 G3
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192.0
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC;slots A1, A2, A3, A4, A5, A6, B1, B2, B3, B4, B5, B6 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: SATA DOM 128GB P/N DESSH-A28D09BCADCA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode enabled in OS (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,2] /AFFINITY [0xFC0FF00FC0FF];start /NODE [1,3] /AFFINITY [0xFF03F00FF03F]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: 2.00.25
Management Firmware Version: UIS-OM 1.00.10
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB3021910, clearcompressionflag.exe, KB2919355, KB2932046, KB2959977, KB2937592, KB2938439, KB2934018, KB4056898, patched to this test system in April 26, 2019
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-SUT107.001 1,425,870
WIN-SUT107.002 1,425,954
WIN-SUT107.003 1,417,688
WIN-SUT107.004 1,420,332
ssj_ops@100% 5,689,844
ssj_ops@100% per JVM 1,422,461

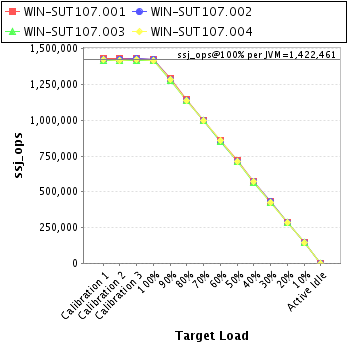

Graph of per-instance results

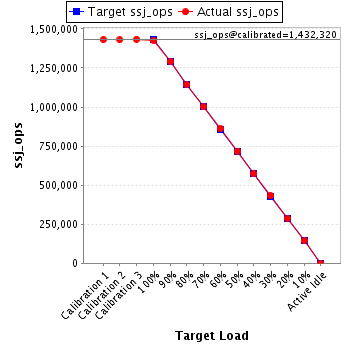

JVM 'WIN-SUT107.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,430,390
Calibration 2     1,430,157
Calibration 3     1,434,484
ssj_ops@calibrated=1,432,320
100% 99.5% 1,432,320 1,425,870
90% 90.1% 1,289,088 1,290,343
80% 80.0% 1,145,856 1,145,260
70% 69.8% 1,002,624 1,000,460
60% 60.1% 859,392 860,231
50% 50.1% 716,160 718,016
40% 40.0% 572,928 573,226
30% 30.1% 429,696 431,172
20% 20.1% 286,464 288,494
10% 10.1% 143,232 143,972
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT107.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,426,791
Calibration 2     1,428,474
Calibration 3     1,431,044
ssj_ops@calibrated=1,429,759
100% 99.7% 1,429,759 1,425,954
90% 89.7% 1,286,783 1,282,809
80% 79.9% 1,143,807 1,141,948
70% 69.9% 1,000,831 999,241
60% 59.8% 857,855 854,652
50% 50.0% 714,880 714,916
40% 40.0% 571,904 571,855
30% 30.1% 428,928 430,680
20% 20.0% 285,952 285,895
10% 10.1% 142,976 143,868
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT107.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,418,015
Calibration 2     1,420,254
Calibration 3     1,420,723
ssj_ops@calibrated=1,420,488
100% 99.8% 1,420,488 1,417,688
90% 90.1% 1,278,440 1,279,680
80% 79.9% 1,136,391 1,135,407
70% 70.2% 994,342 996,643
60% 60.1% 852,293 854,153
50% 50.0% 710,244 710,114
40% 39.8% 568,195 566,054
30% 30.0% 426,147 426,273
20% 20.0% 284,098 283,746
10% 10.1% 142,049 142,799
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT107.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,422,943
Calibration 2     1,421,691
Calibration 3     1,427,125
ssj_ops@calibrated=1,424,408
100% 99.7% 1,424,408 1,420,332
90% 90.1% 1,281,967 1,283,394
80% 79.8% 1,139,527 1,136,633
70% 70.1% 997,086 997,958
60% 60.3% 854,645 859,148
50% 50.1% 712,204 713,569
40% 40.2% 569,763 572,091
30% 30.1% 427,322 428,319
20% 20.1% 284,882 285,741
10% 10.0% 142,441 142,779
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
