New H3C Technologies Co., Ltd. H3C UniServer B5700 G3 ssj_ops@100% = 5,703,694
ssj_ops@100% per JVM = 1,425,924
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Multi Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: May 15, 2019
Hardware Availability: Jan-2019 Software Availability: Jan-2019 Publication: Jun 12, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,691,936
Calibration 2     5,706,419
Calibration 3     5,721,958
ssj_ops@calibrated=5,714,188
100% 99.8% 5,714,188 5,703,694
90% 90.1% 5,142,770 5,147,081
80% 79.9% 4,571,351 4,566,804
70% 70.1% 3,999,932 4,006,622
60% 60.0% 3,428,513 3,428,412
50% 49.9% 2,857,094 2,853,229
40% 40.0% 2,285,675 2,284,985
30% 30.0% 1,714,257 1,712,543
20% 20.0% 1,142,838 1,143,395
10% 10.0% 571,419 571,851
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 10
Comment: SUT
Hardware
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer B5700 G3
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192.0
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC;slots A1, A2, A3, A4, A5, A6, B1, B2, B3, B4, B5, B6 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: SATA DOM 128GB P/N DESSH-A28D09BCADCA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode enabled in OS (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,2] /AFFINITY [0xFC0FF00FC0FF];start /NODE [1,3] /AFFINITY [0xFF03F00FF03F]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: 2.00.25
Management Firmware Version: UIS-OM 1.00.10
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB3021910, clearcompressionflag.exe, KB2919355, KB2932046, KB2959977, KB2937592, KB2938439, KB2934018, KB4056898, patched to this test system in May 6, 2019
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-SUT110.001 1,420,049
WIN-SUT110.002 1,429,890
WIN-SUT110.003 1,434,940
WIN-SUT110.004 1,418,815
ssj_ops@100% 5,703,694
ssj_ops@100% per JVM 1,425,924

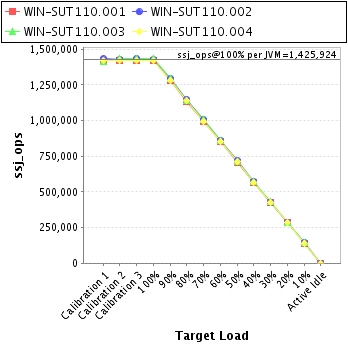

Graph of per-instance results
JVM 'WIN-SUT110.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,419,827
Calibration 2     1,419,441
Calibration 3     1,424,257
ssj_ops@calibrated=1,421,849
100% 99.9% 1,421,849 1,420,049
90% 90.0% 1,279,664 1,279,797
80% 80.0% 1,137,479 1,136,780
70% 69.8% 995,294 992,717
60% 60.3% 853,109 857,222
50% 49.7% 710,925 706,713
40% 39.9% 568,740 567,759
30% 30.1% 426,555 427,530
20% 20.0% 284,370 284,098
10% 10.0% 142,185 141,947
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

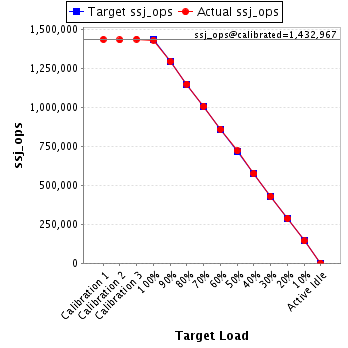

JVM 'WIN-SUT110.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,433,123
Calibration 2     1,430,444
Calibration 3     1,435,491
ssj_ops@calibrated=1,432,967
100% 99.8% 1,432,967 1,429,890
90% 90.2% 1,289,671 1,292,710
80% 80.1% 1,146,374 1,147,715
70% 70.2% 1,003,077 1,005,754
60% 59.9% 859,780 858,505
50% 50.2% 716,484 719,520
40% 40.0% 573,187 573,760
30% 29.9% 429,890 428,998
20% 20.0% 286,593 287,278
10% 10.0% 143,297 143,173
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

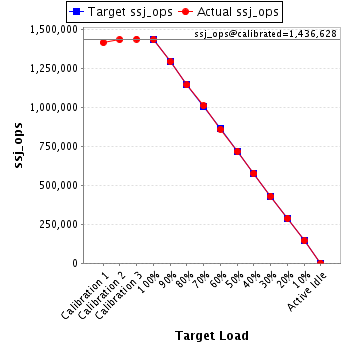

JVM 'WIN-SUT110.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,416,168
Calibration 2     1,435,242
Calibration 3     1,438,013
ssj_ops@calibrated=1,436,628
100% 99.9% 1,436,628 1,434,940
90% 90.0% 1,292,965 1,293,672
80% 79.6% 1,149,302 1,144,178
70% 70.4% 1,005,639 1,011,002
60% 59.9% 861,977 860,047
50% 49.9% 718,314 716,814
40% 40.0% 574,651 575,190
30% 30.0% 430,988 430,432
20% 20.0% 287,326 287,849
10% 10.1% 143,663 145,033
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

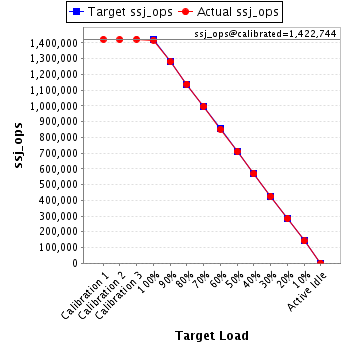

JVM 'WIN-SUT110.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,422,818
Calibration 2     1,421,292
Calibration 3     1,424,197
ssj_ops@calibrated=1,422,744
100% 99.7% 1,422,744 1,418,815
90% 90.0% 1,280,470 1,280,902
80% 80.0% 1,138,196 1,138,131
70% 70.1% 995,921 997,150
60% 59.9% 853,647 852,639
50% 49.9% 711,372 710,182
40% 39.9% 569,098 568,276
30% 29.9% 426,823 425,583
20% 20.0% 284,549 284,169
10% 10.0% 142,274 141,698
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
