New H3C Technologies Co., Ltd. H3C UniServer B5700 G3 ssj_ops@100% = 5,688,424
ssj_ops@100% per JVM = 1,422,106
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Multi Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: May 14, 2019
Hardware Availability: Jan-2019 Software Availability: Jan-2019 Publication: Jun 12, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,693,070
Calibration 2     5,687,679
Calibration 3     5,703,487
ssj_ops@calibrated=5,695,583
100% 99.9% 5,695,583 5,688,424
90% 90.2% 5,126,025 5,135,140
80% 80.1% 4,556,466 4,563,562
70% 69.9% 3,986,908 3,983,959
60% 60.1% 3,417,350 3,420,857
50% 50.0% 2,847,792 2,849,579
40% 40.0% 2,278,233 2,276,629
30% 30.0% 1,708,675 1,706,740
20% 20.0% 1,139,117 1,139,191
10% 10.0% 569,558 568,441
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 11
Comment: SUT
Hardware
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer B5700 G3
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192.0
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC;slots A1, A2, A3, A4, A5, A6, B1, B2, B3, B4, B5, B6 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: SATA DOM 128GB P/N DESSH-A28D09BCADCA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode enabled in OS (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,2] /AFFINITY [0xFC0FF00FC0FF];start /NODE [1,3] /AFFINITY [0xFF03F00FF03F]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: 2.00.25
Management Firmware Version: UIS-OM 1.00.10
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB3021910, clearcompressionflag.exe, KB2919355, KB2932046, KB2959977, KB2937592, KB2938439, KB2934018, KB4056898, patched to this test system in May 7,2019
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-SUT101.001 1,434,172
WIN-SUT101.002 1,414,796
WIN-SUT101.003 1,419,355
WIN-SUT101.004 1,420,102
ssj_ops@100% 5,688,424
ssj_ops@100% per JVM 1,422,106

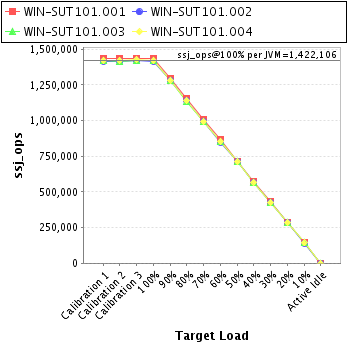

Graph of per-instance results
JVM 'WIN-SUT101.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,436,529
Calibration 2     1,433,155
Calibration 3     1,437,585
ssj_ops@calibrated=1,435,370
100% 99.9% 1,435,370 1,434,172
90% 90.2% 1,291,833 1,294,207
80% 80.3% 1,148,296 1,152,164
70% 70.1% 1,004,759 1,005,885
60% 60.2% 861,222 864,049
50% 49.9% 717,685 715,764
40% 39.9% 574,148 572,851
30% 30.0% 430,611 430,471
20% 20.0% 287,074 287,559
10% 9.9% 143,537 142,195
Active Idle   0 0

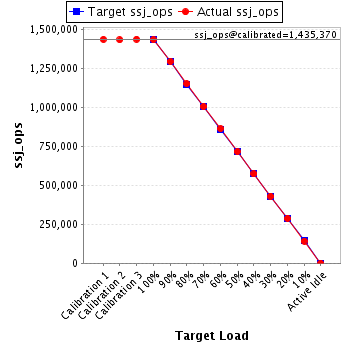

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT101.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,416,464
Calibration 2     1,416,938
Calibration 3     1,418,986
ssj_ops@calibrated=1,417,962
100% 99.8% 1,417,962 1,414,796
90% 90.3% 1,276,166 1,279,716
80% 80.3% 1,134,370 1,138,187
70% 70.1% 992,573 994,578
60% 59.9% 850,777 849,596
50% 50.1% 708,981 710,821
40% 39.9% 567,185 566,397
30% 30.0% 425,389 425,975
20% 20.0% 283,592 283,314
10% 10.0% 141,796 141,763
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT101.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,418,072
Calibration 2     1,416,304
Calibration 3     1,421,463
ssj_ops@calibrated=1,418,884
100% 100.0% 1,418,884 1,419,355
90% 90.1% 1,276,995 1,277,895
80% 79.8% 1,135,107 1,132,471
70% 69.8% 993,218 990,490
60% 60.1% 851,330 852,290
50% 50.1% 709,442 711,189
40% 40.1% 567,553 568,755
30% 29.9% 425,665 423,995
20% 19.9% 283,777 282,936
10% 10.0% 141,888 142,379
Active Idle   0 0

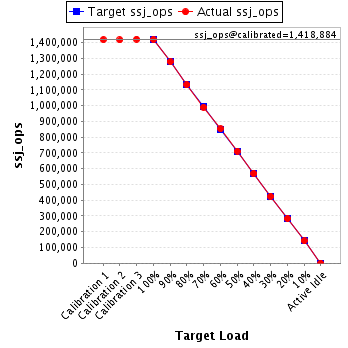

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT101.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,422,005
Calibration 2     1,421,282
Calibration 3     1,425,454
ssj_ops@calibrated=1,423,368
100% 99.8% 1,423,368 1,420,102
90% 90.2% 1,281,031 1,283,322
80% 80.1% 1,138,694 1,140,741
70% 69.8% 996,357 993,006
60% 60.1% 854,021 854,922
50% 50.0% 711,684 711,806
40% 39.9% 569,347 568,627
30% 30.0% 427,010 426,299
20% 20.0% 284,674 285,382
10% 10.0% 142,337 142,104
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
