New H3C Technologies Co., Ltd. H3C UniServer B5700 G3 ssj_ops@100% = 5,681,309
ssj_ops@100% per JVM = 1,420,327
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Multi Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: May 14, 2019
Hardware Availability: Jan-2019 Software Availability: Jan-2019 Publication: Jun 12, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,693,258
Calibration 2     5,689,655
Calibration 3     5,693,564
ssj_ops@calibrated=5,691,610
100% 99.8% 5,691,610 5,681,309
90% 90.1% 5,122,449 5,126,963
80% 80.1% 4,553,288 4,557,277
70% 70.1% 3,984,127 3,991,612
60% 60.0% 3,414,966 3,415,230
50% 50.0% 2,845,805 2,843,339
40% 40.0% 2,276,644 2,276,856
30% 30.0% 1,707,483 1,705,629
20% 20.0% 1,138,322 1,138,770
10% 10.0% 569,161 570,208
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 11
Comment: SUT
Hardware
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer B5700 G3
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192.0
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC;slots A1, A2, A3, A4, A5, A6, B1, B2, B3, B4, B5, B6 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: SATA DOM 128GB P/N DESSH-A28D09BCADCA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode enabled in OS (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,2] /AFFINITY [0xFC0FF00FC0FF];start /NODE [1,3] /AFFINITY [0xFF03F00FF03F]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: 2.00.25
Management Firmware Version: UIS-OM 1.00.10
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB3021910, clearcompressionflag.exe, KB2919355, KB2932046, KB2959977, KB2937592, KB2938439, KB2934018, KB4056898, patched to this test system in May 7,2019
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-SUT102.001 1,422,485
WIN-SUT102.002 1,438,354
WIN-SUT102.003 1,414,951
WIN-SUT102.004 1,405,519
ssj_ops@100% 5,681,309
ssj_ops@100% per JVM 1,420,327

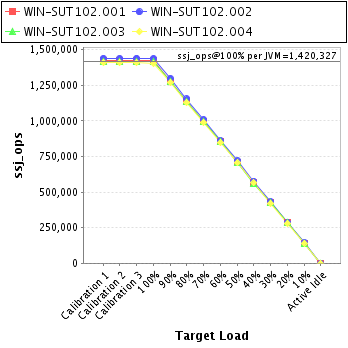

Graph of per-instance results
JVM 'WIN-SUT102.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,422,871
Calibration 2     1,423,786
Calibration 3     1,423,481
ssj_ops@calibrated=1,423,633
100% 99.9% 1,423,633 1,422,485
90% 89.8% 1,281,270 1,278,520
80% 79.9% 1,138,907 1,138,113
70% 69.9% 996,543 995,663
60% 60.1% 854,180 855,165
50% 49.9% 711,817 710,421
40% 40.1% 569,453 570,751
30% 29.9% 427,090 425,084
20% 19.9% 284,727 283,711
10% 10.0% 142,363 142,225
Active Idle   0 0

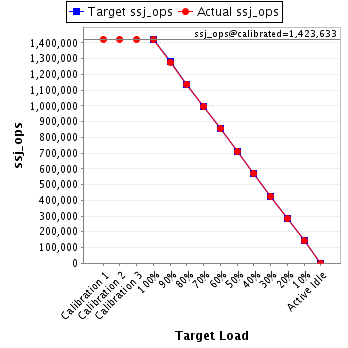

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT102.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,440,415
Calibration 2     1,439,211
Calibration 3     1,440,941
ssj_ops@calibrated=1,440,076
100% 99.9% 1,440,076 1,438,354
90% 90.2% 1,296,069 1,299,194
80% 80.1% 1,152,061 1,154,133
70% 70.1% 1,008,053 1,008,803
60% 59.8% 864,046 861,692
50% 50.0% 720,038 720,144
40% 40.1% 576,031 577,256
30% 30.0% 432,023 431,693
20% 20.0% 288,015 288,130
10% 10.0% 144,008 144,403
Active Idle   0 0

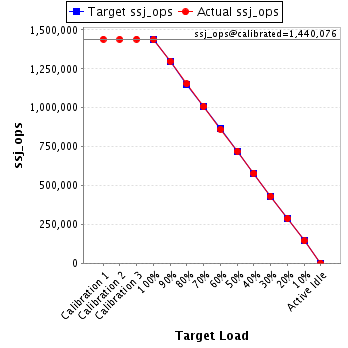

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT102.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,419,317
Calibration 2     1,416,238
Calibration 3     1,418,388
ssj_ops@calibrated=1,417,313
100% 99.8% 1,417,313 1,414,951
90% 90.2% 1,275,582 1,278,406
80% 80.2% 1,133,850 1,136,620
70% 70.2% 992,119 995,539
60% 60.2% 850,388 852,625
50% 49.9% 708,656 707,239
40% 39.8% 566,925 563,748
30% 30.1% 425,194 426,711
20% 20.0% 283,463 284,059
10% 10.0% 141,731 142,336
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT102.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,410,655
Calibration 2     1,410,420
Calibration 3     1,410,754
ssj_ops@calibrated=1,410,587
100% 99.6% 1,410,587 1,405,519
90% 90.1% 1,269,529 1,270,843
80% 80.0% 1,128,470 1,128,409
70% 70.3% 987,411 991,608
60% 60.0% 846,352 845,748
50% 50.0% 705,294 705,535
40% 40.1% 564,235 565,102
30% 29.9% 423,176 422,141
20% 20.1% 282,117 282,870
10% 10.0% 141,059 141,244
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
