New H3C Technologies Co., Ltd. H3C UniServer B5700 G3 ssj_ops@100% = 5,685,582
ssj_ops@100% per JVM = 1,421,395
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Multi Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: May 14, 2019
Hardware Availability: Jan-2019 Software Availability: Jan-2019 Publication: Jun 12, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,697,682
Calibration 2     5,686,889
Calibration 3     5,699,306
ssj_ops@calibrated=5,693,097
100% 99.9% 5,693,097 5,685,582
90% 90.1% 5,123,788 5,131,507
80% 80.0% 4,554,478 4,552,289
70% 70.1% 3,985,168 3,988,830
60% 60.1% 3,415,858 3,423,099
50% 50.0% 2,846,549 2,845,834
40% 40.0% 2,277,239 2,276,904
30% 29.9% 1,707,929 1,703,604
20% 20.1% 1,138,619 1,142,467
10% 10.0% 569,310 568,429
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 11
Comment: SUT
Hardware
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer B5700 G3
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192.0
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC;slots A1, A2, A3, A4, A5, A6, B1, B2, B3, B4, B5, B6 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: SATA DOM 128GB P/N DESSH-A28D09BCADCA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode enabled in OS (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,2] /AFFINITY [0xFC0FF00FC0FF];start /NODE [1,3] /AFFINITY [0xFF03F00FF03F]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: 2.00.25
Management Firmware Version: UIS-OM 1.00.10
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB3021910, clearcompressionflag.exe, KB2919355, KB2932046, KB2959977, KB2937592, KB2938439, KB2934018, KB4056898, patched to this test system in May 7,2019
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-SUT104.001 1,417,605
WIN-SUT104.002 1,414,827
WIN-SUT104.003 1,435,178
WIN-SUT104.004 1,417,971
ssj_ops@100% 5,685,582
ssj_ops@100% per JVM 1,421,395

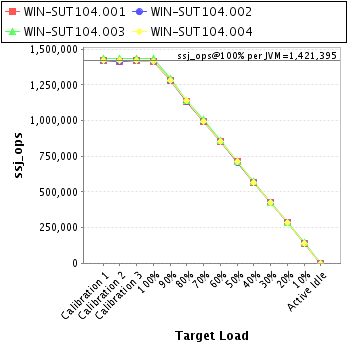

Graph of per-instance results
JVM 'WIN-SUT104.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,420,524
Calibration 2     1,417,217
Calibration 3     1,419,157
ssj_ops@calibrated=1,418,187
100% 100.0% 1,418,187 1,417,605
90% 90.1% 1,276,368 1,277,865
80% 80.2% 1,134,549 1,136,813
70% 70.2% 992,731 995,518
60% 60.0% 850,912 851,168
50% 50.1% 709,093 709,936
40% 39.9% 567,275 566,277
30% 29.9% 425,456 424,518
20% 20.1% 283,637 285,176
10% 10.0% 141,819 141,842
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT104.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,418,525
Calibration 2     1,415,151
Calibration 3     1,419,842
ssj_ops@calibrated=1,417,496
100% 99.8% 1,417,496 1,414,827
90% 90.2% 1,275,747 1,278,552
80% 79.9% 1,133,997 1,132,645
70% 70.0% 992,247 992,738
60% 60.3% 850,498 854,682
50% 50.0% 708,748 708,452
40% 40.1% 566,999 568,249
30% 30.0% 425,249 424,844
20% 20.0% 283,499 283,733
10% 9.9% 141,750 141,006
Active Idle   0 0

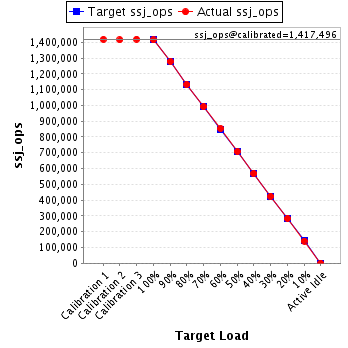

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT104.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,437,215
Calibration 2     1,433,743
Calibration 3     1,437,800
ssj_ops@calibrated=1,435,772
100% 100.0% 1,435,772 1,435,178
90% 90.1% 1,292,195 1,293,334
80% 79.7% 1,148,617 1,144,129
70% 70.0% 1,005,040 1,005,327
60% 60.1% 861,463 862,236
50% 49.8% 717,886 715,596
40% 40.1% 574,309 576,210
30% 29.8% 430,732 428,128
20% 20.1% 287,154 288,571
10% 10.0% 143,577 143,682
Active Idle   0 0

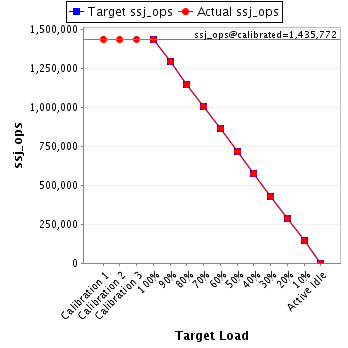

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT104.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,421,418
Calibration 2     1,420,778
Calibration 3     1,422,508
ssj_ops@calibrated=1,421,643
100% 99.7% 1,421,643 1,417,971
90% 90.2% 1,279,478 1,281,756
80% 80.1% 1,137,314 1,138,702
70% 70.0% 995,150 995,247
60% 60.1% 852,986 855,013
50% 50.1% 710,821 711,849
40% 39.8% 568,657 566,168
30% 30.0% 426,493 426,113
20% 20.0% 284,329 284,987
10% 10.0% 142,164 141,900
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
