New H3C Technologies Co., Ltd. H3C UniServer B5700 G3 ssj_ops@100% = 5,695,506
ssj_ops@100% per JVM = 1,423,877
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Multi Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: May 14, 2019
Hardware Availability: Jan-2019 Software Availability: Jan-2019 Publication: Jun 12, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,701,208
Calibration 2     5,702,610
Calibration 3     5,706,094
ssj_ops@calibrated=5,704,352
100% 99.8% 5,704,352 5,695,506
90% 90.0% 5,133,917 5,135,420
80% 79.7% 4,563,481 4,548,485
70% 70.1% 3,993,046 3,999,607
60% 60.0% 3,422,611 3,420,942
50% 49.9% 2,852,176 2,849,284
40% 40.1% 2,281,741 2,286,425
30% 30.0% 1,711,306 1,713,219
20% 19.9% 1,140,870 1,137,015
10% 9.9% 570,435 566,452
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 11
Comment: SUT
Hardware
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer B5700 G3
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192.0
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC;slots A1, A2, A3, A4, A5, A6, B1, B2, B3, B4, B5, B6 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: SATA DOM 128GB P/N DESSH-A28D09BCADCA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode enabled in OS (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,2] /AFFINITY [0xFC0FF00FC0FF];start /NODE [1,3] /AFFINITY [0xFF03F00FF03F]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: 2.00.25
Management Firmware Version: UIS-OM 1.00.10
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB3021910, clearcompressionflag.exe, KB2919355, KB2932046, KB2959977, KB2937592, KB2938439, KB2934018, KB4056898, patched to this test system in May 7,2019
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-SUT107.001 1,415,191
WIN-SUT107.002 1,435,321
WIN-SUT107.003 1,418,251
WIN-SUT107.004 1,426,744
ssj_ops@100% 5,695,506
ssj_ops@100% per JVM 1,423,877

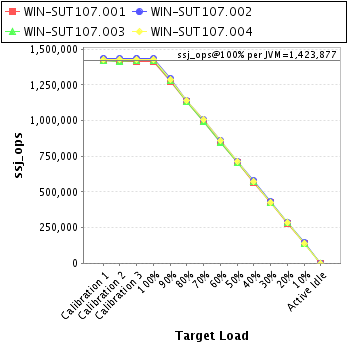

Graph of per-instance results
JVM 'WIN-SUT107.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,418,689
Calibration 2     1,417,803
Calibration 3     1,417,767
ssj_ops@calibrated=1,417,785
100% 99.8% 1,417,785 1,415,191
90% 89.8% 1,276,006 1,273,642
80% 79.8% 1,134,228 1,132,036
70% 70.0% 992,449 992,793
60% 59.9% 850,671 849,334
50% 50.0% 708,892 708,506
40% 39.8% 567,114 564,947
30% 30.1% 425,335 426,879
20% 19.9% 283,557 282,042
10% 10.0% 141,778 141,906
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

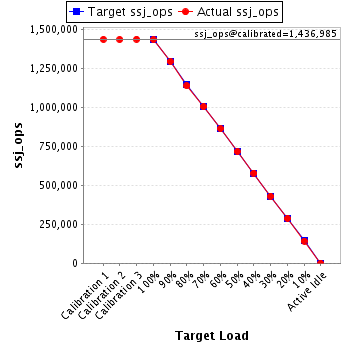

JVM 'WIN-SUT107.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,436,899
Calibration 2     1,436,021
Calibration 3     1,437,948
ssj_ops@calibrated=1,436,985
100% 99.9% 1,436,985 1,435,321
90% 90.1% 1,293,286 1,294,975
80% 79.2% 1,149,588 1,138,794
70% 70.0% 1,005,889 1,005,384
60% 60.1% 862,191 863,287
50% 49.9% 718,492 716,872
40% 40.2% 574,794 578,323
30% 30.0% 431,095 431,104
20% 20.1% 287,397 288,229
10% 9.9% 143,698 142,565
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

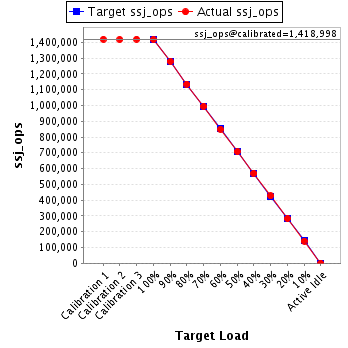

JVM 'WIN-SUT107.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,419,447
Calibration 2     1,418,034
Calibration 3     1,419,962
ssj_ops@calibrated=1,418,998
100% 99.9% 1,418,998 1,418,251
90% 90.1% 1,277,098 1,279,164
80% 80.0% 1,135,198 1,135,153
70% 70.2% 993,299 995,682
60% 59.9% 851,399 849,902
50% 49.9% 709,499 707,647
40% 40.2% 567,599 569,945
30% 30.0% 425,699 426,370
20% 19.9% 283,800 282,963
10% 9.9% 141,900 140,721
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT107.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,426,173
Calibration 2     1,430,752
Calibration 3     1,430,416
ssj_ops@calibrated=1,430,584
100% 99.7% 1,430,584 1,426,744
90% 90.0% 1,287,526 1,287,639
80% 79.9% 1,144,467 1,142,502
70% 70.3% 1,001,409 1,005,748
60% 60.0% 858,351 858,419
50% 50.1% 715,292 716,258
40% 40.1% 572,234 573,210
30% 30.0% 429,175 428,865
20% 19.8% 286,117 283,781
10% 9.9% 143,058 141,259
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
