New H3C Technologies Co., Ltd. H3C UniServer B5700 G3 ssj_ops@100% = 5,691,324
ssj_ops@100% per JVM = 1,422,831
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Multi Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: May 14, 2019
Hardware Availability: Jan-2019 Software Availability: Jan-2019 Publication: Jun 12, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,698,975
Calibration 2     5,698,054
Calibration 3     5,701,368
ssj_ops@calibrated=5,699,711
100% 99.9% 5,699,711 5,691,324
90% 90.0% 5,129,739 5,128,283
80% 80.0% 4,559,768 4,558,218
70% 70.0% 3,989,797 3,991,134
60% 60.0% 3,419,826 3,419,827
50% 50.1% 2,849,855 2,855,080
40% 40.0% 2,279,884 2,279,461
30% 29.9% 1,709,913 1,703,894
20% 20.0% 1,139,942 1,140,258
10% 10.0% 569,971 571,730
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 11
Comment: SUT
Hardware
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer B5700 G3
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192.0
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC;slots A1, A2, A3, A4, A5, A6, B1, B2, B3, B4, B5, B6 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: SATA DOM 128GB P/N DESSH-A28D09BCADCA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode enabled in OS (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,2] /AFFINITY [0xFC0FF00FC0FF];start /NODE [1,3] /AFFINITY [0xFF03F00FF03F]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: 2.00.25
Management Firmware Version: UIS-OM 1.00.10
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB3021910, clearcompressionflag.exe, KB2919355, KB2932046, KB2959977, KB2937592, KB2938439, KB2934018, KB4056898, patched to this test system in May 7,2019
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-SUT111.001 1,418,861
WIN-SUT111.002 1,425,333
WIN-SUT111.003 1,427,400
WIN-SUT111.004 1,419,730
ssj_ops@100% 5,691,324
ssj_ops@100% per JVM 1,422,831

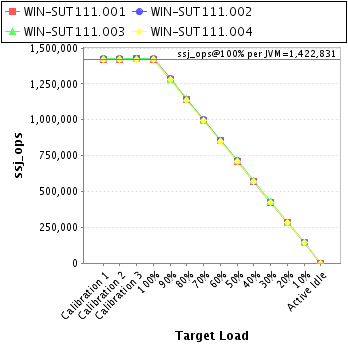

Graph of per-instance results
JVM 'WIN-SUT111.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,423,450
Calibration 2     1,421,926
Calibration 3     1,425,785
ssj_ops@calibrated=1,423,856
100% 99.6% 1,423,856 1,418,861
90% 90.0% 1,281,470 1,281,654
80% 79.9% 1,139,085 1,137,852
70% 70.0% 996,699 996,752
60% 60.2% 854,313 856,634
50% 50.0% 711,928 711,658
40% 39.8% 569,542 567,066
30% 30.0% 427,157 426,505
20% 20.0% 284,771 284,819
10% 10.1% 142,386 143,170
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT111.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,427,790
Calibration 2     1,426,633
Calibration 3     1,426,501
ssj_ops@calibrated=1,426,567
100% 99.9% 1,426,567 1,425,333
90% 90.1% 1,283,910 1,284,658
80% 79.9% 1,141,253 1,139,296
70% 70.0% 998,597 999,273
60% 59.9% 855,940 854,046
50% 50.2% 713,283 715,531
40% 39.9% 570,627 569,224
30% 29.9% 427,970 425,936
20% 20.0% 285,313 285,702
10% 10.0% 142,657 143,147
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT111.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,428,885
Calibration 2     1,429,242
Calibration 3     1,428,788
ssj_ops@calibrated=1,429,015
100% 99.9% 1,429,015 1,427,400
90% 89.8% 1,286,113 1,283,601
80% 80.3% 1,143,212 1,146,954
70% 69.9% 1,000,310 998,343
60% 60.0% 857,409 857,558
50% 50.1% 714,507 715,884
40% 40.2% 571,606 573,975
30% 29.9% 428,704 427,022
20% 20.0% 285,803 285,918
10% 10.0% 142,901 143,443
Active Idle   0 0

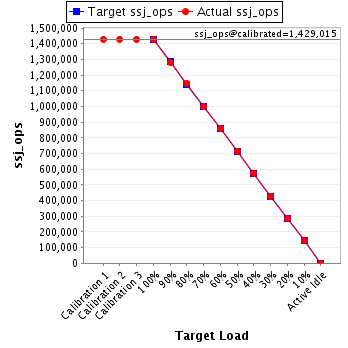

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT111.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,418,850
Calibration 2     1,420,253
Calibration 3     1,420,294
ssj_ops@calibrated=1,420,273
100% 100.0% 1,420,273 1,419,730
90% 90.0% 1,278,246 1,278,370
80% 79.9% 1,136,219 1,134,116
70% 70.2% 994,191 996,766
60% 60.0% 852,164 851,589
50% 50.1% 710,137 712,006
40% 40.1% 568,109 569,195
30% 29.9% 426,082 424,432
20% 20.0% 284,055 283,819
10% 10.0% 142,027 141,969
Active Idle   0 0

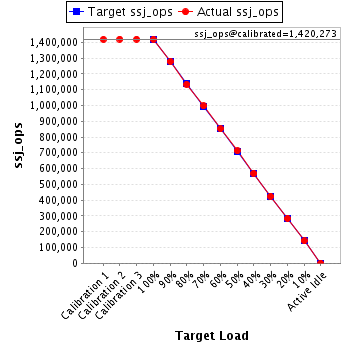

Graph of results
See the JVM Instance Performance Report for additional details.
