Hewlett Packard Enterprise Apollo XL225n Gen10 Plus SPECpower_ssj2008 = 17,266 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Feb 21, 2021
Hardware Availability: Mar-2021 Software Availability: Jul-2020 Publication: Mar 15, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 1,665 23.7
Calibration 2 1,734 23.7
Calibration 3 1,735 23.8
100% 1,731 23.8
90% 1,604 23.8
80% 1,472 23.8
70% 1,351 23.8
60% 1,231 23.8
50% 1,043 23.7
40% 897 23.7
30% 824 23.7
20% 731 23.7
10% 636 23.6
Active Idle 430 23.6

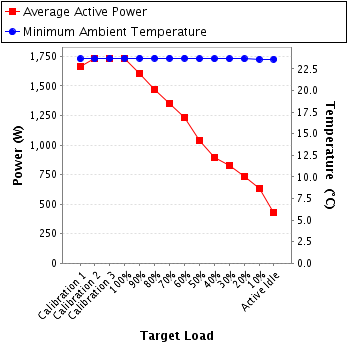

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47169
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-FQ7PK-180-1
Date of Calibration: 17-Jun-2020
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: SUT connected to Power Supply 1
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47167
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-FQ7PK-20-1
Date of Calibration: 15-Jun-2020
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: SUT connected to Power Supply 2
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 213 300.0 4.14 10.0 0.961 849 0.6%
Calibration 2 213 300.0 4.30 10.0 0.964 885 0.5%
Calibration 3 213 300.0 4.30 10.0 0.965 886 0.5%
100% 213 300.0 4.29 10.0 0.964 883 0.5%
90% 214 300.0 3.99 10.0 0.958 817 0.6%
80% 214 300.0 3.71 10.0 0.952 755 0.6%
70% 214 300.0 3.43 10.0 0.943 692 0.7%
60% 214 300.0 3.15 10.0 0.933 629 0.7%
50% 214 300.0 2.75 5.0 0.911 536 0.5%
40% 214 300.0 2.44 5.0 0.887 464 0.6%
30% 214 300.0 2.29 5.0 0.868 426 0.6%
20% 214 300.0 2.11 5.0 0.845 382 0.7%
10% 214 300.0 1.93 5.0 0.812 335 0.7%
Active Idle 215 300.0 1.56 2.0 0.681 228 0.6%

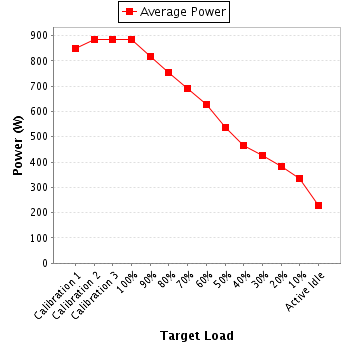

Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 213 300.0 4.05 10.0 0.945 816 0.6%
Calibration 2 213 300.0 4.19 10.0 0.949 849 0.6%
Calibration 3 213 300.0 4.19 10.0 0.950 850 0.6%
100% 213 300.0 4.18 10.0 0.950 847 0.6%
90% 214 300.0 3.91 10.0 0.942 787 0.6%
80% 214 300.0 3.60 10.0 0.932 717 0.6%
70% 214 300.0 3.35 10.0 0.921 659 0.7%
60% 214 300.0 3.10 10.0 0.907 601 0.7%
50% 214 300.0 2.70 5.0 0.877 507 0.6%
40% 214 300.0 2.40 5.0 0.844 433 0.6%
30% 214 300.0 2.27 5.0 0.819 398 0.7%
20% 214 300.0 2.08 5.0 0.785 349 0.7%
10% 214 300.0 1.90 5.0 0.738 300 0.8%
Active Idle 215 300.0 1.60 2.0 0.589 202 0.7%

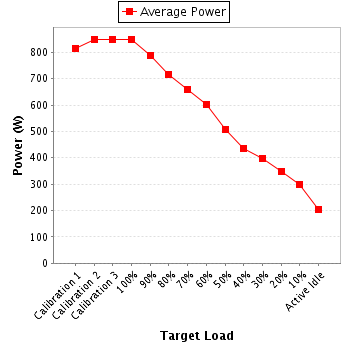

Power details for pwr2
