Hewlett Packard Enterprise Apollo XL225n Gen10 Plus ssj_ops@100% = 12,453,969
ssj_ops@100% per JVM = 97,297
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Feb 22, 2021
Hardware Availability: Mar-2021 Software Availability: Jul-2020 Publication: Mar 15, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     12,534,302
Calibration 2     12,541,847
Calibration 3     12,515,369
ssj_ops@calibrated=12,528,608
100% 99.4% 12,528,608 12,453,969
90% 90.0% 11,275,748 11,276,311
80% 80.0% 10,022,887 10,028,952
70% 70.0% 8,770,026 8,772,423
60% 59.9% 7,517,165 7,507,169
50% 50.0% 6,264,304 6,262,819
40% 40.0% 5,011,443 5,009,352
30% 30.0% 3,758,583 3,759,879
20% 20.0% 2,505,722 2,504,945
10% 10.0% 1,252,861 1,251,344
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 4
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Apollo XL225n Gen10 Plus
Form Factor: Blade
CPU Name: AMD EPYC 7763 2.45 GHz
CPU Characteristics: 64-Core, 2.45 GHz, 256MB L3 Cache
CPU Frequency (MHz): 2450
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 GB 2Rx8 PC4-3200AA-R; all slots populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE 480GB SATA 6G SSD (P05976-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet I350 4-Port 1Gb NIC
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP5
OS Version: 4.12.14-122.17-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.8+10-LTS, mixed mode)
JVM Command-line Options: -server -Xmn1450m -Xms1700m -Xmx1700m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 128 }
JVM Instances: 128
JVM Initial Heap (MB): 1700
JVM Maximum Heap (MB): 1700
JVM Address Bits: 64
Boot Firmware Version: A46 v2.40 (01/21/2021)
Management Firmware Version: 2.40 Jan 05 2021
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
SLES12SP5-Node03.001 90,846
SLES12SP5-Node03.002 101,184
SLES12SP5-Node03.003 98,648
SLES12SP5-Node03.004 98,418
SLES12SP5-Node03.005 99,406
SLES12SP5-Node03.006 97,867
SLES12SP5-Node03.007 96,583
SLES12SP5-Node03.008 95,004
SLES12SP5-Node03.009 100,254
SLES12SP5-Node03.010 100,622
SLES12SP5-Node03.011 92,673
SLES12SP5-Node03.012 100,299
SLES12SP5-Node03.013 99,907
SLES12SP5-Node03.014 100,782
SLES12SP5-Node03.015 94,967
SLES12SP5-Node03.016 100,610
SLES12SP5-Node03.017 102,030
SLES12SP5-Node03.018 101,223
SLES12SP5-Node03.019 95,123
SLES12SP5-Node03.020 94,280
SLES12SP5-Node03.021 97,080
SLES12SP5-Node03.022 91,718
SLES12SP5-Node03.023 98,253
SLES12SP5-Node03.024 99,734
SLES12SP5-Node03.025 96,546
SLES12SP5-Node03.026 99,809
SLES12SP5-Node03.027 95,359
SLES12SP5-Node03.028 96,975
SLES12SP5-Node03.029 100,693
SLES12SP5-Node03.030 97,282
SLES12SP5-Node03.031 99,208
SLES12SP5-Node03.032 97,160
SLES12SP5-Node03.033 96,546
SLES12SP5-Node03.034 99,197
SLES12SP5-Node03.035 97,416
SLES12SP5-Node03.036 97,591
SLES12SP5-Node03.037 97,868
SLES12SP5-Node03.038 100,364
SLES12SP5-Node03.039 97,669
SLES12SP5-Node03.040 95,387
SLES12SP5-Node03.041 100,038
SLES12SP5-Node03.042 100,771
SLES12SP5-Node03.043 97,188
SLES12SP5-Node03.044 101,820
SLES12SP5-Node03.045 92,748
SLES12SP5-Node03.046 98,160
SLES12SP5-Node03.047 100,806
SLES12SP5-Node03.048 97,415
SLES12SP5-Node03.049 97,049
SLES12SP5-Node03.050 101,355
SLES12SP5-Node03.051 98,075
SLES12SP5-Node03.052 96,649
SLES12SP5-Node03.053 99,646
SLES12SP5-Node03.054 94,521
SLES12SP5-Node03.055 100,102
SLES12SP5-Node03.056 100,841
SLES12SP5-Node03.057 99,987
SLES12SP5-Node03.058 100,867
SLES12SP5-Node03.059 95,768
SLES12SP5-Node03.060 97,925
SLES12SP5-Node03.061 99,826
SLES12SP5-Node03.062 98,638
SLES12SP5-Node03.063 98,060
SLES12SP5-Node03.064 96,632
SLES12SP5-Node03.065 99,836
SLES12SP5-Node03.066 96,493

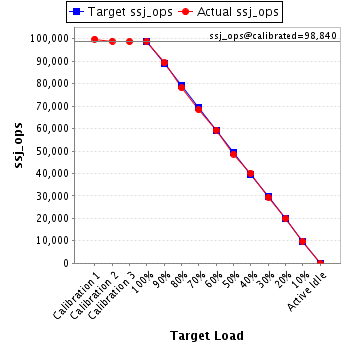

SLES12SP5-Node03.067 98,873
SLES12SP5-Node03.068 95,484
SLES12SP5-Node03.069 93,302
SLES12SP5-Node03.070 100,085
SLES12SP5-Node03.071 96,714
SLES12SP5-Node03.072 98,767
SLES12SP5-Node03.073 97,328
SLES12SP5-Node03.074 98,986
SLES12SP5-Node03.075 92,335

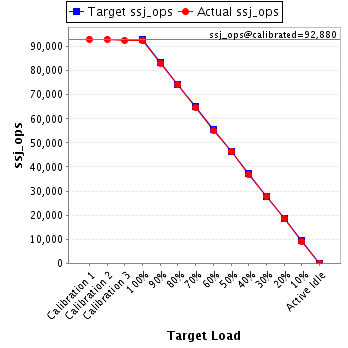

SLES12SP5-Node03.076 92,466
SLES12SP5-Node03.077 97,258
SLES12SP5-Node03.078 95,691
SLES12SP5-Node03.079 97,977
SLES12SP5-Node03.080 101,743
SLES12SP5-Node03.081 93,854
SLES12SP5-Node03.082 94,753
SLES12SP5-Node03.083 95,015
SLES12SP5-Node03.084 98,277
SLES12SP5-Node03.085 95,736
SLES12SP5-Node03.086 92,387
SLES12SP5-Node03.087 95,532
SLES12SP5-Node03.088 97,916
SLES12SP5-Node03.089 100,655
SLES12SP5-Node03.090 100,131
SLES12SP5-Node03.091 92,498

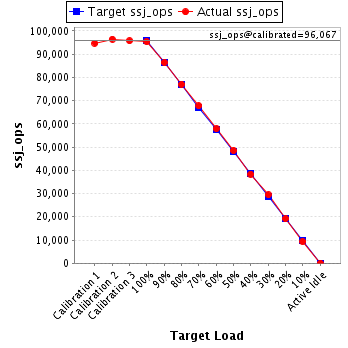

SLES12SP5-Node03.092 95,344
SLES12SP5-Node03.093 97,192
SLES12SP5-Node03.094 94,236
SLES12SP5-Node03.095 96,551
SLES12SP5-Node03.096 95,897
SLES12SP5-Node03.097 98,032
SLES12SP5-Node03.098 93,540
SLES12SP5-Node03.099 93,309
SLES12SP5-Node03.100 97,639
SLES12SP5-Node03.101 93,459
SLES12SP5-Node03.102 98,068
SLES12SP5-Node03.103 95,006
SLES12SP5-Node03.104 99,623
SLES12SP5-Node03.105 93,415
SLES12SP5-Node03.106 92,940
SLES12SP5-Node03.107 97,633
SLES12SP5-Node03.108 99,472
SLES12SP5-Node03.109 98,717
SLES12SP5-Node03.110 102,317
SLES12SP5-Node03.111 95,179
SLES12SP5-Node03.112 96,653
SLES12SP5-Node03.113 99,274
SLES12SP5-Node03.114 95,165
SLES12SP5-Node03.115 97,011
SLES12SP5-Node03.116 94,507
SLES12SP5-Node03.117 92,236
SLES12SP5-Node03.118 96,241
SLES12SP5-Node03.119 102,098
SLES12SP5-Node03.120 94,593
SLES12SP5-Node03.121 101,279
SLES12SP5-Node03.122 99,629
SLES12SP5-Node03.123 89,366
SLES12SP5-Node03.124 96,724
SLES12SP5-Node03.125 97,868
SLES12SP5-Node03.126 94,420
SLES12SP5-Node03.127 96,705
SLES12SP5-Node03.128 95,073
ssj_ops@100% 12,453,969
ssj_ops@100% per JVM 97,297
Graph of per-instance results
JVM 'SLES12SP5-Node03.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,522
Calibration 2     90,455
Calibration 3     90,633
ssj_ops@calibrated=90,544
100% 100.3% 90,544 90,846
90% 89.6% 81,490 81,169
80% 80.4% 72,435 72,821
70% 69.9% 63,381 63,295
60% 60.0% 54,326 54,293
50% 50.6% 45,272 45,782
40% 39.3% 36,218 35,597
30% 30.0% 27,163 27,167
20% 20.0% 18,109 18,141
10% 9.9% 9,054 8,950
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,181
Calibration 2     101,648
Calibration 3     101,240
ssj_ops@calibrated=101,444
100% 99.7% 101,444 101,184
90% 89.4% 91,300 90,726
80% 79.6% 81,155 80,787
70% 69.7% 71,011 70,733
60% 60.6% 60,866 61,476
50% 49.5% 50,722 50,181
40% 39.7% 40,578 40,250
30% 29.4% 30,433 29,815
20% 20.0% 20,289 20,256
10% 9.8% 10,144 9,970
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,691
Calibration 2     100,200
Calibration 3     98,597
ssj_ops@calibrated=99,398
100% 99.2% 99,398 98,648
90% 89.5% 89,458 88,928
80% 79.5% 79,519 79,059
70% 70.0% 69,579 69,543
60% 60.1% 59,639 59,757
50% 49.9% 49,699 49,604
40% 39.9% 39,759 39,671
30% 29.8% 29,819 29,657
20% 20.0% 19,880 19,892
10% 10.2% 9,940 10,108
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,784
Calibration 2     98,805
Calibration 3     98,532
ssj_ops@calibrated=98,668
100% 99.7% 98,668 98,418
90% 89.4% 88,801 88,206
80% 80.5% 78,935 79,390
70% 70.5% 69,068 69,548
60% 59.9% 59,201 59,130
50% 49.5% 49,334 48,819
40% 40.5% 39,467 39,964
30% 30.3% 29,600 29,916
20% 19.8% 19,734 19,562
10% 10.1% 9,867 9,992
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,972
Calibration 2     100,296
Calibration 3     100,311
ssj_ops@calibrated=100,303
100% 99.1% 100,303 99,406
90% 89.5% 90,273 89,765
80% 79.5% 80,243 79,770
70% 69.8% 70,212 69,962
60% 59.7% 60,182 59,843
50% 49.8% 50,152 49,980
40% 39.3% 40,121 39,431
30% 29.8% 30,091 29,847
20% 19.9% 20,061 19,954
10% 9.8% 10,030 9,858
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,858
Calibration 2     97,535
Calibration 3     98,853
ssj_ops@calibrated=98,194
100% 99.7% 98,194 97,867
90% 90.8% 88,375 89,174
80% 79.0% 78,555 77,578
70% 69.9% 68,736 68,656
60% 59.8% 58,916 58,729
50% 50.9% 49,097 49,958
40% 39.9% 39,278 39,200
30% 29.3% 29,458 28,745
20% 20.0% 19,639 19,633
10% 10.2% 9,819 10,054
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,721
Calibration 2     97,770
Calibration 3     96,122
ssj_ops@calibrated=96,946
100% 99.6% 96,946 96,583
90% 89.5% 87,251 86,783
80% 79.5% 77,557 77,062
70% 69.9% 67,862 67,724
60% 59.7% 58,168 57,885
50% 50.4% 48,473 48,868
40% 40.3% 38,778 39,029
30% 30.5% 29,084 29,571
20% 19.5% 19,389 18,941
10% 9.8% 9,695 9,525
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,058
Calibration 2     95,617
Calibration 3     95,799
ssj_ops@calibrated=95,708
100% 99.3% 95,708 95,004
90% 89.9% 86,137 86,082
80% 79.8% 76,567 76,352
70% 70.0% 66,996 66,948
60% 59.3% 57,425 56,733
50% 49.8% 47,854 47,699
40% 39.8% 38,283 38,087
30% 30.0% 28,712 28,742
20% 19.9% 19,142 19,054
10% 9.9% 9,571 9,512
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,171
Calibration 2     101,281
Calibration 3     100,043
ssj_ops@calibrated=100,662
100% 99.6% 100,662 100,254
90% 90.7% 90,596 91,323
80% 81.0% 80,530 81,492
70% 68.8% 70,463 69,278
60% 60.7% 60,397 61,145
50% 50.5% 50,331 50,838
40% 40.4% 40,265 40,624
30% 29.5% 30,199 29,744
20% 19.9% 20,132 20,012
10% 10.1% 10,066 10,156
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,696
Calibration 2     101,017
Calibration 3     100,729
ssj_ops@calibrated=100,873
100% 99.8% 100,873 100,622
90% 90.6% 90,785 91,344
80% 81.0% 80,698 81,657
70% 69.3% 70,611 69,918
60% 58.8% 60,524 59,363
50% 49.2% 50,436 49,662
40% 40.3% 40,349 40,634
30% 29.6% 30,262 29,864
20% 19.8% 20,175 20,015
10% 10.4% 10,087 10,481
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,197
Calibration 2     93,078
Calibration 3     92,908
ssj_ops@calibrated=92,993
100% 99.7% 92,993 92,673
90% 90.2% 83,694 83,868
80% 80.3% 74,394 74,716
70% 70.1% 65,095 65,230
60% 60.8% 55,796 56,542
50% 50.2% 46,496 46,705
40% 39.4% 37,197 36,600
30% 30.7% 27,898 28,512
20% 20.0% 18,599 18,566
10% 9.7% 9,299 9,018
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,304
Calibration 2     101,286
Calibration 3     101,104
ssj_ops@calibrated=101,195
100% 99.1% 101,195 100,299
90% 90.4% 91,076 91,431
80% 79.4% 80,956 80,376
70% 70.3% 70,837 71,106
60% 59.5% 60,717 60,215
50% 50.2% 50,598 50,792
40% 39.7% 40,478 40,174
30% 29.6% 30,359 29,932
20% 19.7% 20,239 19,937
10% 9.9% 10,120 10,029
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,670
Calibration 2     101,838
Calibration 3     101,193
ssj_ops@calibrated=101,516
100% 98.4% 101,516 99,907
90% 89.1% 91,364 90,448
80% 79.7% 81,213 80,910
70% 69.9% 71,061 70,942
60% 59.2% 60,909 60,124
50% 49.3% 50,758 50,082
40% 40.4% 40,606 41,007
30% 30.3% 30,455 30,793
20% 20.0% 20,303 20,266
10% 9.9% 10,152 10,100
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,225
Calibration 2     101,287
Calibration 3     101,192
ssj_ops@calibrated=101,239
100% 99.5% 101,239 100,782
90% 89.6% 91,115 90,723
80% 79.8% 80,992 80,767
70% 69.6% 70,868 70,502
60% 60.7% 60,744 61,472
50% 50.6% 50,620 51,203
40% 39.9% 40,496 40,354
30% 30.2% 30,372 30,546
20% 19.8% 20,248 20,033
10% 9.9% 10,124 10,010
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,855
Calibration 2     95,491
Calibration 3     95,775
ssj_ops@calibrated=95,633
100% 99.3% 95,633 94,967
90% 91.3% 86,070 87,308
80% 79.3% 76,507 75,869
70% 69.7% 66,943 66,654
60% 59.0% 57,380 56,381
50% 49.8% 47,817 47,654
40% 40.6% 38,253 38,829
30% 30.3% 28,690 28,979
20% 20.3% 19,127 19,428
10% 10.4% 9,563 9,988
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,286
Calibration 2     100,927
Calibration 3     101,347
ssj_ops@calibrated=101,137
100% 99.5% 101,137 100,610
90% 90.2% 91,023 91,232
80% 80.4% 80,910 81,306
70% 70.8% 70,796 71,596
60% 59.7% 60,682 60,382
50% 50.4% 50,569 50,960
40% 39.1% 40,455 39,554
30% 30.1% 30,341 30,460
20% 19.8% 20,227 19,975
10% 10.1% 10,114 10,168
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,973
Calibration 2     102,895
Calibration 3     102,628
ssj_ops@calibrated=102,762
100% 99.3% 102,762 102,030
90% 88.7% 92,485 91,181
80% 80.1% 82,209 82,355
70% 70.1% 71,933 72,055
60% 59.9% 61,657 61,594
50% 49.6% 51,381 50,983
40% 39.4% 41,105 40,494
30% 29.7% 30,828 30,555
20% 19.9% 20,552 20,490
10% 9.9% 10,276 10,204
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,560
Calibration 2     101,575
Calibration 3     101,322
ssj_ops@calibrated=101,448
100% 99.8% 101,448 101,223
90% 89.9% 91,303 91,213
80% 80.6% 81,159 81,724
70% 70.7% 71,014 71,691
60% 59.1% 60,869 59,976
50% 49.5% 50,724 50,243
40% 39.2% 40,579 39,797
30% 30.4% 30,434 30,838
20% 20.0% 20,290 20,285
10% 9.9% 10,145 10,008
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,791
Calibration 2     96,478
Calibration 3     96,563
ssj_ops@calibrated=96,520
100% 98.6% 96,520 95,123
90% 89.7% 86,868 86,603
80% 79.9% 77,216 77,121
70% 71.1% 67,564 68,671
60% 60.0% 57,912 57,926
50% 50.5% 48,260 48,754
40% 39.6% 38,608 38,175
30% 30.5% 28,956 29,410
20% 20.0% 19,304 19,286
10% 10.2% 9,652 9,800
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,123
Calibration 2     94,114
Calibration 3     94,487
ssj_ops@calibrated=94,300
100% 100.0% 94,300 94,280
90% 90.7% 84,870 85,562
80% 79.1% 75,440 74,618
70% 69.9% 66,010 65,912
60% 59.5% 56,580 56,067
50% 48.9% 47,150 46,099
40% 40.6% 37,720 38,252
30% 29.8% 28,290 28,087
20% 19.9% 18,860 18,781
10% 10.0% 9,430 9,413
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,732
Calibration 2     97,589
Calibration 3     95,921
ssj_ops@calibrated=96,755
100% 100.3% 96,755 97,080
90% 90.6% 87,079 87,628
80% 79.6% 77,404 77,003
70% 70.6% 67,728 68,356
60% 60.3% 58,053 58,358
50% 50.2% 48,377 48,591
40% 40.6% 38,702 39,288
30% 30.3% 29,026 29,335
20% 19.9% 19,351 19,283
10% 10.0% 9,675 9,687
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,727
Calibration 2     91,135
Calibration 3     92,095
ssj_ops@calibrated=91,615
100% 100.1% 91,615 91,718
90% 90.8% 82,454 83,211
80% 79.8% 73,292 73,122
70% 69.6% 64,131 63,724
60% 60.1% 54,969 55,015
50% 48.7% 45,808 44,592
40% 39.5% 36,646 36,216
30% 30.4% 27,485 27,822
20% 19.7% 18,323 18,029
10% 10.1% 9,162 9,275
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,115
Calibration 2     99,990
Calibration 3     99,308
ssj_ops@calibrated=99,649
100% 98.6% 99,649 98,253
90% 90.3% 89,684 90,024
80% 79.8% 79,719 79,499
70% 70.1% 69,754 69,825
60% 59.4% 59,789 59,179
50% 51.1% 49,824 50,871
40% 40.1% 39,860 39,943
30% 30.1% 29,895 30,018
20% 20.4% 19,930 20,337
10% 10.3% 9,965 10,306
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,933
Calibration 2     99,904
Calibration 3     100,266
ssj_ops@calibrated=100,085
100% 99.6% 100,085 99,734
90% 89.0% 90,076 89,041
80% 80.8% 80,068 80,830
70% 69.7% 70,059 69,736
60% 59.9% 60,051 59,994
50% 50.7% 50,042 50,753
40% 39.9% 40,034 39,900
30% 29.5% 30,025 29,571
20% 20.1% 20,017 20,078
10% 10.0% 10,008 10,042
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,479
Calibration 2     97,567
Calibration 3     97,275
ssj_ops@calibrated=97,421
100% 99.1% 97,421 96,546
90% 89.5% 87,679 87,224
80% 81.5% 77,937 79,420
70% 70.2% 68,195 68,422
60% 59.9% 58,453 58,373
50% 49.8% 48,711 48,512
40% 39.7% 38,969 38,709
30% 29.5% 29,226 28,700
20% 20.5% 19,484 19,945
10% 10.3% 9,742 10,021
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,419
Calibration 2     100,238
Calibration 3     100,813
ssj_ops@calibrated=100,526
100% 99.3% 100,526 99,809
90% 89.3% 90,473 89,784
80% 79.9% 80,420 80,322
70% 70.4% 70,368 70,804
60% 60.2% 60,315 60,481
50% 50.9% 50,263 51,192
40% 39.7% 40,210 39,910
30% 29.5% 30,158 29,630
20% 20.0% 20,105 20,114
10% 9.8% 10,053 9,867
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,626
Calibration 2     95,987
Calibration 3     95,926
ssj_ops@calibrated=95,957
100% 99.4% 95,957 95,359
90% 90.2% 86,361 86,545
80% 80.0% 76,765 76,788
70% 70.7% 67,170 67,810
60% 60.4% 57,574 57,937
50% 50.1% 47,978 48,090
40% 40.7% 38,383 39,069
30% 29.9% 28,787 28,683
20% 19.6% 19,191 18,841
10% 10.2% 9,596 9,771
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,384
Calibration 2     96,981
Calibration 3     97,251
ssj_ops@calibrated=97,116
100% 99.9% 97,116 96,975
90% 89.2% 87,404 86,660
80% 80.0% 77,693 77,698
70% 69.9% 67,981 67,894
60% 61.1% 58,270 59,289
50% 50.5% 48,558 49,082
40% 39.3% 38,846 38,163
30% 30.2% 29,135 29,350
20% 20.1% 19,423 19,549
10% 10.2% 9,712 9,900
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,242
Calibration 2     101,941
Calibration 3     100,444
ssj_ops@calibrated=101,193
100% 99.5% 101,193 100,693
90% 90.0% 91,074 91,028
80% 79.9% 80,954 80,877
70% 70.2% 70,835 71,076
60% 59.4% 60,716 60,094
50% 49.6% 50,596 50,161
40% 39.6% 40,477 40,031
30% 30.3% 30,358 30,671
20% 20.5% 20,239 20,703
10% 10.5% 10,119 10,592
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,393
Calibration 2     97,715
Calibration 3     97,117
ssj_ops@calibrated=97,416
100% 99.9% 97,416 97,282
90% 89.7% 87,674 87,381
80% 79.3% 77,933 77,276
70% 70.4% 68,191 68,565
60% 59.6% 58,450 58,095
50% 49.6% 48,708 48,307
40% 39.9% 38,966 38,854
30% 30.1% 29,225 29,362
20% 19.9% 19,483 19,383
10% 9.9% 9,742 9,608
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,922
Calibration 2     99,628
Calibration 3     99,518
ssj_ops@calibrated=99,573
100% 99.6% 99,573 99,208
90% 89.5% 89,615 89,106
80% 79.9% 79,658 79,522
70% 70.3% 69,701 70,021
60% 59.9% 59,744 59,596
50% 50.0% 49,786 49,814
40% 39.7% 39,829 39,548
30% 30.1% 29,872 29,975
20% 19.8% 19,915 19,738
10% 10.1% 9,957 10,021
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,723
Calibration 2     98,739
Calibration 3     98,879
ssj_ops@calibrated=98,809
100% 98.3% 98,809 97,160
90% 91.2% 88,928 90,162
80% 80.6% 79,047 79,663
70% 70.9% 69,166 70,080
60% 60.5% 59,285 59,765
50% 50.5% 49,405 49,869
40% 39.9% 39,524 39,410
30% 29.7% 29,643 29,345
20% 20.2% 19,762 19,962
10% 9.9% 9,881 9,783
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,177
Calibration 2     97,296
Calibration 3     97,571
ssj_ops@calibrated=97,433
100% 99.1% 97,433 96,546
90% 89.7% 87,690 87,401
80% 79.9% 77,947 77,878
70% 68.8% 68,203 67,077
60% 60.2% 58,460 58,665
50% 50.3% 48,717 48,991
40% 40.4% 38,973 39,339
30% 30.7% 29,230 29,875
20% 19.5% 19,487 19,000
10% 10.0% 9,743 9,733
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,959
Calibration 2     99,106
Calibration 3     99,567
ssj_ops@calibrated=99,336
100% 99.9% 99,336 99,197
90% 90.1% 89,403 89,478
80% 80.0% 79,469 79,512
70% 69.3% 69,535 68,871
60% 59.4% 59,602 59,035
50% 50.3% 49,668 49,937
40% 40.1% 39,735 39,851
30% 29.8% 29,801 29,612
20% 19.7% 19,867 19,607
10% 10.1% 9,934 9,987
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,899
Calibration 2     96,682
Calibration 3     99,580
ssj_ops@calibrated=98,131
100% 99.3% 98,131 97,416
90% 90.2% 88,318 88,477
80% 79.5% 78,505 78,048
70% 70.3% 68,692 68,944
60% 59.8% 58,879 58,676
50% 50.5% 49,065 49,559
40% 40.4% 39,252 39,667
30% 30.3% 29,439 29,736
20% 20.0% 19,626 19,672
10% 9.8% 9,813 9,658
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,070
Calibration 2     98,757
Calibration 3     97,668
ssj_ops@calibrated=98,212
100% 99.4% 98,212 97,591
90% 89.9% 88,391 88,336
80% 80.4% 78,570 78,971
70% 70.2% 68,749 68,921
60% 60.1% 58,927 58,998
50% 48.9% 49,106 48,009
40% 40.9% 39,285 40,131
30% 29.9% 29,464 29,375
20% 20.0% 19,642 19,662
10% 9.7% 9,821 9,575
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,714
Calibration 2     98,753
Calibration 3     97,528
ssj_ops@calibrated=98,140
100% 99.7% 98,140 97,868
90% 90.0% 88,326 88,373
80% 80.2% 78,512 78,669
70% 69.9% 68,698 68,575
60% 58.9% 58,884 57,853
50% 49.6% 49,070 48,711
40% 39.8% 39,256 39,038
30% 29.9% 29,442 29,350
20% 20.3% 19,628 19,906
10% 10.1% 9,814 9,907
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,147
Calibration 2     100,914
Calibration 3     101,957
ssj_ops@calibrated=101,436
100% 98.9% 101,436 100,364
90% 90.3% 91,292 91,581
80% 79.7% 81,148 80,868
70% 69.8% 71,005 70,772
60% 59.3% 60,861 60,173
50% 49.8% 50,718 50,557
40% 39.4% 40,574 40,004
30% 29.9% 30,431 30,283
20% 19.8% 20,287 20,102
10% 10.1% 10,144 10,275
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,422
Calibration 2     97,719
Calibration 3     98,339
ssj_ops@calibrated=98,029
100% 99.6% 98,029 97,669
90% 90.6% 88,226 88,847
80% 79.9% 78,423 78,342
70% 70.3% 68,620 68,952
60% 60.1% 58,818 58,931
50% 49.5% 49,015 48,518
40% 40.2% 39,212 39,433
30% 30.1% 29,409 29,531
20% 20.3% 19,606 19,883
10% 10.0% 9,803 9,832
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,575
Calibration 2     96,732
Calibration 3     95,401
ssj_ops@calibrated=96,067
100% 99.3% 96,067 95,387
90% 89.3% 86,460 85,811
80% 80.1% 76,853 76,923
70% 70.0% 67,247 67,237
60% 60.5% 57,640 58,111
50% 50.4% 48,033 48,462
40% 39.7% 38,427 38,162
30% 29.7% 28,820 28,556
20% 20.2% 19,213 19,453
10% 10.1% 9,607 9,687
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,716
Calibration 2     100,718
Calibration 3     100,147
ssj_ops@calibrated=100,432
100% 99.6% 100,432 100,038
90% 90.6% 90,389 91,036
80% 79.0% 80,346 79,346
70% 70.2% 70,302 70,509
60% 60.9% 60,259 61,204
50% 50.7% 50,216 50,938
40% 39.0% 40,173 39,198
30% 29.7% 30,130 29,832
20% 19.7% 20,086 19,737
10% 9.8% 10,043 9,817
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,371
Calibration 2     101,691
Calibration 3     102,379
ssj_ops@calibrated=102,035
100% 98.8% 102,035 100,771
90% 90.3% 91,831 92,166
80% 79.8% 81,628 81,439
70% 69.8% 71,424 71,269
60% 60.2% 61,221 61,409
50% 50.6% 51,017 51,627
40% 39.3% 40,814 40,150
30% 29.7% 30,610 30,261
20% 20.1% 20,407 20,472
10% 9.6% 10,203 9,781
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,786
Calibration 2     97,588
Calibration 3     96,716
ssj_ops@calibrated=97,152
100% 100.0% 97,152 97,188
90% 89.1% 87,437 86,554
80% 80.1% 77,721 77,827
70% 69.6% 68,006 67,577
60% 59.4% 58,291 57,732
50% 49.8% 48,576 48,417
40% 39.7% 38,861 38,533
30% 30.5% 29,146 29,617
20% 19.9% 19,430 19,331
10% 10.2% 9,715 9,871
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,123
Calibration 2     102,989
Calibration 3     102,040
ssj_ops@calibrated=102,515
100% 99.3% 102,515 101,820
90% 89.9% 92,263 92,198
80% 80.0% 82,012 82,033
70% 69.7% 71,760 71,432
60% 60.3% 61,509 61,852
50% 50.4% 51,257 51,683
40% 40.0% 41,006 41,036
30% 29.8% 30,754 30,552
20% 19.9% 20,503 20,396
10% 9.8% 10,251 10,069
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,813
Calibration 2     93,717
Calibration 3     93,792
ssj_ops@calibrated=93,755
100% 98.9% 93,755 92,748
90% 89.4% 84,379 83,804
80% 80.4% 75,004 75,385
70% 69.7% 65,628 65,319
60% 60.5% 56,253 56,713
50% 49.7% 46,877 46,608
40% 40.3% 37,502 37,812
30% 30.1% 28,126 28,192
20% 20.3% 18,751 19,000
10% 9.4% 9,375 8,849
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,174
Calibration 2     99,227
Calibration 3     99,456
ssj_ops@calibrated=99,341
100% 98.8% 99,341 98,160
90% 89.7% 89,407 89,134
80% 79.9% 79,473 79,367
70% 70.5% 69,539 70,009
60% 59.5% 59,605 59,100
50% 49.8% 49,671 49,455
40% 39.1% 39,737 38,846
30% 29.8% 29,802 29,557
20% 20.1% 19,868 20,004
10% 9.8% 9,934 9,700
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,959
Calibration 2     100,927
Calibration 3     101,291
ssj_ops@calibrated=101,109
100% 99.7% 101,109 100,806
90% 88.8% 90,998 89,820
80% 79.9% 80,887 80,778
70% 70.5% 70,776 71,241
60% 59.9% 60,665 60,543
50% 50.7% 50,554 51,231
40% 40.3% 40,444 40,726
30% 29.9% 30,333 30,199
20% 19.8% 20,222 20,004
10% 9.8% 10,111 9,879
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,984
Calibration 2     97,778
Calibration 3     98,291
ssj_ops@calibrated=98,035
100% 99.4% 98,035 97,415
90% 91.1% 88,231 89,354
80% 80.7% 78,428 79,091
70% 69.6% 68,624 68,221
60% 60.3% 58,821 59,092
50% 50.0% 49,017 49,002
40% 39.1% 39,214 38,354
30% 30.2% 29,410 29,629
20% 20.5% 19,607 20,104
10% 10.1% 9,803 9,856
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,851
Calibration 2     98,342
Calibration 3     97,805
ssj_ops@calibrated=98,073
100% 99.0% 98,073 97,049
90% 89.6% 88,266 87,872
80% 80.8% 78,459 79,273
70% 70.0% 68,651 68,660
60% 60.1% 58,844 58,931
50% 50.5% 49,037 49,558
40% 40.0% 39,229 39,209
30% 29.7% 29,422 29,100
20% 19.5% 19,615 19,095
10% 9.9% 9,807 9,700
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,726
Calibration 2     101,892
Calibration 3     101,942
ssj_ops@calibrated=101,917
100% 99.4% 101,917 101,355
90% 90.5% 91,725 92,200
80% 80.1% 81,534 81,626
70% 70.3% 71,342 71,604
60% 59.5% 61,150 60,685
50% 49.8% 50,959 50,783
40% 40.3% 40,767 41,059
30% 29.7% 30,575 30,294
20% 20.1% 20,383 20,437
10% 9.9% 10,192 10,125
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,512
Calibration 2     99,101
Calibration 3     98,569
ssj_ops@calibrated=98,835
100% 99.2% 98,835 98,075
90% 90.1% 88,952 89,082
80% 79.9% 79,068 78,941
70% 70.1% 69,185 69,268
60% 60.4% 59,301 59,737
50% 50.8% 49,418 50,207
40% 40.3% 39,534 39,815
30% 29.6% 29,651 29,252
20% 20.0% 19,767 19,773
10% 10.3% 9,884 10,160
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,541
Calibration 2     97,889
Calibration 3     97,337
ssj_ops@calibrated=97,613
100% 99.0% 97,613 96,649
90% 90.0% 87,852 87,842
80% 80.5% 78,091 78,541
70% 69.5% 68,329 67,870
60% 59.7% 58,568 58,240
50% 49.9% 48,807 48,675
40% 39.8% 39,045 38,802
30% 29.9% 29,284 29,169
20% 20.4% 19,523 19,953
10% 10.3% 9,761 10,054
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,079
Calibration 2     100,051
Calibration 3     99,867
ssj_ops@calibrated=99,959
100% 99.7% 99,959 99,646
90% 90.4% 89,963 90,315
80% 80.0% 79,967 80,003
70% 68.3% 69,971 68,296
60% 59.9% 59,975 59,850
50% 50.0% 49,980 49,955
40% 40.3% 39,984 40,246
30% 29.9% 29,988 29,892
20% 20.3% 19,992 20,325
10% 9.6% 9,996 9,642
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,901
Calibration 2     96,127
Calibration 3     94,961
ssj_ops@calibrated=95,544
100% 98.9% 95,544 94,521
90% 89.4% 85,990 85,444
80% 79.9% 76,435 76,309
70% 70.1% 66,881 66,931
60% 60.3% 57,326 57,641
50% 50.0% 47,772 47,746
40% 40.5% 38,218 38,733
30% 29.8% 28,663 28,462
20% 19.9% 19,109 18,987
10% 9.7% 9,554 9,264
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,732
Calibration 2     100,499
Calibration 3     99,649
ssj_ops@calibrated=100,074
100% 100.0% 100,074 100,102
90% 90.0% 90,066 90,066
80% 79.9% 80,059 79,950
70% 69.9% 70,052 69,925
60% 59.0% 60,044 59,053
50% 49.5% 50,037 49,512
40% 40.0% 40,030 40,042
30% 30.4% 30,022 30,472
20% 19.8% 20,015 19,822
10% 10.2% 10,007 10,205
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,850
Calibration 2     100,916
Calibration 3     100,417
ssj_ops@calibrated=100,666
100% 100.2% 100,666 100,841
90% 89.6% 90,600 90,155
80% 79.8% 80,533 80,289
70% 68.9% 70,467 69,393
60% 60.3% 60,400 60,714
50% 49.6% 50,333 49,937
40% 40.0% 40,267 40,224
30% 30.6% 30,200 30,771
20% 19.8% 20,133 19,946
10% 9.8% 10,067 9,825
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,834
Calibration 2     100,082
Calibration 3     100,377
ssj_ops@calibrated=100,230
100% 99.8% 100,230 99,987
90% 89.7% 90,207 89,948
80% 80.2% 80,184 80,400
70% 70.2% 70,161 70,316
60% 60.2% 60,138 60,350
50% 50.3% 50,115 50,395
40% 39.3% 40,092 39,386
30% 29.9% 30,069 30,016
20% 20.2% 20,046 20,270
10% 10.0% 10,023 10,058
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,491
Calibration 2     101,567
Calibration 3     101,360
ssj_ops@calibrated=101,464
100% 99.4% 101,464 100,867
90% 89.7% 91,317 91,006
80% 79.9% 81,171 81,052
70% 71.1% 71,025 72,109
60% 59.3% 60,878 60,135
50% 49.2% 50,732 49,923
40% 39.9% 40,585 40,489
30% 29.6% 30,439 30,075
20% 19.9% 20,293 20,163
10% 10.0% 10,146 10,171
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,761
Calibration 2     97,100
Calibration 3     95,794
ssj_ops@calibrated=96,447
100% 99.3% 96,447 95,768
90% 89.8% 86,803 86,638
80% 80.2% 77,158 77,348
70% 69.9% 67,513 67,389
60% 60.4% 57,868 58,230
50% 49.7% 48,224 47,957
40% 41.0% 38,579 39,536
30% 29.6% 28,934 28,567
20% 20.0% 19,289 19,272
10% 10.2% 9,645 9,858
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,225
Calibration 2     97,615
Calibration 3     98,998
ssj_ops@calibrated=98,306
100% 99.6% 98,306 97,925
90% 90.3% 88,476 88,722
80% 80.2% 78,645 78,835
70% 70.2% 68,815 68,989
60% 60.4% 58,984 59,391
50% 50.4% 49,153 49,594
40% 40.5% 39,323 39,790
30% 30.0% 29,492 29,504
20% 19.5% 19,661 19,174
10% 10.1% 9,831 9,912
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,948
Calibration 2     100,877
Calibration 3     100,967
ssj_ops@calibrated=100,922
100% 98.9% 100,922 99,826
90% 90.2% 90,830 91,048
80% 79.9% 80,738 80,667
70% 69.8% 70,646 70,485
60% 60.6% 60,553 61,136
50% 50.3% 50,461 50,777
40% 40.3% 40,369 40,702
30% 29.4% 30,277 29,704
20% 19.6% 20,184 19,771
10% 9.9% 10,092 10,018
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,725
Calibration 2     98,947
Calibration 3     100,213
ssj_ops@calibrated=99,580
100% 99.1% 99,580 98,638
90% 89.6% 89,622 89,249
80% 80.3% 79,664 79,928
70% 70.3% 69,706 69,977
60% 60.0% 59,748 59,794
50% 49.9% 49,790 49,729
40% 39.9% 39,832 39,743
30% 30.5% 29,874 30,352
20% 20.2% 19,916 20,069
10% 10.3% 9,958 10,296
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,495
Calibration 2     98,961
Calibration 3     98,397
ssj_ops@calibrated=98,679
100% 99.4% 98,679 98,060
90% 89.7% 88,811 88,515
80% 80.5% 78,943 79,459
70% 69.8% 69,075 68,853
60% 60.2% 59,207 59,418
50% 50.0% 49,340 49,362
40% 40.1% 39,472 39,567
30% 29.7% 29,604 29,289
20% 20.1% 19,736 19,873
10% 9.7% 9,868 9,604
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,341
Calibration 2     97,717
Calibration 3     97,361
ssj_ops@calibrated=97,539
100% 99.1% 97,539 96,632
90% 89.8% 87,785 87,547
80% 79.5% 78,031 77,561
70% 69.2% 68,277 67,508
60% 59.4% 58,523 57,966
50% 50.7% 48,770 49,475
40% 40.0% 39,016 38,967
30% 29.7% 29,262 28,990
20% 20.0% 19,508 19,475
10% 9.9% 9,754 9,642
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.065' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,826
Calibration 2     101,487
Calibration 3     101,459
ssj_ops@calibrated=101,473
100% 98.4% 101,473 99,836
90% 90.0% 91,326 91,283
80% 80.6% 81,178 81,827
70% 70.5% 71,031 71,567
60% 59.7% 60,884 60,619
50% 50.3% 50,737 51,052
40% 39.6% 40,589 40,221
30% 29.2% 30,442 29,589
20% 20.1% 20,295 20,421
10% 10.5% 10,147 10,612
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.066' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,411
Calibration 2     96,677
Calibration 3     96,461
ssj_ops@calibrated=96,569
100% 99.9% 96,569 96,493
90% 89.8% 86,912 86,751
80% 80.7% 77,255 77,891
70% 69.8% 67,598 67,375
60% 59.9% 57,941 57,848
50% 49.7% 48,284 47,956
40% 40.6% 38,628 39,212
30% 29.8% 28,971 28,808
20% 19.7% 19,314 19,036
10% 9.5% 9,657 9,222
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.067' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,814
Calibration 2     98,956
Calibration 3     98,725
ssj_ops@calibrated=98,840
100% 100.0% 98,840 98,873
90% 90.3% 88,956 89,265
80% 79.1% 79,072 78,172
70% 69.3% 69,188 68,448
60% 60.0% 59,304 59,302
50% 49.2% 49,420 48,657
40% 40.5% 39,536 40,076
30% 29.7% 29,652 29,382
20% 20.1% 19,768 19,879
10% 9.9% 9,884 9,802
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.068' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,015
Calibration 2     95,717
Calibration 3     95,440
ssj_ops@calibrated=95,578
100% 99.9% 95,578 95,484
90% 90.0% 86,020 86,020
80% 79.5% 76,463 75,960
70% 70.0% 66,905 66,858
60% 59.3% 57,347 56,656
50% 49.5% 47,789 47,304
40% 39.5% 38,231 37,800
30% 30.2% 28,673 28,875
20% 20.0% 19,116 19,069
10% 9.9% 9,558 9,508
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.069' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,116
Calibration 2     96,161
Calibration 3     94,355
ssj_ops@calibrated=95,258
100% 97.9% 95,258 93,302
90% 90.6% 85,732 86,332
80% 80.3% 76,206 76,483
70% 71.0% 66,680 67,657
60% 59.0% 57,155 56,224
50% 50.7% 47,629 48,299
40% 40.5% 38,103 38,535
30% 29.5% 28,577 28,145
20% 19.8% 19,052 18,862
10% 10.4% 9,526 9,921
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.070' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,670
Calibration 2     99,566
Calibration 3     101,082
ssj_ops@calibrated=100,324
100% 99.8% 100,324 100,085
90% 89.7% 90,292 89,949
80% 79.9% 80,259 80,110
70% 69.7% 70,227 69,954
60% 60.2% 60,194 60,395
50% 50.7% 50,162 50,912
40% 39.8% 40,130 39,907
30% 30.4% 30,097 30,499
20% 20.2% 20,065 20,282
10% 9.8% 10,032 9,864
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.071' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,782
Calibration 2     95,464
Calibration 3     96,244
ssj_ops@calibrated=95,854
100% 100.9% 95,854 96,714
90% 89.8% 86,269 86,087
80% 80.1% 76,683 76,792
70% 70.5% 67,098 67,530
60% 60.0% 57,512 57,501
50% 49.7% 47,927 47,629
40% 39.6% 38,342 37,954
30% 29.7% 28,756 28,429
20% 20.1% 19,171 19,267
10% 9.8% 9,585 9,412
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.072' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,854
Calibration 2     99,908
Calibration 3     99,420
ssj_ops@calibrated=99,664
100% 99.1% 99,664 98,767
90% 89.9% 89,698 89,614
80% 79.2% 79,731 78,931
70% 70.3% 69,765 70,039
60% 59.6% 59,798 59,450
50% 49.3% 49,832 49,123
40% 39.6% 39,866 39,424
30% 30.2% 29,899 30,058
20% 19.8% 19,933 19,716
10% 10.1% 9,966 10,092
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.073' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,713
Calibration 2     97,434
Calibration 3     97,714
ssj_ops@calibrated=97,574
100% 99.7% 97,574 97,328
90% 89.5% 87,817 87,296
80% 80.8% 78,059 78,829
70% 69.7% 68,302 68,053
60% 60.5% 58,544 59,046
50% 49.2% 48,787 47,977
40% 41.0% 39,030 39,966
30% 30.1% 29,272 29,345
20% 19.9% 19,515 19,383
10% 10.2% 9,757 9,929
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.074' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,291
Calibration 2     100,169
Calibration 3     99,701
ssj_ops@calibrated=99,935
100% 99.1% 99,935 98,986
90% 89.5% 89,941 89,446
80% 80.5% 79,948 80,416
70% 70.1% 69,954 70,006
60% 59.2% 59,961 59,137
50% 50.5% 49,967 50,450
40% 40.3% 39,974 40,321
30% 30.3% 29,980 30,321
20% 19.7% 19,987 19,653
10% 10.0% 9,993 10,008
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.075' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,789
Calibration 2     94,061
Calibration 3     93,515
ssj_ops@calibrated=93,788
100% 98.5% 93,788 92,335
90% 90.3% 84,409 84,689
80% 80.0% 75,030 75,003
70% 69.8% 65,651 65,429
60% 60.3% 56,273 56,576
50% 50.1% 46,894 46,953
40% 39.8% 37,515 37,321
30% 30.4% 28,136 28,465
20% 20.2% 18,758 18,907
10% 9.9% 9,379 9,262
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.076' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,102
Calibration 2     93,088
Calibration 3     92,671
ssj_ops@calibrated=92,880
100% 99.6% 92,880 92,466
90% 89.5% 83,592 83,151
80% 80.1% 74,304 74,373
70% 69.8% 65,016 64,808
60% 59.4% 55,728 55,155
50% 50.0% 46,440 46,405
40% 39.5% 37,152 36,725
30% 30.0% 27,864 27,849
20% 19.8% 18,576 18,398
10% 9.6% 9,288 8,925
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.077' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,422
Calibration 2     98,205
Calibration 3     97,715
ssj_ops@calibrated=97,960
100% 99.3% 97,960 97,258
90% 89.7% 88,164 87,917
80% 80.4% 78,368 78,731
70% 70.2% 68,572 68,729
60% 60.1% 58,776 58,868
50% 50.3% 48,980 49,254
40% 40.7% 39,184 39,900
30% 30.5% 29,388 29,893
20% 20.3% 19,592 19,913
10% 10.3% 9,796 10,054
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.078' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,423
Calibration 2     96,292
Calibration 3     96,097
ssj_ops@calibrated=96,194
100% 99.5% 96,194 95,691
90% 89.7% 86,575 86,277
80% 80.5% 76,956 77,451
70% 69.3% 67,336 66,675
60% 60.1% 57,717 57,771
50% 50.6% 48,097 48,645
40% 40.4% 38,478 38,829
30% 30.1% 28,858 28,983
20% 19.8% 19,239 19,011
10% 10.0% 9,619 9,633
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.079' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,626
Calibration 2     98,649
Calibration 3     98,268
ssj_ops@calibrated=98,458
100% 99.5% 98,458 97,977
90% 91.7% 88,612 90,310
80% 79.7% 78,767 78,432
70% 70.4% 68,921 69,349
60% 59.6% 59,075 58,726
50% 50.0% 49,229 49,222
40% 40.5% 39,383 39,883
30% 30.1% 29,537 29,629
20% 19.5% 19,692 19,200
10% 10.1% 9,846 9,971
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.080' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,478
Calibration 2     102,729
Calibration 3     101,229
ssj_ops@calibrated=101,979
100% 99.8% 101,979 101,743
90% 89.4% 91,781 91,161
80% 80.5% 81,583 82,094
70% 70.5% 71,385 71,870
60% 59.3% 61,187 60,474
50% 49.0% 50,989 50,002
40% 40.1% 40,792 40,881
30% 30.5% 30,594 31,119
20% 20.3% 20,396 20,671
10% 9.9% 10,198 10,062
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.081' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,486
Calibration 2     93,961
Calibration 3     93,966
ssj_ops@calibrated=93,963
100% 99.9% 93,963 93,854
90% 88.8% 84,567 83,481
80% 80.8% 75,170 75,887
70% 69.4% 65,774 65,190
60% 59.8% 56,378 56,189
50% 50.7% 46,982 47,625
40% 39.7% 37,585 37,262
30% 30.0% 28,189 28,146
20% 20.1% 18,793 18,914
10% 9.8% 9,396 9,200
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.082' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,178
Calibration 2     95,231
Calibration 3     94,495
ssj_ops@calibrated=94,863
100% 99.9% 94,863 94,753
90% 91.1% 85,377 86,459
80% 80.1% 75,890 75,981
70% 69.6% 66,404 65,984
60% 59.4% 56,918 56,308
50% 50.1% 47,431 47,545
40% 39.8% 37,945 37,784
30% 30.1% 28,459 28,553
20% 19.6% 18,973 18,628
10% 10.0% 9,486 9,471
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.083' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,841
Calibration 2     95,817
Calibration 3     95,164
ssj_ops@calibrated=95,490
100% 99.5% 95,490 95,015
90% 90.8% 85,941 86,742
80% 80.7% 76,392 77,079
70% 70.0% 66,843 66,819
60% 60.8% 57,294 58,089
50% 50.2% 47,745 47,953
40% 40.6% 38,196 38,742
30% 29.8% 28,647 28,476
20% 20.3% 19,098 19,361
10% 10.0% 9,549 9,533
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.084' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,283
Calibration 2     99,338
Calibration 3     98,928
ssj_ops@calibrated=99,133
100% 99.1% 99,133 98,277
90% 89.5% 89,220 88,771
80% 79.8% 79,307 79,136
70% 70.2% 69,393 69,618
60% 60.0% 59,480 59,492
50% 50.2% 49,567 49,766
40% 39.9% 39,653 39,506
30% 30.2% 29,740 29,946
20% 20.5% 19,827 20,314
10% 9.9% 9,913 9,862
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.085' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,669
Calibration 2     97,198
Calibration 3     97,292
ssj_ops@calibrated=97,245
100% 98.4% 97,245 95,736
90% 89.9% 87,520 87,438
80% 79.8% 77,796 77,577
70% 69.6% 68,071 67,644
60% 59.9% 58,347 58,225
50% 50.4% 48,622 49,016
40% 40.3% 38,898 39,179
30% 30.1% 29,173 29,305
20% 20.0% 19,449 19,412
10% 10.0% 9,724 9,683
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.086' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,327
Calibration 2     93,572
Calibration 3     92,616
ssj_ops@calibrated=93,094
100% 99.2% 93,094 92,387
90% 90.3% 83,785 84,068
80% 79.2% 74,475 73,722
70% 70.1% 65,166 65,273
60% 59.7% 55,857 55,574
50% 49.7% 46,547 46,285
40% 40.4% 37,238 37,591
30% 29.8% 27,928 27,758
20% 20.2% 18,619 18,826
10% 10.0% 9,309 9,287
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.087' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,715
Calibration 2     95,949
Calibration 3     96,478
ssj_ops@calibrated=96,213
100% 99.3% 96,213 95,532
90% 88.5% 86,592 85,155
80% 79.5% 76,971 76,527
70% 70.0% 67,349 67,353
60% 60.6% 57,728 58,325
50% 50.2% 48,107 48,275
40% 40.7% 38,485 39,193
30% 30.0% 28,864 28,887
20% 20.1% 19,243 19,316
10% 10.1% 9,621 9,736
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.088' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,530
Calibration 2     99,090
Calibration 3     98,654
ssj_ops@calibrated=98,872
100% 99.0% 98,872 97,916
90% 90.5% 88,985 89,518
80% 80.7% 79,098 79,805
70% 69.6% 69,210 68,828
60% 59.6% 59,323 58,968
50% 49.7% 49,436 49,120
40% 39.9% 39,549 39,497
30% 30.2% 29,662 29,857
20% 20.0% 19,774 19,750
10% 9.7% 9,887 9,583
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.089' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,669
Calibration 2     101,954
Calibration 3     100,575
ssj_ops@calibrated=101,264
100% 99.4% 101,264 100,655
90% 89.9% 91,138 90,991
80% 80.0% 81,012 80,980
70% 70.1% 70,885 70,939
60% 60.5% 60,759 61,303
50% 50.2% 50,632 50,851
40% 39.9% 40,506 40,405
30% 30.0% 30,379 30,343
20% 20.0% 20,253 20,241
10% 9.8% 10,126 9,917
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.090' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,016
Calibration 2     99,443
Calibration 3     101,080
ssj_ops@calibrated=100,262
100% 99.9% 100,262 100,131
90% 90.9% 90,235 91,154
80% 80.7% 80,209 80,868
70% 70.5% 70,183 70,648
60% 60.2% 60,157 60,344
50% 49.5% 50,131 49,583
40% 39.1% 40,105 39,239
30% 30.1% 30,078 30,130
20% 20.4% 20,052 20,441
10% 9.9% 10,026 9,929
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.091' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,552
Calibration 2     93,200
Calibration 3     92,703
ssj_ops@calibrated=92,951
100% 99.5% 92,951 92,498
90% 90.4% 83,656 84,059
80% 79.9% 74,361 74,279
70% 70.1% 65,066 65,174
60% 59.6% 55,771 55,431
50% 50.7% 46,476 47,126
40% 40.1% 37,181 37,246
30% 30.6% 27,885 28,399
20% 20.3% 18,590 18,891
10% 9.7% 9,295 9,049
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.092' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,749
Calibration 2     96,444
Calibration 3     95,691
ssj_ops@calibrated=96,067
100% 99.2% 96,067 95,344
90% 90.0% 86,461 86,458
80% 80.2% 76,854 77,050
70% 70.5% 67,247 67,752
60% 60.3% 57,640 57,891
50% 50.5% 48,034 48,515
40% 39.9% 38,427 38,362
30% 30.7% 28,820 29,460
20% 20.0% 19,213 19,175
10% 9.7% 9,607 9,350
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.093' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,647
Calibration 2     98,184
Calibration 3     98,180
ssj_ops@calibrated=98,182
100% 99.0% 98,182 97,192
90% 91.5% 88,364 89,788
80% 80.6% 78,546 79,104
70% 69.9% 68,728 68,609
60% 59.5% 58,909 58,432
50% 49.6% 49,091 48,745
40% 40.1% 39,273 39,367
30% 30.0% 29,455 29,502
20% 19.9% 19,636 19,587
10% 9.7% 9,818 9,487
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.094' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,071
Calibration 2     95,878
Calibration 3     95,640
ssj_ops@calibrated=95,759
100% 98.4% 95,759 94,236
90% 89.7% 86,183 85,893
80% 79.2% 76,607 75,810
70% 70.4% 67,031 67,451
60% 59.3% 57,456 56,795
50% 50.0% 47,880 47,884
40% 39.4% 38,304 37,724
30% 29.9% 28,728 28,651
20% 19.9% 19,152 19,092
10% 10.2% 9,576 9,744
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.095' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,359
Calibration 2     98,243
Calibration 3     96,842
ssj_ops@calibrated=97,543
100% 99.0% 97,543 96,551
90% 89.4% 87,788 87,174
80% 80.2% 78,034 78,231
70% 70.6% 68,280 68,900
60% 60.1% 58,526 58,657
50% 50.2% 48,771 48,999
40% 39.7% 39,017 38,678
30% 29.6% 29,263 28,854
20% 20.1% 19,509 19,626
10% 10.2% 9,754 9,975
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.096' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,195
Calibration 2     95,872
Calibration 3     96,711
ssj_ops@calibrated=96,292
100% 99.6% 96,292 95,897
90% 90.2% 86,662 86,864
80% 80.4% 77,033 77,427
70% 69.8% 67,404 67,183
60% 59.3% 57,775 57,054
50% 50.1% 48,146 48,213
40% 39.6% 38,517 38,110
30% 30.5% 28,887 29,383
20% 20.3% 19,258 19,589
10% 10.2% 9,629 9,802
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.097' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,263
Calibration 2     98,767
Calibration 3     98,122
ssj_ops@calibrated=98,444
100% 99.6% 98,444 98,032
90% 90.8% 88,600 89,362
80% 80.8% 78,755 79,588
70% 70.5% 68,911 69,393
60% 60.1% 59,067 59,171
50% 49.5% 49,222 48,753
40% 39.9% 39,378 39,322
30% 30.4% 29,533 29,937
20% 20.7% 19,689 20,352
10% 9.6% 9,844 9,500
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.098' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,701
Calibration 2     94,983
Calibration 3     94,262
ssj_ops@calibrated=94,622
100% 98.9% 94,622 93,540
90% 89.9% 85,160 85,072
80% 79.9% 75,698 75,583
70% 70.8% 66,236 67,007
60% 60.9% 56,773 57,629
50% 50.0% 47,311 47,311
40% 39.9% 37,849 37,731
30% 30.6% 28,387 28,978
20% 20.2% 18,924 19,095
10% 9.9% 9,462 9,329
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.099' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,599
Calibration 2     94,137
Calibration 3     94,501
ssj_ops@calibrated=94,319
100% 98.9% 94,319 93,309
90% 90.1% 84,887 84,999
80% 80.2% 75,455 75,676
70% 70.7% 66,023 66,638
60% 59.7% 56,591 56,299
50% 49.4% 47,159 46,557
40% 39.5% 37,728 37,275
30% 30.5% 28,296 28,751
20% 19.9% 18,864 18,724
10% 10.2% 9,432 9,667
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.100' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,101
Calibration 2     98,649
Calibration 3     99,042
ssj_ops@calibrated=98,845
100% 98.8% 98,845 97,639
90% 88.9% 88,961 87,893
80% 80.0% 79,076 79,057
70% 70.0% 69,192 69,174
60% 59.8% 59,307 59,133
50% 50.2% 49,423 49,608
40% 40.6% 39,538 40,084
30% 29.6% 29,654 29,244
20% 20.0% 19,769 19,785
10% 10.0% 9,885 9,905
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.101' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,600
Calibration 2     94,580
Calibration 3     94,139
ssj_ops@calibrated=94,360
100% 99.0% 94,360 93,459
90% 89.8% 84,924 84,756
80% 80.3% 75,488 75,798
70% 69.3% 66,052 65,360
60% 59.8% 56,616 56,443
50% 50.6% 47,180 47,735
40% 39.7% 37,744 37,500
30% 30.4% 28,308 28,659
20% 20.0% 18,872 18,914
10% 10.0% 9,436 9,392
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.102' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,944
Calibration 2     98,967
Calibration 3     98,924
ssj_ops@calibrated=98,945
100% 99.1% 98,945 98,068
90% 90.1% 89,051 89,197
80% 80.5% 79,156 79,650
70% 69.7% 69,262 68,944
60% 60.1% 59,367 59,421
50% 49.8% 49,473 49,241
40% 40.6% 39,578 40,160
30% 30.0% 29,684 29,661
20% 20.0% 19,789 19,797
10% 9.9% 9,895 9,750
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.103' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,074
Calibration 2     94,600
Calibration 3     94,874
ssj_ops@calibrated=94,737
100% 100.3% 94,737 95,006
90% 91.1% 85,263 86,273
80% 79.8% 75,790 75,641
70% 69.7% 66,316 66,055
60% 59.4% 56,842 56,228
50% 49.3% 47,369 46,674
40% 39.8% 37,895 37,732
30% 30.4% 28,421 28,773
20% 19.7% 18,947 18,669
10% 10.0% 9,474 9,433
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.104' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,501
Calibration 2     99,537
Calibration 3     98,730
ssj_ops@calibrated=99,134
100% 100.5% 99,134 99,623
90% 91.2% 89,220 90,434
80% 80.0% 79,307 79,337
70% 69.8% 69,394 69,216
60% 59.6% 59,480 59,057
50% 50.6% 49,567 50,162
40% 39.6% 39,653 39,210
30% 30.2% 29,740 29,981
20% 19.9% 19,827 19,767
10% 10.0% 9,913 9,883
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.105' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,678
Calibration 2     93,988
Calibration 3     94,172
ssj_ops@calibrated=94,080
100% 99.3% 94,080 93,415
90% 90.3% 84,672 84,962
80% 79.6% 75,264 74,933
70% 70.2% 65,856 66,037
60% 60.0% 56,448 56,468
50% 49.7% 47,040 46,725
40% 40.1% 37,632 37,767
30% 30.2% 28,224 28,374
20% 19.5% 18,816 18,354
10% 10.1% 9,408 9,492
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.106' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,342
Calibration 2     93,996
Calibration 3     93,655
ssj_ops@calibrated=93,826
100% 99.1% 93,826 92,940
90% 90.8% 84,443 85,148
80% 80.0% 75,061 75,044
70% 70.1% 65,678 65,779
60% 59.3% 56,295 55,681
50% 50.3% 46,913 47,187
40% 40.3% 37,530 37,803
30% 30.3% 28,148 28,446
20% 20.3% 18,765 19,004
10% 10.2% 9,383 9,546
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.107' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,697
Calibration 2     98,570
Calibration 3     98,122
ssj_ops@calibrated=98,346
100% 99.3% 98,346 97,633
90% 90.3% 88,511 88,788
80% 79.8% 78,677 78,505
70% 70.7% 68,842 69,545
60% 60.1% 59,007 59,134
50% 50.4% 49,173 49,602
40% 40.4% 39,338 39,777
30% 30.1% 29,504 29,583
20% 19.7% 19,669 19,385
10% 10.1% 9,835 9,921
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.108' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,756
Calibration 2     100,208
Calibration 3     99,894
ssj_ops@calibrated=100,051
100% 99.4% 100,051 99,472
90% 89.1% 90,046 89,137
80% 79.5% 80,041 79,525
70% 69.4% 70,036 69,485
60% 60.0% 60,031 60,012
50% 50.3% 50,026 50,293
40% 40.6% 40,020 40,625
30% 30.2% 30,015 30,232
20% 19.8% 20,010 19,807
10% 9.9% 10,005 9,906
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.109' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,050
Calibration 2     98,486
Calibration 3     100,144
ssj_ops@calibrated=99,315
100% 99.4% 99,315 98,717
90% 90.1% 89,384 89,518
80% 80.1% 79,452 79,517
70% 69.8% 69,521 69,331
60% 59.5% 59,589 59,116
50% 49.2% 49,658 48,866
40% 40.0% 39,726 39,751
30% 30.0% 29,795 29,796
20% 19.8% 19,863 19,694
10% 10.1% 9,932 10,021
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.110' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,149
Calibration 2     103,522
Calibration 3     102,361
ssj_ops@calibrated=102,942
100% 99.4% 102,942 102,317
90% 91.2% 92,647 93,846
80% 79.0% 82,353 81,334
70% 70.1% 72,059 72,149
60% 60.5% 61,765 62,260
50% 50.2% 51,471 51,704
40% 40.6% 41,177 41,748
30% 30.1% 30,882 30,954
20% 20.2% 20,588 20,763
10% 9.6% 10,294 9,929
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.111' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,262
Calibration 2     95,597
Calibration 3     95,792
ssj_ops@calibrated=95,694
100% 99.5% 95,694 95,179
90% 89.7% 86,125 85,804
80% 80.9% 76,556 77,410
70% 70.4% 66,986 67,379
60% 60.0% 57,417 57,416
50% 49.8% 47,847 47,653
40% 39.9% 38,278 38,183
30% 30.5% 28,708 29,229
20% 19.8% 19,139 18,954
10% 10.1% 9,569 9,675
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.112' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,231
Calibration 2     97,388
Calibration 3     97,595
ssj_ops@calibrated=97,491
100% 99.1% 97,491 96,653
90% 89.6% 87,742 87,355
80% 80.5% 77,993 78,445
70% 68.8% 68,244 67,102
60% 59.8% 58,495 58,345
50% 48.7% 48,746 47,492
40% 40.4% 38,996 39,396
30% 29.9% 29,247 29,170
20% 19.9% 19,498 19,412
10% 10.2% 9,749 9,900
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.113' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,271
Calibration 2     99,934
Calibration 3     99,699
ssj_ops@calibrated=99,816
100% 99.5% 99,816 99,274
90% 91.0% 89,835 90,871
80% 80.3% 79,853 80,113
70% 69.9% 69,871 69,753
60% 60.4% 59,890 60,312
50% 49.5% 49,908 49,423
40% 40.1% 39,927 40,018
30% 29.6% 29,945 29,537
20% 20.5% 19,963 20,493
10% 9.8% 9,982 9,754
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.114' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,817
Calibration 2     95,503
Calibration 3     95,584
ssj_ops@calibrated=95,543
100% 99.6% 95,543 95,165
90% 90.0% 85,989 86,023
80% 79.8% 76,435 76,211
70% 70.1% 66,880 67,012
60% 60.4% 57,326 57,685
50% 49.8% 47,772 47,620
40% 40.0% 38,217 38,242
30% 30.5% 28,663 29,118
20% 19.6% 19,109 18,717
10% 10.2% 9,554 9,733
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.115' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,907
Calibration 2     97,505
Calibration 3     97,174
ssj_ops@calibrated=97,339
100% 99.7% 97,339 97,011
90% 89.2% 87,606 86,830
80% 80.2% 77,872 78,107
70% 70.6% 68,138 68,765
60% 60.5% 58,404 58,919
50% 50.2% 48,670 48,866
40% 40.3% 38,936 39,266
30% 29.6% 29,202 28,825
20% 19.8% 19,468 19,299
10% 10.2% 9,734 9,942
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.116' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,500
Calibration 2     94,545
Calibration 3     94,731
ssj_ops@calibrated=94,638
100% 99.9% 94,638 94,507
90% 89.3% 85,174 84,554
80% 80.1% 75,710 75,804
70% 70.3% 66,247 66,563
60% 60.2% 56,783 56,942
50% 49.3% 47,319 46,695
40% 40.1% 37,855 37,950
30% 29.6% 28,391 28,000
20% 20.0% 18,928 18,917
10% 10.1% 9,464 9,525
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.117' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,127
Calibration 2     93,934
Calibration 3     91,053
ssj_ops@calibrated=92,493
100% 99.7% 92,493 92,236
90% 89.3% 83,244 82,555
80% 80.4% 73,995 74,405
70% 70.3% 64,745 65,049
60% 60.3% 55,496 55,814
50% 49.2% 46,247 45,494
40% 39.9% 36,997 36,904
30% 29.7% 27,748 27,496
20% 20.1% 18,499 18,570
10% 10.0% 9,249 9,208
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.118' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,280
Calibration 2     97,128
Calibration 3     95,353
ssj_ops@calibrated=96,240
100% 100.0% 96,240 96,241
90% 90.9% 86,616 87,486
80% 79.6% 76,992 76,637
70% 70.3% 67,368 67,622
60% 60.1% 57,744 57,882
50% 50.2% 48,120 48,295
40% 39.8% 38,496 38,326
30% 29.2% 28,872 28,111
20% 20.2% 19,248 19,405
10% 10.0% 9,624 9,578
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.119' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,981
Calibration 2     102,793
Calibration 3     102,593
ssj_ops@calibrated=102,693
100% 99.4% 102,693 102,098
90% 90.5% 92,424 92,912
80% 80.8% 82,154 82,976
70% 70.6% 71,885 72,507
60% 59.9% 61,616 61,477
50% 49.7% 51,347 51,008
40% 39.9% 41,077 41,002
30% 30.1% 30,808 30,942
20% 20.2% 20,539 20,734
10% 10.2% 10,269 10,487
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.120' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,659
Calibration 2     94,800
Calibration 3     94,153
ssj_ops@calibrated=94,477
100% 100.1% 94,477 94,593
90% 89.1% 85,029 84,198
80% 81.0% 75,581 76,496
70% 70.8% 66,134 66,878
60% 59.5% 56,686 56,173
50% 50.4% 47,238 47,642
40% 40.1% 37,791 37,847
30% 30.0% 28,343 28,376
20% 20.4% 18,895 19,253
10% 9.8% 9,448 9,300
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.121' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,857
Calibration 2     101,688
Calibration 3     101,391
ssj_ops@calibrated=101,540
100% 99.7% 101,540 101,279
90% 90.7% 91,386 92,073
80% 79.1% 81,232 80,281
70% 70.4% 71,078 71,453
60% 60.2% 60,924 61,106
50% 50.6% 50,770 51,365
40% 40.6% 40,616 41,246
30% 29.5% 30,462 29,917
20% 20.2% 20,308 20,529
10% 9.6% 10,154 9,766
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.122' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,847
Calibration 2     100,690
Calibration 3     101,330
ssj_ops@calibrated=101,010
100% 98.6% 101,010 99,629
90% 90.0% 90,909 90,923
80% 79.6% 80,808 80,372
70% 70.6% 70,707 71,293
60% 59.8% 60,606 60,388
50% 49.8% 50,505 50,349
40% 40.1% 40,404 40,524
30% 30.2% 30,303 30,529
20% 20.1% 20,202 20,323
10% 10.3% 10,101 10,367
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.123' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,198
Calibration 2     89,852
Calibration 3     89,171
ssj_ops@calibrated=89,512
100% 99.8% 89,512 89,366
90% 90.0% 80,561 80,583
80% 79.9% 71,610 71,552
70% 70.3% 62,658 62,913
60% 59.3% 53,707 53,045
50% 49.7% 44,756 44,523
40% 39.8% 35,805 35,663
30% 29.7% 26,854 26,575
20% 20.4% 17,902 18,242
10% 10.1% 8,951 9,037
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.124' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,760
Calibration 2     98,412
Calibration 3     95,974
ssj_ops@calibrated=97,193
100% 99.5% 97,193 96,724
90% 89.6% 87,474 87,081
80% 80.3% 77,754 78,030
70% 69.6% 68,035 67,662
60% 60.3% 58,316 58,586
50% 49.7% 48,596 48,264
40% 39.9% 38,877 38,774
30% 29.5% 29,158 28,634
20% 19.8% 19,439 19,270
10% 10.2% 9,719 9,891
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.125' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,331
Calibration 2     98,255
Calibration 3     99,200
ssj_ops@calibrated=98,728
100% 99.1% 98,728 97,868
90% 90.5% 88,855 89,346
80% 79.9% 78,982 78,899
70% 69.7% 69,109 68,839
60% 59.1% 59,237 58,388
50% 49.4% 49,364 48,803
40% 39.8% 39,491 39,290
30% 30.4% 29,618 30,054
20% 19.7% 19,746 19,412
10% 10.1% 9,873 10,000
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.126' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,127
Calibration 2     95,041
Calibration 3     95,463
ssj_ops@calibrated=95,252
100% 99.1% 95,252 94,420
90% 90.8% 85,727 86,467
80% 80.1% 76,202 76,296
70% 69.8% 66,676 66,453
60% 60.8% 57,151 57,878
50% 49.4% 47,626 47,008
40% 39.4% 38,101 37,556
30% 30.5% 28,576 29,082
20% 20.1% 19,050 19,155
10% 9.9% 9,525 9,467
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.127' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,276
Calibration 2     97,025
Calibration 3     97,112
ssj_ops@calibrated=97,069
100% 99.6% 97,069 96,705
90% 90.6% 87,362 87,962
80% 80.2% 77,655 77,819
70% 69.5% 67,948 67,434
60% 59.7% 58,241 57,922
50% 50.3% 48,534 48,813
40% 39.6% 38,827 38,437
30% 30.1% 29,121 29,255
20% 19.7% 19,414 19,163
10% 9.9% 9,707 9,598
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.128' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,565
Calibration 2     95,546
Calibration 3     96,019
ssj_ops@calibrated=95,783
100% 99.3% 95,783 95,073
90% 89.2% 86,204 85,458
80% 79.9% 76,626 76,548
70% 70.1% 67,048 67,143
60% 60.0% 57,470 57,446
50% 49.9% 47,891 47,754
40% 39.7% 38,313 38,049
30% 30.2% 28,735 28,912
20% 19.8% 19,157 18,948
10% 9.7% 9,578 9,325
Active Idle   0 0
Graph of results
