Fujitsu FUJITSU Server PRIMERGY CX2560 M6 ssj_ops@100% = 4,642,974
ssj_ops@100% per JVM = 96,729
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Multi Node
Tested By: Fujitsu Test Location: Kawasaki, Kanagawa, Japan Test Date: Aug 7, 2021
Hardware Availability: Sep-2021 Software Availability: Dec-2020 Publication: Sep 1, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     4,644,720
Calibration 2     4,648,640
Calibration 3     4,651,523
ssj_ops@calibrated=4,650,081
100% 99.8% 4,650,081 4,642,974
90% 90.0% 4,185,073 4,183,025
80% 80.0% 3,720,065 3,721,957
70% 70.0% 3,255,057 3,255,070
60% 60.0% 2,790,049 2,788,835
50% 50.0% 2,325,041 2,324,816
40% 40.0% 1,860,033 1,859,745
30% 30.0% 1,395,024 1,394,441
20% 20.0% 930,016 930,699
10% 10.0% 465,008 464,572
Active Idle   0 0
Graph of results
System Under Test
Set: 'CX2560M6'
Set Identifier: CX2560M6
Set Description: System Under Test
# of Identical Nodes: 4
Comment: Multi Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY CX2560 M6
Form Factor: Blade
CPU Name: Intel Xeon Gold 5318Y
CPU Characteristics: 24-Core, 2.10GHz, 36MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 48 cores, 2 chips, 24 cores/chip
Hardware Threads: 96 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 36 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 x 16 GB 2Rx8 PC4-3200Y-R; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H, 1J, 1K, 1L, 1M, 1N, 1P, 1Q, 1R populated
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x SSD M.2 240GB, S26361-F5787-E240
Disk Controller: Integrated sSATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel(R) 10Gb X550T Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Windows Server 2019 Standard
OS Version: version1809, build 17763.107
Filesystem: ntfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.9+7-LTS, mixed mode)
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000]
JVM Instances: 48
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: R1.23.0
Management Firmware Version: 3.26P
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB4464455
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-3.001 94,764
WIN-3.002 97,622
WIN-3.003 96,359
WIN-3.004 96,506
WIN-3.005 96,351
WIN-3.006 96,125
WIN-3.007 96,844
WIN-3.008 97,173
WIN-3.009 97,968
WIN-3.010 93,859
WIN-3.011 96,122
WIN-3.012 97,784
WIN-3.013 98,049
WIN-3.014 93,340
WIN-3.015 95,997
WIN-3.016 98,370
WIN-3.017 97,848
WIN-3.018 98,754
WIN-3.019 97,688
WIN-3.020 98,125
WIN-3.021 98,358
WIN-3.022 96,439
WIN-3.023 95,864
WIN-3.024 95,618
WIN-3.025 94,444
WIN-3.026 98,725
WIN-3.027 96,086
WIN-3.028 95,593
WIN-3.029 98,146
WIN-3.030 98,794
WIN-3.031 97,432
WIN-3.032 93,751
WIN-3.033 97,120
WIN-3.034 95,235
WIN-3.035 97,150
WIN-3.036 98,060
WIN-3.037 97,249
WIN-3.038 96,682
WIN-3.039 97,539
WIN-3.040 96,779
WIN-3.041 97,893
WIN-3.042 96,856
WIN-3.043 95,626
WIN-3.044 97,240
WIN-3.045 96,965
WIN-3.046 95,000
WIN-3.047 97,229
WIN-3.048 95,454
ssj_ops@100% 4,642,974
ssj_ops@100% per JVM 96,729

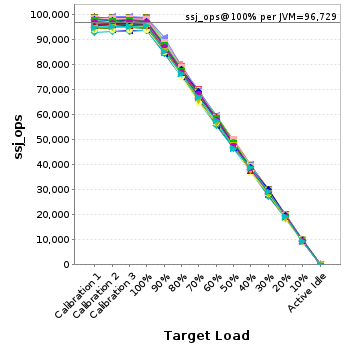

Graph of per-instance results
JVM 'WIN-3.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,412
Calibration 2     95,037
Calibration 3     94,551
ssj_ops@calibrated=94,794
100% 100.0% 94,794 94,764
90% 89.2% 85,315 84,531
80% 80.3% 75,835 76,088
70% 70.5% 66,356 66,805
60% 60.9% 56,876 57,693
50% 49.3% 47,397 46,701
40% 40.4% 37,918 38,324
30% 30.5% 28,438 28,914
20% 20.0% 18,959 18,975
10% 9.9% 9,479 9,400
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,664
Calibration 2     97,880
Calibration 3     97,936
ssj_ops@calibrated=97,908
100% 99.7% 97,908 97,622
90% 89.6% 88,117 87,726
80% 80.4% 78,327 78,754
70% 69.9% 68,536 68,484
60% 59.5% 58,745 58,300
50% 49.7% 48,954 48,614
40% 40.2% 39,163 39,380
30% 29.5% 29,372 28,915
20% 19.8% 19,582 19,358
10% 10.3% 9,791 10,127
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,733
Calibration 2     96,531
Calibration 3     96,583
ssj_ops@calibrated=96,557
100% 99.8% 96,557 96,359
90% 89.5% 86,901 86,441
80% 81.3% 77,246 78,492
70% 69.7% 67,590 67,274
60% 59.1% 57,934 57,031
50% 50.5% 48,279 48,720
40% 40.0% 38,623 38,639
30% 30.2% 28,967 29,136
20% 20.3% 19,311 19,637
10% 9.7% 9,656 9,387
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,351
Calibration 2     96,552
Calibration 3     96,555
ssj_ops@calibrated=96,553
100% 100.0% 96,553 96,506
90% 89.8% 86,898 86,685
80% 79.7% 77,243 76,987
70% 70.0% 67,587 67,624
60% 59.8% 57,932 57,707
50% 49.7% 48,277 48,030
40% 40.0% 38,621 38,658
30% 30.0% 28,966 29,008
20% 19.9% 19,311 19,204
10% 10.1% 9,655 9,741
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,565
Calibration 2     96,456
Calibration 3     96,300
ssj_ops@calibrated=96,378
100% 100.0% 96,378 96,351
90% 91.3% 86,740 88,005
80% 79.5% 77,102 76,638
70% 69.9% 67,464 67,355
60% 60.5% 57,827 58,302
50% 49.8% 48,189 47,958
40% 39.9% 38,551 38,429
30% 30.2% 28,913 29,126
20% 20.2% 19,276 19,445
10% 10.5% 9,638 10,079
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,343
Calibration 2     96,128
Calibration 3     96,362
ssj_ops@calibrated=96,245
100% 99.9% 96,245 96,125
90% 89.3% 86,621 85,955
80% 80.5% 76,996 77,446
70% 70.5% 67,372 67,863
60% 60.1% 57,747 57,851
50% 50.6% 48,123 48,725
40% 39.6% 38,498 38,091
30% 30.0% 28,874 28,893
20% 20.1% 19,249 19,342
10% 10.3% 9,625 9,887
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,449
Calibration 2     96,830
Calibration 3     96,856
ssj_ops@calibrated=96,843
100% 100.0% 96,843 96,844
90% 89.0% 87,159 86,237
80% 80.8% 77,475 78,209
70% 70.0% 67,790 67,794
60% 60.0% 58,106 58,078
50% 50.2% 48,422 48,649
40% 40.2% 38,737 38,978
30% 30.1% 29,053 29,147
20% 20.0% 19,369 19,366
10% 10.4% 9,684 10,075
Active Idle   0 0

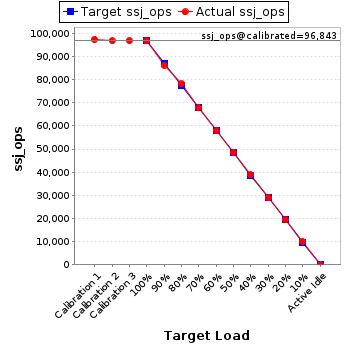

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,101
Calibration 2     96,725
Calibration 3     97,486
ssj_ops@calibrated=97,105
100% 100.1% 97,105 97,173
90% 89.8% 87,395 87,241
80% 80.1% 77,684 77,750
70% 69.8% 67,974 67,768
60% 61.2% 58,263 59,453
50% 49.7% 48,553 48,277
40% 40.3% 38,842 39,096
30% 29.5% 29,132 28,687
20% 19.9% 19,421 19,278
10% 9.8% 9,711 9,475
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,123
Calibration 2     98,632
Calibration 3     98,504
ssj_ops@calibrated=98,568
100% 99.4% 98,568 97,968
90% 90.2% 88,711 88,950
80% 79.4% 78,854 78,235
70% 69.6% 68,997 68,610
60% 60.0% 59,141 59,124
50% 50.2% 49,284 49,443
40% 40.2% 39,427 39,596
30% 30.3% 29,570 29,871
20% 20.1% 19,714 19,775
10% 10.0% 9,857 9,842
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,661
Calibration 2     93,789
Calibration 3     93,615
ssj_ops@calibrated=93,702
100% 100.2% 93,702 93,859
90% 90.2% 84,332 84,504
80% 80.4% 74,962 75,291
70% 70.6% 65,592 66,173
60% 59.4% 56,221 55,664
50% 50.0% 46,851 46,856
40% 40.7% 37,481 38,145
30% 30.3% 28,111 28,431
20% 20.4% 18,740 19,133
10% 9.7% 9,370 9,131
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,982
Calibration 2     96,433
Calibration 3     96,590
ssj_ops@calibrated=96,511
100% 99.6% 96,511 96,122
90% 88.9% 86,860 85,791
80% 79.8% 77,209 77,000
70% 69.5% 67,558 67,067
60% 60.2% 57,907 58,067
50% 49.2% 48,256 47,485
40% 39.9% 38,605 38,460
30% 29.6% 28,953 28,594
20% 20.1% 19,302 19,444
10% 10.4% 9,651 9,996
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,057
Calibration 2     97,989
Calibration 3     97,793
ssj_ops@calibrated=97,891
100% 99.9% 97,891 97,784
90% 90.1% 88,102 88,181
80% 80.3% 78,313 78,566
70% 69.9% 68,524 68,385
60% 60.2% 58,734 58,940
50% 50.2% 48,945 49,138
40% 39.3% 39,156 38,488
30% 30.2% 29,367 29,573
20% 20.1% 19,578 19,699
10% 9.7% 9,789 9,517
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,003
Calibration 2     98,101
Calibration 3     98,318
ssj_ops@calibrated=98,209
100% 99.8% 98,209 98,049
90% 90.1% 88,388 88,526
80% 78.6% 78,567 77,148
70% 69.9% 68,746 68,681
60% 58.9% 58,926 57,840
50% 49.8% 49,105 48,924
40% 40.2% 39,284 39,443
30% 29.6% 29,463 29,036
20% 20.0% 19,642 19,665
10% 9.7% 9,821 9,487
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

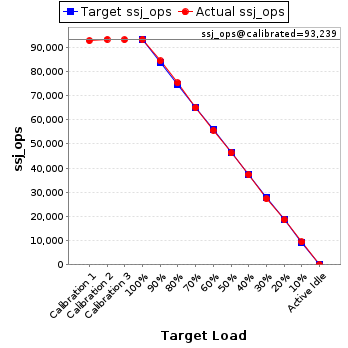

JVM 'WIN-3.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,777
Calibration 2     93,307
Calibration 3     93,172
ssj_ops@calibrated=93,239
100% 100.1% 93,239 93,340
90% 90.5% 83,915 84,391
80% 80.7% 74,591 75,269
70% 69.7% 65,267 65,022
60% 59.8% 55,943 55,743
50% 49.7% 46,620 46,306
40% 40.0% 37,296 37,302
30% 29.3% 27,972 27,339
20% 20.0% 18,648 18,624
10% 10.1% 9,324 9,394
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,569
Calibration 2     96,073
Calibration 3     95,975
ssj_ops@calibrated=96,024
100% 100.0% 96,024 95,997
90% 89.3% 86,422 85,726
80% 79.8% 76,819 76,650
70% 69.6% 67,217 66,831
60% 60.5% 57,614 58,047
50% 50.3% 48,012 48,316
40% 40.6% 38,410 38,989
30% 30.2% 28,807 28,982
20% 20.2% 19,205 19,362
10% 10.1% 9,602 9,732
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,746
Calibration 2     98,322
Calibration 3     98,632
ssj_ops@calibrated=98,477
100% 99.9% 98,477 98,370
90% 89.3% 88,630 87,912
80% 79.0% 78,782 77,764
70% 71.2% 68,934 70,118
60% 59.0% 59,086 58,101
50% 50.7% 49,239 49,921
40% 40.6% 39,391 40,018
30% 29.9% 29,543 29,420
20% 20.2% 19,695 19,856
10% 9.9% 9,848 9,795
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,289
Calibration 2     97,847
Calibration 3     97,666
ssj_ops@calibrated=97,756
100% 100.1% 97,756 97,848
90% 90.2% 87,981 88,142
80% 80.2% 78,205 78,379
70% 69.8% 68,429 68,224
60% 60.7% 58,654 59,320
50% 50.1% 48,878 48,985
40% 39.6% 39,103 38,728
30% 29.8% 29,327 29,127
20% 20.4% 19,551 19,991
10% 9.9% 9,776 9,720
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,431
Calibration 2     98,722
Calibration 3     98,685
ssj_ops@calibrated=98,703
100% 100.1% 98,703 98,754
90% 90.7% 88,833 89,509
80% 79.9% 78,963 78,855
70% 70.4% 69,092 69,451
60% 59.4% 59,222 58,655
50% 49.4% 49,352 48,784
40% 40.1% 39,481 39,604
30% 29.7% 29,611 29,311
20% 19.7% 19,741 19,433
10% 9.9% 9,870 9,779
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,121
Calibration 2     98,000
Calibration 3     97,959
ssj_ops@calibrated=97,979
100% 99.7% 97,979 97,688
90% 90.4% 88,182 88,576
80% 79.8% 78,384 78,152
70% 71.1% 68,586 69,687
60% 60.4% 58,788 59,222
50% 50.8% 48,990 49,745
40% 40.1% 39,192 39,259
30% 30.3% 29,394 29,707
20% 19.4% 19,596 19,011
10% 9.9% 9,798 9,711
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,538
Calibration 2     97,820
Calibration 3     97,933
ssj_ops@calibrated=97,877
100% 100.3% 97,877 98,125
90% 89.2% 88,089 87,263
80% 79.4% 78,301 77,742
70% 69.4% 68,514 67,917
60% 59.1% 58,726 57,810
50% 49.7% 48,938 48,688
40% 40.2% 39,151 39,394
30% 29.4% 29,363 28,807
20% 19.9% 19,575 19,501
10% 9.6% 9,788 9,385
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,732
Calibration 2     98,178
Calibration 3     98,498
ssj_ops@calibrated=98,338
100% 100.0% 98,338 98,358
90% 90.5% 88,504 88,985
80% 79.4% 78,671 78,119
70% 69.9% 68,837 68,777
60% 59.2% 59,003 58,265
50% 49.6% 49,169 48,769
40% 40.9% 39,335 40,184
30% 30.0% 29,501 29,465
20% 20.2% 19,668 19,858
10% 10.2% 9,834 10,042
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,089
Calibration 2     97,420
Calibration 3     97,696
ssj_ops@calibrated=97,558
100% 98.9% 97,558 96,439
90% 88.8% 87,802 86,626
80% 81.4% 78,046 79,387
70% 70.0% 68,291 68,244
60% 59.5% 58,535 57,998
50% 50.1% 48,779 48,877
40% 40.4% 39,023 39,421
30% 30.0% 29,267 29,275
20% 19.9% 19,512 19,455
10% 10.0% 9,756 9,792
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,828
Calibration 2     95,475
Calibration 3     95,573
ssj_ops@calibrated=95,524
100% 100.4% 95,524 95,864
90% 90.7% 85,972 86,659
80% 80.1% 76,419 76,562
70% 69.8% 66,867 66,660
60% 60.2% 57,314 57,460
50% 50.8% 47,762 48,546
40% 40.2% 38,210 38,362
30% 30.1% 28,657 28,763
20% 19.9% 19,105 19,028
10% 10.2% 9,552 9,787
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,125
Calibration 2     95,951
Calibration 3     95,603
ssj_ops@calibrated=95,777
100% 99.8% 95,777 95,618
90% 88.9% 86,199 85,124
80% 80.0% 76,622 76,613
70% 69.6% 67,044 66,628
60% 59.6% 57,466 57,055
50% 50.7% 47,889 48,581
40% 39.9% 38,311 38,189
30% 29.9% 28,733 28,682
20% 19.7% 19,155 18,887
10% 10.2% 9,578 9,800
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

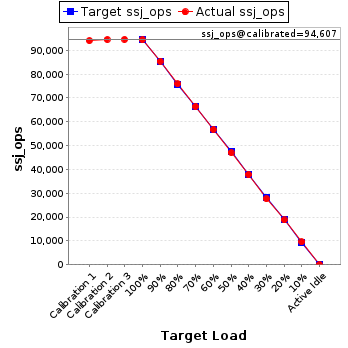

JVM 'WIN-3.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,090
Calibration 2     94,574
Calibration 3     94,640
ssj_ops@calibrated=94,607
100% 99.8% 94,607 94,444
90% 90.3% 85,146 85,455
80% 80.2% 75,686 75,913
70% 70.3% 66,225 66,528
60% 60.0% 56,764 56,801
50% 49.7% 47,304 47,044
40% 40.1% 37,843 37,902
30% 29.2% 28,382 27,658
20% 19.8% 18,921 18,770
10% 10.1% 9,461 9,568
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

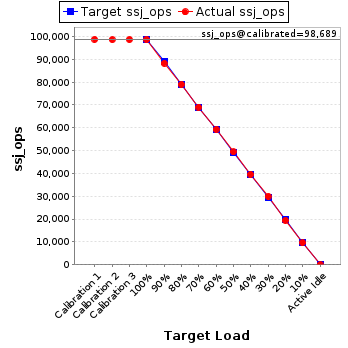

JVM 'WIN-3.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,794
Calibration 2     98,657
Calibration 3     98,721
ssj_ops@calibrated=98,689
100% 100.0% 98,689 98,725
90% 89.5% 88,820 88,327
80% 80.1% 78,951 79,060
70% 70.0% 69,082 69,093
60% 60.2% 59,213 59,363
50% 50.1% 49,344 49,437
40% 40.1% 39,476 39,621
30% 30.4% 29,607 30,028
20% 19.7% 19,738 19,487
10% 9.8% 9,869 9,702
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,040
Calibration 2     96,210
Calibration 3     96,370
ssj_ops@calibrated=96,290
100% 99.8% 96,290 96,086
90% 91.0% 86,661 87,652
80% 79.3% 77,032 76,362
70% 69.9% 67,403 67,342
60% 60.5% 57,774 58,268
50% 49.7% 48,145 47,860
40% 39.7% 38,516 38,226
30% 30.2% 28,887 29,100
20% 19.9% 19,258 19,135
10% 9.7% 9,629 9,321
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,290
Calibration 2     95,824
Calibration 3     96,001
ssj_ops@calibrated=95,912
100% 99.7% 95,912 95,593
90% 90.3% 86,321 86,634
80% 80.6% 76,730 77,320
70% 69.8% 67,139 66,945
60% 60.4% 57,547 57,935
50% 49.6% 47,956 47,556
40% 39.6% 38,365 37,981
30% 29.2% 28,774 27,997
20% 19.8% 19,182 18,950
10% 10.2% 9,591 9,808
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,870
Calibration 2     98,261
Calibration 3     98,110
ssj_ops@calibrated=98,186
100% 100.0% 98,186 98,146
90% 90.2% 88,367 88,537
80% 81.2% 78,549 79,757
70% 69.5% 68,730 68,264
60% 59.7% 58,912 58,636
50% 50.3% 49,093 49,351
40% 40.1% 39,274 39,332
30% 30.0% 29,456 29,461
20% 20.4% 19,637 20,066
10% 9.7% 9,819 9,543
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,751
Calibration 2     98,946
Calibration 3     99,137
ssj_ops@calibrated=99,041
100% 99.8% 99,041 98,794
90% 91.6% 89,137 90,769
80% 79.9% 79,233 79,138
70% 70.4% 69,329 69,683
60% 60.2% 59,425 59,632
50% 49.0% 49,521 48,578
40% 40.2% 39,617 39,855
30% 29.9% 29,712 29,662
20% 19.9% 19,808 19,698
10% 9.9% 9,904 9,791
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

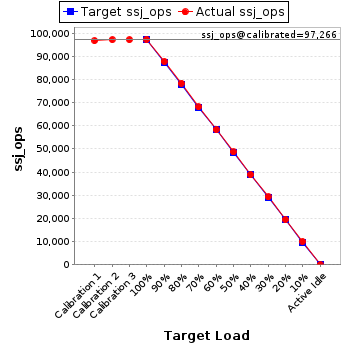

JVM 'WIN-3.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,825
Calibration 2     97,282
Calibration 3     97,250
ssj_ops@calibrated=97,266
100% 100.2% 97,266 97,432
90% 90.4% 87,539 87,891
80% 80.7% 77,813 78,492
70% 70.1% 68,086 68,175
60% 60.1% 58,360 58,453
50% 50.1% 48,633 48,697
40% 40.0% 38,906 38,876
30% 30.1% 29,180 29,298
20% 20.1% 19,453 19,552
10% 10.3% 9,727 10,060
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

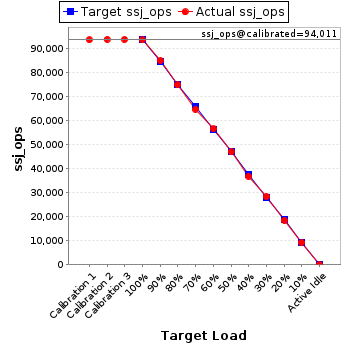

JVM 'WIN-3.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,805
Calibration 2     94,032
Calibration 3     93,991
ssj_ops@calibrated=94,011
100% 99.7% 94,011 93,751
90% 90.7% 84,610 85,253
80% 79.7% 75,209 74,966
70% 69.0% 65,808 64,864
60% 60.3% 56,407 56,712
50% 50.0% 47,006 47,038
40% 39.3% 37,605 36,944
30% 30.4% 28,203 28,533
20% 19.8% 18,802 18,584
10% 9.9% 9,401 9,300
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,080
Calibration 2     97,534
Calibration 3     97,618
ssj_ops@calibrated=97,576
100% 99.5% 97,576 97,120
90% 90.0% 87,818 87,848
80% 79.2% 78,061 77,261
70% 70.1% 68,303 68,424
60% 59.7% 58,545 58,300
50% 50.6% 48,788 49,344
40% 39.7% 39,030 38,750
30% 30.1% 29,273 29,359
20% 20.0% 19,515 19,527
10% 9.6% 9,758 9,353
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,907
Calibration 2     95,347
Calibration 3     95,295
ssj_ops@calibrated=95,321
100% 99.9% 95,321 95,235
90% 90.7% 85,789 86,455
80% 79.6% 76,257 75,859
70% 70.0% 66,724 66,737
60% 59.4% 57,192 56,634
50% 50.5% 47,660 48,136
40% 40.0% 38,128 38,114
30% 29.8% 28,596 28,430
20% 20.3% 19,064 19,392
10% 9.6% 9,532 9,116
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,925
Calibration 2     96,955
Calibration 3     97,077
ssj_ops@calibrated=97,016
100% 100.1% 97,016 97,150
90% 90.3% 87,314 87,582
80% 79.7% 77,613 77,330
70% 69.9% 67,911 67,812
60% 60.4% 58,209 58,607
50% 50.6% 48,508 49,058
40% 40.2% 38,806 39,027
30% 30.9% 29,105 29,965
20% 19.7% 19,403 19,066
10% 9.9% 9,702 9,612
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,929
Calibration 2     97,924
Calibration 3     98,273
ssj_ops@calibrated=98,099
100% 100.0% 98,099 98,060
90% 89.8% 88,289 88,114
80% 79.7% 78,479 78,180
70% 69.7% 68,669 68,401
60% 59.7% 58,859 58,612
50% 49.5% 49,049 48,535
40% 39.5% 39,239 38,723
30% 29.6% 29,430 29,065
20% 20.4% 19,620 20,043
10% 10.0% 9,810 9,841
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,361
Calibration 2     97,594
Calibration 3     97,648
ssj_ops@calibrated=97,621
100% 99.6% 97,621 97,249
90% 88.9% 87,859 86,759
80% 79.6% 78,097 77,679
70% 69.5% 68,335 67,895
60% 60.6% 58,573 59,137
50% 49.6% 48,810 48,437
40% 39.5% 39,048 38,512
30% 29.5% 29,286 28,772
20% 20.3% 19,524 19,806
10% 9.9% 9,762 9,637
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,908
Calibration 2     96,897
Calibration 3     96,999
ssj_ops@calibrated=96,948
100% 99.7% 96,948 96,682
90% 89.9% 87,253 87,147
80% 81.3% 77,558 78,863
70% 70.0% 67,864 67,832
60% 59.2% 58,169 57,347
50% 50.3% 48,474 48,743
40% 40.7% 38,779 39,432
30% 29.8% 29,084 28,926
20% 20.0% 19,390 19,435
10% 10.2% 9,695 9,887
Active Idle   0 0

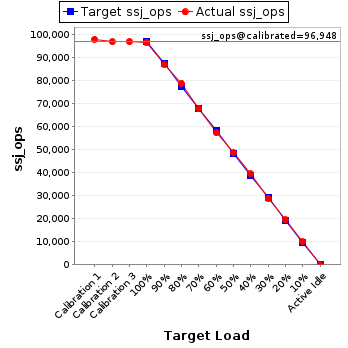

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,101
Calibration 2     97,818
Calibration 3     98,017
ssj_ops@calibrated=97,917
100% 99.6% 97,917 97,539
90% 89.4% 88,126 87,585
80% 80.4% 78,334 78,698
70% 69.5% 68,542 68,092
60% 59.8% 58,750 58,588
50% 49.8% 48,959 48,751
40% 39.8% 39,167 38,981
30% 30.0% 29,375 29,337
20% 20.6% 19,583 20,216
10% 9.9% 9,792 9,742
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,067
Calibration 2     97,736
Calibration 3     97,597
ssj_ops@calibrated=97,666
100% 99.1% 97,666 96,779
90% 90.9% 87,900 88,827
80% 80.1% 78,133 78,278
70% 70.5% 68,367 68,866
60% 60.5% 58,600 59,065
50% 50.3% 48,833 49,128
40% 39.4% 39,067 38,443
30% 29.8% 29,300 29,114
20% 19.5% 19,533 19,047
10% 9.8% 9,767 9,594
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,367
Calibration 2     98,305
Calibration 3     98,316
ssj_ops@calibrated=98,311
100% 99.6% 98,311 97,893
90% 90.1% 88,480 88,601
80% 80.0% 78,649 78,643
70% 70.0% 68,817 68,800
60% 59.9% 58,986 58,910
50% 50.9% 49,155 50,020
40% 40.0% 39,324 39,360
30% 30.3% 29,493 29,749
20% 19.9% 19,662 19,528
10% 10.0% 9,831 9,849
Active Idle   0 0

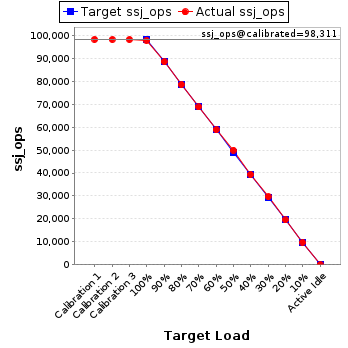

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,304
Calibration 2     96,839
Calibration 3     96,900
ssj_ops@calibrated=96,869
100% 100.0% 96,869 96,856
90% 89.4% 87,182 86,612
80% 80.3% 77,495 77,768
70% 70.5% 67,808 68,305
60% 60.7% 58,121 58,825
50% 50.5% 48,435 48,913
40% 40.0% 38,748 38,717
30% 29.7% 29,061 28,817
20% 20.3% 19,374 19,672
10% 10.2% 9,687 9,902
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,379
Calibration 2     96,051
Calibration 3     95,706
ssj_ops@calibrated=95,879
100% 99.7% 95,879 95,626
90% 89.5% 86,291 85,848
80% 80.2% 76,703 76,862
70% 70.1% 67,115 67,245
60% 61.4% 57,527 58,878
50% 49.8% 47,939 47,755
40% 39.4% 38,351 37,802
30% 31.0% 28,764 29,725
20% 19.9% 19,176 19,088
10% 10.0% 9,588 9,587
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,824
Calibration 2     97,341
Calibration 3     97,365
ssj_ops@calibrated=97,353
100% 99.9% 97,353 97,240
90% 89.8% 87,617 87,440
80% 80.1% 77,882 78,027
70% 71.0% 68,147 69,128
60% 58.9% 58,412 57,353
50% 49.6% 48,676 48,324
40% 39.7% 38,941 38,648
30% 30.7% 29,206 29,878
20% 20.0% 19,471 19,480
10% 10.1% 9,735 9,809
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,232
Calibration 2     97,641
Calibration 3     98,089
ssj_ops@calibrated=97,865
100% 99.1% 97,865 96,965
90% 90.0% 88,078 88,095
80% 79.5% 78,292 77,784
70% 69.6% 68,505 68,129
60% 60.3% 58,719 59,010
50% 50.1% 48,932 49,015
40% 39.6% 39,146 38,775
30% 29.4% 29,359 28,787
20% 19.9% 19,573 19,507
10% 10.0% 9,786 9,825
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,447
Calibration 2     94,672
Calibration 3     94,876
ssj_ops@calibrated=94,774
100% 100.2% 94,774 95,000
90% 90.2% 85,296 85,495
80% 80.5% 75,819 76,291
70% 69.1% 66,342 65,536
60% 59.7% 56,864 56,547
50% 50.2% 47,387 47,544
40% 39.6% 37,910 37,544
30% 30.0% 28,432 28,436
20% 19.5% 18,955 18,442
10% 9.9% 9,477 9,429
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,147
Calibration 2     96,858
Calibration 3     97,421
ssj_ops@calibrated=97,139
100% 100.1% 97,139 97,229
90% 89.9% 87,425 87,311
80% 79.5% 77,711 77,178
70% 70.6% 67,997 68,589
60% 59.8% 58,284 58,052
50% 49.3% 48,570 47,935
40% 39.4% 38,856 38,294
30% 29.8% 29,142 28,956
20% 20.2% 19,428 19,618
10% 10.1% 9,714 9,827
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,588
Calibration 2     95,146
Calibration 3     95,268
ssj_ops@calibrated=95,207
100% 100.3% 95,207 95,454
90% 89.4% 85,686 85,104
80% 80.0% 76,166 76,150
70% 70.3% 66,645 66,945
60% 60.3% 57,124 57,441
50% 48.9% 47,603 46,579
40% 40.7% 38,083 38,707
30% 30.6% 28,562 29,180
20% 20.2% 19,041 19,262
10% 9.9% 9,521 9,387
Active Idle   0 0

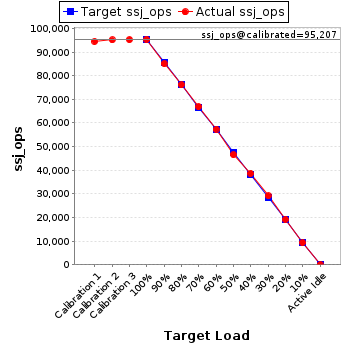

Graph of results
See the JVM Instance Performance Report for additional details.
