Hewlett Packard Enterprise Synergy 480 Gen10 Plus Compute Module ssj_ops@100% = 101,434
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Jan 12, 2022
Hardware Availability: Apr-2021 Software Availability: Apr-2021 Publication: Feb 16, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,973
Calibration 2     101,766
Calibration 3     102,055
ssj_ops@calibrated=101,910
100% 99.5% 101,910 101,434
90% 89.0% 91,719 90,740
80% 79.0% 81,528 80,477
70% 70.6% 71,337 71,933
60% 59.7% 61,146 60,825
50% 50.0% 50,955 50,932
40% 40.5% 40,764 41,256
30% 29.3% 30,573 29,887
20% 20.6% 20,382 20,971
10% 9.8% 10,191 10,021
Active Idle   0 0

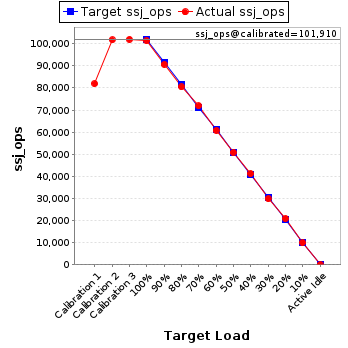

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 8
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Plus Compute Module
Form Factor: Blade
CPU Name: Intel Xeon Platinum 8380 CPU @ 2.30GHz
CPU Characteristics: 40-Core, 2.30 GHz, 60MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 80 cores, 2 chips, 40 cores/chip
Hardware Threads: 160 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 x 16GB 2Rx8 PC4-3200-T; slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: HPE 240GB SATA 6G Read Intensive SFF (P18420-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 4820C 10/20/25Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP2
OS Version: 5.3.18-22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 80 }
JVM Instances: 80
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: I44 v1.40 (03/05/2021)
Management Firmware Version: 2.40 pass 31 Jan 05 2021
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 5,961,776 1,384
Payment 5,961,776
Order Status 596,178
Delivery 596,177
Stock Level 596,178
Customer Report 5,961,775
Calibration 2 New Order 7,401,378 1,384
Payment 7,401,374
Order Status 740,137
Delivery 740,138
Stock Level 740,138
Customer Report 7,401,376
Calibration 3 New Order 7,422,476 1,384
Payment 7,422,478
Order Status 742,249
Delivery 742,249
Stock Level 742,248
Customer Report 7,422,476
100% 99.5% New Order 7,377,338 1,384
Payment 7,377,339
Order Status 737,734
Delivery 737,734
Stock Level 737,733
Customer Report 7,377,336
90% 89.0% New Order 6,599,453 1,384
Payment 6,599,453
Order Status 659,945
Delivery 659,944
Stock Level 659,944
Customer Report 6,599,455
80% 79.0% New Order 5,853,095 1,384
Payment 5,853,102
Order Status 585,309
Delivery 585,310
Stock Level 585,311
Customer Report 5,853,094
70% 70.6% New Order 5,231,560 1,384
Payment 5,231,556
Order Status 523,155
Delivery 523,155
Stock Level 523,155
Customer Report 5,231,556
60% 59.7% New Order 4,423,745 1,384
Payment 4,423,740
Order Status 442,374
Delivery 442,375
Stock Level 442,375
Customer Report 4,423,744
50% 50.0% New Order 3,704,199 1,384
Payment 3,704,201
Order Status 370,420
Delivery 370,421
Stock Level 370,421
Customer Report 3,704,203
40% 40.5% New Order 3,000,507 1,384
Payment 3,000,507
Order Status 300,051
Delivery 300,050
Stock Level 300,051
Customer Report 3,000,510
30% 29.3% New Order 2,173,635 1,384
Payment 2,173,637
Order Status 217,362
Delivery 217,364
Stock Level 217,364
Customer Report 2,173,634
20% 20.6% New Order 1,525,312 1,384
Payment 1,525,305
Order Status 152,531
Delivery 152,531
Stock Level 152,531
Customer Report 1,525,311
10% 9.8% New Order 728,787 1,384
Payment 728,791
Order Status 72,879
Delivery 72,879
Stock Level 72,879
Customer Report 728,785
Active Idle New Order 0 1,384
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
