SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2022 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant DL325 Gen11 | SPECpower_ssj2008 = 20,294 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Oct 24, 2022 |
| Hardware Availability: | Dec-2022 | Software Availability: | Dec-2022 | Publication: | Nov 10, 2022 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

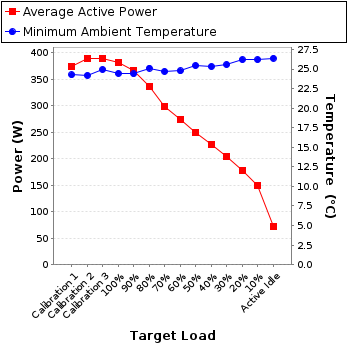

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 375 | 24.2 |
| Calibration 2 | 388 | 24.2 |
| Calibration 3 | 390 | 24.9 |
| 100% | 381 | 24.4 |
| 90% | 366 | 24.4 |
| 80% | 336 | 25.1 |
| 70% | 298 | 24.7 |
| 60% | 274 | 24.8 |
| 50% | 250 | 25.4 |
| 40% | 227 | 25.3 |
| 30% | 204 | 25.6 |
| 20% | 178 | 26.2 |
| 10% | 149 | 26.2 |
| Active Idle | 72.5 | 26.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91GC21887 |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-GU3Q4-120-1 |
| Date of Calibration: | 14-Jun-2022 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.9.2-3976349f-20201208 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |

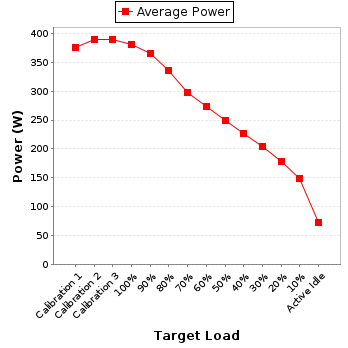

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 210 | 300.0 | 1.85 | 5.0 | 0.964 | 375 | 0.6% |
| Calibration 2 | 211 | 300.0 | 1.91 | 5.0 | 0.966 | 388 | 0.6% |
| Calibration 3 | 211 | 300.0 | 1.91 | 5.0 | 0.966 | 390 | 0.6% |
| 100% | 211 | 300.0 | 1.87 | 5.0 | 0.965 | 381 | 0.6% |
| 90% | 211 | 300.0 | 1.80 | 5.0 | 0.963 | 366 | 0.6% |
| 80% | 212 | 300.0 | 1.66 | 2.0 | 0.956 | 336 | 0.4% |
| 70% | 211 | 300.0 | 1.49 | 2.0 | 0.946 | 298 | 0.4% |
| 60% | 212 | 300.0 | 1.38 | 2.0 | 0.938 | 274 | 0.4% |
| 50% | 212 | 300.0 | 1.27 | 2.0 | 0.927 | 250 | 0.5% |
| 40% | 212 | 300.0 | 1.17 | 2.0 | 0.917 | 227 | 0.5% |
| 30% | 212 | 300.0 | 1.07 | 2.0 | 0.900 | 204 | 0.5% |
| 20% | 212 | 300.0 | 0.956 | 1.0 | 0.875 | 178 | 0.4% |
| 10% | 211 | 300.0 | 0.847 | 1.0 | 0.835 | 149 | 0.5% |
| Active Idle | 211 | 300.0 | 0.579 | 1.0 | 0.592 | 72.5 | 0.8% |
