SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2023 Standard Performance Evaluation Corporation
| ASUSTeK Computer Inc. RS720A-E12-RS12 | SPECpower_ssj2008 = 34,294 overall ssj_ops/watt | ||||
| Test Sponsor: | ASUSTeK Computer Inc. | SPEC License #: | 9016 | Test Method: | Single Node |
| Tested By: | ASUSTeK Computer Inc. | Test Location: | Taipei, Taiwan. | Test Date: | May 29, 2023 |
| Hardware Availability: | Jun-2023 | Software Availability: | Apr-2023 | Publication: | Jun 21, 2023 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

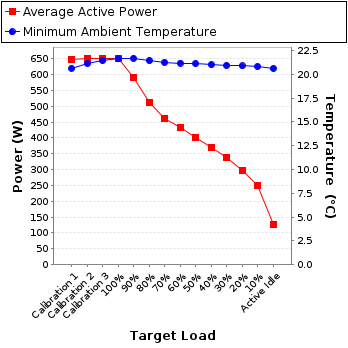

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 648 | 20.6 |
| Calibration 2 | 651 | 21.1 |
| Calibration 3 | 652 | 21.4 |
| 100% | 652 | 21.6 |
| 90% | 590 | 21.7 |
| 80% | 511 | 21.4 |
| 70% | 462 | 21.2 |
| 60% | 433 | 21.2 |
| 50% | 402 | 21.1 |
| 40% | 369 | 21.0 |
| 30% | 338 | 20.9 |
| 20% | 297 | 20.9 |
| 10% | 249 | 20.8 |
| Active Idle | 126 | 20.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA, Inc. |
| Model: | WT210 |
| Serial Number: | 91J615902 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | National Measurement Laboratory of the R.O.C. |
| Accredited by: | OMNIO Calibration Laboratory Ltd. |
| Calibration Label: | OCL-220624F02901 |
| Date of Calibration: | 24-Jun-2022 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | Connected to PSU1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | placed in front the main airflow inlet of the SUT less than 50 mm. |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 223 | 300.0 | 2.93 | 5.0 | 0.995 | 648 | 0.4% |
| Calibration 2 | 224 | 300.0 | 2.93 | 5.0 | 0.995 | 651 | 0.4% |
| Calibration 3 | 225 | 300.0 | 2.91 | 5.0 | 0.995 | 652 | 0.4% |
| 100% | 225 | 300.0 | 2.91 | 5.0 | 0.995 | 652 | 0.4% |
| 90% | 225 | 300.0 | 2.63 | 5.0 | 0.995 | 590 | 0.4% |
| 80% | 226 | 300.0 | 2.28 | 5.0 | 0.994 | 511 | 0.5% |
| 70% | 226 | 300.0 | 2.06 | 5.0 | 0.993 | 462 | 0.5% |
| 60% | 226 | 300.0 | 1.93 | 5.0 | 0.993 | 433 | 0.5% |
| 50% | 226 | 300.0 | 1.79 | 5.0 | 0.992 | 402 | 0.5% |
| 40% | 227 | 300.0 | 1.64 | 5.0 | 0.991 | 369 | 0.6% |
| 30% | 227 | 300.0 | 1.51 | 5.0 | 0.990 | 338 | 0.6% |
| 20% | 227 | 300.0 | 1.33 | 2.0 | 0.988 | 297 | 0.4% |
| 10% | 226 | 300.0 | 1.12 | 2.0 | 0.985 | 249 | 0.4% |
| Active Idle | 226 | 300.0 | 0.581 | 2.0 | 0.958 | 126 | 0.7% |
