SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Fujitsu FUJITSU Server PRIMERGY TX1320 M6 | SPECpower_ssj2008 = 10,980 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu | Test Location: | Kawasaki, Kanagawa, Japan | Test Date: | Mar 22, 2024 |
| Hardware Availability: | Apr-2024 | Software Availability: | Aug-2022 | Publication: | Apr 23, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

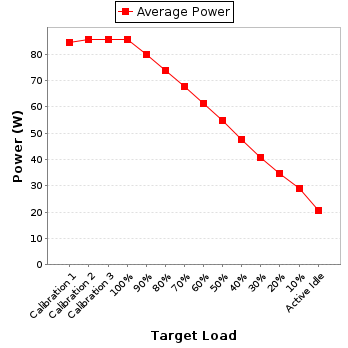

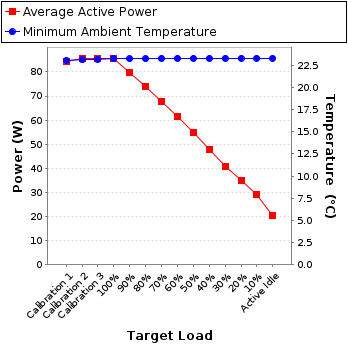

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 84.3 | 23.1 |
| Calibration 2 | 85.5 | 23.1 |
| Calibration 3 | 85.7 | 23.2 |
| 100% | 85.6 | 23.2 |
| 90% | 79.9 | 23.2 |
| 80% | 73.8 | 23.2 |
| 70% | 67.6 | 23.3 |
| 60% | 61.4 | 23.3 |
| 50% | 54.8 | 23.3 |
| 40% | 47.6 | 23.3 |
| 30% | 40.7 | 23.3 |
| 20% | 34.7 | 23.3 |
| 10% | 29.0 | 23.3 |
| Active Idle | 20.6 | 23.3 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Hioki |
| Model: | PW3336 |
| Serial Number: | 170213562 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | AIST (National Institute of Advanced Science and Technology) |
| Accredited by: | Kyosai Technos Co.,Ltd. |
| Calibration Label: | RY236003993 |
| Date of Calibration: | 21-Jun-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.0-a4047d62-20231205 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main air intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 206 | 300.0 | 0.439 | 1.0 | 0.933 | 84.3 | 0.3% |
| Calibration 2 | 206 | 300.0 | 0.444 | 1.0 | 0.933 | 85.5 | 0.3% |
| Calibration 3 | 206 | 300.0 | 0.445 | 1.0 | 0.934 | 85.7 | 0.3% |
| 100% | 206 | 300.0 | 0.445 | 1.0 | 0.933 | 85.6 | 0.3% |
| 90% | 206 | 300.0 | 0.418 | 1.0 | 0.927 | 79.9 | 0.3% |
| 80% | 206 | 300.0 | 0.390 | 1.0 | 0.918 | 73.8 | 0.3% |
| 70% | 206 | 300.0 | 0.362 | 1.0 | 0.907 | 67.6 | 0.4% |
| 60% | 206 | 300.0 | 0.333 | 1.0 | 0.895 | 61.4 | 0.4% |
| 50% | 206 | 300.0 | 0.304 | 1.0 | 0.877 | 54.8 | 0.4% |
| 40% | 206 | 300.0 | 0.271 | 1.0 | 0.854 | 47.6 | 0.5% |
| 30% | 206 | 300.0 | 0.239 | 0.5 | 0.828 | 40.7 | 0.4% |
| 20% | 206 | 300.0 | 0.212 | 0.5 | 0.797 | 34.7 | 0.4% |
| 10% | 206 | 300.0 | 0.188 | 0.5 | 0.751 | 29.0 | 0.5% |
| Active Idle | 206 | 300.0 | 0.154 | 0.5 | 0.648 | 20.6 | 0.6% |
